The global push for a circular economy is fundamentally dependent on high-quality plastic recycling. However, a significant technical bottleneck has long hindered progress: the inability to efficiently and accurately sort black plastics and rubber contaminants from the recycling stream. Traditional methods that rely on optical sensors fail with these materials, leading to downcycling, waste, and lost economic value. This article delves into how X-ray sorting technology provides a powerful solution to this challenge. We will explore the fundamental principles of how X-rays see beyond surface color to identify materials based on their atomic density. You will learn about the enhanced capabilities of dual-energy X-ray systems and the role of artificial intelligence in achieving unprecedented sorting purity. Furthermore, we will examine the tangible benefits for recycling operations and the key factors to consider when implementing this advanced detection technology.
The Purity Bottleneck in Plastic Recycling and the Limits of Conventional Sorting
Achieving high purity in recycled plastic is not just an ideal; it's an economic necessity. Contaminated recycled material, often containing mixed polymers or foreign substances, suffers from inferior mechanical properties and commands a much lower market price. This purity bottleneck directly limits the applications for recycled plastic, often restricting it to low-value products. For decades, the recycling industry has relied heavily on technologies like Near-Infrared (NIR) spectroscopy and density separation. While effective for many tasks, these methods hit a hard ceiling when confronted with specific, yet common, contaminants.
Black Plastics: The "Invisible" Challenge
Black plastics are ubiquitous in consumer goods, found in everything from electronic housings and automotive parts to food packaging. Their dark color is achieved by adding carbon black pigment. This very pigment is what makes them problematic for conventional NIR sorters. NIR technology works by shining infrared light on a material and analyzing the unique spectrum of light that is reflected back. Carbon black is exceptionally effective at absorbing infrared light, leaving almost no signal for the NIR sensor to detect. As a result, black plastic items are effectively "invisible" to these systems.
Historically, the fate of black plastics in the recycling stream has been bleak. Without a reliable method for sorting them by polymer type, they are often diverted to landfill or incineration. When they are mixed into the recycling process, they contaminate entire batches of clear or light-colored plastics, significantly reducing the value of the output and perpetuating a cycle of downcycling.
Rubber Contaminants: A Problem of Deceptive Similarity
Rubber contaminants, originating from sources like tire particles, seals, gaskets, and hoses, are another major hurdle. Visually, rubber pieces can be similar in color and size to certain plastic flakes. Mechanically, they can have comparable weights, making separation by air classifiers or water baths (density separation) difficult and imprecise. This deceptive similarity allows rubber to pass through initial sorting stages.
The consequences of rubber contamination are severe during the reprocessing phase. When melted and extruded, rubber does not blend homogeneously with thermoplastics. It can cause gel formation, uneven coloring, and weak spots in the final recycled pellet or product, leading to breakage and manufacturing defects. This compromises the integrity and reliability of the recycled material, making it unsuitable for demanding applications.
The Technical Ceiling of Optical and Density Sorting
Optical sorters, including color sorters and NIR systems, are fundamentally limited by their dependence on surface properties. They excel at distinguishing materials based on color or specific molecular bonds that reflect light in a characteristic way. However, they cannot peer inside a material to determine its fundamental composition. If two items look the same on the surface, an optical sorter cannot tell them apart.
Density separation, such as sink-float tanks using water or other media, separates materials based on weight. While useful for removing heavy metals or stones, it struggles to separate materials with similar densities. For instance, many common plastics and rubbers have overlapping density ranges, making clean separation impossible. This is why a more fundamental material property is needed for precise sorting, a need met by sensor-based sorting technologies like X-ray.
The Impact on the Circular Economy
This technological limitation has far-reaching implications for the plastic circular economy. Brand owners committed to using recycled content face supply constraints because high-purity recycled plastic is scarce and expensive. The inability to effectively recycle black plastics, which can constitute a significant portion of plastic waste, means a large volume of material is lost from the recycling loop each year. Overcoming this purity bottleneck is therefore not just a technical improvement for recyclers; it is a critical step towards achieving genuine sustainability goals and reducing our reliance on virgin plastics.
The Fundamental Principles of X-ray Sorting: Seeing Beyond the Surface
X-ray sorting represents a paradigm shift from "looking" at materials to "probing" their internal structure. Unlike optical methods, it is indifferent to color, surface texture, or gloss. Instead, it operates on a fundamental physical principle: the interaction of X-ray radiation with the atomic structure of matter. This allows it to differentiate materials based on their innate density and atomic composition, properties that are unique to each material type and cannot be disguised by colorants.
Atomic Density and X-ray Absorption: The Physical Basis
The core principle behind X-ray sorting is the photoelectric effect. When a stream of X-rays passes through a material, some of the radiation is absorbed. The degree of absorption is directly proportional to the material's density and the average atomic number (Z) of its elements. Materials with higher density and heavier atoms (like those containing chlorine in PVC or sulfur in rubber) absorb more X-rays, while less dense materials with lighter atoms (like most hydrocarbons in plastics) allow more X-rays to pass through.
This differential absorption creates a contrast profile. For example, a piece of rubber containing sulfur will absorb more X-rays than a piece of polypropylene plastic. A metal fragment will absorb significantly more. This inherent physical difference is the key that unlocks the sorting of previously problematic materials.
Detectors and Signal Processing: Creating a Density Map
On the opposite side of the material stream from the X-ray source, a highly sensitive detector array captures the remaining X-ray energy after it has passed through the materials. This detector converts the X-ray photons into electrical signals. Sophisticated signal processing electronics then amplify and digitize these signals.
The result is a real-time, high-resolution grayscale image of the material on the conveyor belt. In this image, the brightness of each pixel corresponds directly to the density of the material at that point. Dense contaminants like metals, glass, and rubber appear as bright white spots, while target plastics appear in shades of gray. This density map is the primary data used for making sorting decisions.
The Enhanced Power of Dual-Energy X-ray Technology
Standard single-energy X-ray systems are very effective, but their capability can be enhanced further with Dual-Energy X-ray technology. This advanced system emits X-rays at two different energy levels simultaneously. Different materials absorb low-energy and high-energy X-rays in distinct ways.
By analyzing the ratio of absorption between the two energy levels, the system can determine the "effective atomic number" of the material with greater accuracy. This is particularly useful for distinguishing between plastics that have very similar densities, such as ABS and PS, or for more reliably identifying specific contaminants like rubber, which has a distinct atomic signature. This technology provides a richer dataset, leading to even higher sorting purity. This level of analysis is a hallmark of modern AI-powered sorting systems.
From Image to Action: The Ejection System
Once the system's processing unit identifies an unwanted particle based on its density signature, it triggers a rejection mechanism. The precise location of the contaminant is tracked as it moves on the conveyor belt. When it reaches the ejection array, a bank of high-speed, solenoid-controlled air nozzles fires a brief, precise burst of compressed air.
The timing of this ejection is critical and must be incredibly fast, often with precision in the millisecond range. This high-speed ejection system knocks the contaminant out of the product stream into a separate collection chute, while the valuable target material continues its path uninterrupted. This entire process, from scanning to ejection, happens in a fraction of a second, allowing the system to operate at high throughput rates.
Why X-ray Sorters Excel at Identifying Black Plastics and Rubber
The ability of X-ray sorters to tackle the specific challenges of black plastics and rubber stems directly from their fundamental operating principle. They bypass the limitations of surface-based analysis and instead interact with the core material properties, making color irrelevant and highlighting compositional differences.
Penetrating the Surface: Seeing the True Material
For black plastics, the carbon black pigment that renders them invisible to NIR light is virtually transparent to X-rays. The X-rays pass through the pigment and interact with the underlying polymer matrix. Therefore, a black PET bottle will exhibit the same density signature as a clear PET bottle. The sorter can accurately identify it as PET and sort it accordingly, finally allowing black plastics to be effectively recycled by polymer type. This capability is central to specialized black plastic sorting machines.
Clear Density Differences: The Rubber Advantage
Rubber contaminants, such as EPDM or SBR, typically have a higher density than common plastics like Polypropylene (PP) or Polyethylene (PE). For instance, PP has a density of around 0.9 g/cm³, while many rubbers range from 1.1 to 1.3 g/cm³. Furthermore, rubber often contains sulfur-based vulcanizing agents and other additives that include elements with a higher atomic number than the carbon and hydrogen found in plastics.
This combination of higher density and the presence of heavier atoms causes rubber to absorb significantly more X-rays. In the X-ray image, rubber particles stand out as bright, high-contrast objects against the darker background of the plastic stream, making them easy for the system to detect and reject with high accuracy.
Distinguishing Density-Close Polymers: The ABS vs. PS Example
Even when colors are identical, X-ray sorters can separate polymers with similar densities. Acrylonitrile Butadiene Styrene (ABS) and Polystyrene (PS) are a classic example. While their densities overlap, advanced X-ray systems, particularly dual-energy models, can analyze their effective atomic number. The nitrile group in ABS contains nitrogen, which has a slightly different absorption characteristic than the hydrocarbons in PS.
This subtle difference allows the system to differentiate between them, ensuring that a stream of recycled ABS is not contaminated with PS, which would otherwise degrade the quality of the recycled material. This precision is crucial for producing high-value, monopolymer recycled streams.
Handling Complex Contaminants in a Single Pass
A significant operational advantage of X-ray sorting is its ability to remove a wide range of contaminants simultaneously. While the primary focus might be on black plastics and rubber, the same system will also effectively eject other high-density materials that are common in plastic waste streams. This includes metal fragments, glass, stones, and even certain other plastics like PVC.
This multi-contaminant removal capability simplifies the recycling line, often reducing the need for multiple dedicated sorting stages. It ensures a higher final purity from a single processing step, boosting overall efficiency and output quality for complex waste sorting applications.
The AI Advantage: Enhancing Precision and Adaptability in X-ray Sorting
While the physics of X-ray detection provides a powerful tool, the integration of Artificial Intelligence (AI) and machine learning elevates X-ray sorters to a new level of performance. AI transforms these machines from static analyzers into dynamic, learning systems that continuously improve their accuracy and adapt to changing material conditions.
Machine Learning Algorithms and Defect Libraries
Traditional X-ray sorters rely on operators setting fixed density thresholds to define what is a "good" product and what is a "contaminant." AI-powered systems, however, are trained using vast libraries of X-ray images. Thousands of images of both acceptable materials and various contaminants (different types of rubber, black plastics, metals, etc.) are fed into a neural network.
The algorithm learns the subtle visual patterns and density profiles associated with each type of defect. Over time, it builds a sophisticated model that can identify contaminants based on a complex set of features, not just a simple density value. This allows it to recognize irregularly shaped rubber pieces or black plastic fragments even if their density is very close to that of the target material.
Dynamic Adaptation to Material Variations
Recycled material streams are inherently variable. Feedstock can come from different sources, leading to fluctuations in material thickness, surface moisture, or even slight variations in polymer composition. A rigid, threshold-based system might generate many false rejects (ejecting good material) or missed rejects (failing to eject contaminants) when faced with these variations.
An AI system dynamically adapts to these changes. It can recognize that the overall density profile of the stream has shifted slightly and adjust its internal model accordingly, maintaining high sorting accuracy without requiring constant manual recalibration by an operator. This intelligence is a key feature of a modern belt-type AI sorting machine.
Continuous Learning and Optimization
One of the most powerful aspects of AI is its ability to learn continuously. In many systems, operators can provide feedback on the sorting results. If the machine makes an error, the operator can correct it, and this correction is fed back into the algorithm as a new data point.
This feedback loop means that the sorter becomes more accurate the longer it operates on a specific material stream. It learns the unique characteristics of the specific recycling plant's feedstock, effectively becoming a custom-tuned solution for that facility. This leads to a consistently improving purity rate over time.
Reducing Reliance on Operator Expertise
Setting up and optimizing a traditional sorter requires significant technical expertise. AI simplifies this process immensely. The software can often automatically suggest optimal settings based on the material being processed. Intuitive user interfaces guide operators through the process, making it easier to achieve peak performance.
This democratization of expertise allows recycling facilities to maintain high efficiency even with less experienced staff, reducing operational costs and minimizing downtime associated with complex setup procedures. The precision and acceleration of the sorting process are thus maintained consistently.
Core Benefits of Integrating X-ray Sorters for Plastic Recyclers
The adoption of X-ray sorting technology translates into direct and significant benefits for plastic recycling operations. These advantages impact the bottom line, operational efficiency, and strategic positioning within the growing circular economy.
Significantly Enhanced Output Purity and Market Value

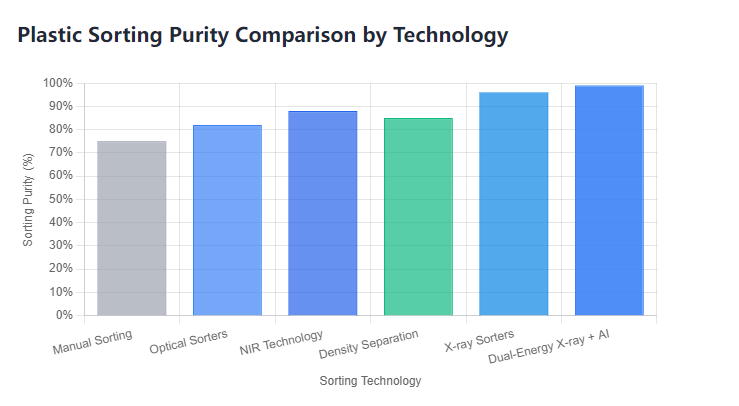

The most immediate benefit is a dramatic increase in the purity of the sorted plastic output. Where traditional methods might achieve 90-95% purity for complex streams, X-ray sorters can consistently achieve purities of 99% or higher. This leap in quality is a game-changer for marketability.
High-purity recycled plastic can meet the stringent specifications of major brand owners for use in new products, commanding a price premium over lower-grade recycled material. It opens up markets in sensitive applications like food-contact packaging or high-performance automotive parts, transforming recycled plastic from a commodity into a valued engineering material.
Expanding the Scope of Recyclable Materials
X-ray sorting effectively unlocks new feedstock sources for recyclers. The large and previously non-recyclable stream of black plastics becomes a valuable raw material. This not only increases the volume of material available for recycling but also can lower acquisition costs, as suppliers may pay to have this difficult-to-handle material processed.
Furthermore, recyclers can confidently accept more contaminated bales of plastic, knowing they have the technology to extract high-value polymers cleanly. This competitive advantage allows them to source material more aggressively and increase their overall throughput. This is particularly valuable in e-waste sorting, where plastic types are highly mixed.
Reducing Operational Costs Through Automation
X-ray sorters operate at high speeds, typically processing several tons of material per hour, far exceeding the capability of manual sorting. This automation drastically reduces reliance on large teams of manual sorters, leading to significant savings in labor costs, associated management, and improved workplace safety.
The consistency and reliability of an automated system also mean higher overall equipment effectiveness (OEE). The line can operate continuously with a predictable output quality, minimizing disruptions and maximizing production capacity. This high-volume processing is a characteristic of industrial-scale belt-type X-ray sorting machines.
Improved Return on Investment (ROI) and Sustainability Metrics
While the initial capital investment in X-ray sorting technology is significant, the return on investment can be compelling. The combination of selling a higher-value product, processing a greater volume of material, and reducing operating costs leads to a strong financial case.
Beyond financial ROI, the technology delivers a substantial sustainability ROI. It diverts more plastic from landfills, reduces the need for virgin plastic production, and helps companies meet their Environmental, Social, and Governance (ESG) targets. This enhanced corporate responsibility profile is increasingly important to investors, customers, and regulators.
Selecting the Right X-ray Sorter for Your Recycling Operation
Choosing an X-ray sorter is a significant decision. A careful evaluation based on your specific operational needs will ensure you select a system that delivers optimal performance and return on investment. The goal is to match the machine's capabilities to your unique material challenges and production goals.
Analyzing Your Feedstock Characteristics
The first and most critical step is a thorough analysis of the material you intend to process. What are the primary target polymers you want to recover? What are the most problematic contaminants? Is the stream predominantly black plastics, or is it a mixed-color stream with rubber contamination? Understanding the composition, particle size distribution, and moisture content of your feedstock is essential for selecting a machine with the appropriate scanning area, resolution, and processing power.
Determining Technical Specifications: Single-Energy vs. Dual-Energy
Your material analysis will guide the choice between a single-energy and a dual-energy X-ray system. For many applications, such as removing obvious contaminants like metals and rubber from a stream of PET or HDPE, a single-energy system may be perfectly adequate and more cost-effective.
However, if your goal is to separate polymers with very similar densities (like ABS from PS) or to achieve the absolute highest purity levels in a challenging stream, the investment in a dual-energy system is justified. Key parameters to compare include the minimum detectable particle size, the belt width (which dictates throughput), and the number and configuration of ejection nozzles.
Evaluating the AI Software and Supplier Support
The hardware is only one part of the system. The sophistication and user-friendliness of the AI software are equally important. A good software interface will make it easy to set up sorting programs, visualize the sorting process, and access performance data. Robust supplier support is non-negotiable.
This includes comprehensive installation, training for your operators, and reliable after-sales service. The availability of remote diagnostics and support can minimize downtime. Ensure the supplier has a proven track record and can provide references from similar recycling operations. This level of support is crucial for complex sorting solutions across industries.
Calculating the Total Cost of Ownership (TCO)
Look beyond the initial purchase price to understand the Total Cost of Ownership. Consider factors such as energy consumption, the cost and lifespan of consumable parts like air nozzles and filters, scheduled maintenance requirements, and potential costs for software updates.
A slightly more expensive machine that is energy-efficient, built with durable components, and backed by a good service agreement may have a lower TCO than a cheaper alternative. Conduct a detailed ROI analysis that projects the increased revenue from higher-purity output and reduced operating costs against all anticipated expenses over the machine's lifespan.
Conclusion: Embracing X-ray Sorting for a New Era of High-Purity Recycling
The challenge of purifying plastic recycling streams, particularly from black plastics and rubber contaminants, has been a major obstacle to a truly circular economy. X-ray sorting technology effectively dismantles this obstacle. By moving beyond surface-level analysis to probe the fundamental atomic density of materials, it delivers a level of sorting accuracy that was previously impossible.
The integration of artificial intelligence makes these systems not just powerful, but also smart and adaptable, ensuring continuous performance improvement. For plastic recyclers, the benefits are clear: substantially higher purity output, access to new material streams, reduced operational costs, and a stronger competitive position. Investing in X-ray sorting is more than a technical upgrade; it is a strategic decision to lead in the sustainable materials economy of the future.
