This article provides a comprehensive overview of X-ray sorting technology and its critical role in the modern meat processing industry. We will explore how these sophisticated systems address a fundamental food safety challenge: the detection and removal of hazardous bone fragments that are not visible to the naked eye. The discussion will cover the underlying physics of how X-rays identify bone, the operational advantages over traditional methods, the factors influencing accuracy, real-world applications, and the exciting future of this technology in ensuring consumer safety and enhancing product quality.
The Importance of X-ray Sorters in Meat Product Inspection
Ensuring the absolute safety of meat products is a paramount concern for processors worldwide. The presence of unwanted bone fragments, whether from processing machinery or anatomical variations, poses a significant health risk to consumers and a substantial financial risk to brands. X-ray inspection technology has emerged as the definitive solution to this persistent industry challenge, offering a level of detection reliability that was previously unattainable.
The adoption of this technology is driven by a powerful combination of consumer demand for safer food, increasingly stringent regulatory standards, and the industry's own need for operational efficiency. By integrating X-ray sorters into their production lines, meat processors are not just installing a piece of equipment; they are making a strategic investment in brand protection, consumer trust, and market competitiveness. This technology represents a fundamental shift from reactive quality control to proactive quality assurance.
Critical Requirements for Meat Product Quality and Safety
Modern consumers have exceptionally high expectations for the quality and safety of the food they purchase, especially when it comes to products marketed as "boneless." A single incident involving a bone fragment can lead to consumer injury, product recalls, and lasting damage to a brand's reputation. Beyond consumer expectations, food safety authorities in many regions enforce strict regulations limiting the size and presence of bone fragments in processed meats.
The health risks associated with bone fragments are real and range from dental damage, such as broken teeth, to more serious internal injuries if a sharp piece is swallowed. For children and the elderly, these risks are even more pronounced. Consequently, the market consistently rewards brands that can demonstrably guarantee a higher standard of product safety and quality, creating a powerful economic incentive for processors to invest in the best available detection technology.
Limitations of Traditional Methods in Identifying Hidden Bones
Before the widespread adoption of X-ray technology, meat processors relied on a combination of manual inspection and other electronic methods, each with significant drawbacks. Manual inspection, where workers visually examine and handle product, is highly subjective, prone to human error and fatigue, and incapable of detecting bone embedded within the meat. This method is also slow and represents a bottleneck in high-speed production environments.
Other technologies, like metal detectors, are excellent at finding ferrous and non-ferrous metal contaminants but are completely ineffective at detecting bone, plastic, or rubber, as these materials do not conduct electricity. Visible light cameras and color sorters can only assess surface characteristics like color and shape, making them useless for identifying internal defects. These limitations of traditional methods created a critical gap in food safety that X-ray technology is uniquely equipped to fill.
The Significant Impact of X-ray Sorters on Improving Meat Quality
The implementation of X-ray sorters has a transformative effect on overall product quality. By providing precise, reliable detection of bone fragments, these systems ensure that only compliant product reaches the packaging stage. This dramatically reduces the risk of a costly and reputation-damaging recall by catching contaminants at the source, within the processing facility.
This enhancement in quality control directly boosts production efficiency. With an automated X-ray system making consistent accept/reject decisions, the product yield often increases as less edible meat is unnecessarily discarded with the waste. The automated nature of the inspection also standardizes quality, removing the variability associated with human inspectors. This consistent high quality strengthens a processor's position in the market, allowing them to command better prices and secure contracts with demanding retailers.
The Direct Link Between Consumer Health and Brand Reputation
Protecting consumer health is the most immediate and important outcome of effective bone detection. Preventing injuries from bone fragments is an ethical imperative for food producers. A single avoided incident protects a consumer from pain and trauma and shields the company from potential litigation, regulatory fines, and negative media attention.
This proactive approach to safety is a powerful tool for building and maintaining brand reputation. In an era where consumers are more informed and concerned about food safety than ever, a demonstrable commitment to advanced safety technology becomes a key brand differentiator. It fosters consumer loyalty and trust, which are invaluable assets for any food brand. This trust, once earned, translates directly into long-term customer relationships and sustainable business growth.
How X-ray Sorters Work and Their Bone Identification Mechanism
X-ray sorters operate on a elegant scientific principle: different materials absorb X-ray energy at different rates. This technology, known as density-based discrimination, allows the machine to "see" inside a product without damaging it. The entire process, from emission to ejection, happens in milliseconds, making it suitable for integration into high-speed production lines without causing a bottleneck.
The system is a symphony of coordinated components. An X-ray generator produces a low-energy beam, which passes through the product traveling on a conveyor belt. On the other side, a sophisticated sensor captures the attenuated beam and converts it into a detailed grayscale image. A powerful computer then analyzes this image in real-time, using advanced algorithms to identify anomalies based on their density, and commands a rejection mechanism to remove any contaminated product from the line.
The Process of X-ray Emission and Penetration Through Meat
The heart of the system is the X-ray generator, which produces a safe, low-dose, and highly controlled stream of X-ray photons. This beam is typically fan-shaped, providing a thin line of radiation that scans across the product as it moves on the conveyor. As the X-rays pass through the meat product, they interact with the atoms in the material.
Meat muscle tissue, composed primarily of water, proteins, and fats, has a relatively low density. This allows a significant portion of the X-ray beam to pass through with minimal absorption. Bones, however, are rich in calcium phosphates and other minerals, giving them a much higher density. This higher density causes bones to absorb significantly more X-ray energy than the surrounding soft tissue. It is this fundamental difference in X-ray absorption that creates the contrast necessary for detection.
Sensor Reception of X-rays and Conversion to Electrical Signals
After passing through the product, the weakened X-ray beam strikes a sensitive detector positioned directly opposite the generator. Modern systems use linear array detectors, which are composed of thousands of individual sensor elements packed closely together. Each sensor element acts like a tiny pixel, measuring the intensity of the X-ray light that reaches it.
These sensors convert the incoming X-ray photons directly into electrical signals. The amount of electrical charge generated by each sensor is proportional to the intensity of the X-rays it received. Areas of the product that are less dense (like lean meat) allow more X-rays through, resulting in a stronger electrical signal from the corresponding sensor. Dense areas (like bone) block more X-rays, resulting in a weaker signal. This pattern of strong and weak signals is the raw data that forms the basis of the X-ray image.
Data Analysis System for Signal Processing and Bone Identification
The electrical signals from the sensor are immediately digitized and sent to a high-speed computer processing unit (CPU). This is where the raw data is transformed into actionable information. The CPU assembles the signals from all the individual sensor elements into a high-resolution, digital grayscale image. In this image, dense materials like bone appear as darker regions, while less dense materials appear lighter.
The software then applies complex algorithms to analyze this image. It isn't just looking for dark spots; it's evaluating the size, shape, density, and position of any anomalies. The system can be calibrated to ignore normal product variations and packaging seams, focusing only on contaminants that match the predefined characteristics of bone. This advanced detection capability is what allows the system to be both highly sensitive and highly accurate, minimizing false rejects.
Core Principles and Characteristics of the Bone Recognition Algorithm
The algorithm's core principle is density-based material discrimination. It is programmed with a baseline understanding of the acceptable density range for the specific meat product being inspected. Any pixel or cluster of pixels that falls outside this acceptable range and matches the density profile of bone is flagged as a contaminant.
Modern algorithms often incorporate elements of pattern recognition and machine learning. They can be trained to distinguish between different types of bones (e.g., small, sharp shards vs. larger, round fragments) and can even adapt to minor variations in product presentation. The best algorithms are characterized by their stability—consistently performing under production line conditions—and their adaptability, allowing them to be fine-tuned for a wide variety of products, from thin poultry fillets to thick beef roasts.

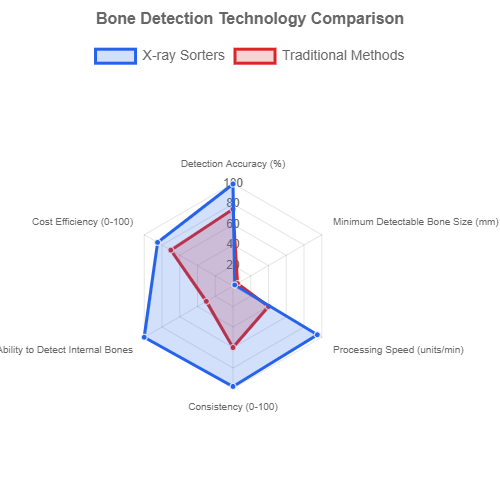

Advantages of X-ray Sorters in Accurately Identifying Hidden Bones
X-ray sorting technology offers a combination of advantages that make it the superior choice for bone detection in the meat industry. These benefits span technical performance, product handling, production efficiency, and operational simplicity. Together, they create a compelling value proposition that justifies the investment for processors serious about quality and safety.
The technology's non-destructive nature means that every single product can be inspected without any alteration or damage, ensuring that quality control does not come at the expense of product integrity. Furthermore, the speed and automation of X-ray systems align perfectly with the demands of modern food production, allowing for 100% inspection on lines moving at several meters per second, a task impossible for human operatives.
High-Precision Detection Capability Ensures No Bone is Missed
The primary advantage of an X-ray sorter is its exceptional detection sensitivity. Modern systems can reliably identify bone fragments as small as 2.0 mm in diameter, and some high-performance models can detect even smaller particles. This high precision ensures that even the tiniest, most hazardous slivers of bone are caught and removed from the production line.
This capability is not limited by the shape or orientation of the bone. Unlike optical systems, X-rays can detect fragments regardless of their color or whether they are lying flat or upright within the product. The technology is also effective with complex product structures, such as mixed-meat products or items containing sauces and seasonings, as the algorithms can be tuned to focus on the density contrast specific to bone.
Non-Destructive Testing Preserves the Integrity of Meat Products
A significant benefit of X-ray inspection is that it is a non-contact and non-destructive method. The product is never touched, squeezed, or altered during the inspection process. This preserves the delicate physical structure of valuable products like premium chicken breasts or fish fillets, maintaining their appearance and texture for the consumer.
This stands in stark contrast to some traditional methods, like manual probing or compression, which can damage the product and reduce its market value. Because X-ray inspection does not affect the meat in any way, it is perfectly suited for use on final packaged products, providing a last line of defense before items are shipped to retailers. The process also avoids any possibility of chemical or biological contamination, as no part of the system touches the food.
Rapid Detection Meets the Demands of Large-Scale Production
Speed is a critical factor in food processing, and X-ray sorters are designed to keep pace. These systems can process products at line speeds exceeding 150 meters per minute, inspecting thousands of individual items per hour. This high throughput is essential for maintaining overall plant efficiency and meeting production targets without creating a bottleneck at the quality control stage.
The real-time processing capability of the system means there is virtually no lag between inspection and rejection. When a contaminant is detected, the rejection mechanism (often a pneumatic air jet or a push-arm) is activated within milliseconds to remove the defective product from the line. This seamless integration ensures a continuous flow of product and maximizes the yield of good product.
Intelligent Operation Reduces Labor Costs and Human Error
Automation is a key driver of efficiency, and X-ray sorters exemplify this. Once installed and calibrated, the systems operate autonomously with minimal human intervention. They automatically start up, self-check, and begin inspection, requiring an operator only for loading product and periodic verification checks. This significantly reduces the labor costs associated with manual inspection stations.
Perhaps more importantly, automation eliminates the variability and error inherent in human inspection. The system does not get tired, distracted, or inconsistent. It applies the same stringent criteria to every single product, 24 hours a day, 7 days a week. This eliminates the risk of a defective product being missed due to human fatigue and ensures a consistently high and documented level of quality control, which is invaluable for audit and compliance purposes.
Factors Affecting the Accuracy of X-ray Sorter Bone Identification and Countermeasures
While X-ray technology is highly effective, its performance can be influenced by several physical and environmental factors. Understanding these variables is crucial for optimizing the system's accuracy and reliability. A well-maintained and properly configured X-ray sorter will deliver exceptional performance, but awareness of potential challenges allows operators to proactively manage them.
These influencing factors range from the inherent properties of the product and the contaminant to the operational parameters of the machine itself. Environmental conditions in the plant can also play a role. Fortunately, for every potential challenge, there are established countermeasures, calibration techniques, and best practices that can be employed to ensure the system operates at its peak performance.
Stability and Energy Control of the X-ray Source
The X-ray generator is the foundation of the inspection process, and its stability is paramount. Fluctuations in the energy output of the X-ray tube can lead to inconsistencies in the images produced, which may cause the software to misinterpret a product's density. Modern generators are designed for high stability, but they require a clean and stable power supply to function correctly.
To counteract potential energy drift, high-end systems are equipped with closed-loop feedback mechanisms that constantly monitor the X-ray flux and automatically adjust the generator's power to maintain a consistent output. Regular preventive maintenance, including cleaning and inspection of the generator and its cooling systems, is essential to ensure long-term stability and consistent performance from the X-ray source.
The Impact of Variations in Meat Product Thickness and Density
Natural variations in food products present a significant challenge. A single batch of chicken fillets, for instance, can have a wide range of thicknesses and subtle density differences. A thicker section of meat will naturally absorb more X-rays than a thinner section, which could potentially mask the signal from a small bone fragment or, conversely, create a false signal that looks like a contaminant.
Advanced X-ray systems combat this through sophisticated software algorithms. Many systems use "image averaging" techniques to establish a dynamic baseline for the product's normal thickness and density profile. Some employ dual-energy X-ray technology, which uses two different X-ray energy levels to better distinguish between a product's natural thickness variation and a genuine dense contaminant. Proper product presentation on the conveyor, ensuring items are not piled on top of each other, is also a critical operational practice for maintaining accuracy.
The Complexity of Density Differences Between Bone and Meat Tissue
The core of the detection principle is the density difference between bone and soft tissue. However, this is not always a simple binary distinction. The density of bone can vary depending on the animal's age, diet, and the specific bone type. For example, a piece of cartilage or a soft bone from a young animal may have a density closer to that of the surrounding meat, making it more challenging to detect.
Similarly, some meat products may naturally contain denser tissues, such as tendons or hardened fat, which can trigger false rejects if not properly accounted for. The solution lies in precise system calibration. Operators can teach the system the specific density profile of the target bone contaminant while programming it to ignore the known density ranges of acceptable product features. This fine-tuning process is key to maximizing detection sensitivity while minimizing false rejection rates.
Environmental Interference with Detection Equipment and Its Mitigation
The factory environment can be harsh, with factors like temperature fluctuations, humidity, vibration, and electrical noise potentially interfering with the sensitive electronics of an X-ray system. Extreme temperatures can affect the performance of the X-ray generator and sensors, while vibration from nearby machinery can blur the captured images, reducing clarity and detection sensitivity.
To eliminate these issues, X-ray sorters are built with robust environmental protection. Key components are often housed in temperature-controlled enclosures. Vibration-dampening mounts isolate the sensitive imaging components from the rest of the machine and the factory floor. Electrical shielding protects the sensors and processors from electromagnetic interference generated by other industrial equipment. Furthermore, the software includes filtering algorithms to digitally remove noise from the image, ensuring a clear and stable signal for analysis. Regular meat and seafood processing facility maintenance checks should include verifying that these protective measures are functioning correctly.
Analysis of X-ray Sorter Application Cases in the Meat Processing Industry
The theoretical benefits of X-ray sorting are compelling, but they are best understood through practical, real-world application. Across the globe, meat processors of all sizes have integrated this technology into their operations with measurable success. These case studies demonstrate the tangible return on investment in terms of enhanced food safety, reduced recall risk, improved operational efficiency, and strengthened market position.
From multinational corporations to specialized niche producers, the adoption stories share common themes: the overcoming of a specific quality challenge, the careful selection and integration of technology, and the achievement of significant business improvements. Analyzing these cases provides valuable insights and a practical roadmap for other processors considering this technology.
Successful Application Examples in Large Meat Processing Enterprises
For large-scale poultry processors, a major challenge is detecting small, flexible bone fragments like wishbones or rib bones in deboned breast meat. One prominent processor integrated high-speed X-ray sorters at the end of their processing lines. The systems were calibrated to identify the specific density of these avian bones against the background of chicken meat.
The results were transformative. The company reported a 90% reduction in consumer complaints related to bone fragments within the first year of operation. The automated system allowed them to reallocate dozens of manual inspectors to other value-added tasks, improving overall labor efficiency. Furthermore, the objective data provided by the X-ray systems strengthened their quality assurance documentation, making it easier to comply with audits from major supermarket chains and regulatory bodies. The investment paid for itself in less than 18 months through reduced waste, avoided recall costs, and protected brand equity.
Application Effectiveness and Feedback from Medium and Small Meat Plants
Smaller processors often face the perception that advanced technology like X-ray sorting is beyond their budget and technical expertise. However, the development of more compact and user-friendly systems has made the technology accessible. A mid-sized processor of premium ground beef patties, for instance, invested in a mid-range X-ray system to check for bone chips that could originate from the grinding process.
The feedback was overwhelmingly positive. The plant manager reported that the system was easier to operate and maintain than anticipated. The key benefit was the ability to confidently guarantee a "bone-free" product to their high-end restaurant and hotel clients, a claim they could not reliably make before. This became a powerful marketing tool, allowing them to differentiate their product and secure more profitable contracts. The reduction in the risk of a crippling recall event provided financial security that was particularly valuable for a business of their size.
Application Exploration in Specialized Meat Processing Scenarios
The versatility of X-ray technology allows for innovative applications beyond standard boneless meat inspection. Some processors of canned stews and ready-to-eat meals use X-ray systems to perform a final check on sealed containers. The technology can detect bone fragments within the complex mixture of meat, vegetables, and sauce inside the can, a task impossible by any other means.
Another emerging application is in the value-added sector for products like injected or marinated meats. The concern was that the added moisture and salts could alter the product's density profile and affect detection. However, by calibrating the system to focus on the specific density signature of bone relative to the new background, processors have successfully implemented inspection protocols for these high-margin products, ensuring their safety and quality without compromising on flavor or preparation techniques.
Industry Insights and Development Trends from Application Cases
The collective experience from these diverse applications points to several clear industry trends. There is a growing movement from sample-based inspection to 100% full-line inspection, driven by the decreasing cost of technology and increasing safety standards. The role of data is also expanding; modern X-ray systems are not just rejection devices but data hubs, collecting valuable information on defect rates that can be used to identify and rectify problems earlier in the production process.
These cases also highlight a trend towards integration and connectivity. X-ray systems are no longer standalone islands but are integrated into the broader factory network, sharing data with AI sorter platforms and plant management systems. This connectivity facilitates predictive maintenance, remote troubleshooting, and continuous improvement of detection algorithms, ensuring that the technology continues to evolve and meet the future needs of the industry.
Future Development Prospects of X-ray Sorters in the Field of Bone Identification
The evolution of X-ray sorting technology is far from complete. Driven by advancements in computing power, sensor design, and artificial intelligence, the next generation of systems promises to be even more sensitive, faster, and smarter. The future focus is on making the technology more accessible, more intuitive to use, and capable of solving an even wider range of inspection challenges within the meat industry and beyond.
Future developments will likely focus on enhancing what the technology can "see" and improving how it "thinks." This means not only detecting smaller contaminants but also identifying other types of defects, such as rotten tissue or foreign materials with densities similar to food. The goal is to move towards comprehensive quality assurance platforms that can simultaneously inspect for multiple parameters.
Technological Innovation Drives Improvements in Detection Accuracy and Speed
Innovation in detector technology is a primary area of development. The next generation of sensors will offer even higher resolution, capturing more detailed images that will allow algorithms to identify sub-millimeter contaminants. Coupled with more powerful X-ray generators that provide clearer, sharper images, these sensors will push the boundaries of detection sensitivity.
Computational power is another key driver. The adoption of powerful graphics processing units (GPUs) and field-programmable gate arrays (FPGAs) allows for the implementation of more complex image processing algorithms in real-time. This will enable systems to make more nuanced decisions faster, allowing for increased line speeds without any compromise in inspection accuracy. The future will see line speeds that are currently unimaginable, all while improving detection capabilities.
Integration with Other Technologies to Expand Application Fields
The future of inspection lies in multi-technology fusion. We are already seeing the integration of X-ray systems with complementary technologies like hyperspectral imaging or NIR (Near-Infrared) sorters. An X-ray system can identify a bone based on density, while an optical system can simultaneously detect and reject a product based on surface color defects, such as a piece of skin or a blood spot.
This fusion of internal and external inspection provides a complete quality picture of each product. Furthermore, integration with Internet of Things (IoT) platforms will enable real-time monitoring of machine health and performance from anywhere in the world. This connectivity will facilitate predictive maintenance, where the system can alert service engineers to a potential issue before it causes downtime, maximizing equipment availability and productivity.
Further Enhancements in Intelligence and Automation Levels
Artificial intelligence and deep learning are set to revolutionize X-ray inspection. Instead of being programmed with rigid rules, AI-powered systems can be trained on thousands of images of "good" product and "bad" product containing contaminants. The system learns to identify defects by example, much like a human brain, but with far greater consistency and speed.
This machine learning approach allows the system to continuously improve its accuracy over time and automatically adapt to new products or slight changes in existing products without needing extensive re-programming by an engineer. This leads to a higher level of automation, reducing the need for operator intervention and making the technology easier to use. The ultimate goal is a fully self-optimizing system that maintains peak performance with minimal human input.
Meeting the Evolving Needs of the Meat Industry
The meat industry is constantly evolving, with new products, new packaging formats, and new consumer demands. X-ray technology must evolve in parallel. Future systems will need to be incredibly flexible, easily handling everything from traditional cuts of meat to new plant-based meat alternatives, which may have different density profiles.
They will also need to adapt to changing regulatory standards, which may require detecting new types of contaminants or documenting inspection results in new ways. Sustainability will also be a driver; future systems will be designed for even lower energy consumption and will be made from materials that are easier to recycle at the end of their long service life. By anticipating and adapting to these trends, X-ray sorting technology will remain an indispensable tool for ensuring food safety and quality for decades to come.
