The selection between single-channel and multi-channel X-ray ore sorting systems represents a critical decision point for mining operations seeking to optimize their mineral processing efficiency. These advanced sorting technologies utilize X-ray transmission principles to separate valuable minerals from waste rock based on atomic density differences, but their operational approaches and capabilities differ significantly. Single-channel systems process material through one detection and separation path, while multi-channel configurations operate multiple parallel sorting lines simultaneously. Industry data indicates that proper channel selection can impact sorting efficiency by 15-40% depending on application specifics, making this decision crucial for operational profitability and long-term success in mineral ore sorting operations worldwide.

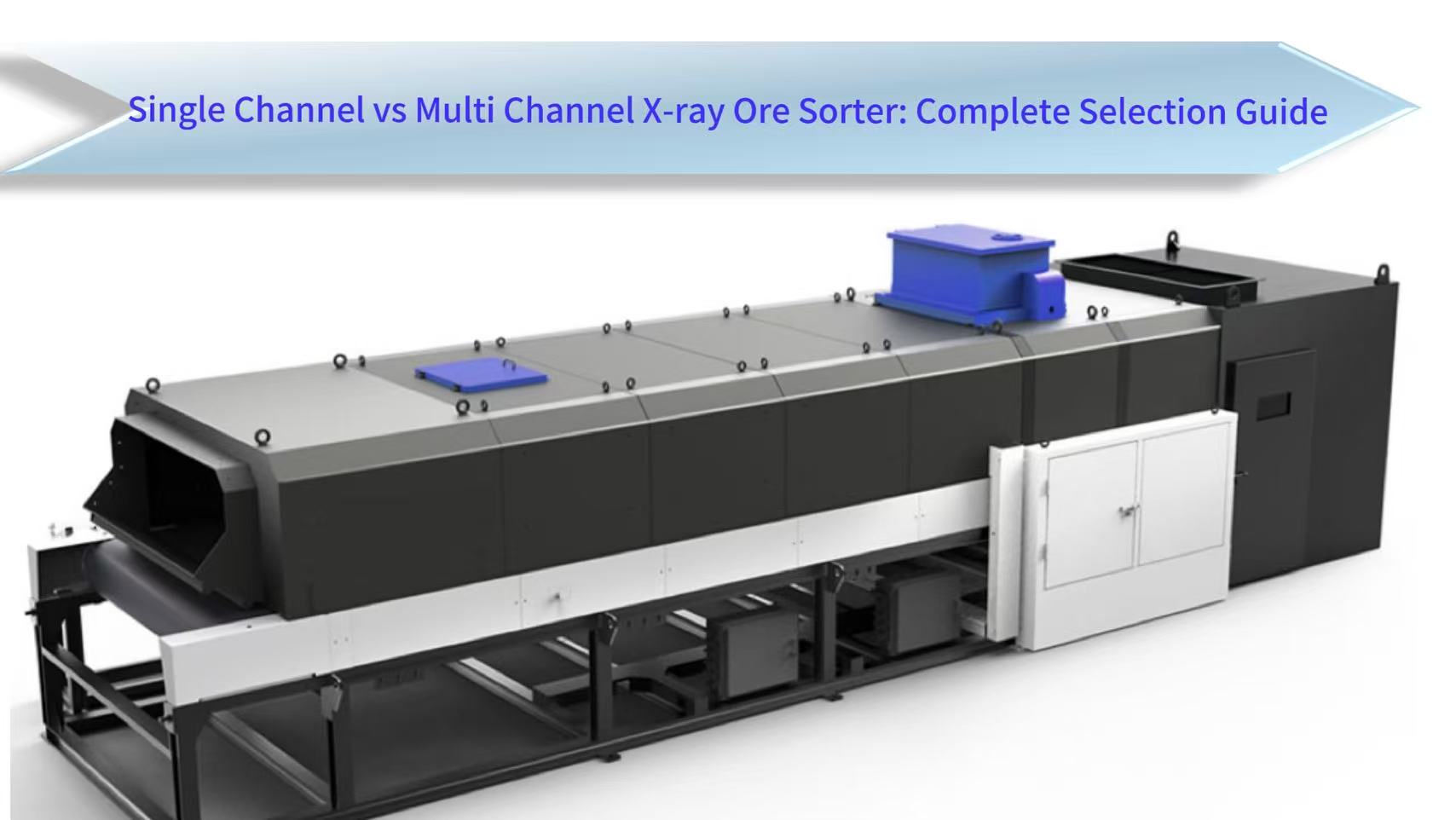

Single Channel vs Multi Channel X-ray Ore Sorter Comparison
Understanding the fundamental differences between these two approaches requires examining multiple dimensions including throughput requirements, material characteristics, capital investment considerations, and operational flexibility needs. Mining operations typically process between 10 to 300 tons per hour depending on their scale, with single-channel systems generally handling the lower end of this range and multi-channel configurations addressing higher capacity requirements. The integration of artificial intelligence with X-ray sorting technology has further enhanced the precision of both system types, enabling more sophisticated material discrimination based on complex mineralogical signatures rather than simple density thresholds alone.
Fundamental Principles of X-ray Ore Sorting and Channel Configuration
X-ray transmission sorting operates on the physical principle that different materials absorb and transmit X-ray radiation at varying rates based on their atomic composition and density. When X-rays pass through material on a conveyor or chute system, detectors measure the transmitted radiation intensity, creating a density profile for each particle. Denser materials containing valuable minerals typically absorb more radiation, appearing darker in the detection system, while lighter waste rock allows more radiation to pass through. This fundamental physical relationship enables the accurate separation of ores from gangue material without requiring chemical processing or water usage, making it an environmentally favorable technology.
The concept of "channels" in X-ray sorting refers to independent detection and separation paths within a single machine. In single-channel systems, all material passes through one unified scanning and ejection zone, where it is analyzed and sorted in a sequential manner. Multi-channel systems incorporate multiple parallel scanning and ejection paths that operate simultaneously, dramatically increasing processing capacity. The evolution from single to multi-channel designs represents a significant engineering advancement, with modern multi-channel sorters capable of operating up to 12 independent channels that process material concurrently while maintaining consistent sorting precision across all pathways.
X-ray Transmission Physics and Material Discrimination
The physical interaction between X-rays and mineral particles forms the scientific foundation for all X-ray sorting systems. When X-ray photons encounter materials, several interaction mechanisms occur including photoelectric absorption and Compton scattering, with the relative contribution of each mechanism depending on the atomic number of elements present and the energy of the incident X-rays. Higher atomic number elements exhibit stronger photoelectric absorption, creating distinctive signatures that enable discrimination between valuable minerals and waste rock. Modern X-ray sorting systems typically operate in the 100-160 kV energy range, optimized to provide sufficient penetration for most industrial minerals while maintaining strong material discrimination capabilities.
Advanced X-ray sorting systems utilize sophisticated algorithms to analyze the complex transmission data, extracting multiple parameters including mean transmission value, transmission distribution pattern, and material texture characteristics. These multi-parameter approaches enable significantly better sorting performance than simple threshold-based systems, particularly for minerals with complex composition or when dealing with ores that have overlapping density ranges with waste material. The integration of artificial intelligence has further enhanced this capability, with neural networks now able to identify subtle patterns in X-ray transmission data that human operators would likely miss during manual inspection processes.
Single-Channel System Architecture and Operational Flow
Single-channel X-ray sorters feature a streamlined design where material travels through a single processing path from feeding to ejection. The typical workflow begins with a feeding system that presents material in a monolayer to ensure each particle is individually exposed to the X-ray scanning area. As particles pass through the scanning zone, they are irradiated by the X-ray source while line-scan detectors capture transmission data at rates exceeding 10,000 measurements per second. This high-speed data acquisition enables comprehensive analysis of each particle's density characteristics, even when traveling at conveyor speeds up to 4 meters per second in industrial applications.
Following detection, the system's processing unit analyzes the X-ray transmission data in real-time, comparing each particle's signature against predefined acceptance criteria. Particles identified as valuable product continue along the natural trajectory into the product collection chute or conveyor, while identified waste material triggers high-speed ejection mechanisms. These ejection systems typically employ precisely timed air valves that generate brief compressed air pulses to deflect target particles from their natural trajectory into a separate waste collection path. The entire process from detection to ejection occurs within milliseconds, enabling single-channel systems to achieve throughput rates between 10-50 tons per hour depending on material characteristics and particle size distribution.
Multi-Channel Parallel Processing Architecture
Multi-channel X-ray sorting systems represent a significant evolution in sorting technology, employing parallel processing architectures that dramatically increase capacity without compromising sorting accuracy. These systems essentially incorporate multiple independent sorting lines within a single machine frame, each with dedicated detection, processing, and ejection components. Material is distributed across these parallel channels through specialized feeding systems designed to ensure balanced loading, with each channel operating simultaneously to process separate portions of the feed material. This architectural approach enables throughput scaling that would be impossible with single-channel designs, with industrial multi-channel systems routinely handling 100-300 tons per hour.
The synchronization between channels in multi-channel systems presents significant engineering challenges that have been addressed through advanced control systems. Each channel operates independently in terms of detection and ejection decisions, but they share common infrastructure including X-ray generation, material handling, and control systems. Modern implementations utilize sophisticated feedback mechanisms to maintain consistent performance across all channels, with automatic calibration systems that periodically verify and adjust detection parameters to compensate for any drift or variation between channels. This ensures that sorting performance remains uniform regardless of which specific channel processes particular material, maintaining consistent product quality throughout operation.
Channel Quantity and Sorting Accuracy Relationship
The relationship between channel quantity and sorting accuracy represents a complex engineering trade-off that depends on multiple factors including material characteristics, throughput requirements, and system design. While intuition might suggest that single-channel systems would inherently provide superior accuracy due to their simpler architecture, modern multi-channel systems have largely closed this performance gap through advanced engineering. The critical factors determining sorting accuracy include detection system resolution, processing algorithm sophistication, ejection mechanism precision, and material presentation consistency, with channel count being just one variable in this multidimensional optimization problem.
Industry performance data indicates that properly engineered multi-channel systems can achieve sorting accuracies comparable to single-channel configurations, typically ranging between 95-99% for well-suited applications. The key to maintaining accuracy in multi-channel systems lies in ensuring consistent performance across all channels through precise manufacturing, comprehensive calibration procedures, and sophisticated control algorithms. For applications requiring the absolute maximum sorting accuracy, single-channel systems may still hold a slight advantage due to their simpler architecture and reduced potential for inter-channel variation, though this advantage must be weighed against their significantly lower throughput capacity compared to multi-channel alternatives.
Single-Channel X-ray Sorter Advantages and Ideal Applications
Single-channel X-ray sorting systems offer compelling advantages for specific mining applications where their characteristics align perfectly with operational requirements. The simplified mechanical design of single-channel systems translates to lower capital investment, typically 30-50% less than comparable multi-channel systems with similar detection technology. This economic advantage extends beyond initial purchase price to include reduced installation complexity, simpler operational training requirements, and lower maintenance costs throughout the equipment lifecycle. For mining operations with constrained capital budgets or those implementing X-ray sorting technology for the first time, these financial considerations often make single-channel systems the preferred starting point.
The operational simplicity of single-channel systems represents another significant advantage, particularly for operations with limited technical staff or those located in remote areas with restricted access to specialized maintenance support. With only one detection and ejection path to monitor and maintain, operational complexity is dramatically reduced compared to multi-channel configurations. This streamlined approach enables faster operator proficiency development, reduces the spare parts inventory requirements, and minimizes downtime through quicker troubleshooting and resolution of operational issues. Many single-channel systems are designed with maintenance accessibility as a priority, featuring modular components that can be quickly replaced without requiring specialized tools or extensive technical expertise.
Reduced Capital Investment and Faster ROI Timeframe
The financial advantages of single-channel X-ray sorting systems begin with significantly lower initial capital investment compared to multi-channel alternatives. Industry data indicates that single-channel systems typically cost between $200,000-$500,000 depending on specific features and detection technology, while multi-channel configurations often range from $600,000 to over $1.5 million for high-capacity systems. This substantial price difference stems from the simpler mechanical design, reduced component count, and less complex control systems required for single-channel operation. For many small to medium-scale mining operations, this cost differential represents the decisive factor in equipment selection.
Beyond initial purchase price, single-channel systems typically demonstrate faster return on investment timelines due to their combination of lower capital outlay and respectable operational performance. While their absolute throughput capacity is lower than multi-channel systems, their sorting efficiency and accuracy can be comparable for many applications, enabling strong economic returns through improved mineral recovery and reduced processing costs. Typical payback periods for single-channel systems range from 12-24 months depending on application specifics, with some high-value mineral applications achieving returns in less than one year through dramatically improved recovery rates and reduced downstream processing requirements.
Simplified Operation and Reduced Staffing Requirements
The operational simplicity of single-channel X-ray sorting systems translates directly to reduced staffing requirements and faster operator proficiency development. With only one processing channel to monitor and adjust, operators can quickly develop an intuitive understanding of system behavior and appropriate parameter adjustments for changing feed conditions. This streamlined operational approach typically requires just one trained operator per shift, compared to potentially larger teams for complex multi-channel systems operating at high capacity. The reduced cognitive load on operators also contributes to more consistent operation and fewer adjustment errors that could impact sorting performance.
Maintenance requirements for single-channel systems are significantly less demanding than their multi-channel counterparts, both in terms of frequency and complexity. Preventive maintenance schedules typically involve straightforward procedures that can be completed by plant maintenance staff without requiring specialized training or external service technicians. Common maintenance activities include regular cleaning of optical components, inspection and replacement of wear parts in the material handling system, and calibration verification of the detection system. The mean time between failures for single-channel systems is typically 15-20% longer than comparable multi-channel configurations due to their simpler mechanical design and reduced component count.
Ideal Solution for Medium-Throughput Applications
Single-channel X-ray sorting systems find their ideal application space in medium-throughput operations processing between 10-50 tons per hour, depending on material characteristics and particle size distribution. This throughput range aligns well with many small to medium-scale mining operations, specialized mineral processing facilities, and pilot plants evaluating sorting technology for future expansion. Within this capacity range, single-channel systems typically deliver the optimal balance of performance, operational cost, and capital investment, outperforming multi-channel alternatives on economic metrics despite their lower maximum throughput capacity.
The application suitability of single-channel systems extends beyond simple throughput considerations to include material characteristics and operational flexibility requirements. Operations processing materials with consistent characteristics and well-defined sorting parameters often achieve excellent results with single-channel technology, particularly when the value of recovered product justifies thorough processing but doesn't necessitate maximum possible throughput. Single-channel systems also offer advantages for operations with fluctuating feed rates or those processing multiple different materials in campaign-style operations, as their simpler adjustment procedures facilitate quicker transitions between different material types or sorting criteria.
High Accuracy Performance with Uniform Particle Size
Single-channel X-ray sorting systems deliver exceptional sorting accuracy when processing materials with relatively uniform particle size distributions, typically achieving 95-98% efficiency for well-suited applications. This high performance stems from the consistent material presentation and detection conditions possible with single-channel architecture, where all particles pass through identical scanning geometry under consistent operational parameters. The absence of inter-channel variation eliminates a potential source of sorting inconsistency, enabling tighter control over acceptance criteria and more predictable separation performance throughout extended operation periods.
The accuracy advantage of single-channel systems becomes particularly pronounced when processing materials with subtle density differences or when implementing complex sorting criteria based on multiple detection parameters. With only one channel to optimize and monitor, operators can fine-tune system parameters to maximize recovery of valuable minerals while minimizing misplacement of waste material. This precision capability makes single-channel systems particularly valuable for high-value mineral applications where even small improvements in sorting accuracy translate to significant economic benefits, such as diamond recovery, gemstone sorting, and specific industrial mineral applications requiring extremely pure final products.
Multi-Channel X-ray Sorter High-Capacity Capabilities
Multi-channel X-ray sorting systems represent the pinnacle of high-capacity ore sorting technology, engineered to meet the demanding throughput requirements of large-scale mining operations. By incorporating multiple parallel sorting channels within a single machine framework, these systems achieve throughput rates that would be impossible with single-channel designs, typically ranging from 100-300 tons per hour depending on specific configuration and material characteristics. This massive throughput capacity enables application of X-ray sorting technology to mainstream mineral processing operations where volume handling requirements previously made sorting economically impractical. The scalability of multi-channel systems allows operations to match sorting capacity directly to their production needs without requiring multiple separate sorting machines.
The economic justification for multi-channel systems centers on their ability to deliver sorting benefits across large material volumes, spreading fixed operational costs over greater throughput to achieve lower cost per ton processed. While their capital investment is significantly higher than single-channel alternatives, their massive throughput capacity can deliver superior economic returns in high-volume applications where the value of improved recovery or reduced downstream processing costs justifies the additional investment. Large mining operations typically achieve return on investment within 18-36 months for multi-channel systems, with the payback period heavily influenced by mineral value, sorting efficiency improvements, and reductions in downstream processing requirements.
Massive Throughput Capacity and Economies of Scale
Multi-channel X-ray sorting systems deliver unprecedented throughput capacity through their parallel processing architecture, with industrial-scale systems routinely handling 150-300 tons per hour depending on material density and particle size distribution. This massive capacity stems from the simultaneous operation of multiple independent sorting channels, each processing a portion of the total feed material. Modern multi-channel systems typically incorporate between 4-12 parallel channels, with each channel operating at throughput rates comparable to dedicated single-channel systems. The cumulative effect of these parallel channels enables throughput scaling that would require multiple separate machines in single-channel configurations.
The economic benefits of multi-channel systems extend beyond their massive throughput capacity to include significant economies of scale in both capital and operational costs. While the absolute purchase price of multi-channel systems is higher than single-channel alternatives, the cost per ton of capacity is typically 20-40% lower due to shared infrastructure components and manufacturing efficiencies. This economic advantage continues throughout the equipment lifecycle, with operational costs per ton processed typically 15-30% lower than equivalent capacity achieved through multiple single-channel machines. These economies of scale make multi-channel systems particularly compelling for large-scale mining operations where high throughput requirements would otherwise necessitate multiple separate sorting units.
Complex Material Composition and Wide Size Distribution Handling
Multi-channel X-ray sorting systems offer superior capabilities for processing materials with complex mineralogical composition or wide particle size distributions that present challenges for single-channel systems. The parallel architecture of multi-channel systems enables implementation of channel-specific parameter settings, allowing different channels to be optimized for different material characteristics within the same feed stream. This capability is particularly valuable for operations processing natural materials with inherent variability, as it provides flexibility to maintain sorting performance despite fluctuations in feed composition that would challenge single-channel systems.
The ability to process wide particle size distributions represents another significant advantage of multi-channel sorting systems, especially those implementing specialized channel configurations designed for different size fractions. Some advanced multi-channel systems incorporate size-based material distribution ahead of the sorting channels, directing different size fractions to channels with parameter settings optimized for those specific sizes. This approach dramatically improves sorting efficiency across the complete size spectrum compared to single-channel systems that must compromise parameter settings to accommodate the entire size range. The benefits are particularly pronounced when processing materials with size ratios exceeding 3:1 between largest and smallest particles, where single-channel systems typically struggle to maintain consistent performance across the full range.
System Redundancy and Production Continuity Assurance
The multi-channel architecture inherent in these sorting systems provides valuable operational redundancy that enhances production continuity and reduces downtime impact. With multiple independent sorting channels operating in parallel, the failure of a single channel doesn't result in complete production stoppage but rather a manageable reduction in throughput capacity. This redundancy feature is particularly valuable for continuous mining operations where unplanned downtime carries significant economic consequences through lost production and disrupted downstream processes. The ability to maintain partial operation during component failure or maintenance activities represents a crucial advantage over single-channel systems where any malfunction typically results in complete sorting stoppage.
Modern multi-channel systems enhance this inherent redundancy through advanced control systems that automatically detect channel performance degradation and implement compensatory measures. When a channel develops issues that impact sorting performance, the system can automatically redistribute material to remaining healthy channels or adjust operational parameters to maintain acceptable performance until scheduled maintenance can address the underlying issue. This sophisticated fault management capability, combined with modular component design that enables rapid replacement of faulty elements, typically results in 15-25% higher operational availability compared to single-channel systems in demanding industrial environments where continuous operation is prioritized.
Critical Selection Criteria: Comprehensive Evaluation Framework
Selecting between single-channel and multi-channel X-ray sorting technology requires systematic evaluation of multiple technical and economic factors specific to each mining operation. This decision should begin with thorough characterization of the feed material, including particle size distribution, mineral liberation characteristics, density contrasts between valuable and waste components, and anticipated throughput requirements. Laboratory-scale testing using representative samples provides invaluable data for this evaluation process, enabling quantitative prediction of sorting performance for both system types before committing to capital investment. Operations should prioritize testing under conditions that accurately reflect their planned implementation, including expected feed grade variations and particle size ranges.
Beyond technical performance considerations, the selection process must incorporate comprehensive economic analysis comparing both alternatives across their complete lifecycle. This evaluation should extend beyond simple purchase price comparison to include installation costs, operational expenses, maintenance requirements, staffing implications, and potential revenue impacts from sorting performance differences. The economic analysis should also consider operational flexibility requirements, future expansion plans, and potential changes in feed material characteristics over the mine life. This multidimensional assessment typically reveals that each system type delivers superior value within specific operational contexts rather than one approach being universally superior across all applications.
Feed Material Characteristics and Throughput Requirements Alignment
The characteristics of the feed material represent the foundational consideration when selecting between single-channel and multi-channel X-ray sorting systems. Operations processing materials with consistent composition, narrow particle size distribution, and strong density contrast between valuable and waste components often achieve excellent results with single-channel technology, particularly at throughput rates below 50 tons per hour. Conversely, operations dealing with variable composition, wide size distributions, or subtle density differences typically benefit from the additional flexibility and processing power of multi-channel systems, even at moderate throughput levels where single-channel systems might otherwise seem adequate.
Throughput requirements naturally play a crucial role in the selection process, with single-channel systems generally practical for operations processing up to 50 tons per hour and multi-channel configurations necessary for higher capacity demands. However, the relationship between throughput and system selection isn't purely linear, as material characteristics significantly influence the practical capacity limits for each system type. Operations processing lightweight materials with large surface areas may find that single-channel systems reach their practical limits at significantly lower tonnage rates than operations processing dense minerals with compact particle shapes. Understanding these material-specific capacity considerations is essential for accurate system selection.
Economic Analysis and Capital Investment Considerations
The economic comparison between single-channel and multi-channel X-ray sorting systems extends far beyond their differing purchase prices to encompass complete lifecycle costs and revenue implications. Single-channel systems typically require 30-50% less capital investment initially but may generate lower total economic benefit due to their capacity limitations in high-volume applications. Multi-channel systems command premium prices but can deliver superior economic returns through their ability to process larger volumes and maintain performance with variable feed materials. The optimal economic choice depends heavily on the specific value proposition of sorting for each operation, including the economic impact of improved recovery, reduced downstream processing costs, and concentration of value into smaller material volumes.
Comprehensive economic analysis should model both alternatives across their anticipated operational lifespan, typically 7-10 years for industrial sorting systems. This analysis must include all relevant cost components including installation, commissioning, operational staffing, maintenance, energy consumption, and consumables. The revenue side should quantify benefits from improved product recovery, enhanced product quality enabling premium pricing, and reduced processing costs through early waste rejection. Sensitivity analysis examining how economic outcomes change with variations in key assumptions provides valuable insight into the risk profile of each option, particularly important given the long-term nature of this capital investment decision.
Infrastructure Requirements and Spatial Constraints
The physical implementation requirements for X-ray sorting systems significantly influence the practical choice between single-channel and multi-channel configurations, particularly for operations working within existing infrastructure constraints. Single-channel systems typically require 30-50% less floor space than multi-channel alternatives with similar detection technology, making them better suited for operations with limited available space or those requiring integration into existing processing plants without major structural modifications. The simpler material handling requirements of single-channel systems also reduce the complexity of integration projects, potentially enabling faster implementation with less disruption to existing operations.
Multi-channel systems demand more substantial infrastructure support including robust structural foundations, higher electrical capacity, and more comprehensive material handling systems to distribute feed evenly across multiple channels. These requirements typically necessitate purpose-designed installations with adequate space for equipment access and maintenance activities. Operations considering multi-channel systems should carefully evaluate their infrastructure capabilities early in the selection process, as necessary upgrades can significantly impact total project costs and implementation timelines. Greenfield installations typically accommodate multi-channel systems more easily than brownfield projects where space constraints and existing infrastructure may limit practical options.
Operational Cost Structures and Economic Performance Comparison
The operational cost structures of single-channel and multi-channel X-ray sorting systems differ significantly, influencing their economic performance across various application scenarios. Single-channel systems typically demonstrate lower absolute operational costs due to their simpler design, reduced component count, and lower energy requirements. However, when evaluated on a cost-per-ton-processed basis, multi-channel systems often prove more economical for high-volume applications due to their massive throughput capacity spreading fixed costs across greater production volumes. Understanding these contrasting cost structures enables more accurate economic modeling and appropriate system selection based on specific operational requirements and economic objectives.
Energy consumption represents a significant operational cost component for both system types, with X-ray generation, material handling systems, and compressed air for ejection constituting the primary power demands. Single-channel systems typically consume 15-30 kW during operation depending on specific configuration, while multi-channel systems range from 45-120 kW based on channel count and capacity. Despite their higher absolute energy consumption, multi-channel systems often achieve better energy efficiency per ton processed due to shared infrastructure components and operational efficiencies at scale. This efficiency advantage typically becomes pronounced at throughput rates above 50 tons per hour, below which single-channel systems generally demonstrate superior energy economics.
Maintenance Complexity and Operational Availability
The maintenance requirements for single-channel and multi-channel X-ray sorting systems differ significantly in both complexity and frequency, impacting operational availability and maintenance staffing needs. Single-channel systems benefit from simpler mechanical designs with fewer moving parts and more accessible components, typically requiring 25-40% less maintenance time than comparable multi-channel configurations. This maintenance advantage translates directly to higher operational availability, with single-channel systems typically achieving 92-96% availability compared to 88-93% for multi-channel systems in similar operating environments. The maintenance simplicity of single-channel systems also reduces dependency on specialized technical support, an important consideration for remote operations.
Multi-channel systems present more complex maintenance challenges due to their multiple parallel components and sophisticated control systems, but modern designs incorporate features to mitigate these challenges. Modular component design enables rapid replacement of faulty elements, while advanced diagnostic systems pinpoint issues to specific channels or components to minimize troubleshooting time. Preventive maintenance schedules for multi-channel systems typically involve staggered service across channels to maintain partial operation during maintenance activities, a capability single-channel systems cannot offer. Despite their greater maintenance complexity, well-designed multi-channel systems can deliver excellent operational availability through proper maintenance planning and utilization of their inherent redundancy features.
Staffing Requirements and Operational Expertise
The staffing requirements for operating and maintaining X-ray sorting systems vary significantly between single-channel and multi-channel configurations, impacting both operational costs and implementation complexity. Single-channel systems typically require one trained operator per shift, with that individual responsible for monitoring system performance, making parameter adjustments, and performing basic troubleshooting. The relative operational simplicity enables faster operator proficiency development, often requiring just 2-4 weeks of intensive training compared to 4-8 weeks for multi-channel systems. This reduced training requirement and staffing level makes single-channel systems particularly suitable for operations with limited technical personnel or high workforce turnover.
Multi-channel systems demand more substantial operational staffing, typically requiring dedicated operators with higher technical proficiency and deeper understanding of system principles. The complexity of monitoring multiple parallel channels, interpreting sophisticated performance metrics, and implementing coordinated adjustments across channels necessitates more extensive training and experience. Operations implementing multi-channel systems often benefit from establishing specialized sorting technician positions rather than adding these responsibilities to existing general operator roles. The staffing investment for multi-channel systems extends beyond operations to maintenance, typically requiring access to more highly trained technicians or service contracts with equipment suppliers to ensure optimal system performance and availability.
System Selection Decision Flow
• Define Throughput Requirements
If processing <50 tons/hour, single-channel is typically sufficient. For >100 tons/hour, multi-channel is recommended.
• Evaluate Material Characteristics
Uniform particle size and composition favor single-channel systems. Variable materials benefit from multi-channel flexibility.
• Assess Capital Budget Constraints
Single-channel systems require 30-50% lower initial investment with faster ROI for smaller operations.
• Consider Infrastructure Limitations
Space-constrained sites may require single-channel systems, while greenfield projects can accommodate multi-channel designs.
• Validate with Testing
Conduct bench-scale testing with representative samples to confirm performance expectations for your specific ore.
Implementation Planning and Supplier Evaluation Framework
The successful implementation of X-ray sorting technology requires careful planning and thorough supplier evaluation regardless of whether selecting single-channel or multi-channel systems. The implementation process typically begins with comprehensive test work using representative material samples to verify sorting performance and establish realistic operational expectations. This test phase should examine multiple aspects including sorting efficiency, capacity validation, product quality assessment, and operational parameter optimization. Operations should insist on testing under conditions that accurately reflect their planned implementation, including expected feed variations and target product specifications, rather than accepting generic performance claims without specific validation.
Supplier evaluation represents another critical implementation phase, with technical capability, industry experience, and service support quality being paramount considerations. Potential suppliers should demonstrate proven experience with applications similar to the specific operation under consideration, supported by reference installations with verifiable performance data. The evaluation should extend beyond equipment specifications to examine software capabilities, control system sophistication, and future upgrade potential. Service and support capabilities warrant particular attention, including response time commitments, spare parts availability, technical support accessibility, and training program comprehensiveness. These factors often prove more important than minor equipment price differences over the full operational lifecycle.
Testing Protocols and Performance Validation
Comprehensive testing protocols provide the foundation for successful X-ray sorting implementation, enabling evidence-based equipment selection and establishing performance benchmarks for future operation. Testing should utilize statistically significant sample quantities representing the full range of expected feed variations, typically 500-2000 kg depending on particle size and value concentration. The test program should examine multiple operational scenarios including different parameter settings, feed rates, and product quality targets to develop a thorough understanding of system capabilities and limitations. This empirical data enables more accurate economic modeling and risk assessment before committing to capital investment.
Performance validation during testing should extend beyond simple recovery and product grade measurements to include comprehensive analysis of sorting behavior across different particle sizes, liberation characteristics, and compositional variations. Modern test facilities utilize sophisticated tracking methodologies that enable correlation of individual particle characteristics with sorting decisions, providing deep insight into system performance drivers and optimization opportunities. The resulting data facilitates development of precise operational procedures and parameter control strategies tailored to specific material characteristics, maximizing the likelihood of successful full-scale implementation. This thorough testing approach typically identifies 5-15% additional economic value compared to simplified testing protocols that focus only on bulk performance metrics.
Technical Evaluation and Supplier Capability Assessment
The technical evaluation of potential X-ray sorting suppliers should examine multiple dimensions beyond basic equipment specifications to ensure long-term operational success. Core technology assessment should verify detection system sophistication, ejection mechanism precision, material handling reliability, and control system capabilities. Suppliers should demonstrate robust engineering principles in their designs, with appropriate safety systems, maintainability considerations, and durability suitable for industrial mining environments. The evaluation should include examination of key components including X-ray sources, detection systems, ejection mechanisms, and structural elements to verify quality and expected service life.
Supplier capability assessment should extend beyond technical specifications to examine implementation experience, financial stability, research and development commitment, and industry reputation. Potential suppliers should provide detailed implementation methodologies demonstrating systematic approaches to project management, installation, commissioning, and operational training. Financial stability verification helps ensure ongoing support availability throughout the equipment lifecycle, while research and development commitment indicates future upgrade potential and continuous improvement. Industry references from operations with similar applications provide invaluable insight into real-world performance and supplier responsiveness to operational challenges that inevitably arise during system implementation and operation.
Installation Planning and Commissioning Methodology
Thorough installation planning significantly influences the success and efficiency of X-ray sorting system implementation, with requirements differing substantially between single-channel and multi-channel configurations. Single-channel systems typically require 2-4 weeks for installation and commissioning, while multi-channel systems generally need 4-8 weeks depending on complexity and site-specific conditions. The planning process should address multiple aspects including foundation requirements, utility connections, material handling interfaces, safety systems, and operational access. Early engagement with equipment suppliers during facility design enables optimization of layout for operational efficiency and maintenance accessibility, particularly important for multi-channel systems with more complex spatial requirements.
The commissioning methodology represents another critical implementation phase where systematic approaches yield significant benefits in startup efficiency and long-term performance. Commissioning should follow a structured progression from individual component verification through subsystem testing to full integrated operation, with documented validation at each stage. This methodical approach identifies issues early when they are simpler and less costly to address, reducing overall commissioning duration and improving initial operational performance. Modern commissioning protocols typically include comprehensive performance validation against test work results, operator training integration, and documentation completion to ensure smooth transition to normal operation. Well-executed commissioning typically achieves stable operation 25-40% faster than ad-hoc approaches while establishing higher initial performance benchmarks.
