This guide provides an in-depth exploration of how to choose the most suitable sorting equipment for mixed plastic recycling operations. We will examine the core technologies—near-infrared sorters, AI sorting machines, and color sorters—detailing their working principles, applications, and integration strategies. By understanding the technical aspects and economic factors, businesses can make informed decisions to enhance recycling efficiency, product purity, and profitability. The content is designed to be accessible to a broad audience, including young learners, while maintaining a formal tone and incorporating factual data to ensure clarity and reliability.
Understanding the Basic Challenges and Technical Pathways in Mixed Plastic Sorting
Mixed plastic recycling faces significant hurdles due to the similar physical appearances but distinct chemical compositions of different polymers, making traditional separation methods inefficient. Success in sorting begins with a precise analysis of feedstock characteristics, such as composition ratios, contamination levels, and desired end-product specifications. Modern sorting technologies primarily leverage spectral properties, visual features, or density differences to achieve accurate separation, each offering unique advantages and limitations. For instance, near-infrared systems excel in identifying material types, while AI-based solutions adapt to complex visual patterns. A thorough grasp of these pathways is essential for selecting equipment that aligns with specific operational goals, such as maximizing purity or throughput. Additionally, factors like material flow consistency and preprocessing requirements play a critical role in determining the optimal technical approach.
Typical Composition of Mixed Plastic Streams and Sorting Difficulties
Common plastics like PET, HDPE, PVC, PP, and PS often appear similar but have vastly different recycling values and processing needs. For example, PVC contamination can degrade the entire PET recycling stream, while dark-colored HDPE holds lower market value compared to natural-colored variants. Sorting challenges are compounded by the presence of labels, residues, and irregularly sized fragments, which can impede sensor accuracy and overall efficiency. Data from recycling facilities indicate that mixed streams may contain up to 20% contaminants, underscoring the need for robust sorting solutions. Addressing these issues requires technologies capable of distinguishing subtle differences in material properties under variable conditions.
Overview of Mainstream Plastic Sorting Technologies and Their Principles
Near-infrared technology operates by detecting molecular bond vibrations that create unique spectral signatures for each polymer type. AI sorting machines utilize computer vision and deep learning algorithms to analyze shapes, textures, and other visual cues, enabling them to identify objects beyond simple material composition. Color sorters rely on high-resolution cameras and lighting systems to differentiate materials based on color variations, while X-ray sorters exploit density contrasts for separation. Each technology has evolved to handle specific scenarios; for instance, NIR can achieve over 95% purity in separating PET from PVC in controlled conditions. Understanding these principles helps in matching the right technology to the sorting task, whether it involves removing impurities or categorizing materials by type and color.
Defining Sorting Objectives: Balancing Purity, Recovery Rates, and Capacity
Sorting objectives directly influence technology selection and investment scale, as higher purity often necessitates multi-stage sorting processes, whereas maximizing recovery rates requires systems with high sensitivity and tolerance. For example, operations aiming to produce premium-grade recycled pellets might prioritize purity levels above 98%, while those focused on bulk waste processing may emphasize throughput capacities of several tons per hour. Industry reports show that optimizing these factors can improve profitability by up to 30%, highlighting the importance of clear goals. Decisions should consider the trade-offs between achieving superior product quality and maintaining cost-effective operations.
Critical Impact of Feedstock Preprocessing on Sorting Efficiency
Preprocessing steps like shredding, washing, drying, and screening significantly influence subsequent sorting performance by ensuring uniform particle size and reducing surface contaminants. For instance, fragments sized between 10mm and 50mm enhance the accuracy of NIR and AI systems by providing consistent scanning surfaces. Inadequate preprocessing can lead to signal interference, reducing sorting precision by as much as 15–20% in some cases. Therefore, integrating coordinated preprocessing and sorting stages is vital for achieving optimal results and minimizing operational losses.
Near-Infrared Sorting Machine: Precision Separation Based on Material Chemical Characteristics
Near-infrared sorters are pivotal in mixed plastic recycling for their ability to distinguish materials based on chemical fingerprints, even when they look identical to the human eye. These machines excel in separating polymers like PET from PVC or PP from PE, achieving purity rates often exceeding 95% in single-material streams. The technology's maturity and reliability make it a cornerstone in modern recycling plants, with advancements enabling faster processing speeds and better handling of challenging materials. By incorporating features such as dual-sided scanning and high-resolution spectrometers, NIR systems can adapt to diverse feedstock conditions. Moreover, ongoing innovations are expanding their capabilities, including improved detection of black plastics and integration with complementary sensors for enhanced performance.
How NIR Technology Identifies Different Polymers
When near-infrared light interacts with plastic surfaces, specific chemical bonds absorb distinct wavelengths, generating unique absorption spectra that serve as material identifiers. This process allows NIR sorters to differentiate between polymers without being overly affected by surface dirt or color variations, provided the particles are adequately preprocessed. For instance, PET exhibits characteristic peaks around 1700nm, while HDPE shows different patterns, enabling precise separation. Modern systems can process thousands of spectra per second, ensuring real-time decision-making in high-volume operations. This capability is backed by spectral libraries containing data on numerous materials, which enhance accuracy and reduce misclassification rates.
Configuring NIR Sorters for Mixed Plastic Recycling Applications
Optimal configurations for handling mixed plastics include dual-sided scanning modules, high-resolution spectrometers, and rapid data processing units to manage complex material flows. For flake or film-based materials, specialized feeding systems are essential to ensure each piece is thoroughly scanned, minimizing omissions. In practice, systems with throughput capacities of 3–5 tons per hour are common in medium to large facilities, balancing speed and accuracy. Customizing these setups based on feedstock variability—such as adjusting sensor sensitivity for darker materials—can improve overall efficiency and adapt to specific recycling demands.
Analysis of NIR Sorter Capabilities with Black Plastics
Traditional NIR sorters struggle with carbon-black-filled plastics because carbon black absorbs most near-infrared light, masking the polymer's spectral signature. However, newer models equipped with high-sensitivity detectors and advanced algorithms can partially overcome this limitation, though at a higher cost. For example, some systems now achieve detection rates of 80–90% for black PET by using enhanced illumination and machine learning corrections. This progress is crucial, as black plastics constitute up to 15% of municipal waste streams, and their effective sorting can significantly boost recycling yields.
Fusion Applications of NIR with Other Sensing Technologies
Integrating NIR with visible-light cameras, laser sensors, or metal detectors creates multi-sensor systems that leverage material type, color, and structural data for superior sorting precision. These hybrid setups are particularly effective for complex waste streams, allowing simultaneous removal of contaminants and sorting by multiple criteria. For instance, combining NIR with AI-based visual analysis can increase overall purity by 5–10% compared to standalone systems. Such innovations are driving the adoption of advanced detection technologies in recycling, enabling more flexible and efficient operations.
AI Sorting Machine: Tackling Complex Scenarios Through Deep Learning
AI sorting machines represent a leap forward in recycling technology, using computer vision and deep learning to identify materials based on shape, texture, transparency, and other visual attributes that NIR cannot assess. Their key strength lies in continuous learning, allowing them to adapt to evolving waste streams and recognize non-standard items like bottle caps or labels. By processing real-time image data, these systems can achieve accuracies of over 90% in identifying specific objects, making them ideal for handling heterogeneous plastic mixes. Furthermore, AI sorters often work in tandem with robotic arms for physical separation, enhancing their versatility in both coarse and fine sorting tasks.
Object Recognition and Classification Logic in AI Sorters
AI sorters are trained on vast datasets of labeled images, enabling neural networks to recognize various plastic items, contaminants, and anomalies based on learned patterns. Unlike NIR, which identifies materials chemically, AI interprets objects contextually—for example, distinguishing a whole PET bottle from a fragment—leading to more logical sorting decisions. This approach allows the system to handle unpredictable elements, such as mixed waste with embedded metals or organic residues. With training, AI models can reduce error rates to below 5% in controlled environments, though performance varies with input quality and lighting conditions.
Ability to Identify Specific Items and Contaminants in Mixed Plastic Streams
AI systems excel at detecting and removing non-target plastics, silicone components, metal attachments, and glass, which are often missed by conventional sensors. For instance, they can identify and eject up to 99% of visible contaminants like rubber seals or paper labels, crucial for producing high-purity recycled materials. This capability is supported by real-time data analysis, with some machines processing over 200 items per minute. By minimizing impurities, AI sorters help recyclers meet stringent quality standards and increase the market value of output products.
Continuous Learning and Model Optimization Mechanisms in AI Systems
Advanced AI sorters incorporate feedback loops where operator corrections are used to refine sorting models continuously, improving accuracy over time without manual reprogramming. This self-optimization is powered by machine learning algorithms that adjust to new data patterns, such as changes in plastic colors or shapes. In operational settings, systems can achieve performance improvements of 10–15% within weeks of deployment by learning from mis-sorts. This adaptability makes AI technology particularly valuable for dynamic recycling environments where feedstock compositions frequently shift.
Collaborative Operation Between AI and Robotic Technologies
In integrated setups, AI handles visual analysis and decision-making, while high-dexterity robots execute physical sorting by picking or pushing items from conveyor belts. This synergy is effective for tasks like pre-sorting entire bottles or removing large contaminants, complementing finer separation by other machines. For example, robotic arms equipped with AI vision can achieve pick rates of 60–120 items per minute, depending on the complexity of the stream. Such collaborations are central to AI sorter applications, enabling scalable and automated recycling solutions.
Color Sorter: Enhancing Value Through Color Differentiation
Color sorters play a specialized role in plastic recycling by segregating materials of the same polymer type based on color differences, thereby increasing the value and aesthetic consistency of recycled products. While they do not distinguish material compositions, their ability to produce mono-color streams is vital for meeting brand specifications and market demands. Using high-resolution cameras and controlled lighting, these machines can detect subtle color variations invisible to the human eye, often achieving separation accuracies above 95%. When deployed after material-specific sorters like NIR, color sorters act as a finishing step, maximizing the economic return from sorted plastics.
Working Principles and Color Recognition Accuracy of Color Sorters
Color sorters operate by illuminating materials with consistent light sources and capturing images via high-speed cameras, which analyze RGB values to identify deviations from set color thresholds. This process allows for precise ejection of off-color particles using air jets or mechanical diverters. Modern systems can handle particles as small as 2mm, with processing speeds reaching 3 tons per hour in standard configurations. Accuracy is enhanced through algorithms that account for surface reflectivity and shape, reducing false positives to less than 2% in optimal conditions.
Sorting Strategies for Transparent, Light-Colored, and Dark Materials
Different color categories require distinct strategies; for instance, transparent and white plastics command premium prices and are sorted with strict tolerances to maintain clarity, whereas mixed-color materials may be grouped into darker shades for cost efficiency. In practice, separating natural HDPE from colored variants can increase its value by 20–30%, justifying the investment in color sorting. Operations often use multi-stage sorting to first isolate high-value clear materials before processing remaining streams into uniform dark batches, balancing output quality with operational costs.
Applications of Color Sorters in Enhancing Recycled Plastic Value
By dividing mixed-color streams into categories like natural, white, and mixed, color sorters significantly boost the marketability of recycled plastics. For example, sorted clear PET flakes can fetch prices 50% higher than unsorted mixtures, making color sorting a critical value-adding step. This process also supports circular economy goals by enabling the production of visually consistent pellets for manufacturing new products. Facilities report that integrating color sorters can improve overall profitability by 15–25%, depending on material quality and market conditions.
Process Coordination Between Color Sorting and NIR/AI Technologies
The most efficient recycling lines typically sequence color sorters after NIR or AI systems, first separating materials by polymer type and then refining them by color. This layered approach minimizes processing errors and energy use, as color sorters focus on pre-sorted, uniform streams. For instance, a color sorter placed downstream can achieve purities of 98% for specific color groups, leveraging the initial material separation done by upstream technologies. Such coordination ensures that each sorting stage complements the others, optimizing overall system performance.
Building an Efficient Mixed Plastic Sorting Line: Systemic Considerations
Selecting individual machines is important, but designing a cohesive sorting line is key to achieving high efficiency and profitability. This involves optimizing material flow, device interoperability, capacity matching, and automation control to create a seamless operation. A well-planned line can enhance throughput by 20–30% compared to disjointed setups, while reducing energy consumption and manual interventions. Critical aspects include selecting between single-pass and multi-pass configurations, integrating data-driven controls, and ensuring that each component—from feeders to ejectors—works in harmony. By addressing these factors, recyclers can scale operations effectively and adapt to changing material inputs.
Design of Single-Pass Versus Multi-Pass Sorting Processes
Single-pass systems are simpler and cheaper to install but may limit purity levels, whereas multi-pass designs allow for sequential sorting to achieve higher product grades and multiple output streams. For example, a two-pass NIR system can increase PET purity from 90% to 99%, though it requires additional space and investment. Multi-pass setups are common in large facilities processing over 10 tons per hour, where flexibility justifies the complexity. Choosing between these approaches depends on factors like feedstock diversity, target product specifications, and available capital.
Combination and Flow Optimization of Different Sorting Technologies

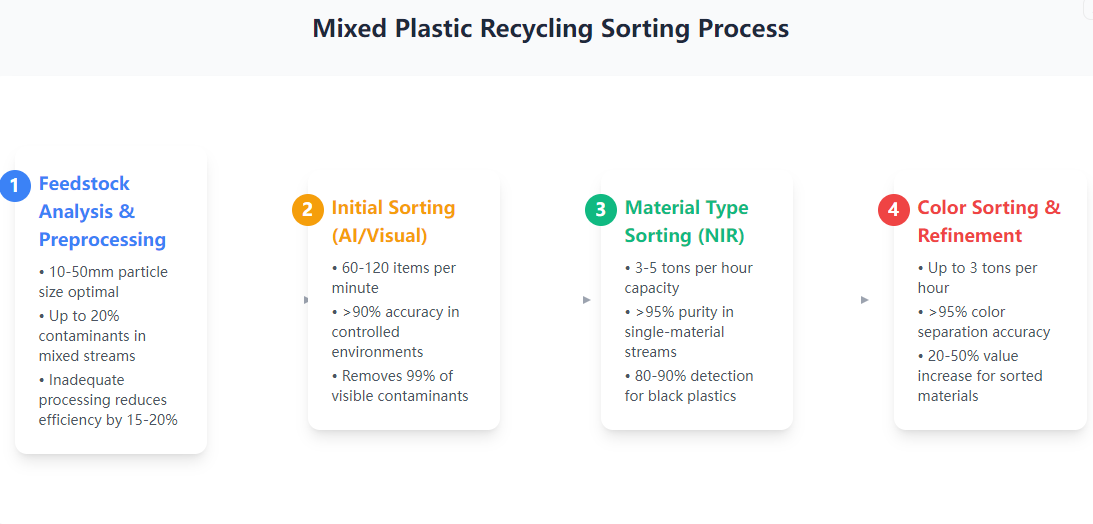

Effective sorting lines often combine technologies like AI pre-sorting, NIR material separation, and color refinement in a logical sequence to maximize efficiency. For instance, using AI to remove large contaminants first reduces the load on downstream NIR sorters, improving their accuracy and lifespan. Flow optimization aims to minimize re-handling and energy use; data show that integrated lines can reduce operational costs by up to 15% through better resource allocation. This strategy also allows recyclers to customize outputs for various markets, enhancing business agility.
Matching Sorting Line Capacity with Upstream and Downstream Equipment
Sorting machines must align with the throughput of shredders, washers, and extruders to prevent bottlenecks that lower overall efficiency. For example, a sorter processing 5 tons per hour should be paired with compatible preprocessing units to maintain steady material flow. Under-capacity can lead to pile-ups and increased wear, while over-capacity results in idle resources and higher costs. Industry benchmarks suggest designing lines with 10–15% capacity buffers to handle peak loads and ensure consistent operation.
Integration Requirements for Automation and Control Systems
Modern sorting lines rely on centralized control systems to synchronize equipment, monitor performance metrics like purity and throughput, and manage maintenance schedules. These systems use IoT sensors and software platforms to provide real-time insights, reducing human error and downtime. For example, automated controls can adjust sorter settings based on feedstock changes, maintaining efficiency without manual intervention. Implementing such integration is a core aspect of smart material feeding, enabling predictive maintenance and data-driven optimization.
Economic Analysis and Decision Framework for Sorting Equipment Investment
Investing in sorting technology requires balancing technical merits with financial viability, as the optimal solution must deliver returns through improved efficiency and product value. A comprehensive analysis includes evaluating total cost of ownership, modeling return on investment, and assessing risks related to technological obsolescence. For instance, while advanced sorters may have high upfront costs, they can pay back within 2–3 years through increased material revenues and lower labor expenses. Businesses should also consider their scale and growth trajectory when selecting equipment, ensuring that investments align with long-term strategic goals.
Analysis of Total Cost of Ownership for Sorting Equipment
Total cost of ownership encompasses not only purchase prices but also installation, energy consumption, spare parts, maintenance, and software updates, which can exceed initial outlays over time. For example, NIR sorters might consume 10–15 kW per hour, adding significantly to operational expenses, while AI systems require periodic model updates. Factoring in these costs helps avoid underestimating long-term financial commitments; data indicate that maintenance alone can account for 20–30% of total costs over five years.
Return on Investment Models and Key Variable Calculations
ROI models for sorting equipment incorporate variables such as raw material costs, sorted product prices, sorting efficiency rates, capacity utilization, and utility expenses. Sensitivity analysis often shows that improvements in purity and throughput have the greatest impact on returns; for instance, a 5% increase in recovery rates can boost annual profits by $50,000 in medium-scale operations. Using dynamic models, recyclers can simulate scenarios like price fluctuations or feedstock changes to make resilient investment decisions.
Equipment Selection Recommendations for Recycling Enterprises of Different Scales
Smaller startups might begin with single-function NIR sorters or refurbished units to minimize capital risk, whereas large corporations can justify integrated lines with AI and color sorters for higher output quality. For example, a facility processing under 1 ton per hour could achieve ROI within 18 months with a basic sorter, while a multi-line plant may target 3–5 years. Tailoring selections to business size and market focus ensures that investments support sustainable growth without overextension.
Assessment of Technology Iteration Risks and Equipment Upgrade Paths
Rapid advancements in sorting technology pose risks of obsolescence, making it crucial to choose modular systems that allow for sensor or software upgrades instead of full replacements. Suppliers offering continuous support and update services help mitigate these risks; for instance, some AI sorters can be upgraded via cloud-based algorithms. Evaluating plastic sorting solutions with future-proof features, such as compatibility with emerging sensors, ensures long-term relevance and adaptability in a competitive market.
