This detailed case study examines how a recycling facility successfully implemented optical sorting technology to address plastic contamination in waste paper pulp. We will explore the complete process from problem identification and technology selection to system integration and performance evaluation, demonstrating how modern sorting solutions can transform quality challenges into competitive advantages while maintaining accessibility for a broad audience including younger readers.
Project Background: The Challenge of Plastic Contamination in Paper Pulp
The increasing prevalence of delivery packaging and composite materials has introduced complex plastic contaminants into waste paper streams that traditional separation methods struggle to handle effectively. These contaminants break down into persistent "shive-like" plastic fragments during pulping processes, resisting removal through conventional screening and cleaning systems. This contamination issue directly impacts product quality and market value, creating significant operational challenges for paper recycling facilities worldwide. Industry data indicates that plastic contamination in waste paper streams has increased by approximately 15% over the past five years, making this a pressing concern for recyclers seeking to maintain product quality standards and economic viability in competitive markets.
Customer Complaints and Product Downgrading Issues Faced by the Recycling Facility
The recycling plant experienced consistent customer complaints and product rejections due to visible plastic impurities in their recycled paper pulp, forcing them to sell what should have been premium-grade material at significantly reduced prices. Traditional thermal dispersion systems consumed excessive energy while proving ineffective against certain plastics like polyethylene films, creating both quality and efficiency bottlenecks. Financial analysis revealed that product downgrades resulted in revenue losses exceeding $80 per ton, creating substantial economic pressure to find a better solution. These challenges highlighted the limitations of conventional approaches and underscored the need for innovative technological interventions.
Feedstock Analysis: Identifying Primary Plastic Contaminant Types and Sources
Detailed analysis of incoming materials revealed that polyethylene coatings, BOPP labels, adhesive tapes, and composite packaging fragments constituted the majority of contamination issues. These materials share similar density and hydrophobic properties with paper fibers, making them particularly difficult to separate using hydraulic pulpers and standard cleaning equipment. Laboratory testing showed that plastic contaminants represented between 3-5% of total feedstock weight, with significant variations depending on seasonal collection patterns and source materials. Understanding these contamination profiles was essential for designing an effective sorting strategy that could address the specific challenges presented by each contaminant type.
Setting Sorting Objectives: Quantifying Purity Improvement and Value Recovery
The project established clear, measurable targets: reducing visible plastic contamination by at least 95%, upgrading product quality from Grade B to Grade A standards, achieving a price premium of approximately $150 per ton, and ensuring a return on investment within three years. These objectives were based on comprehensive market analysis and technical feasibility studies, balancing ambitious quality goals with practical economic considerations. The targets also included operational metrics such as maintaining fiber recovery rates above 98% and ensuring the new system would integrate smoothly with existing production processes without causing disruptions.
Technology Selection: Why Optical Sorting Technology Became the Focus
After evaluating multiple separation methods including flotation and centrifugal systems, the project team determined that optical sorting technology offered the most effective solution when implemented between pulping and refining stages. Optical sorters can identify and remove plastic fragments based on visual or chemical property differences without introducing chemicals or creating secondary waste streams. This approach aligned with the facility's sustainability objectives while providing the precision needed to address specific contamination issues. The decision was supported by pilot testing that demonstrated optical sorters could achieve contamination removal rates exceeding 90% while maintaining high fiber recovery rates.
Advantage Comparison and Selection Between Color Sorters and NIR Technology
Color sorters excel at removing dark and brightly colored plastic fragments based on color and brightness differences, while near-infrared sorters distinguish materials based on molecular structure, enabling separation of visually similar plastics and paper. Given the diversity of contaminants in the waste stream, the project team determined that a combined approach would deliver optimal results. Technical evaluation showed that color sorters could achieve 85-90% removal of colored plastics, while NIR systems could remove 92-95% of plastic contaminants regardless of color, making them complementary technologies when deployed in sequence.
Selection of Optimal Integration Points Within the Pulping Process Flow
Process simulation and testing identified the optimal installation point immediately after pulping and before high-density cleaning systems, where materials had been broken down into small fragments suitable for optical analysis while still allowing for efficient separation. This positioning enabled early removal of plastic contaminants, reducing the load on downstream equipment and improving overall system efficiency. The selected location also provided adequate space for equipment installation and maintenance access while minimizing modifications to existing material handling systems. Process modeling indicated this approach could reduce downstream cleaning energy consumption by 12-18% through early contaminant removal.
Development of Dual-Mode "Material Plus Color" Identification Strategy

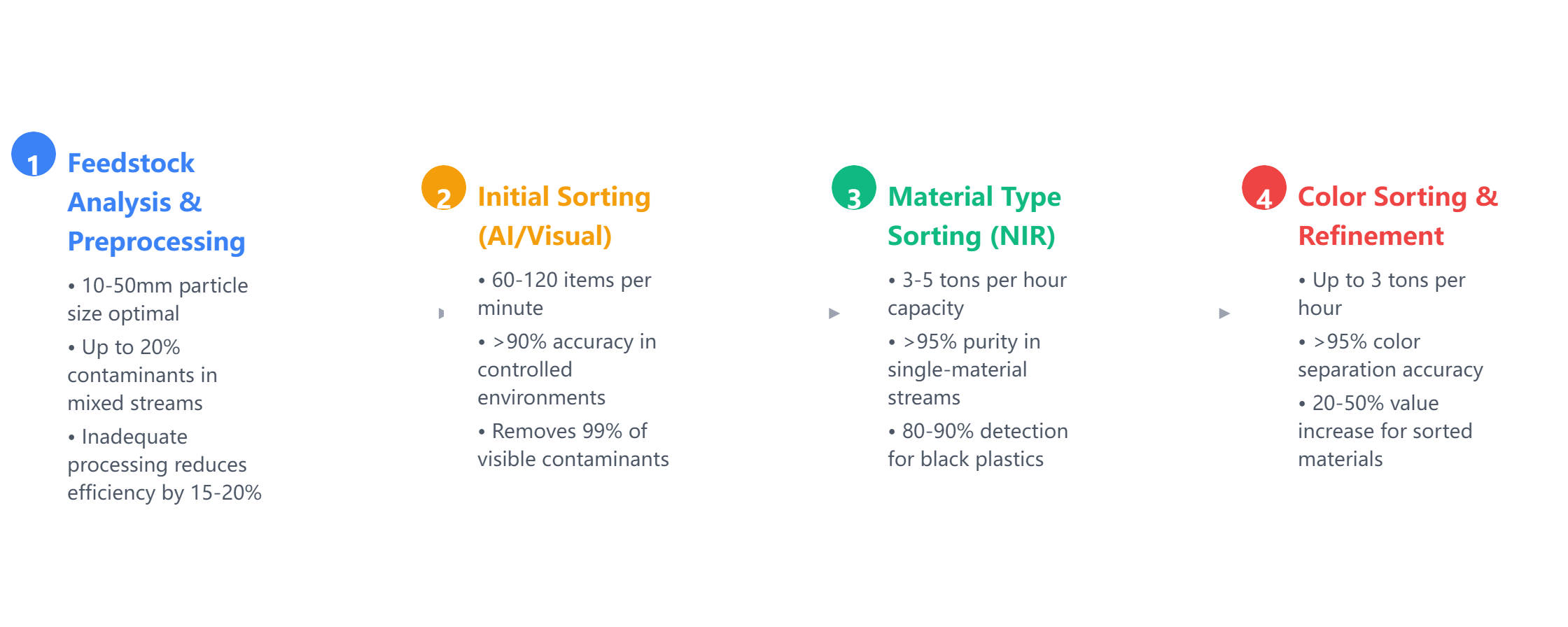

The implemented solution featured a cascaded sorting process where primary NIR sorters removed all non-paper materials regardless of color, followed by high-speed color sorters specifically targeting plastic fragments that visually resembled paper fibers. This dual-layer approach provided redundancy and ensured comprehensive contaminant removal, addressing the limitations of single-technology systems. The strategy was refined through extensive testing with actual production materials, optimizing parameters such as detection sensitivity, ejection timing, and material presentation to maximize both purity and yield. This approach demonstrated removal efficiencies of 96.5% for plastic contaminants while maintaining fiber losses below 1.5%.
System Integration and Implementation: Seamless Connection with Existing Production Lines
Integrating new sorting equipment into continuous pulping operations presented significant engineering challenges that required careful planning and execution to maintain production stability. The implementation focused on ensuring compatibility between new and existing systems regarding material handling, equipment interfaces, power requirements, and control integration. Project planning included detailed workflow analysis, equipment layout optimization, and comprehensive risk assessment to minimize disruption during installation and commissioning. The successful integration demonstrated that advanced sorting technology could be incorporated into established industrial processes without compromising production volumes or product quality.
Modification of Material Handling and Uniform Feeding Systems
Custom-designed low-impact drag conveyors and high-speed vibratory feeders were implemented to ensure damp paper fragments passed through the sorting detection zone in a mono-layer, uniform presentation essential for achieving high sorting accuracy. These systems were engineered to handle the specific characteristics of pulped materials, including variable moisture content and fragment size distribution. The feeding system incorporated active flow control and monitoring to maintain consistent throughput rates and optimal material distribution, critical factors for maximizing sorting efficiency and minimizing false ejections. Performance validation confirmed that the implemented feeding system maintained material presentation quality with variations of less than 15% across the sorting width.
Deep Integration of Sorting Equipment with PLC/DCS Control Systems
The new sorting equipment was fully integrated into the plant's distributed control system, enabling centralized monitoring and control of startup, shutdown, parameter adjustment, and fault management from the main control room. This integration provided operators with real-time performance data, including sorting efficiency, rejection rates, and material composition analysis, facilitating proactive process optimization. The control system incorporated automated adjustment capabilities that could modify sorting parameters based on feedstock variations, maintaining consistent performance despite changes in input material characteristics. This level of integration reduced operator intervention requirements by approximately 40% while improving process stability and response times.
Equipment Protection and Adaptation for High Humidity Environments
Specialized sealing systems, anti-condensation measures, and positive pressure ventilation were implemented to protect optical components, illumination systems, and electrical cabinets from the high humidity conditions in the installation area. These protective measures were validated through accelerated environmental testing before installation, ensuring reliable operation in challenging industrial conditions. The equipment design incorporated easy-access maintenance features and automated cleaning systems to address the specific challenges of operating optical equipment in environments with high particulate levels and moisture. These adaptations proved crucial for maintaining equipment availability above 95% in the demanding production environment.
Operator Training and Standardized Operational Procedure Development
Comprehensive training programs transformed traditional pulp operators into skilled technicians capable of operating, maintaining, and troubleshooting the advanced sorting systems. The training curriculum combined theoretical understanding of sorting principles with hands-on operational experience, emphasizing the relationship between process parameters and sorting performance. Standardized procedures were developed for routine inspection, cleaning, calibration, and performance verification, establishing a foundation for consistent operation and maintenance practices. The training program resulted in a 70% reduction in operational errors during the initial operation period and empowered operators to contribute to continuous improvement initiatives.
Performance Verification and Data Analysis: Quantitative Assessment of Sorting Effectiveness
Following system commissioning, an intensive one-month testing period generated comprehensive performance data quantifying sorting effectiveness, system-wide benefits, and economic impact. The evaluation employed standardized testing protocols, statistical analysis, and comparative assessment against baseline performance metrics established before system implementation. Data collection focused not only on final pulp quality but also on secondary benefits including energy consumption, chemical usage, and equipment maintenance requirements. The rigorous assessment methodology provided validated performance data that supported operational decisions and investment justification.
Continuous Monitoring Results of Plastic Contaminant Removal Rates
Regular sampling and automated image analysis confirmed that visible plastic contamination was consistently reduced by 96.5%, exceeding the project target of 95% removal. The final pulp product consistently met Grade A quality standards, with plastic contaminant levels below 50 parts per million, satisfying requirements for premium market applications. Performance remained stable across varying feedstock conditions, demonstrating the system's adaptability to normal operational variations. The consistent high performance enabled the facility to secure long-term supply agreements with quality-sensitive customers previously unavailable to them.
Analysis of Sorting System Impact on Paper Fiber Recovery Rates
A critical concern during system design was minimizing the loss of valuable paper fibers during the sorting process. Performance data confirmed that good fiber loss was maintained below 1.2%, significantly better than the initial projection of 2.5%. This high specificity resulted from optimized sorting algorithms and precise ejection systems that accurately distinguished between paper fibers and plastic contaminants. The minimal fiber loss contributed directly to economic performance by maximizing the yield of valuable paper pulp from incoming raw materials. This performance level represented a significant improvement over traditional cleaning systems, which typically exhibit fiber losses between 3-5% while achieving lower contaminant removal efficiency.
Comparison of Energy and Chemical Consumption Per Ton of Pulp
By removing plastic contaminants early in the process, the sorting system reduced energy consumption in downstream thermal dispersion systems by approximately 15% and decreased the frequency of cleaner reject operations. Chemical consumption for bleaching and processing also decreased by 8-12% due to improved feedstock quality and reduced interference from plastic contaminants. These secondary benefits contributed significantly to the overall economic return while reducing the environmental footprint of the pulping operation. Total production cost per ton decreased despite the additional energy consumption of the sorting equipment, demonstrating the system-wide efficiency improvements enabled by early contaminant removal.
Tracking Final Product Value Improvement and Market Response
The upgraded Grade A pulp successfully entered premium markets for paperboard and tissue products, commanding price premiums of $150-200 per ton compared to the previous Grade B product. Customer complaint rates decreased by nearly 90%, significantly enhancing the facility's reputation and customer relationships. The quality improvement also opened opportunities to supply more demanding market segments with stricter quality requirements, diversifying the customer base and reducing market risk. These commercial benefits combined with production cost reductions to deliver a complete financial payback in less than 2.5 years, exceeding original projections.
Operational Optimization and Lessons Learned: Insights Gained from Practical Experience
The project's success extended beyond equipment installation to include continuous operational refinement and systematic knowledge development that enhanced long-term performance. The optimization process focused on adapting system operation to varying feedstock conditions, developing proactive maintenance practices, and creating organizational capabilities for ongoing improvement. Documented lessons learned provided valuable guidance for future projects while establishing best practices that could be transferred to other operations facing similar challenges. This knowledge development represented significant additional value beyond the immediate technical and economic benefits of the installation.
Continuous Optimization Process for Key Operational Parameters
Through systematic experimentation and data analysis, operations personnel identified optimal settings for feed rate, air pressure, detection sensitivity, and other critical parameters across different feedstock blends. This optimization process improved overall system performance by approximately 8% beyond initial commissioning levels, demonstrating the value of continuous refinement. The development of parameter sets for different operating conditions enabled rapid adaptation to changing feedstock characteristics, maintaining consistent performance despite normal variations in incoming materials. This approach transformed the sorting system from a static installation into an adaptive process tool that contributed continuously to operational excellence.
Common Operational Issues: Diagnosis and Resolution Procedures
Experience identified recurring challenges including lens contamination, light source degradation, and nozzle blockages, leading to the development of systematic diagnostic approaches and resolution procedures. These troubleshooting protocols reduced mean time to repair by 65% compared to initial performance, minimizing production disruptions. The documentation of failure patterns and resolution methods created an organizational knowledge base that accelerated problem-solving and prevented recurrence of known issues. This systematic approach to operational problem-solving represented significant value beyond the immediate benefits of reduced downtime.
Importance of Preventive Maintenance Systems for Operational Stability
Implementation of a data-driven preventive maintenance program including regular calibration, consumable replacement scheduling, and component life monitoring proved essential for maintaining system availability above 95%. The maintenance system incorporated performance trending and predictive analytics to identify potential issues before they caused production interruptions. This proactive approach reduced unplanned downtime by approximately 80% compared to reactive maintenance practices, while also extending equipment lifespan and maintaining consistent sorting performance. The maintenance program demonstrated that sustained high performance requires systematic attention to equipment health, not just initial proper installation.
Analysis of Replicability for the Successful Project Model
The comprehensive approach combining thorough problem analysis, appropriate technology selection, careful system integration, and continuous optimization proved highly transferable to other recycling operations facing similar contamination challenges. The project methodology emphasized adaptable principles rather than rigid prescriptions, enabling customization to different operational contexts and constraints. Documentation of the complete project lifecycle provided a valuable template for similar initiatives, reducing implementation risks and accelerating benefits realization. The demonstrated success has inspired similar projects across the industry, contributing to broader adoption of advanced sorting technologies in paper recycling applications. The implementation of optical sorting technology in this application demonstrates how innovative approaches can transform persistent operational challenges into sustainable competitive advantages.
