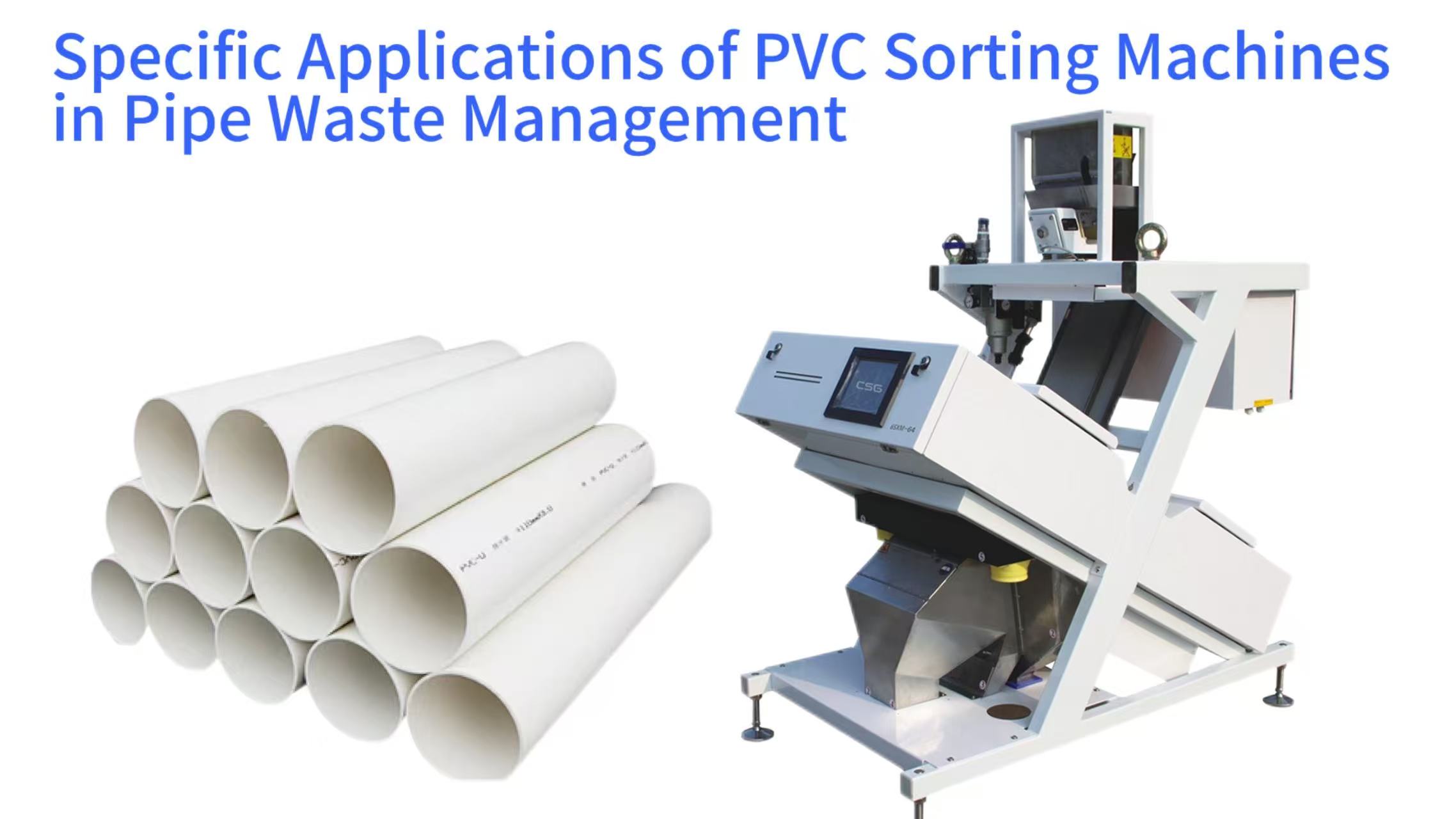

PVC sorting machines represent advanced technological solutions specifically engineered to address the growing challenges of pipe waste management in construction, industrial, and municipal sectors. These specialized systems utilize sophisticated detection technologies to identify and separate PVC materials from mixed waste streams, enabling efficient recycling processes and supporting circular economy initiatives. The integration of near-infrared spectroscopy and artificial intelligence has transformed traditional waste management approaches, allowing for precise material identification and high-purity output streams. This comprehensive examination explores the technical principles, operational processes, and environmental benefits of PVC sorting technologies in pipe waste management applications.
Current Challenges in PVC Pipe Waste Management
PVC pipe waste management faces multiple interconnected challenges stemming from material complexity, contamination issues, and economic constraints that complicate recycling efforts. Construction and demolition activities generate substantial volumes of PVC pipe waste, often mixed with other plastics, metals, and construction debris that require sophisticated separation technologies. The durability and chemical resistance that make PVC ideal for piping applications also create challenges for recycling processes, as these properties resist conventional separation methods. Regulatory frameworks increasingly mandate higher recycling rates for construction waste, creating both pressure and opportunity for improved PVC recovery systems.
Complex Composition of Pipe Waste Streams
Pipe waste streams typically contain multiple polymer types including PVC, HDPE, PP, and ABS, alongside metallic components, rubber gaskets, and residual fluids that complicate separation processes. Construction sites frequently generate mixed plastic waste where PVC pipes comprise only 15-30% of total plastic content, requiring precise identification and separation to achieve marketable recycled materials. The presence of additives including plasticizers, stabilizers, and colorants in PVC formulations further complicates recycling by creating variable material properties within the same polymer family. These compositional challenges necessitate sorting technologies capable of distinguishing subtle material differences while maintaining throughput efficiency in industrial-scale operations.
Identification Difficulties with PVC Materials
Visual identification of PVC in mixed waste streams proves particularly challenging due to the material's common gray coloration and surface contamination from soil, adhesives, and markings that obscure original material characteristics. Aged PVC pipes undergo surface degradation and color changes from UV exposure and environmental factors, creating visual characteristics similar to other plastics commonly found in construction waste. The presence of calcium carbonate fillers and titanium dioxide pigments in many PVC formulations alters the material's spectral signature, requiring advanced detection technologies capable of identifying the underlying polymer structure. These identification challenges have historically limited manual sorting efficiency to approximately 60-70% accuracy, creating significant material cross-contamination in recycling streams.
Limitations of Traditional Sorting Methods
Manual sorting operations struggle with the volume and consistency requirements of modern pipe waste management, typically achieving throughput rates of 200-500 kg per hour with accuracy heavily dependent on operator experience and concentration levels. Density-based separation methods including hydrocyclones and air classifiers provide limited effectiveness for PVC separation due to the overlapping density ranges of common plastics found in pipe waste. Electrostatic separation techniques demonstrate variable performance with PVC materials, particularly when surface contamination or moisture affects the triboelectric charging characteristics essential for effective separation. These limitations of conventional approaches have driven the development of sensor-based sorting technologies specifically optimized for PVC identification and recovery.
Environmental Regulations Impacting PVC Recycling
International regulations including the European Union's Circular Economy Package and various extended producer responsibility schemes have established ambitious targets for plastic recycling, creating regulatory pressure for improved PVC recovery from construction waste. Restrictions on landfill disposal of plastic waste in numerous jurisdictions have increased the economic viability of PVC recycling by raising alternative disposal costs while creating markets for recycled content in new products. Chemical regulations addressing additives including lead stabilizers and phthalate plasticizers in PVC formulations require precise material tracking and separation to ensure compliance in recycled products. These regulatory developments have accelerated investment in advanced sorting technologies capable of meeting both volume and quality requirements for PVC recycling.
Near-Infrared Sorting Technology Fundamentals
Near-infrared spectroscopy has emerged as the dominant technology for PVC sorting applications, utilizing specific molecular vibrations to identify materials based on their chemical composition rather than visual characteristics. NIR systems operate by projecting light in the 700-2500 nanometer wavelength range onto material surfaces and analyzing the reflected spectra to identify unique molecular absorption patterns. PVC materials produce distinctive spectral signatures characterized by specific absorption peaks related to carbon-hydrogen bonds in the polymer backbone and chlorine content absent in other common plastics. This chemical identification capability enables highly accurate sorting regardless of color, surface contamination, or additive variations that challenge other identification methods.
Working Principles of Near-Infrared Spectroscopy
Near-infrared spectroscopy detects overtone and combination vibrations of fundamental molecular bonds including C-H, O-H, and N-H that provide unique spectral fingerprints for different materials. When NIR radiation interacts with PVC surfaces, specific wavelengths are absorbed while others are reflected, creating a spectral pattern that identification algorithms compare against reference libraries of known materials. Modern NIR sorters utilize high-resolution spectrometers capable of detecting subtle spectral differences between polymer types and even between different formulations within the same polymer family. The non-contact nature of NIR measurement enables rapid analysis of individual particles on conveyor systems moving at speeds exceeding 3 meters per second, supporting the high throughput requirements of industrial recycling operations.
Unique Spectral Characteristics of PVC Materials
PVC exhibits distinctive spectral features in the NIR range, particularly strong absorption bands around 1190nm, 1390nm, and 1720nm related to carbon-hydrogen bonding vibrations in the polymer chain. The presence of chlorine atoms in PVC creates secondary absorption characteristics that differentiate it from other common plastics including polyethylene and polypropylene, which share similar carbon-hydrogen bonding but lack chlorine content. Advanced NIR systems can distinguish between rigid and flexible PVC formulations based on plasticizer content, which alters the relative intensity of specific absorption bands in the 1600-1800nm range. These nuanced identification capabilities enable sorting systems to achieve PVC purity levels exceeding 98% in output streams, meeting quality standards for high-value recycling applications.
Core Components of Modern Sorting Machines
Modern NIR sorting machines integrate multiple sophisticated components including illumination systems, high-sensitivity detectors, high-speed processing units, and precision ejection mechanisms that work in concert to identify and separate target materials. Illumination typically employs halogen or LED sources that provide consistent, broad-spectrum NIR radiation across the entire sorting width, ensuring uniform detection conditions regardless of particle position on the conveyor. Detector arrays comprising hundreds of individual sensors capture reflected spectra from each particle, while specialized processors analyze this data against material libraries in real-time to make identification decisions. Ejection systems utilizing precisely timed air nozzles then separate identified PVC particles from the waste stream with millisecond accuracy.
Data Acquisition and Processing Workflow
NIR sorting systems capture spectral data from each individual particle passing through the detection zone, generating thousands of spectra per second that must be processed in real-time to maintain sorting throughput. Advanced algorithms employ multivariate analysis techniques including principal component analysis and partial least squares regression to extract relevant features from complex spectral data and compare them against calibrated material models. Machine learning approaches continuously improve identification accuracy by incorporating new spectral examples and operator feedback to adapt to variations in material characteristics. This sophisticated data processing occurs within specialized hardware capable of making identification and ejection decisions in approximately 50-100 milliseconds, enabling processing rates of several tons per hour while maintaining high accuracy.
Application Process in Pipe Waste Management
The integration of PVC sorting machines into pipe waste management operations follows a systematic process beginning with material preparation and concluding with quality-verified output streams ready for recycling. Effective implementation requires careful consideration of material flow, equipment configuration, and quality control measures to optimize both recovery rates and product quality. Modern recycling facilities typically position PVC sorters after initial size reduction and ferrous metal removal stages, where material has been prepared for optimal sensor-based sorting. The specific configuration varies based on facility scale, input material characteristics, and desired output specifications, with larger operations often employing multiple sorters in series or parallel arrangements.
Waste Collection and Preprocessing Procedures
PVC pipe waste collection typically involves segregated containers at construction sites or mixed construction waste delivered to specialized recycling facilities where initial manual sorting removes obvious contaminants and non-plastic materials. Preprocessing stages include coarse shredding to reduce pipe dimensions to manageable sizes, typically 50-150mm fragments that present adequate surface area for reliable NIR detection while minimizing excessive fine generation. Magnetic separation removes ferrous metals including pipe hangers, brackets, and fittings that could damage downstream equipment, while screening operations eliminate undersized particles that would reduce sorting efficiency. These preprocessing steps ensure that material entering the NIR sorter presents consistent characteristics that maximize detection accuracy and system throughput.
Equipment Configuration and Parameter Calibration
Successful PVC sorting requires precise equipment configuration including belt speed adjustment, feed rate optimization, and detection parameter calibration specific to the characteristics of the pipe waste being processed. Belt speeds typically range from 2-4 meters per second, balancing throughput requirements with sufficient residence time in the detection zone for reliable spectral acquisition. Feed systems must maintain an even monolayer distribution of material across the belt width to prevent particle overlapping that would obscure detection and reduce sorting accuracy. Detection parameters including spectral library selection, identification thresholds, and ejection timing require calibration using representative samples of the actual waste stream to account for variations in age, formulation, and surface condition.
Real-Time Monitoring of Sorting Operations
Modern sensor-based sorting systems incorporate comprehensive monitoring capabilities that track key performance indicators including throughput rates, ejection accuracy, and product purity throughout operation. Integrated cameras provide visual confirmation of sorting decisions, while spectral monitoring systems continuously verify detection accuracy and flag potential calibration drift requiring intervention. Control systems automatically adjust operational parameters in response to changing feed characteristics, maintaining consistent performance despite variations in input material composition. These monitoring capabilities enable operators to identify and address performance issues before they impact product quality, while generating valuable data for process optimization and operational reporting.
Quality Verification of PVC Output Streams
Quality assessment of sorted PVC output employs multiple verification methods including manual sampling, laboratory analysis, and increasingly, automated in-line monitoring systems that provide real-time quality data. Manual sampling typically follows standardized protocols with samples collected at regular intervals and analyzed using laboratory techniques including Fourier-transform infrared spectroscopy to confirm polymer identity and purity. Advanced facilities implement automated sampling systems that continuously extract small representative samples for immediate analysis, providing near-real-time quality data without interrupting the sorting process. These quality verification procedures ensure that sorted PVC meets specification requirements for downstream recycling processes, typically targeting purity levels of 95-99% depending on intended application.
Advantages and Performance Benefits
The implementation of specialized PVC sorting machines in pipe waste management delivers significant advantages across operational, economic, and environmental dimensions, transforming waste management from a cost center to a value-generating activity. Modern sorting systems achieve PVC recovery rates of 90-95% from mixed plastic waste streams, dramatically improving resource utilization while reducing landfill requirements. The high purity of sorted PVC, typically exceeding 95%, creates marketable recycled material suitable for manufacturing new pipe products and other applications with stringent quality requirements. These performance characteristics establish sorting technology as an essential component of comprehensive PVC pipe recycling infrastructure.
Sorting Accuracy and Efficiency Improvements

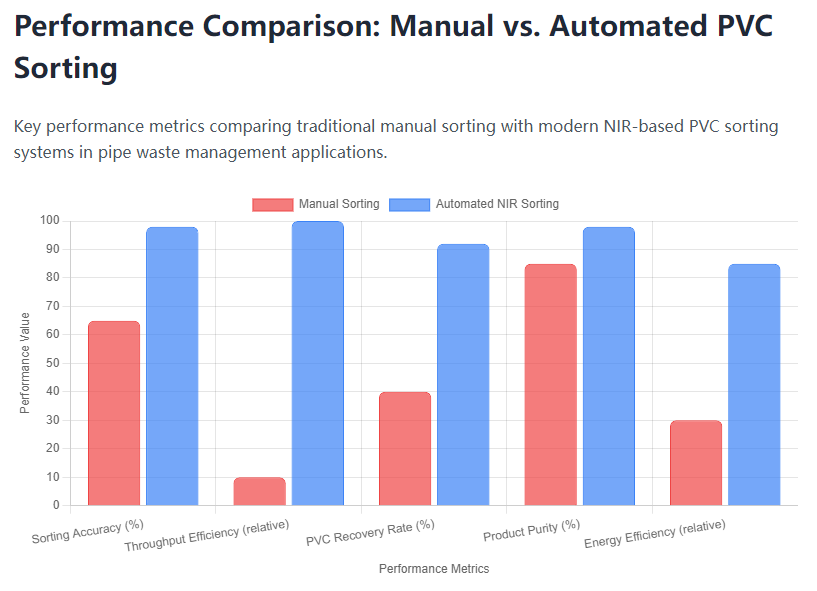

Advanced NIR sorting systems achieve identification accuracy rates of 98-99% for PVC materials in pipe waste applications, significantly outperforming manual sorting methods that typically achieve 60-70% accuracy under optimal conditions. This improved accuracy directly translates to higher product purity, with sorted PVC streams containing less than 2% contamination from other materials compared to 10-15% contamination common in manually sorted material. Processing efficiency shows similar improvements, with automated systems processing 3-8 tons per hour compared to 200-500 kg per hour for manual operations, representing a 10-20 fold increase in throughput capacity. These performance improvements enable recycling operations to process larger volumes of material while achieving quality standards that support high-value recycling applications.
Economic Advantages and Return on Investment
The economic case for PVC sorting technology incorporates multiple factors including reduced labor requirements, increased material value, avoided disposal costs, and potential revenue from recycled material sales. Labor requirements decrease by 70-80% compared to manual sorting operations, with a single automated system typically replacing 5-8 sorting personnel while achieving higher throughput and accuracy. The value of sorted PVC increases substantially compared to mixed plastic streams, with premium prices available for high-purity material suitable for manufacturing applications. Modern sorting systems typically achieve return on investment within 18-36 months based on these economic factors, with payback periods shortening as landfill costs increase and recycled material markets develop.
Environmental Sustainability Contributions
PVC sorting technology supports multiple environmental objectives including resource conservation, energy savings, greenhouse gas reduction, and waste minimization through efficient material recovery. Recycling PVC through sorting and reprocessing consumes 80-90% less energy than virgin PVC production from petroleum feedstocks, significantly reducing the carbon footprint of plastic products. Material recovery rates of 90-95% dramatically reduce landfill requirements for pipe waste, conserving landfill capacity while preventing potential environmental impacts from disposed materials. The circularity enabled by efficient sorting extends product lifecycles, reduces virgin resource extraction, and supports sustainability objectives across the construction value chain.
Implementation Case Studies
Real-world implementations of PVC sorting technology in pipe waste management demonstrate the practical application and performance characteristics of these systems across different operational contexts and scales. Case studies from various geographic regions and facility types illustrate both the common benefits and context-specific considerations relevant to technology implementation. These examples provide valuable insights for organizations considering similar investments, highlighting successful approaches to integration, operation, and optimization of sorting systems in pipe waste management applications.
Municipal Construction Waste Processing Facility
A large municipal construction waste processing facility in Europe implemented NIR sorting technology specifically targeting PVC pipe recovery from mixed construction and demolition waste streams. The facility processes approximately 100,000 tons annually of construction waste, with PVC pipes comprising 3-5% of incoming material by weight. Following implementation of a dedicated plastic sorting system with NIR technology, PVC recovery rates increased from 40% to 88% of incoming material, with output purity consistently exceeding 96%. The sorted PVC streams now supply local pipe manufacturers with high-quality recycled material, creating a closed-loop recycling system that has reduced the facility's disposal costs by 35% while generating new revenue streams.
Industrial Pipe Manufacturing Recycling Operation
A major pipe manufacturer established an integrated recycling operation to process production scrap and returned materials using specialized NIR sorting technology optimized for PVC identification. The operation processes approximately 15,000 tons annually of mixed PVC scrap comprising production waste, quality rejects, and returned products from construction projects. Implementation of automated sorting reduced labor requirements by 75% while increasing material recovery efficiency from 82% to 96%, with sorted material directly feeding back into manufacturing operations. The system has enabled the manufacturer to achieve 25% recycled content in new pipe products while maintaining product performance specifications, supporting corporate sustainability objectives and reducing raw material costs.
Specialized Pipe Recycling Enterprise
A specialized recycling company focusing exclusively on pipe materials implemented a comprehensive sorting system incorporating NIR technology, metal detection, and automated material handling to process PVC irrigation pipes from agricultural operations. The facility processes approximately 8,000 tons annually of mixed plastic pipes, with PVC comprising approximately 60% of incoming material. The sorting system achieves 94% recovery of PVC with 97% purity, creating a premium recycled product marketed to manufacturers of non-pressure pipe applications. The operation has created 12 new jobs in a rural community while diverting significant material from landfill and supporting sustainable agricultural practices through closed-loop material management.
Maintenance and Optimization Strategies
Optimal performance of PVC sorting machines requires systematic maintenance procedures and continuous optimization approaches that address both mechanical and detection system components. Effective maintenance programs incorporate scheduled inspections, preventive component replacement, performance monitoring, and calibration verification to maintain sorting accuracy and equipment reliability. Optimization strategies focus on adapting to changing material characteristics, improving detection algorithms, and enhancing material handling to maximize both recovery rates and product quality. These maintenance and optimization activities represent essential investments in sustaining long-term sorting performance and economic viability.
Routine Maintenance Procedures
Comprehensive maintenance programs for PVC sorting machines include daily, weekly, and monthly activities addressing critical system components including conveyance systems, detection units, ejection mechanisms, and control systems. Daily maintenance typically involves visual inspection of wear components, cleaning of optical surfaces, and verification of system pressures and temperatures to identify potential issues before they impact performance. Weekly maintenance includes more thorough inspection of mechanical components, verification of ejection timing and accuracy, and performance testing using reference materials to confirm detection system calibration. Monthly maintenance encompasses comprehensive system evaluation, replacement of wear components according to established schedules, and detailed performance analysis to identify trends requiring corrective action.
Performance Optimization Techniques
Sorting performance optimization employs both equipment adjustments and operational modifications to improve recovery rates, product purity, and throughput efficiency based on specific material characteristics and operational objectives. Equipment optimization includes fine-tuning of detection parameters to improve identification of challenging materials, adjustment of ejection timing to account for particle trajectory variations, and modification of material presentation to maximize detection effectiveness. Operational optimization focuses on feed rate management to maintain optimal layer thickness, material preprocessing to improve detection conditions, and output stream management to balance recovery and purity objectives. These optimization approaches typically improve sorting performance by 5-15% compared to standard operating parameters, significantly impacting economic returns through increased material value and processing efficiency.
Operator Training and Skill Development
Effective operation of AI-enhanced sorting systems requires specialized knowledge spanning mechanical operation, detection technology principles, maintenance procedures, and troubleshooting methodologies. Comprehensive training programs typically incorporate both theoretical instruction covering sorting technology fundamentals and practical hands-on experience with equipment operation, maintenance, and optimization. Skill development focuses particularly on interpreting system performance data, recognizing patterns indicating calibration drift or component wear, and implementing appropriate corrective actions to maintain sorting accuracy. Ongoing training ensures operators remain current with software updates, new features, and best practices developed through industry experience and technological advancement.
Future Development Trends
PVC sorting technology continues to evolve through integration of advanced detection methods, artificial intelligence, and automation technologies that enhance performance, reduce operating costs, and expand application possibilities. Emerging trends focus on improving material characterization capabilities, increasing processing speeds, enhancing system flexibility, and reducing resource requirements to support more efficient and economically viable recycling operations. These developments promise to further improve the economics of PVC pipe recycling while supporting broader circular economy objectives through increased material recovery and improved recycled material quality.
Artificial Intelligence and Machine Learning Integration
The integration of artificial intelligence and machine learning technologies represents the most significant advancement in PVC sorting capability, enabling systems to continuously improve identification accuracy and adapt to new material variations without manual intervention. Machine learning algorithms analyze vast datasets of material spectra and sorting decisions to identify subtle patterns and correlations that enhance material discrimination beyond conventional spectral analysis. These systems demonstrate particular effectiveness with challenging materials including black plastics, heavily contaminated surfaces, and novel polymer formulations that challenge traditional identification approaches. AI-enhanced sorting systems typically achieve 5-10% higher recovery rates with equivalent purity compared to conventional systems, with performance continuing to improve as additional operational data accumulates.
Advanced Automation and IoT Implementation
Increasing automation of material handling, system monitoring, and maintenance activities reduces labor requirements while improving sorting consistency and operational efficiency in PVC recycling applications. Automated material handling systems optimize feed rates and distribution based on real-time analysis of material characteristics, maintaining optimal conditions for sorting effectiveness across variable input streams. Internet of Things technologies enable remote monitoring of system performance, predictive maintenance based on component condition monitoring, and automated calibration verification that maintains sorting accuracy without operator intervention. These automation advancements support the operation of sorting facilities with minimal staffing while achieving consistent performance levels difficult to maintain with manual oversight.
Hybrid Detection Technology Approaches
Future sorting systems increasingly employ hybrid detection approaches combining multiple sensor technologies including NIR, visible spectroscopy, laser-induced breakdown spectroscopy, and X-ray fluorescence to overcome limitations of individual detection methods. These multi-sensor systems capture complementary material characteristics including chemical composition, elemental content, color, and shape to make more robust identification decisions, particularly with challenging materials that present ambiguous characteristics to single-technology systems. The fusion of data from multiple sensors enables identification of material properties beyond basic polymer type, including additive content, degradation state, and previous service history that impact recyclability and potential applications. These advanced characterization capabilities support higher-value recycling by enabling more precise material stream management based on comprehensive material properties rather than simple polymer identification.
The application of specialized sorting machines in PVC pipe waste management represents a critical technological advancement supporting circular economy objectives in the construction sector. Near-infrared sorting technology enables highly efficient identification and separation of PVC materials from complex waste streams, achieving recovery rates and product purity levels impossible with conventional sorting methods. The economic viability of PVC recycling continues to improve as sorting technology advances, processing costs decrease, and markets for recycled materials develop. Future technological developments promise further performance improvements through artificial intelligence, advanced sensors, and increased automation, supporting increased PVC recovery and higher-value recycling applications. These advancements establish sorting technology as an essential component of comprehensive pipe waste management strategies, transforming waste materials into valuable resources while reducing environmental impacts.
