Low-density polyethylene film represents one of the most challenging materials in modern recycling streams, particularly in the context of supermarket plastic bags that combine thin gauge construction, complex contamination, and diverse color characteristics. Advanced sorting technology has emerged as a critical enabler for effective LDPE film recycling, with color sorting machines providing the precision necessary to transform problematic waste into valuable recycled feedstock. These sophisticated systems address the unique material properties of supermarket bags while meeting the throughput requirements of commercial recycling operations. This comprehensive analysis examines the technical principles, operational processes, and economic considerations of LDPE film sorting technology, providing actionable insights for retailers, recyclers, and sustainability professionals seeking to improve plastic bag recovery rates and support circular economy objectives.
Current Challenges in Supermarket Plastic Bag Recycling
Supermarket plastic bag recycling faces multiple interconnected challenges that have historically limited recovery rates to less than 10% in many regions, despite the technically recyclable nature of LDPE film materials. The lightweight and flexible characteristics that make plastic bags convenient for consumers create significant difficulties in automated handling systems, while the prevalence of mixed colors and printed graphics complicates material identification and sorting. Contamination from food residues, adhesives, and non-plastic components further degrades material quality, reducing the value of recovered LDPE and limiting potential applications. These technical challenges combine with economic and logistical barriers to create a complex recycling environment that demands sophisticated technological solutions to achieve viable recovery rates.
Material Characteristics of LDPE Films
Low-density polyethylene films used in supermarket bags typically measure between 15-30 microns in thickness, creating handling challenges due to their tendency to stretch, tear, and cling to equipment surfaces. The polymer structure of LDPE features significant chain branching that produces a less crystalline material with lower density than other polyethylene variants, resulting in specific melting characteristics and mechanical properties that influence recycling processes. Supermarket bags often incorporate additives including slip agents, anti-block compounds, and pigments that alter material behavior during processing and can affect the quality of recycled pellets. These material characteristics require specialized handling throughout the recycling chain, from collection through sorting to final pelletizing, to maintain material integrity and value.
Contamination Challenges in Recycling Streams
Supermarket bag recycling streams typically contain significant contamination from multiple sources including food residues, paper labels, adhesive materials, and non-LDPE plastics that complicate sorting and reduce final product quality. Consumer usage introduces organic contaminants that can degrade during processing, creating odor issues and potential microbial growth in stored materials. Retail collection systems often comingle different types of plastic films, introducing polypropylene, HDPE, and other polymers with different melting characteristics that compromise the properties of recycled LDPE. The prevalence of pressure-sensitive labels and ink systems on supermarket bags introduces additional contaminants that can affect both sorting efficiency and the visual quality of recycled materials, requiring sophisticated cleaning and separation processes.
Economic and Logistical Barriers
The economic viability of supermarket bag recycling faces significant challenges from the high collection, transportation, and processing costs relative to the relatively low value of recycled LDPE film. The extremely low bulk density of plastic bags creates substantial transportation inefficiencies, with trucks often hauling more air than material when moving baled film to processing facilities. Manual sorting operations prove economically challenging due to the high labor requirements and relatively low throughput compared to automated systems, while the variable quality of incoming materials creates uncertainty in final product specifications and market value. These economic barriers have limited investment in dedicated LDPE film recycling infrastructure, creating a circular challenge where limited processing capacity restricts collection programs that could improve material availability.
Color Sorter Technology Fundamentals
Color sorting technology has evolved significantly to address the specific challenges of LDPE film recycling, utilizing advanced optical systems and sophisticated processing algorithms to identify and separate materials based on color characteristics. Modern color sorters employ high-resolution cameras, specialized lighting systems, and real-time processing capabilities to analyze individual film pieces at production line speeds, making precise separation decisions in milliseconds. These systems can distinguish subtle color differences that human operators would find challenging to identify consistently, while adapting to variations in material presentation and surface conditions. The technology has proven particularly valuable for supermarket bag applications where color consistency directly influences the value and potential applications of recycled LDPE materials.
Color Sensor Working Principles
Color sorting systems for LDPE film applications typically utilize high-resolution CCD or CMOS sensors with specialized color filters that separate incoming light into red, green, and blue components for detailed analysis. Advanced systems may incorporate additional spectral channels beyond standard RGB to improve discrimination between similar colors or to identify specific pigments and additives that affect material quality. The sensors capture detailed color information from each piece of film as it passes through the detection zone, with sophisticated algorithms analyzing multiple parameters including hue, saturation, brightness, and color distribution patterns. This comprehensive color analysis enables the system to make accurate separation decisions even when dealing with printed graphics, faded colors, or mixed material streams that challenge simpler sorting approaches.
Color Recognition Characteristics of LDPE Films
LDPE films present unique color recognition challenges due to their semi-transparent nature, surface texture variations, and tendency to stretch or wrinkle during handling, all of which can affect color measurement consistency. Supermarket bags often feature complex printed graphics, logos, and text elements that create heterogeneous color patterns requiring sophisticated analysis beyond simple whole-area color assessment. The material's translucency means that color measurements can be influenced by background surfaces or overlapping film layers, necessitating specialized lighting and detection configurations to ensure consistent results. Modern color sorters address these challenges through advanced image processing techniques that normalize measurement conditions and focus analysis on relevant color characteristics while ignoring artifacts caused by material handling variations.
Hardware Components of Sorting Machines
Modern color sorting machines for LDPE film applications integrate multiple specialized components including high-speed conveyor systems, precision illumination units, optical detection assemblies, and rapid ejection mechanisms that work in concert to achieve efficient sorting. Conveyor systems designed specifically for film materials utilize specialized belt textures and tensioning mechanisms to present materials evenly without excessive stretching or folding that would compromise detection accuracy. Illumination systems provide consistent, shadow-free lighting across the entire sorting width, with spectral characteristics optimized for plastic film applications. Detection assemblies incorporate high-resolution cameras with precisely aligned optics to capture detailed color information, while ejection systems use arrays of precisely controlled air nozzles to remove targeted materials from the product stream with minimal disruption to acceptable product flow.
Sorting Process in Supermarket Bag Recycling
The integration of color sorting technology into supermarket bag recycling operations follows a systematic process that begins with material preparation and concludes with quality-verified sorted material ready for further processing. Effective implementation requires careful consideration of material flow, equipment configuration, and quality control measures to optimize both recovery rates and product quality. Modern recycling facilities typically position color sorters after initial size reduction, washing, and drying stages, where material has been prepared for optimal optical sorting. The specific configuration varies based on facility scale, input material characteristics, and desired output specifications, with larger operations often employing multiple sorters in series or parallel arrangements to achieve target purity levels for different color categories.
Bag Collection and Preliminary Treatment
Supermarket bag collection typically occurs through dedicated receptacles at retail locations or through mixed plastic film collection programs that require subsequent separation of LDPE bags from other materials. Collected materials undergo initial inspection to remove obvious contaminants and non-plastic materials before proceeding to shredding or granulating equipment that reduces bag size to manageable fragments typically measuring 20-100mm. Washers remove adherent contaminants using heated water and detergent solutions, while centrifugal dryers remove excess moisture to prepare materials for optical sorting. These preprocessing steps ensure that material entering the color sorter presents consistent characteristics that maximize detection accuracy and system throughput while minimizing potential issues from variable contamination levels or moisture content.
Sorter Setup and Color Calibration
Effective color sorting requires precise equipment configuration including belt speed adjustment, feed rate optimization, and detection parameter calibration specific to the characteristics of the supermarket bag stream being processed. Initial setup involves creating color reference libraries that define acceptable and unacceptable color ranges based on the specific requirements of downstream processing and end-market applications. Belt speeds typically range from 2-4 meters per second, balancing throughput requirements with sufficient residence time in the detection zone for accurate color analysis. Feed systems must maintain an even monolayer distribution of material across the belt width to prevent film overlapping that would obscure color detection and reduce sorting accuracy. These setup parameters require periodic verification and adjustment to maintain optimal performance as input material characteristics evolve over time.
Sorting Execution and Error Correction
During operation, color sorting systems continuously analyze film fragments passing through the detection zone, comparing measured color characteristics against predefined acceptance criteria to make ejection decisions. Advanced systems employ multiple detection perspectives and sophisticated algorithms to account for material orientation variations, printed graphics, and surface irregularities that might otherwise cause sorting errors. Real-time monitoring systems track sorting performance metrics including throughput rates, ejection accuracy, and product purity, with automated adjustment capabilities that modify operational parameters in response to changing feed characteristics. Error correction mechanisms identify and address common issues including sensor drift, lighting variation, and material handling problems before they significantly impact sorting performance, maintaining consistent operation despite normal process variations.
Advantages and Performance Analysis
The implementation of specialized color sorting technology in supermarket bag recycling delivers significant advantages across operational, economic, and environmental dimensions, transforming challenging waste materials into valuable recycled feedstock. Modern sorting systems achieve LDPE recovery rates of 85-95% from mixed color film streams, dramatically improving resource utilization while reducing disposal requirements. The high purity of sorted LDPE, typically exceeding 98% for targeted color categories, creates marketable recycled material suitable for manufacturing new film products and other applications with stringent quality requirements. These performance characteristics establish color sorting technology as an essential component of comprehensive supermarket bag recycling infrastructure, enabling economic viability while supporting sustainability objectives.
Sorting Efficiency and Accuracy Improvements

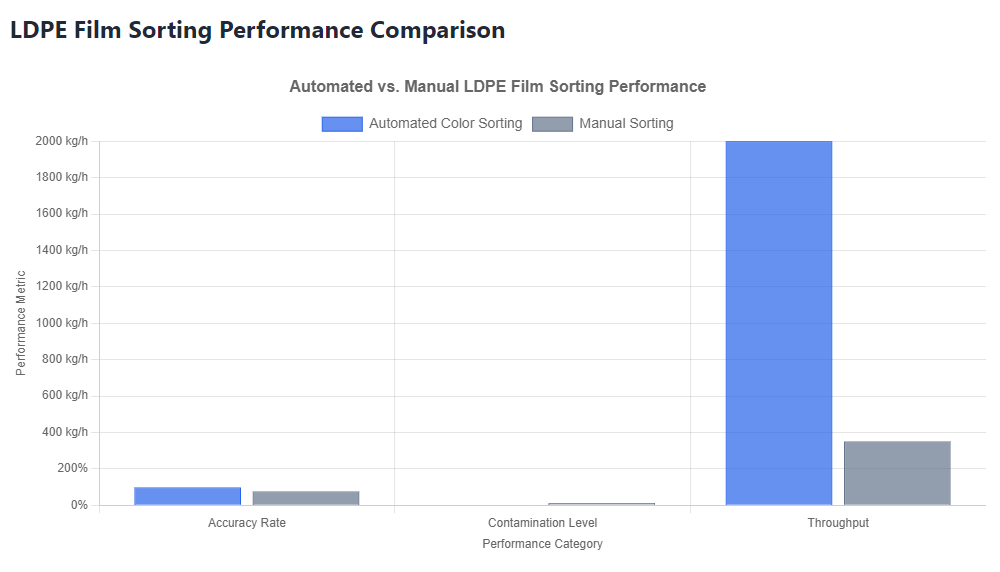

Advanced color sorting systems achieve identification accuracy rates of 95-99% for LDPE film materials in supermarket bag applications, significantly outperforming manual sorting methods that typically achieve 70-80% accuracy under optimal conditions. This improved accuracy directly translates to higher product purity, with sorted LDPE streams containing less than 2% color contamination compared to 10-15% contamination common in manually sorted material. Processing efficiency shows similar improvements, with automated systems processing 1-3 tons per hour compared to 200-500 kg per hour for manual operations, representing a 4-6 fold increase in throughput capacity. These performance improvements enable recycling operations to process larger volumes of material while achieving quality standards that support high-value recycling applications including new film production.
Cost Reduction and Revenue Enhancement
The economic case for color sorting technology incorporates multiple factors including reduced labor requirements, increased material value, avoided disposal costs, and potential revenue from sorted material sales. Labor requirements decrease by 60-80% compared to manual sorting operations, with a single automated system typically replacing 4-6 sorting personnel while achieving higher throughput and accuracy. The value of color-sorted LDPE increases substantially compared to mixed-color material, with premium prices available for consistent-color streams suitable for manufacturing applications without additional color compounding. Modern sorting systems typically achieve return on investment within 24-36 months based on these economic factors, with payback periods shortening as landfill costs increase and recycled material markets develop.
Environmental Impact Assessment
Color sorting technology supports multiple environmental objectives including resource conservation, energy savings, greenhouse gas reduction, and waste minimization through efficient material recovery. Recycling LDPE through sorting and reprocessing consumes 70-80% less energy than virgin LDPE production from petroleum feedstocks, significantly reducing the carbon footprint of plastic film products. Material recovery rates of 85-95% dramatically reduce landfill requirements for supermarket bags, conserving landfill capacity while preventing potential environmental impacts from disposed materials. The circularity enabled by efficient sorting extends product lifecycles, reduces virgin resource extraction, and supports sustainability objectives across the retail value chain, contributing to corporate environmental targets and regulatory compliance.
Implementation Case Studies
Real-world implementations of color sorting technology in supermarket bag recycling provide valuable insights into practical application approaches, performance characteristics, and adaptive strategies developed through operational experience. These case studies span diverse geographic contexts, operational scales, and business models, illustrating both the versatility of sorting solutions and the context-specific considerations relevant to successful deployment. Documented experiences highlight innovative approaches to overcoming implementation challenges while quantifying economic and environmental outcomes that inform future project planning. The accumulating body of practical experience establishes proven methodologies while identifying areas requiring further development to enhance effectiveness and efficiency.
Supermarket Chain Recycling Program
A major supermarket chain implemented a comprehensive bag recycling program utilizing color sorting technology to process materials collected through in-store receptacles across their retail network. The program processes approximately 800 tons annually of returned plastic bags, with LDPE comprising approximately 85% of incoming material. The color sorting system achieves 96% purity for natural LDPE streams and 94% purity for mixed color categories, creating material suitable for manufacturing new bags with 30% recycled content. The program has reduced the chain's virgin plastic purchases by 240 tons annually while creating a visible sustainability story that supports brand positioning. The operation demonstrates how retail-led initiatives can create closed-loop recycling systems when supported by appropriate sorting technology.
Regional Recycling Center Operation
A regional recycling facility specializing in plastic films implemented plastic sorting solutions with advanced color recognition capabilities to process supermarket bags collected through municipal and commercial programs across a three-state area. The facility processes approximately 3,000 tons annually of mixed plastic film, with supermarket bags comprising approximately 40% of incoming material. The color sorting system achieves 92% recovery of LDPE with 97% purity, creating premium recycled material marketed to manufacturers of composite lumber and other engineered products. The operation has created 22 new jobs in a rural community while diverting significant material from landfill and supporting regional sustainability objectives. The case demonstrates how specialized recycling facilities can create economic opportunity while addressing challenging waste streams.
Innovative Technology Trial
A technology demonstration project tested advanced color sorting capabilities specifically optimized for the challenging characteristics of supermarket bags, including mixed colors, printed graphics, and variable contamination levels. The project processed approximately 200 tons of material over a six-month period, comparing sorting performance across different equipment configurations and operational parameters. The optimal configuration achieved 98% purity for natural LDPE and 95% purity for specific color categories, with throughput rates of 1.8 tons per hour. The project identified key optimization opportunities including specialized lighting configurations for semi-transparent materials and algorithm adjustments for printed graphics. The results informed equipment selection for multiple subsequent installations, accelerating technology adoption across the plastic film recycling sector.
Maintenance and Operational Best Practices
Optimal performance of color sorting systems in supermarket bag applications requires systematic maintenance procedures and operational practices that address both the sophisticated optical systems and the challenging material characteristics of LDPE films. Effective maintenance programs incorporate scheduled inspections, preventive component replacement, performance monitoring, and calibration verification to maintain sorting accuracy and equipment reliability. Operational best practices focus on material preparation, equipment configuration, and quality control to maximize both recovery rates and product quality. These maintenance and operational activities represent essential investments in sustaining long-term sorting performance and economic viability in the demanding environment of plastic film recycling.
Daily Maintenance Procedures
Comprehensive maintenance programs for color sorting systems include daily activities addressing critical system components including optical surfaces, illumination systems, ejection mechanisms, and material handling components. Daily maintenance typically involves cleaning of camera lenses, lighting elements, and observation windows to maintain optimal optical performance despite the dust and static attraction common in plastic film processing environments. Visual inspection of wear components including belt surfaces, guide rails, and ejection nozzles identifies potential issues before they impact performance. Verification of system pressures, air quality, and mechanical alignment ensures consistent operation, while performance testing using reference materials confirms that detection systems remain properly calibrated. These daily procedures typically require 30-45 minutes but prevent hours of potential downtime from accumulated issues.
Common Operational Challenges and Solutions
Color sorting operations for supermarket bags frequently encounter specific challenges including static electricity buildup, material clinging, inconsistent feeding, and detection interference from printed graphics that require targeted solutions. Static electricity causes film fragments to adhere to surfaces and each other, disrupting material presentation and detection accuracy; solutions include ionizing air systems, controlled humidity environments, and anti-static additives in washing processes. Material clinging creates similar presentation issues, addressed through specialized belt materials, mechanical conditioning devices, and optimized air flow management. Inconsistent feeding results from the lightweight and flexible nature of film fragments, remedied through vibratory feeders, air-assisted distribution systems, and specialized hopper designs. These targeted solutions maintain sorting performance despite the challenging material characteristics of supermarket bags.
Future Development Trends
Color sorting technology for LDPE film applications continues to evolve through integration of artificial intelligence, advanced sensor systems, and improved material handling capabilities that enhance performance, reduce operating costs, and expand application possibilities. Emerging trends focus on improving recognition capabilities for challenging materials, increasing processing speeds, enhancing system flexibility, and reducing resource requirements to support more efficient and economically viable recycling operations. These developments promise to further improve the economics of supermarket bag recycling while supporting broader circular economy objectives through increased material recovery and improved recycled material quality. The accelerating pace of innovation suggests rapid improvement in coming years, with potentially transformative impacts on global capacity to recycle plastic films.
Artificial Intelligence and Machine Learning Integration
The integration of artificial intelligence and machine learning technologies represents the most significant advancement in color sorting capability, enabling systems to continuously improve identification accuracy and adapt to new material variations without manual intervention. Machine learning algorithms analyze vast datasets of material images and sorting decisions to identify subtle patterns and correlations that enhance material discrimination beyond conventional color analysis. These systems demonstrate particular effectiveness with challenging materials including heavily printed graphics, mixed color patterns, and faded surfaces that challenge traditional sorting approaches. AI-enhanced sorting systems typically achieve 5-8% higher recovery rates with equivalent purity compared to conventional systems, with performance continuing to improve as additional operational data accumulates. The implementation of AI sorting technology represents the next evolutionary step in supermarket bag recycling, enabling more sophisticated material recognition and separation decisions.
Advanced Sensor and Detection Technologies
Next-generation sorting systems increasingly incorporate additional sensor technologies beyond standard color cameras to improve material recognition and sorting precision for challenging supermarket bag applications. Hyperspectral imaging systems capture detailed spectral information across hundreds of narrow wavelength bands, enabling identification of material composition and additive content in addition to color characteristics. Laser-based detection systems measure surface texture and thickness variations that can indicate material quality or potential contamination issues. These multi-sensor approaches create more comprehensive material profiles that support more sophisticated sorting decisions, enabling separation based on multiple criteria including polymer type, color, additive content, and quality indicators. These advanced detection capabilities support higher-value recycling by enabling more precise material stream management based on comprehensive material properties rather than simple color characteristics.
The application of specialized color sorting technology in supermarket plastic bag recycling represents a critical advancement in addressing the challenges of LDPE film recovery while supporting circular economy objectives in the retail sector. Modern sorting systems enable efficient processing of collected materials, transforming problematic waste into valuable recycled feedstock suitable for manufacturing new products. The integration of advanced optical systems, sophisticated processing algorithms, and precision ejection mechanisms creates sorting capabilities specifically optimized for the challenging characteristics of supermarket bags. Successful implementation requires careful consideration of operational contexts, material characteristics, and economic models to create sustainable approaches that deliver meaningful environmental and economic benefits. Continuing technological advancement promises further improvements in performance, cost-effectiveness, and application range, supporting expanded global capacity to recycle plastic films and reduce environmental impacts.
