This article provides an in-depth exploration of XRT sensor-based ore sorting technology, explaining how these advanced systems use X-ray transmission to precisely separate valuable minerals from waste rock. We will examine the fundamental working principles, key technological advantages, diverse industrial applications, and practical considerations for implementation. The content is designed to help readers understand how this innovative technology is transforming modern mining operations through improved efficiency and reduced environmental impact.
The Science Behind XRT Ore Sorting Technology
XRT ore sorting represents a significant advancement in mineral processing technology. This method utilizes the fundamental principles of X-ray transmission to differentiate materials based on their atomic density. When X-rays pass through mineral particles, they are absorbed at different rates depending on the material's composition, creating distinct signatures that the system can detect and analyze.
The technology's capability to detect density differences as small as 0.1g/cm³ makes it exceptionally precise. This sensitivity allows operators to identify valuable mineral content that would otherwise be missed by traditional processing methods. The system's accuracy continues to improve with advancements in sensor technology and data processing capabilities.
Fundamental Principles of X-ray Transmission
X-ray transmission works by measuring how different materials absorb radiation. Denser materials containing heavier elements absorb more X-rays, while less dense materials allow more radiation to pass through. Sensors on the opposite side of the material measure the transmitted radiation, creating a detailed density profile of each particle.
This density information is crucial for identifying valuable minerals, as they often have distinct atomic compositions compared to surrounding waste rock. The system can differentiate between materials with similar appearances but different chemical compositions, making it far superior to traditional sorting methods that rely solely on visual characteristics.
Sensor Array Configuration and Data Capture
Modern XRT sorting machines employ sophisticated sensor arrays that capture multiple data points simultaneously. These sensors work in concert to create comprehensive material profiles, detecting subtle variations that might indicate valuable mineral content. The data capture process occurs at extremely high speeds, allowing the system to process thousands of particles per minute.
The sensors are calibrated to specific energy levels optimal for detecting target minerals. This calibration ensures maximum sensitivity to the materials of interest while minimizing interference from other elements. Advanced shielding protects the sensors from environmental factors that could affect their accuracy.
Artificial Intelligence and Machine Learning Integration
Modern sorting systems incorporate artificial intelligence algorithms that continuously improve detection accuracy. These machine learning systems analyze vast amounts of data from successful sorts, refining their recognition patterns over time. The more material the system processes, the smarter it becomes at identifying valuable content.
The AI components can adapt to changing ore characteristics without manual intervention. This capability is particularly valuable in mining operations where ore composition may vary throughout different sections of a deposit. The system's learning capability ensures consistent performance despite these variations.
Real-time Data Processing and Decision Making
The heart of the XRT sorting system lies in its ability to process sensor data and make sorting decisions in milliseconds. High-speed processors analyze the incoming data stream, comparing each particle's characteristics against predefined parameters for valuable material. This instantaneous analysis enables precise separation at production speeds.
The decision-making algorithms consider multiple factors simultaneously, including density, size, and shape characteristics. This comprehensive analysis ensures that sorting decisions are based on the most complete information available, maximizing recovery rates while minimizing errors.
Operational Workflow of Ore Sorting Systems
The complete ore sorting process involves several precisely coordinated stages that transform raw material into separated products. Each stage must operate in perfect synchronization with the others to maintain system efficiency and sorting accuracy. Understanding this workflow is essential for appreciating the technology's complexity and effectiveness.
From initial feeding to final separation, every step is optimized for maximum performance. The entire process occurs continuously, with material flowing through the system without interruption. This seamless operation ensures consistent throughput and maintains the economic viability of the sorting operation.
Material Preparation and Feeding Mechanism
Before sorting can begin, raw material must be properly prepared through crushing and screening. The material is reduced to specific size ranges optimal for the sorting process, typically between 10mm and 150mm. Proper size distribution ensures consistent sensor reading accuracy and efficient separation.
The prepared material then enters a vibrating feeder that spreads it into a uniform single layer. This feeding mechanism is critical for ensuring that particles pass through the sensor array individually rather than in clumps. Consistent feeding directly impacts the system's ability to accurately identify and separate materials.
Sensor Scanning and Analysis Phase
As material moves through the scanning area, multiple sensors collect comprehensive data about each particle. XRT sensors capture density information while additional sensors may gather data on color, texture, or other characteristics. This multi-faceted analysis provides a complete picture of each particle's composition.
The scanning process occurs at high speed while maintaining exceptional accuracy. Advanced optical systems ensure that each particle is thoroughly examined from multiple angles, capturing all relevant data. The scanning environment is controlled to minimize external factors that could affect reading accuracy.
Ejection Decision and Implementation
Based on the sensor data analysis, the system makes instantaneous decisions about which particles to eject. When a particle is identified as valuable material, the system triggers precisely timed air nozzles that divert it from the waste stream. The timing of this ejection must be perfectly synchronized with the particle's movement.
The ejection system uses compressed air to push target particles into the collection stream without physical contact. This non-contact method preserves material integrity and prevents equipment wear. The nozzles are arranged in arrays that can target multiple particles simultaneously, maintaining high throughput rates.
Product Collection and Quality Control
After ejection, separated materials are conveyed to different collection points for valuable concentrate and waste tailings. The collection system is designed to prevent re-mixing of the separated streams, maintaining the purity achieved during sorting. Continuous monitoring ensures that sorting quality remains consistent throughout operation.
Advanced systems include automated quality control mechanisms that periodically sample output streams to verify sorting accuracy. These quality checks provide real-time feedback that can be used to fine-tune sorting parameters if necessary. This continuous improvement loop maintains optimal performance under varying conditions.

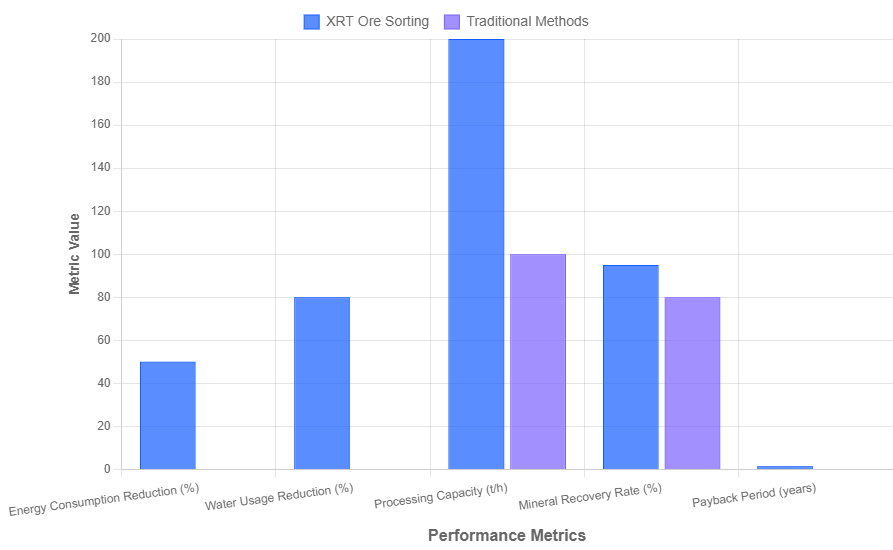

Performance Advantages and Efficiency Gains
XRT ore sorting technology delivers significant advantages over traditional mineral processing methods. These benefits extend beyond simple separation efficiency to encompass broader operational improvements and environmental benefits. The technology's impact on overall mining economics makes it an increasingly essential component of modern mineral processing.
The
efficiency gains achieved through ore sorting create substantial value throughout the mining operation. From reduced energy consumption to improved resource utilization, the
benefits are both immediate and long-term. These advantages contribute to more sustainable mining practices while improving profitability.
Energy Consumption Reduction
By removing waste rock early in the process, XRT sorting significantly reduces the energy required for downstream processing. Grinding operations, which typically consume the most energy in mineral processing, benefit enormously from having less material to process. Industry data shows energy reductions of up to 50% in grinding circuits following sorting implementation.
The energy savings extend beyond grinding to include all subsequent processing stages. Smaller processing equipment can be used, and transportation energy requirements are reduced due to the lower volume of material being handled. These cumulative energy savings make a substantial contribution to operating cost reduction.
Water Usage and Environmental Impact
XRT sorting is predominantly a dry process, dramatically reducing water consumption compared to traditional wet processing methods. This water conservation is particularly valuable in arid mining regions where water resources are limited. The technology eliminates the need for water in the initial separation stage, reducing overall site water requirements by up to 80%.
The environmental benefits extend beyond water conservation to include reduced chemical usage in downstream processes. With less material entering chemical processing stages, fewer reagents are required, and less waste is generated. This reduction in chemical usage decreases environmental impact and lowers processing costs.
Processing Capacity and Recovery Rates
Modern XRT sorters can process between 50 and 300 tons per hour depending on material characteristics and machine configuration. This high throughput capacity makes the technology suitable for large-scale mining operations while maintaining excellent recovery rates. Typical systems achieve over 95% recovery of target minerals with similar levels of purity.
The combination of high capacity and excellent recovery makes XRT sorting economically viable for a wide range of operations. The technology can be implemented in various configurations to match specific operational requirements, from small-scale specialty mineral operations to large base metal mines.
Economic Value and Return on Investment
The economic benefits of XRT sorting extend throughout the mining value chain. By increasing the grade of material sent to processing plants, transportation costs are reduced, processing efficiency improves, and final recovery increases. These combined benefits typically deliver payback periods of less than two years for sorting system investments.
Additionally, the technology enables economic processing of lower-grade deposits that would otherwise be uneconomical to mine. This capability extends mine life and improves resource utilization, creating significant long-term value for mining operations. The economic advantages make XRT sorting an increasingly essential technology for competitive mining operations.
Application Across Various Mineral Types
XRT sorting technology has proven effective across a wide spectrum of mineral types and mining applications. The technology's flexibility allows it to be tailored to specific mineral characteristics, making it valuable for diverse mining operations. From precious metals to industrial minerals, XRT sorting delivers consistent performance improvements.
The adaptability of the technology continues to expand as sensor capabilities improve and processing algorithms become more sophisticated. This expanding application range makes XRT sorting increasingly relevant to the mining industry's evolving needs. Understanding these applications helps operators identify opportunities for implementation in their operations.
Precious Metal Applications
In gold and silver mining, XRT sorting effectively identifies mineralized rock containing valuable metals. The technology can detect subtle density differences associated with metal content, even when visual indicators are absent. This capability allows operators to concentrate valuable material before costly processing, significantly improving economics.
For precious metal operations, the technology typically achieves concentration ratios that reduce processing volume by 70-90% while maintaining high metal recovery. This concentration dramatically reduces the environmental footprint of operations while improving overall profitability. The technology is particularly valuable for operations processing low-grade ores.
Base Metal Separation
XRT sorting has demonstrated excellent results in copper, lead, zinc, and nickel operations. The technology effectively separates sulfide minerals from waste rock based on density differences, creating high-grade concentrates for further processing. This pre-concentration significantly improves smelter efficiency and reduces transportation costs.
In large-scale base metal operations, XRT sorting can process thousands of tons per day while maintaining consistent performance. The technology's robustness makes it suitable for the demanding conditions of base metal mining. Implementation typically results in reduced processing costs and improved metal recovery.
Industrial Mineral Processing
For industrial minerals like limestone, quartz, and talc, XRT sorting improves product quality by removing impurities. The technology can detect and remove contaminating materials that affect product specifications and market value. This purification capability is particularly valuable for high-purity applications where product quality is critical.
The technology also enables more efficient processing of industrial minerals by reducing the volume of material requiring treatment. This efficiency improvement reduces energy consumption and processing costs while maintaining product quality. For industrial mineral producers, these benefits translate directly to improved competitiveness.
Specialty and Strategic Minerals
XRT sorting has emerged as a valuable technology for specialty minerals like lithium, rare earth elements, and other strategic materials. The technology can identify and concentrate these valuable minerals based on their density characteristics, enabling economic recovery from complex ores. This capability is particularly important given the growing demand for these materials.
For strategic mineral operations, XRT sorting provides a non-destructive method of concentration that preserves mineral integrity. The technology can be tuned to specific mineral characteristics, making it adaptable to various deposit types. This flexibility ensures continued relevance as new mineral resources are developed.
Implementation Considerations and System Selection
Successful implementation of XRT sorting technology requires careful consideration of multiple factors. From ore characterization to system configuration, each aspect influences the ultimate success of the installation. Understanding these considerations helps potential users make informed decisions about technology implementation.
The selection process should be thorough and methodical, ensuring that the chosen system matches specific operational requirements. Proper implementation planning maximizes the technology's benefits while minimizing operational disruptions. A well-executed installation delivers optimal performance from commissioning onward.
Ore Characterization and Amenability Testing
Before selecting a sorting system, comprehensive ore characterization is essential. This testing determines whether the ore is amenable to XRT sorting and identifies the optimal sorting parameters. Testing typically involves laboratory analysis followed by pilot-scale trials to confirm results under operational conditions.
Amenability testing provides valuable data about expected performance, including recovery rates, concentration ratios, and throughput capacity. This information forms the basis for economic evaluation and system design. Thorough testing reduces implementation risk and ensures realistic performance expectations.
System Configuration and Capacity Planning
Selecting the appropriate system configuration requires careful analysis of production requirements and operational constraints. Factors like feed size distribution, capacity requirements, and availability of supporting infrastructure all influence system design. Proper configuration ensures that the system meets operational needs without unnecessary complexity.
Capacity planning should consider both current requirements and future expansion possibilities. The modular nature of many sorting systems allows for capacity increases through additional modules or system upgrades. This scalability ensures that the technology remains appropriate as operational needs evolve.
Integration with Existing Operations
Successful implementation requires careful integration with existing processing circuits. The sorting system must interface seamlessly with upstream crushing and screening operations and downstream processing stages. Proper integration ensures smooth material flow and maintains overall system efficiency.
Integration planning should consider material handling requirements, control system interfaces, and operational sequencing. These considerations ensure that the sorting system enhances overall operation rather than creating bottlenecks or complications. Well-planned integration maximizes the technology's benefits throughout the processing circuit.
Economic Analysis and Justification
A comprehensive economic analysis is essential for justifying the investment in sorting technology. This analysis should consider all relevant factors, including capital costs, operating costs, revenue improvements, and ancillary benefits like reduced environmental impact. The analysis should project returns under various operational scenarios.
Economic justification typically focuses on the technology's ability to reduce processing costs, improve recovery, and extend mine life. These benefits must be quantified and compared against implementation costs to determine project viability. A robust economic analysis provides the foundation for investment decisions.
Operational Management and Maintenance Requirements
Effective operation and maintenance are crucial for realizing the full benefits of XRT sorting technology. Proper management ensures consistent performance and maximizes equipment availability. Understanding operational requirements helps organizations prepare for successful technology implementation.
Maintenance planning should address both routine requirements and unexpected repairs. A comprehensive maintenance program maximizes equipment reliability and minimizes unplanned downtime. Proper maintenance directly impacts sorting performance and overall operational efficiency.
Daily Operational Procedures
Daily operation requires attention to several key areas, including feed preparation, system calibration, and performance monitoring. Operators must ensure consistent feed characteristics and regularly verify system calibration to maintain sorting accuracy. Continuous performance monitoring allows for prompt adjustment if conditions change.
Operational procedures should be documented and regularly reviewed to ensure consistency. Operator training is essential for maintaining proper procedures and responding effectively to operational variations. Well-trained operators significantly contribute to system performance and reliability.
Preventive Maintenance Scheduling
Preventive maintenance is essential for maintaining sorting accuracy and equipment reliability. Regular maintenance tasks include sensor cleaning and calibration, mechanical component inspection, and system performance verification. A structured maintenance schedule ensures these tasks are performed at appropriate intervals.
Maintenance planning should consider operational hours and material characteristics, as abrasive materials may require more frequent maintenance. Proper spare parts management ensures that necessary components are available when needed. Preventive maintenance reduces the likelihood of unexpected failures and maintains consistent performance.
Performance Monitoring and Optimization
Continuous performance monitoring allows operators to identify trends and make adjustments before performance degrades. Monitoring should include both sorting efficiency metrics and equipment health indicators. This comprehensive approach ensures both operational and mechanical performance are maintained.
Performance data should be regularly analyzed to identify opportunities for improvement. Modern systems provide extensive data logging capabilities that support detailed performance analysis. This data-driven approach to optimization ensures continuous improvement in sorting performance.
Technical Support and Troubleshooting
Access to technical support is important for addressing operational issues and optimizing performance. Support services may include remote monitoring, diagnostic assistance, and on-site support when needed. Establishing support relationships before implementation ensures help is available when required.
