Optical sensors serve as the critical vision system in metal sorting equipment, directly influencing sorting accuracy, material recovery rates, and operational efficiency. This comprehensive guide provides detailed procedures for maintaining optimal sensor performance through systematic cleaning and calibration protocols. Regular maintenance prevents the gradual accuracy degradation that often goes unnoticed until significant production losses occur. Implementing these practices helps maintain sorting accuracy above 95%, extends equipment lifespan, and reduces operational costs associated with mis-sorted materials and unnecessary downtime.
The Critical Role of Optical Sensors in Metal Sorting and Accuracy Risks
Optical sensors function as the primary detection mechanism in modern metal sorting systems, converting visual and spectral information into digital data for material classification. These sophisticated components employ various technologies including charged-coupled device cameras, near-infrared spectroscopy, and laser scanning systems to identify metallic characteristics. Each technology operates on different physical principles but shares common vulnerability to contamination and misalignment. Understanding this vulnerability is essential for implementing effective maintenance strategies that preserve sorting accuracy and prevent economic losses from degraded performance.
Sensor performance directly correlates with sorting efficiency, as even minor contamination can distort detection signals and compromise material identification. The precision required in metal separation demands optical systems operating at their full design capability, with clarity and calibration maintained within strict tolerances. Industrial environments present constant challenges to sensor integrity through airborne particles, humidity variations, and operational debris that accumulate on optical surfaces. Progressive deterioration often remains undetected through casual observation while gradually increasing mis-sorting rates and reducing product purity.
Optical Sensor Types and Their Working Principles
Metal sorting equipment typically incorporates multiple optical technologies that complement each other in material identification. CCD cameras capture high-resolution visual images that analyze surface characteristics including color, texture, and shape at speeds exceeding thousands of frames per second. Near-infrared sensors utilize specific wavelength ranges between 700-2500 nanometers to detect molecular vibrations unique to different metals and alloys. Laser scanning systems employ triangulation and time-of-flight measurements to create detailed three-dimensional profiles of each particle passing through the detection zone.
Each sensor technology contributes distinct data points to the material identification algorithm, creating a comprehensive signature for accurate classification. CCD cameras excel at detecting surface contamination and visual defects, while NIR sensors identify chemical composition through spectral analysis. Laser systems provide crucial dimensional data that complements the information from other sensors. The integration of these technologies enables modern sorters to achieve identification accuracy exceeding 95% for most metal types when properly maintained and calibrated.
Common Contamination Sources and Their Impact on Sensor Performance
Industrial environments generate numerous contamination sources that compromise optical sensor performance through physical obstruction and signal interference. Airborne dust particles from material handling operations gradually accumulate on lens surfaces, scattering light and reducing image clarity. Oil mist generated by machinery creates thin films that distort spectral measurements and reflect stray light into detection systems. Metal fines produced during processing can become embedded in protective housings or adhere to optical surfaces through electrostatic attraction, creating permanent damage if not promptly removed.
The impact of contamination manifests differently across sensor technologies. CCD cameras experience reduced contrast and resolution, making subtle visual distinctions between similar materials increasingly difficult. NIR sensors suffer from signal attenuation and spectral distortion as contaminants absorb or scatter specific wavelengths used for material identification. Laser systems demonstrate measurement inaccuracies as particles interfere with beam projection and reflection detection. The cumulative effect progressively degrades sorting accuracy, often becoming apparent only after significant production quality issues emerge.
Typical Symptoms of Accuracy Degradation and Cost Implications
Gradual sensor performance decline produces identifiable symptoms that alert operators to developing maintenance needs. Increased false rejection rates represent an early indicator, where properly sorted materials are incorrectly diverted to reject streams. Conversely, rising contamination in accepted product streams signals deteriorating detection sensitivity, particularly for subtle differences between similar metals. Inconsistent sorting performance across production runs indicates intermittent sensor issues, often related to environmental factors or partial contamination.
The economic impact of sensor degradation extends beyond immediate production quality issues to encompass broader operational costs. Mis-sorted materials require reprocessing, consuming additional energy and capacity while reducing overall throughput. Contaminated product shipments can result in customer rejection, penalty charges, and damaged business relationships. Progressive sensor deterioration may eventually necessitate premature component replacement at significant expense, whereas regular maintenance could have extended service life. These cumulative costs typically exceed preventive maintenance expenses by substantial margins.
Environmental Factors Accelerating Contamination
Humidity variations significantly influence contamination accumulation rates and sensor performance in metal sorting environments. High humidity levels promote condensation on optical surfaces, creating moisture films that attract and bind particulate matter. These conditions accelerate the formation of stubborn deposits that require aggressive cleaning methods, increasing the risk of surface damage. Low humidity environments generate electrostatic charges that attract lightweight particles to sensor housings and lenses, necessitating more frequent cleaning cycles.
Temperature fluctuations create mechanical stress on optical components through expansion and contraction cycles that can affect alignment and focus. Rapid temperature changes exacerbate condensation issues, particularly when equipment transitions between operational and standby states. Industrial processes including cooling operations, material drying, and combustion systems create localized environmental conditions that challenge sensor integrity. Understanding these relationships enables the implementation of targeted environmental controls that mitigate specific risk factors in each operational setting.
Case Study: Sensor Contamination Induced Sorting Errors
A detailed analysis of a aluminum sorting operation demonstrated how gradual sensor contamination directly impacted production quality. The facility utilized NIR sensor technology to separate different aluminum alloys, initially achieving 98% purity in output streams. Over six weeks of continuous operation without scheduled cleaning, airborne aluminum oxide particles accumulated on sensor lenses, reducing spectral signal strength by approximately 40%. This degradation resulted in decreased differentiation capability between similar alloy types, with purity levels declining to 90% before the issue was identified and addressed.
The economic impact included reprocessing costs for approximately 15 tons of mis-sorted material, additional labor for troubleshooting, and two production shifts lost during system recovery. Subsequent implementation of a preventive cleaning schedule maintained purity levels between 97-98% while reducing unscheduled downtime by 85% over the following quarter. This case exemplifies how progressive sensor contamination creates subtle but economically significant performance degradation that often escapes notice until substantial losses accumulate.
Economic Analysis of Regular Maintenance Benefits
Comprehensive cost-benefit analysis demonstrates the financial advantage of systematic sensor maintenance compared to reactive approaches. Preventive cleaning requires approximately 2-4 hours weekly for typical industrial sorters, utilizing low-cost consumables including cleaning solutions and wipes. This investment contrasts sharply with the economic impact of major sorting errors, where a single eight-hour production shift with degraded accuracy can generate losses exceeding $5,000 in reprocessing costs and lost production capacity.
The extended equipment lifespan achieved through regular maintenance provides additional economic benefits by delaying capital investment in replacement systems. Properly maintained optical sensors typically operate effectively for 5-7 years in industrial environments, while neglected systems may require replacement within 2-3 years. The combined savings from avoided production losses, reduced repair frequency, and extended component life typically yield a 3:1 return on investment for comprehensive maintenance programs. These economic realities make sensor maintenance an essential operational priority rather than an optional activity.
Preparation and Safety Protocols for Cleaning Optical Sensors
Effective sensor cleaning begins with thorough preparation that ensures personnel safety, prevents equipment damage, and maximizes cleaning effectiveness. The process requires specific tools, controlled environmental conditions, and systematic procedures that address the unique requirements of optical components. Rushing preparation or utilizing improper techniques frequently causes additional damage that exceeds the original contamination issues. Allocating sufficient time for proper setup represents a worthwhile investment that pays dividends through improved results and avoided complications.
Safety considerations extend beyond immediate personal protection to encompass equipment integrity and long-term operational reliability. Optical sensors incorporate delicate surfaces easily damaged by improper handling, incompatible cleaning agents, or electrostatic discharge. Simultaneously, personnel face potential hazards including mechanical entanglement, electrical shock, and chemical exposure during cleaning activities. Balancing these concerns requires methodical approaches that address both equipment sensitivity and personnel protection through standardized protocols.
Essential Cleaning Tools and Materials Checklist
Professional optical cleaning requires specialized tools designed specifically for sensitive surfaces to avoid scratching, streaking, or chemical damage. Compressed air systems with moisture traps and particulate filters provide initial dry cleaning without physical contact with optical surfaces. Anti-static brushes with natural fiber bristles remove loosely adhered particles without generating electrostatic charges that attract additional contamination. Lens-specific cleaning solutions with controlled evaporation rates and residue-free formulations safely dissolve organic films without damaging optical coatings.
Lint-free wipes manufactured from microfiber or cellulose materials provide the necessary absorption and cleaning action without shedding particles onto the surfaces being cleaned. Magnification tools including jeweler's loupes or digital microscopes enable detailed inspection before, during, and after cleaning to verify results. Proper storage containers protect cleaning materials from environmental contamination between uses, maintaining their effectiveness for subsequent applications. This comprehensive toolkit addresses the full range of cleaning challenges presented by industrial optical sensors.
Equipment Power Down and Lockout Procedures
Complete electrical isolation represents the fundamental safety requirement before initiating any sensor cleaning activities. The process begins with normal equipment shutdown through control system interfaces, followed by physical disconnection from power sources at the main distribution panel. Lockout-tagout devices physically prevent power restoration while cleaning activities proceed, with clear identification of personnel responsible for the isolation. Verification of zero energy state using appropriate testing equipment provides final confirmation before proceeding with physical access to sensors.
Additional isolation steps may include disconnecting pneumatic and hydraulic systems that could activate during cleaning, particularly when accessing sensors located near moving components. Communication protocols ensure all personnel understand equipment status and access restrictions throughout the cleaning process. These systematic approaches prevent accidental activation that could cause serious injury or equipment damage during maintenance activities. Documented procedures specific to each equipment type provide clear guidance for personnel performing these critical safety steps.
Personal Protective Equipment Requirements
Appropriate personal protection addresses multiple hazard categories encountered during sensor cleaning operations. Nitrile gloves protect against chemical exposure from cleaning solutions while preventing skin oils from transferring to optical surfaces. Safety glasses with side shields guard against accidental exposure to pressurized air, cleaning chemicals, or dislodged debris. Anti-static wrist straps prevent electrostatic discharge that could damage sensitive electronic components associated with optical sensors.
Additional protection may include
respiratory equipment when working in enclosed spaces or with aerosolized cleaning products, and protective footwear when accessing elevated sensor locations. The specific
combination of protective equipment varies based on sensor location, cleaning methods employed, and environmental conditions. Regular inspection and maintenance of protective
equipment ensures continued effectiveness, while training in proper usage techniques maximizes protection during cleaning activities. These measures collectively create a safe
working environment for personnel performing essential sensor maintenance.
Work Area Preparation and Contamination Prevention Measures
Controlled cleaning environments significantly improve results by minimizing the introduction of new contaminants during maintenance activities. Designated cleaning areas should be established away from active production zones where airborne particles circulate freely. Portable clean tents or temporary enclosures create isolated environments when sensors cannot be moved to dedicated cleaning locations. Surface preparation includes thorough cleaning of adjacent equipment and floors to eliminate potential contamination sources.
Environmental controls address temperature, humidity, and air quality factors that influence cleaning effectiveness and recontamination rates. Air filtration systems reduce particulate counts in the immediate work area, while humidity control prevents condensation during cleaning. Lighting arrangements facilitate detailed inspection without creating glare or reflections that obscure visual assessment. These preparation steps create optimal conditions for successful sensor cleaning while minimizing the need for repeated attempts to achieve satisfactory results.
Identifying Sensor Locations and Access Methods
Optical sensors in metal sorters occupy various positions depending on equipment design and detection requirements. Common locations include overhead mounting for downward viewing of material streams, lateral positioning for side-profile analysis, and integrated placement within conveyor systems for direct measurement. Equipment documentation provides specific guidance for each sensor type, including access points, mounting methods, and connection interfaces. Understanding these details before beginning maintenance prevents unnecessary disassembly and potential damage during access.
Access procedures range from simple cover removal to complex disassembly sequences requiring specialized tools. Sequential photography during disassembly provides valuable reference for reassembly, particularly for infrequently accessed components. Connection identification ensures proper reconnection of electrical, data, and pneumatic interfaces following cleaning. Methodical approaches to sensor access reduce maintenance time while preventing errors that could affect equipment operation following maintenance activities.
Documenting Pre-Cleaning Condition for Comparison
Comprehensive documentation before cleaning establishes baseline conditions that enable objective assessment of cleaning effectiveness. High-resolution photography under consistent lighting conditions captures visual details of contamination levels, existing damage, and general sensor condition. Performance metrics including recent sorting accuracy rates, error patterns, and calibration histories provide quantitative baselines for post-cleaning comparison. These records support informed decisions regarding cleaning intensity and identify sensors requiring more extensive maintenance.
Documentation systems should include standardized forms that capture essential
information including date, equipment identification, sensor locations, and pre-cleaning observations. Digital records facilitate trend analysis across multiple maintenance cycles,
identifying progressive issues that might indicate underlying problems. This systematic approach transforms subjective cleaning assessments into data-driven maintenance decisions,
supporting continuous improvement in sensor management practices. The resulting records also provide valuable documentation for warranty claims, performance verification, and
regulatory compliance requirements.
Detailed Step-by-Step Procedure for Cleaning Optical Sensors
Systematic cleaning methodologies ensure thorough contamination removal while protecting delicate optical components from damage. The progressive approach begins with non-contact methods that remove loose debris before proceeding to more aggressive techniques for adhered contaminants. Each step builds upon the previous one, with verification between stages confirming effectiveness before advancing. This methodical process maximizes cleaning results while minimizing the risk of damaging expensive optical components through improper technique or excessive force.
Time allocation for each cleaning stage varies based on contamination levels, sensor accessibility, and environmental conditions. Rushing the process typically yields inferior results and may necessitate repeated cleaning attempts, while excessively prolonged cleaning increases the risk of recontamination from environmental exposure. Experience gradually refines time estimates for specific equipment and contamination conditions, enabling more efficient scheduling of maintenance activities. The investment in proper technique consistently returns value through extended component life and maintained sorting accuracy.
Step One: Dry Pre-Treatment for Loose Particle Removal
Initial cleaning focuses on removing non-adhered particulate matter without physical contact with optical surfaces. Compressed air systems with regulated pressure below 50 psi provide controlled propulsion that dislodges and removes loose debris. The air stream direction should always move from the center of optical elements outward toward edges, preventing particle accumulation in difficult-to-clean areas. Nozzle distance maintained at 4-6 inches from surfaces ensures adequate cleaning force without risk of physical impact from high-velocity air.
Supplemental tools including anti-static brushes provide mechanical assistance for particles resistant to air cleaning alone. Brush strokes should follow consistent patterns from center to periphery, with frequent brush cleaning to prevent redistribution of removed contamination. Magnified inspection verifies complete removal of loose particles before proceeding to wet cleaning stages. This sequential approach prevents loose debris from becoming embedded in cleaning solutions during subsequent steps, which could create abrasive conditions damaging to optical surfaces.
Step Two: Wet Cleaning for Dissolving Stubborn Contaminants
Specialized cleaning solutions address adhered contaminants including oils, fingerprints, and atmospheric deposits that resist dry removal methods. High-purity isopropyl alcohol (90% concentration or higher) effectively dissolves most organic films without leaving residues or damaging optical coatings. Application methods utilize lint-free wipes lightly moistened with solution, avoiding direct spraying onto optical surfaces that could allow liquid penetration into sensor housings. The minimal liquid approach controls solution distribution while preventing excessive use that requires extended drying times.
Wiping technique employs continuous, overlapping strokes from center to edge with light pressure that avoids flexing optical elements. Circular motions gradually expand outward, with frequent wipe rotation to present fresh cleaning surfaces. Immediate follow-up with dry wipes captures dissolved contaminants before they can redistribute across optical surfaces. This two-wipe method (wet followed immediately by dry) provides controlled cleaning action that removes contaminants without creating streaks or residues that impair optical performance.
Step Three: Deep Cleaning for Gaps and Edges
Optical assemblies typically include recessed areas, edge seals, and mounting interfaces that accumulate contamination difficult to address with standard wiping techniques. Cotton swabs with wood or paper handles (never plastic that could scratch surfaces) provide precision access to these constrained areas. Swab moistening follows the same minimal liquid principles as surface cleaning, with excess solution removed before application to prevent uncontrolled flow into sensitive components. Rotational motion during application maximizes cleaning contact while minimizing redeposition of removed contaminants.
Supplemental tools including pointed foam cleaners and miniature brushes address specific geometric challenges presented by different sensor designs. Magnification during deep cleaning enables visual confirmation of contamination removal from these critical areas. Particular attention focuses on seal interfaces and mounting surfaces where accumulated debris could affect optical alignment or environmental protection. This thorough approach ensures complete contamination removal rather than partial cleaning that leaves residual material to rapidly recontaminate primary optical surfaces.
Step Four: Drying and Verification of Cleaning Results
Complete moisture removal represents a critical final step in wet cleaning processes, as residual liquid can attract particulate matter or interfere with optical properties. Evaporation drying utilizes controlled air flow across optical surfaces at room temperature, avoiding heat sources that could create thermal stress or accelerate solvent evaporation that leaves residues. Compressed air with integrated filters provides directed drying action, with nozzle distance maintained at 8-10 inches to prevent surface impact from high-velocity air streams.
Verification inspection under multiple lighting conditions identifies streaks, residues, or remaining contamination that require additional cleaning attention. Angled lighting reveals subtle film formations that might escape notice under direct illumination. Magnification tools enable detailed examination at the microscopic level where contamination initially affects optical performance. This rigorous verification ensures cleaning achieves the necessary standard rather than assuming effectiveness based on superficial appearance. Only sensors passing this verification should proceed to recalibration and operational testing.
Step Five: Reassembly and Functional Testing
Component reassembly reverses the disassembly sequence while incorporating additional verification of proper alignment and connection integrity. Reference photographs taken during disassembly guide correct orientation and mounting of each component. Connection verification ensures electrical, data, and pneumatic interfaces achieve secure engagement without forced installation that could damage delicate connectors. Fastener tightening follows specified torque values where available, avoiding overtightening that creates mechanical stress or distorts optical alignment.
Initial functional testing begins with basic operational checks before proceeding to full performance verification. Power application sequences confirm proper startup without error indications, while basic functionality tests verify sensor response to controlled stimuli. Gradual progression to full operational testing under controlled conditions identifies any issues introduced during cleaning or reassembly. This systematic approach to restoration ensures sensors return to service with confidence in their operational readiness and performance capability.
Step Six: Documentation of Cleaning Procedures
Comprehensive documentation completes the cleaning process by capturing essential information for future reference and continuous improvement. Standardized forms record cleaning dates, personnel involved, tools and materials utilized, and observations regarding sensor condition. Performance metrics including pre- and post-cleaning calibration data provide quantitative assessment of cleaning effectiveness. Photographic evidence supplements written descriptions, creating visual records of sensor condition throughout the cleaning process.
Maintenance management systems organize this information for trend analysis and scheduling of future activities. The documented history supports warranty claims, informs replacement decisions, and identifies recurring issues requiring engineering solutions. This closed-loop approach transforms individual cleaning events into data points within a comprehensive sensor management strategy. The resulting knowledge base continually improves cleaning effectiveness while optimizing resource allocation across the maintenance program.
Standard Methods and Best Practices for Calibrating Optical Sensors
Sensor calibration establishes the critical relationship between measured signals and material properties, ensuring accurate identification and sorting decisions. The process involves configuring detection systems to recognize specific spectral, visual, or dimensional characteristics associated with target materials. Regular calibration compensates for gradual changes in component performance, environmental conditions, and material variations that affect detection accuracy. Properly calibrated systems maintain consistent performance despite these evolving factors, delivering reliable sorting results across production runs.
Calibration methodologies vary between sensor technologies but share common principles of reference establishment, parameter adjustment, and verification. The specific approach depends on the detection principle, material characteristics, and sorting precision requirements. Effective calibration balances comprehensive coverage of expected material variations with practical time constraints for maintenance activities. Understanding these trade-offs enables development of calibration protocols that maximize sorting accuracy while minimizing operational disruption.
Calibration Principles and Frequency Recommendations
Calibration compensates for signal drift in optical systems caused by component aging, temperature effects, and gradual contamination accumulation. The process establishes reference points that correlate sensor outputs with known material properties, creating a baseline for accurate identification. Detection thresholds derived from these references determine sorting decisions, with proper calibration ensuring optimal balance between recovery rates and product purity. Understanding these relationships enables targeted calibration that addresses specific performance requirements for each application.
Calibration frequency depends on multiple factors including sensor technology, operational environment, and required sorting precision. General guidelines suggest monthly calibration for critical applications, with reduced frequency for less demanding operations. Additional calibration triggers include significant environmental changes, material source variations, component replacements, or observed performance degradation. Modern systems often incorporate automated monitoring that recommends calibration based on actual performance data rather than fixed schedules, optimizing maintenance resource allocation.
Using Standard Samples for Baseline Calibration
Certified reference materials provide known characteristics that establish accurate calibration baselines for optical sensors. These samples typically include pure metal specimens, common alloys with documented composition, and intentionally contaminated materials that represent rejection thresholds. Proper selection covers the range of materials encountered during normal operation, with particular emphasis on differentiation between similar alloys that present identification challenges. Sample condition maintenance ensures consistent properties across multiple calibration cycles.
Calibration procedures present reference materials under controlled conditions that mimic normal operation while eliminating variables that could affect measurements. Multiple presentations of each reference type account for orientation and positioning variations that occur during actual sorting. Statistical analysis of sensor responses establishes detection parameters that reliably identify each material category. This methodical approach creates robust calibration that performs effectively despite normal operational variations in material presentation.
Software Intervention for Adjusting Sensor Parameters
Calibration software provides interfaces for configuring detection parameters that translate sensor measurements into material identification decisions. Gain adjustments compensate for signal strength variations, while offset corrections address baseline shifts in sensor output. Detection thresholds establish acceptance boundaries for each material category, with optimal settings balancing recovery rates against purity requirements. These parameters collectively determine sorting performance, with proper calibration optimizing the balance for specific operational objectives.
Advanced calibration systems utilize machine learning algorithms that automatically refine detection parameters based on verified sorting results. These adaptive systems continuously improve accuracy by incorporating operational data into calibration models. The software typically provides visualization tools that display the relationship between parameter settings and expected performance, enabling informed decisions during calibration. This integration of computational intelligence with physical measurement represents the current state of the art in sensor calibration technology.
Verification Procedures for Calibration Results
Calibration verification confirms that adjusted parameters deliver the intended performance improvement before returning equipment to production. Controlled testing utilizing validation samples with known properties provides quantitative assessment of sorting accuracy. These samples differ from those used in calibration, providing independent verification of system performance. Throughput testing under normal operating conditions confirms that calibration remains effective at production speeds rather than only under ideal laboratory conditions.
Statistical analysis of verification results establishes confidence intervals for sorting accuracy, identifying whether performance meets operational requirements. Comparison with pre-calibration performance quantifies improvement achieved through the calibration process. Documentation of verification results provides objective evidence of system readiness for production requirements. This rigorous approach ensures calibrated systems deliver reliable performance rather than assuming effectiveness based on calibration completion alone.
Synchronized Calibration for Multi-Sensor Systems
Modern sorting systems typically incorporate multiple sensor technologies that provide complementary data for material identification. Coordinated calibration ensures consistent performance across all detection systems, preventing conflicting decisions that reduce overall sorting efficiency. The process involves simultaneous presentation of reference materials to all sensors, with correlated parameter adjustment that maintains detection consistency. This integrated approach recognizes that sorting decisions derive from combined sensor inputs rather than independent measurements.
Cross-sensor verification confirms that different technologies produce complementary rather than contradictory identification for the same materials. Correlation analysis identifies potential conflicts before they affect production sorting, enabling parameter adjustment that resolves discrepancies. The resulting synchronized calibration delivers cohesive system performance that maximizes the advantages of multi-sensor detection approaches. This comprehensive methodology represents essential practice for modern sorting systems utilizing advanced detection technologies.
Addressing Calibration Failure Scenarios
Calibration difficulties indicate underlying issues requiring investigation rather than simply repeated calibration attempts. Systematic troubleshooting identifies root causes including sensor degradation, reference material issues, environmental factors, or software anomalies. Progressive approach begins with verification of reference material condition and proper presentation, followed by sensor functionality testing under controlled conditions. Environmental assessment identifies factors that might interfere with calibration, while software diagnostics check for configuration errors or corruption.
Documentation of calibration failures including specific symptoms, error messages, and environmental conditions provides valuable data for troubleshooting. Pattern recognition across multiple calibration events identifies recurring issues that might indicate systematic problems requiring engineering solutions. Escalation procedures ensure appropriate technical resources address persistent calibration difficulties before they affect production quality. This methodical approach to calibration problems resolves issues efficiently while preventing repeated attempts that waste resources and delay production.

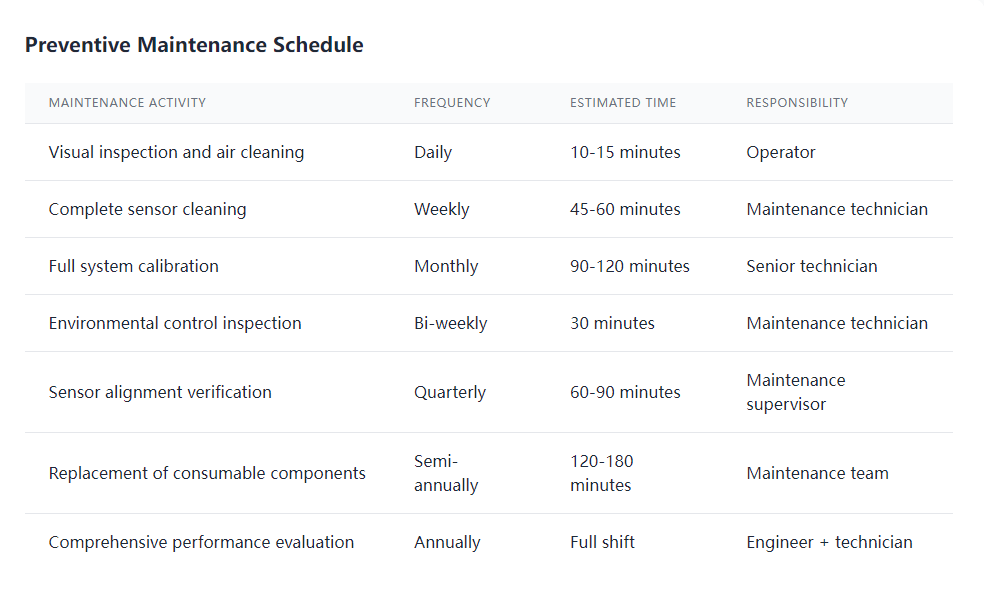

Daily Maintenance Schedule and Preventive Strategies
Integrating sensor maintenance into regular operational routines prevents the gradual performance degradation that occurs between major cleaning events. Daily attention addresses minor contamination before it accumulates to levels affecting sorting accuracy, while systematic monitoring identifies developing issues requiring intervention. This proactive approach transforms sensor maintenance from reactive problem-solving to planned prevention, reducing emergency repairs and associated production disruptions. The modest time investment in daily maintenance returns substantial benefits through consistent sorting performance and extended component life.
Effective maintenance scheduling balances comprehensive coverage with practical operational constraints, allocating resources where they provide maximum benefit. Prioritization focuses on critical sensors most directly affecting sorting quality, while established checklists ensure consistent execution across all maintained systems. Documentation of daily activities creates performance histories that support maintenance optimization and identify trends requiring attention. This systematic approach embeds sensor care within normal operations rather than treating it as separate occasional activities.
Developing Maintenance Schedules and Assigning Responsibility
Structured maintenance schedules allocate specific tasks to appropriate timeframes based on their impact and frequency requirements. Daily activities include visual inspection, basic cleaning, and performance verification that require minimal time but provide early detection of developing issues. Weekly tasks encompass more detailed inspection, thorough cleaning, and basic calibration that address gradual performance drift. Monthly activities involve comprehensive maintenance including full calibration, component inspection, and preventive replacement of consumable items.
Clear responsibility assignment ensures maintenance tasks receive appropriate attention rather than being overlooked during production pressures. Primary technicians possess specific training for optical maintenance, while backup personnel provide coverage during absences. Documentation systems track completion of scheduled activities, providing accountability and supporting continuous improvement of maintenance practices. This organizational approach ensures sensor maintenance receives consistent priority rather than varying with production demands.

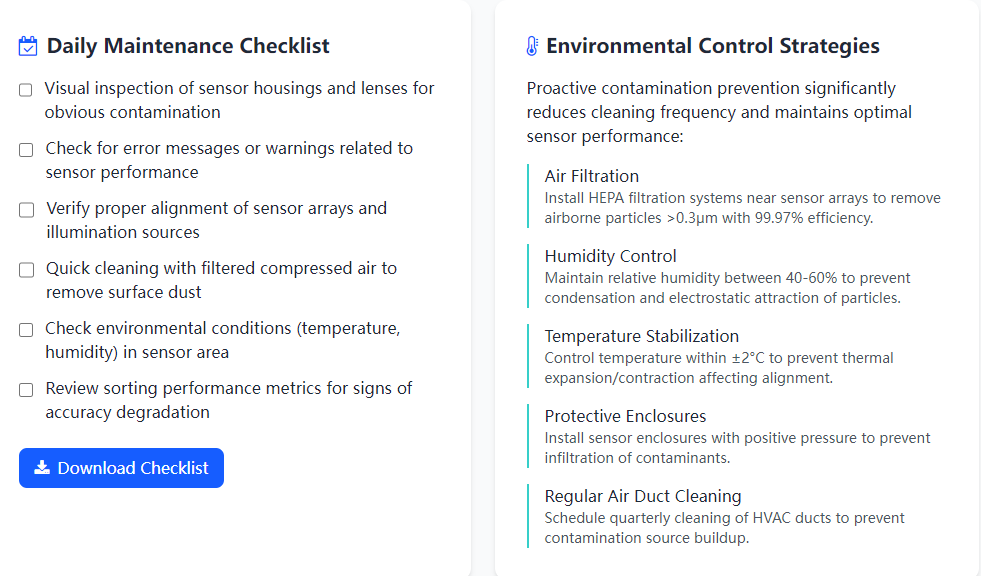

Environmental Controls for Reducing Contamination Accumulation
Proactive contamination prevention significantly reduces cleaning frequency and maintains optimal sensor performance between maintenance events. Air filtration systems with HEPA filtration remove airborne particles before they reach optical surfaces, particularly important in environments generating fine metallic dust. Enclosure systems provide physical separation from contamination sources, with controlled environments maintaining clean conditions around sensitive components. These barriers balance protection with operational access, preventing protection from impeding normal maintenance activities.
Environmental monitoring provides data supporting contamination control decisions, with particulate counters measuring airborne contamination levels. Humidity control prevents condensation that attracts and binds particulate matter to optical surfaces. Temperature stabilization reduces thermal cycling that can affect optical alignment and component reliability. These integrated approaches address contamination at its source rather than relying solely on cleaning to remove accumulated material, representing a more efficient long-term strategy for sensor protection.
Operational Habits Optimized for Sensor Protection
Work practices significantly influence sensor contamination rates and long-term reliability. Handling procedures that avoid direct contact with optical surfaces prevent oil transfer and physical damage that accelerate contamination accumulation. Tool selection utilizing non-marring materials prevents accidental damage during adjacent maintenance activities. Workflow organization that minimizes sensor exposure during equipment maintenance reduces opportunities for contamination introduction.
Training programs establish these practices as standard procedures rather than optional recommendations. Visual reminders including labels and diagrams reinforce proper techniques, while supervision ensures consistent application across all personnel. Performance metrics that include sensor maintenance effectiveness provide motivation for adherence to established protocols. These cultural elements complement technical measures in creating comprehensive sensor protection within operational environments.
Monitoring Tools for Predicting Maintenance Requirements
Advanced monitoring systems provide early warning of developing maintenance needs before they affect sorting performance. Built-in sensor diagnostics track parameters including signal strength, noise levels, and calibration stability that indicate progressive degradation. Trend analysis identifies downward trajectories that predict future performance issues, enabling proactive maintenance scheduling. Automated alert systems notify personnel when monitored parameters approach levels requiring intervention.
Supplemental monitoring equipment including particle counters, humidity sensors, and temperature loggers provides environmental data correlating with maintenance requirements. Integration of these data sources creates comprehensive understanding of factors influencing sensor performance. Predictive algorithms utilize this information to recommend maintenance timing optimized for actual conditions rather than fixed schedules. This data-driven approach maximizes maintenance effectiveness while minimizing operational disruption through optimally timed interventions.
Spare Parts Management for Rapid Replacement
Strategic spare parts inventory ensures timely response to sensor issues requiring component replacement rather than simple cleaning. Critical spares include optical elements for high-wear applications, illumination sources with limited lifespan, and specialized connectors prone to damage. Inventory levels balance availability requirements against carrying costs, with criticality analysis guiding stocking decisions. Storage conditions protect sensitive components from environmental damage while maintaining organization for efficient retrieval.
Supplier relationships ensure rapid access to additional components when unexpected needs exceed inventory levels. Documentation including part numbers, supplier information, and compatibility details supports efficient procurement when required. Standardized replacement procedures minimize equipment downtime during component changes, with trained personnel capable of performing replacements efficiently. This comprehensive approach to spare parts management represents an essential element of effective sensor maintenance programs.
Continuous Improvement of Maintenance Processes
Systematic evaluation of maintenance effectiveness identifies opportunities for process enhancement that improve results and reduce costs. Performance tracking compares pre- and post-maintenance sorting accuracy, quantifying the value derived from maintenance activities. Resource analysis examines time, material, and personnel requirements, identifying opportunities for efficiency improvement. Feedback mechanisms capture operational experience, transforming individual insights into organizational learning.
Regular review cycles assess maintenance protocols against evolving operational requirements and technological advancements. Benchmarking against industry best practices identifies potential improvements, while technological monitoring alert to new tools and methods that could enhance maintenance effectiveness. This continuous improvement mindset ensures maintenance practices evolve rather than remaining static while equipment and requirements change. The resulting adaptive approach maintains optimal sensor performance despite changing operational conditions.
Troubleshooting and Common Problem Solutions
Effective troubleshooting methodologies efficiently resolve sensor issues while identifying root causes to prevent recurrence. Systematic approaches begin with clear problem definition, followed by methodical investigation that eliminates potential causes through sequential testing. Documentation of troubleshooting procedures and results builds organizational knowledge, reducing resolution time for future occurrences. Modern facilities often utilize computerized maintenance management systems that guide troubleshooting through predefined decision trees while capturing results for analysis and improvement.
Common sensor issues typically fall into categories including performance degradation, physical damage, electrical faults, and software anomalies. Each category exhibits characteristic symptoms enabling preliminary diagnosis before detailed investigation. Historical resolution data identifies frequently occurring issues, guiding preventive measures and parts stocking decisions. This systematic approach to problem resolution minimizes production disruptions while continuously improving system reliability through lessons learned from each incident.
Identifying Causes of Slow Sensor Response After Cleaning
Delayed sensor response following cleaning typically indicates residual contamination, moisture retention, or reassembly issues rather than component failure. Investigation begins with visual inspection using magnification to identify subtle residues or moisture films not apparent to casual observation. Response testing under controlled conditions characterizes the specific nature of timing issues, distinguishing between general sluggishness and intermittent delays. This diagnostic approach identifies the underlying cause rather than simply addressing surface symptoms.
Resolution strategies include additional cleaning with varied techniques, extended drying periods, or connector reseating to address potential contact issues. Verification testing confirms restoration of normal response characteristics before returning equipment to production. Documentation of the specific issue and successful resolution adds to the knowledge base for future reference. This methodical approach efficiently resolves response issues while building organizational capability for addressing similar problems.
Troubleshooting Steps for Unstable Accuracy After Calibration
Accuracy fluctuations following calibration indicate underlying issues requiring investigation rather than repeated calibration attempts. Systematic troubleshooting begins with verification of reference material condition and proper handling procedures. Sensor stability testing under controlled conditions identifies intermittent performance issues that might escape detection during normal operation. Environmental monitoring correlates accuracy variations with temperature, humidity, or vibration changes that might affect sensor performance.
Component inspection identifies physical issues including loose mounting, damaged connectors, or compromised seals that could cause instability. Electrical testing verifies proper power quality and signal integrity throughout the sensor system. Software examination checks for configuration errors, corruption, or compatibility issues that might affect calibration stability. This comprehensive approach identifies the root cause of accuracy instability, enabling targeted resolution rather than repeated calibration attempts that temporarily mask underlying issues.
Addressing False Alarms and Error Signals
Erroneous sensor signals typically stem from environmental interference, component degradation, or configuration issues rather than actual material identification errors. Pattern analysis distinguishes random false signals from systematic errors that indicate specific underlying causes. Source identification utilizes diagnostic tools to trace error origins, distinguishing between sensor-generated signals and processing artifacts. This analytical approach enables targeted resolution rather than general adjustments that might compromise legitimate detection capability.
Resolution strategies include environmental modifications to reduce interference, component replacement for degraded elements, or parameter adjustment to improve noise immunity. Verification testing confirms resolution without introducing new issues or reducing legitimate detection sensitivity. Documentation of error patterns and successful resolutions builds reference data for future troubleshooting. This systematic approach efficiently restores reliable operation while maintaining optimal sorting performance.
Identification and Repair of Physical Damage Including Scratches
Physical damage assessment determines whether affected components can be repaired or require replacement. Minor surface scratches often remain within acceptable performance parameters, while deeper damage typically necessitates component replacement. Quantification of damage impact through performance testing provides objective data for repair/replacement decisions. This evaluation balances restoration cost against performance requirements, avoiding unnecessary replacement of serviceable components.
Specialized repair techniques including optical polishing can restore mildly damaged surfaces when performed by qualified technicians. Replacement procedures for severely damaged components follow standardized methods that ensure proper alignment and calibration. Performance verification following repair or replacement confirms restoration to required operational standards. This balanced approach to physical damage addresses issues effectively while controlling maintenance costs through appropriate repair/replacement decisions.
Resolving Software Compatibility Issues Causing Calibration Failure
Software-related calibration problems typically involve version conflicts, configuration corruption, or communication errors rather than physical sensor issues. Diagnostic procedures begin with software version verification and compatibility checking across system components. Configuration examination identifies corrupted settings or inappropriate parameters that interfere with calibration processes. Communication testing verifies proper data exchange between system elements during calibration procedures.
Resolution approaches include software updates, configuration restoration from backups, or communication reseating to address connection issues. Verification testing confirms successful calibration following software resolution, with particular attention to previously problematic areas. Documentation of software issues and resolutions provides reference for future occurrences, while preventive measures including regular backups and update management reduce recurrence likelihood. This systematic approach efficiently resolves software-related calibration problems while implementing measures to prevent future occurrences.
Emergency Contingency Operations During Maintenance
Contingency planning ensures production continuity during extended sensor maintenance through predefined operational adaptations. Temporary operational parameters maintain basic sorting functionality with reduced precision when primary sensors require maintenance. Material routing modifications direct sensitive applications to alternative equipment while less critical processes continue with reduced capability. These contingency measures balance production needs with maintenance requirements, avoiding unnecessary pressure to curtail essential maintenance activities.
Communication protocols ensure all personnel understand operational status and temporary procedures during maintenance periods. Performance expectations adjust to reflect reduced capability, preventing inappropriate quality standards during contingency operation. Restoration procedures efficiently return systems to full capability following maintenance completion. This comprehensive approach to maintenance planning minimizes production impact while ensuring sensors receive necessary attention to restore optimal performance.
