Recycling aluminum alloys presents significant technical challenges due to the material's complex composition and susceptibility to contamination during collection and processing. This comprehensive guide examines systematic approaches for configuring sorting equipment and optimizing operational parameters to achieve purity levels exceeding 98% in recycled aluminum output. We explore the unique characteristics of different aluminum series, detailed configuration procedures for near-infrared and X-ray sorting technologies, integration strategies for automated systems, and continuous monitoring methodologies. Implementing these evidence-based practices enables recyclers to meet stringent industry standards while reducing energy consumption and operational costs through efficient material recovery processes.
Unique Challenges and Purity Standards in Aluminum Alloy Recycling
Aluminum alloy recycling demands precise understanding of material science principles and contamination mechanisms that affect final product quality. The varying composition across different aluminum series, combined with the diverse sources of scrap material, creates a complex sorting environment requiring sophisticated technological solutions. Industry purity standards directly correlate with economic value, with high-grade applications in aerospace and automotive sectors demanding exceptionally low contamination levels. Establishing clear purity targets and understanding contamination pathways forms the foundation for effective system configuration and process optimization in aluminum recycling operations.
Modern aluminum recycling facilities face increasing pressure to improve purity rates while maintaining economic viability in competitive markets. The presence of alloying elements and contaminants including iron, silicon, copper, and magnesium creates identification challenges that vary significantly between different scrap sources. Environmental factors including humidity, temperature fluctuations, and exposure conditions during previous use further complicate the sorting process by altering surface characteristics. Comprehensive analysis of these variables enables the development of targeted strategies that address specific challenges in aluminum scrap streams, leading to improved recovery rates and product quality.
Aluminum Alloy Types and Their Contamination Characteristics
The aluminum alloy numbering system categorizes materials based on their primary alloying elements, with each series exhibiting distinct properties affecting recyclability. The 1xxx series consisting of pure aluminum (99% minimum) presents different sorting challenges compared to 3xxx series with manganese additions or 6xxx series containing magnesium and silicon. These compositional differences influence mechanical properties, corrosion resistance, and most importantly for recycling, the spectral and density characteristics used for sorting. Iron represents a particularly problematic contaminant in many aluminum scrap streams, forming brittle intermetallic compounds that reduce material integrity and value when exceeding threshold concentrations.
Different alloy series demonstrate varying susceptibility to specific contamination types based on their original applications and chemical compatibility. Automotive scrap typically contains higher proportions of 5xxx and 6xxx series alloys with magnesium and silicon, while packaging materials often feature 1xxx and 3xxx series alloys. The presence of copper in 2xxx series alloys creates identification challenges due to similar density characteristics with brass and bronze contaminants. Understanding these material-specific relationships enables recyclers to anticipate sorting difficulties and configure systems with appropriate sensitivity settings for detecting problematic elements in their particular scrap mix.
Industry Purity Requirements and Market Value Correlation
Commercial value of recycled aluminum escalates dramatically with increasing purity levels, creating strong economic incentives for implementing advanced sorting technologies. Standard specification grades for recycled aluminum typically require iron content below 0.5% for general purpose applications, while high-value sectors including aerospace demand iron limits under 0.15% with additional restrictions on other contaminants. These stringent requirements reflect the critical performance standards in manufacturing components where material consistency directly impacts product safety and functionality. The price differential between standard purity (95-97%) and high-purity (98%+) recycled aluminum can exceed 25%, justifying substantial investment in sorting system optimization.
Market segmentation in aluminum recycling creates specialized niches where particular purity standards command premium pricing structures. The extrusion industry typically accepts slightly higher contamination levels compared to sheet producers, while specialized applications including electronic components establish exceptionally strict limits on specific elements. These market dynamics influence the optimal purity targets for individual recycling operations based on their customer base and scrap sourcing patterns. Establishing clear purity benchmarks aligned with target markets enables focused configuration of sorting systems to achieve the specific contamination thresholds that maximize economic returns for each operation.
Contamination Sources and Their Impact on Recycling Quality
Contamination enters aluminum scrap streams through multiple pathways beginning at the point of discard and continuing through collection, transportation, and preliminary processing stages. Metallic contaminants including steel fasteners, copper wiring, and zinc components represent common issues originating from improper disassembly of aluminum-containing products. Non-metallic contamination encompasses paints, coatings, plastics, and organic materials that adhere to aluminum surfaces during use or accumulate during storage. These diverse contamination sources necessitate comprehensive sorting strategies addressing both gross contamination removal and fine separation of alloy types to achieve target purity levels.
The impact of contamination extends beyond simple composition percentage to include structural integrity and processing characteristics of the recycled material. Iron contamination exceeding 0.8% significantly reduces aluminum's corrosion resistance and formability, limiting applications to lower-value cast products. Silicon content above specification ranges creates brittleness in wrought alloys, while copper contamination affects anodizing quality and electrical conductivity. These property alterations translate directly to economic penalties through restricted market access and reduced selling prices. Understanding these relationships helps prioritize sorting efforts toward eliminating the most economically damaging contaminants specific to each operation's scrap composition.
Establishing Measurable Purity Indicators
Quantifiable purity metrics provide the foundation for systematic sorting optimization by establishing clear targets and enabling performance measurement. Standard industry practice employs spectroscopic analysis to determine elemental composition with precision sufficient for grading recycled aluminum. These measurements typically focus on critical contaminants including iron, copper, silicon, and zinc, establishing maximum concentration limits for each element based on target specifications. Additional quality indicators might include visual inspection standards for surface oxidation, size distribution requirements, and non-metallic inclusion limits that collectively define acceptable material quality.
Implementing statistical process control methods enables continuous monitoring of purity indicators, identifying trends and variations requiring intervention. Standard deviation calculations for key element concentrations help distinguish random fluctuations from systematic sorting issues, while control charts visualize performance relative to established limits. These analytical approaches transform subjective quality assessment into data-driven decision making, supporting targeted adjustments to sorting parameters. Regular calibration of analytical equipment ensures measurement accuracy, while standardized sampling protocols guarantee representative assessment of sorted material batches.
Environmental Factors Including Humidity and Temperature Effects
Ambient conditions significantly influence aluminum sorting efficiency through their impact on material characteristics and sensor performance. High humidity levels above 70% accelerate surface oxidation, creating aluminum oxide layers that interfere with optical sorting technologies including near-infrared systems. These oxide films alter the spectral reflectance patterns that sorting systems rely upon for material identification, potentially reducing recognition accuracy by 15-20% in severe cases. Temperature variations affect both material handling characteristics and electronic component performance, with extreme conditions potentially causing thermal drift in sensitive sensors.
Environmental control strategies mitigate these effects through humidity regulation, temperature stabilization, and contamination prevention measures. Enclosed sorting systems with climate control maintain consistent operating conditions, while material pre-treatment processes including drying and surface cleaning reduce environmental interference. Advanced sorting systems incorporate compensation algorithms that adjust for known environmental effects, maintaining accuracy across varying conditions. These approaches collectively minimize the impact of environmental factors on sorting precision, ensuring consistent performance regardless of external conditions.
Case Study: Typical Aluminum Scrap Composition Model
Automotive aluminum scrap exemplifies the composition challenges facing recyclers, with typical mixtures containing 60-70% cast alloys (primarily 3xx series), 20-30% wrought alloys (5xxx and 6xxx series), and 5-15% contaminants including steel, copper, and non-metallics. This composition profile creates specific sorting priorities focused on removing iron-containing components and separating magnesium-rich alloys from silicon-dominated series. The economic value optimization point for this scrap type typically occurs at purity levels between 96-98%, with diminishing returns beyond this range due to exponentially increasing sorting costs.
Analysis of automotive scrap sorting reveals that targeted configuration of NIR systems achieves approximately 92% purity in initial separation, while subsequent X-ray processing elevates final purity to 97-98%. The remaining 2-3% contamination primarily consists of embedded ferrous particles and surface oxides that require alternative processing methods. This case demonstrates the practical implementation of multi-technology sorting approaches, with each system addressing specific contamination types based on their physical and chemical characteristics. The resulting process flow represents an optimized balance between technical capability and economic feasibility for typical aluminum scrap composition.
Key Configuration Steps for NIR Sorter in Aluminum Sorting
Near-infrared sorting technology leverages the unique spectral signatures of different aluminum alloys to achieve separation based on chemical composition differences. Proper configuration of NIR systems requires careful attention to sensor selection, calibration procedures, material presentation, and ejection mechanisms to maximize sorting efficiency. The technology operates by illuminating aluminum particles with specific wavelength ranges and analyzing the reflected spectra to identify characteristic absorption patterns associated with different alloy types. This approach enables separation of aluminum series that appear identical to visual inspection but contain different alloying elements affecting material properties and value.
Modern NIR sorters incorporate high-resolution spectrometers capable of detecting subtle spectral differences between similar aluminum alloys, with advanced systems analyzing hundreds of wavelength channels simultaneously. The configuration process must account for the specific scrap composition, target purity requirements, and operational constraints of each recycling facility. Successful implementation typically achieves sorting accuracy exceeding 95% for clearly differentiated alloy types, with slightly reduced performance for alloys with minimal compositional differences. The flexibility of NIR technology makes it suitable for various aluminum sorting applications, from coarse separation of major alloy categories to fine sorting of specific series.
Sensor Selection and Installation Best Practices
Choosing appropriate NIR sensors involves evaluating spectral range, resolution, scanning speed, and environmental durability relative to specific sorting requirements. High-performance systems typically operate in the 900-1700 nanometer range with spectral resolution better than 10 nanometers, enabling detection of subtle differences in aluminum alloy composition. The sensor installation geometry critically influences measurement quality, with optimal configurations maintaining consistent distance and angle relative to the material stream. Vibration isolation mounts prevent measurement artifacts caused by equipment movement, while protective enclosures shield sensitive optical components from dust and moisture.
Sensor positioning along the material path requires careful consideration of particle velocity, orientation, and presentation consistency to maximize detection reliability. Standard practice places NIR sensors after initial material acceleration but before ejection points, allowing sufficient time for analysis and decision processing. The installation should provide uniform illumination across the entire material stream, with supplemental lighting compensating for ambient condition variations. Regular verification of sensor alignment ensures consistent performance, while built-in diagnostic functions monitor component health and alert operators to potential issues before they affect sorting quality.
Calibration Procedures for Aluminum Spectral Characteristics
Comprehensive calibration establishes the reference spectra database that enables accurate alloy identification during sorting operations. The process involves analyzing certified samples of target aluminum alloys under identical conditions to actual sorting, capturing the characteristic spectral patterns for each material type. Modern systems typically require 20-30 representative samples per alloy category to establish robust reference libraries that account for natural material variations. The calibration protocol should include periodic verification using control samples to detect and correct for gradual sensor drift that might otherwise compromise sorting accuracy.
Advanced calibration techniques incorporate machine learning algorithms that continuously refine spectral models based on operational results, improving identification accuracy over time. These adaptive systems automatically expand their reference libraries when encountering new alloy types, reducing the need for manual recalibration as scrap composition changes. The calibration process must account for surface condition variations including oxidation, contamination, and texture differences that affect spectral response. Properly executed calibration typically achieves 90-95% correlation between laboratory composition analysis and NIR sorting decisions, providing sufficient accuracy for most commercial recycling applications.
Feed System Optimization for Uniform Exposure
Consistent material presentation represents a critical factor in NIR sorting efficiency, requiring precise configuration of feed mechanisms to ensure each particle receives adequate sensor exposure. Vibratory feeders with controlled amplitude and frequency settings create uniform material distribution across the scanning area, while belt systems maintain consistent particle velocity and orientation. The optimal configuration depends on particle size distribution, with smaller fragments typically requiring different feed parameters than larger pieces. Modern systems incorporate smart feeding technology that automatically adjusts parameters based on real-time material flow characteristics.
Feed rate optimization balances throughput requirements with sorting accuracy, with excessive speed reducing exposure time and potentially missing contamination detection. Empirical testing establishes the relationship between feed rate and sorting efficiency for specific material types, identifying the optimal balance point for each application. Supplemental equipment including destoning screens, dedusting systems, and magnetic separators in the pre-sorting stage improves NIR performance by removing non-aluminum materials that might otherwise interfere with alloy identification. This integrated approach to material preparation significantly enhances overall sorting system effectiveness.
Sorting Parameter Settings: Sensitivity and Threshold Adjustment
Configuring sorting parameters involves establishing acceptance thresholds for different aluminum alloys based on spectral similarity measurements. Sensitivity settings determine how closely a particle's spectrum must match reference patterns to be accepted as a specific alloy type, with tighter tolerances reducing contamination but potentially increasing material loss through false rejection. The optimal balance depends on economic factors including the value difference between alloy types and the cost of reprocessing rejected material. Modern systems provide graphical interfaces that visualize the relationship between threshold settings and sorting performance, enabling intuitive parameter adjustment.
Advanced configuration options include separate sensitivity settings for different alloy categories, allowing operators to prioritize purity for high-value materials while accepting slightly higher contamination levels for lower-grade outputs. Dynamic threshold adjustment based on real-time quality monitoring maintains consistent output purity despite variations in input material composition. These sophisticated control strategies typically improve overall recovery rates by 3-5% compared to fixed parameter systems, while maintaining target purity standards. Regular review of sorting parameters ensures continued optimal performance as material characteristics and market conditions evolve.
Integrated Air Ejection System for Precise Rejection
High-speed ejection mechanisms physically separate identified contaminants from the accepted material stream using precisely timed air jets. Configuration involves optimizing nozzle arrangement, air pressure, valve response time, and timing delay to match material velocity and size distribution. The ejection system must respond within milliseconds of contamination detection, requiring tight synchronization between sensors and mechanical components. Nozzle patterns should provide complete coverage of the material stream without excessive overlap that wastes compressed air and potentially disrupts adjacent particles.
Air pressure settings typically range from 4-8 bar depending on particle mass and velocity, with higher pressures required for heavier contaminants. The timing delay between detection and ejection accounts for the physical distance between sensors and ejection points, calculated based on material velocity. Modern systems incorporate self-calibrating ejection mechanisms that automatically adjust timing based on measured particle velocity, maintaining accuracy despite variations in feed rate. Regular maintenance including filter replacement and nozzle cleaning ensures consistent ejection performance, while pressure monitoring systems alert operators to deviations requiring intervention.
Testing and Validation of Configuration Effectiveness
Comprehensive testing verifies sorting system performance under realistic operating conditions, measuring key metrics including purity, recovery rate, and throughput. The validation process typically involves processing representative material samples through the configured system, then analyzing input and output streams using laboratory methods to quantify sorting accuracy. Statistical analysis determines confidence intervals for performance metrics, ensuring results reflect true system capability rather than random variation. This empirical approach identifies configuration issues that might not be apparent during setup, enabling refinement before full-scale implementation.
Long-term performance monitoring tracks sorting efficiency across multiple production runs, identifying trends and variations that might indicate developing issues. Control charts graphically represent key metrics over time, with established control limits triggering investigation when exceeded. This continuous validation approach maintains consistent sorting quality despite normal equipment wear and material variation. Documented test procedures and results provide objective evidence of system performance, supporting operational decisions and customer quality assurance requirements.
Configuration Methods for X-ray Sorter to Improve Aluminum Alloy Sorting Accuracy
X-ray sorting technology utilizes differential radiation absorption to identify materials based on density and atomic composition, providing complementary capabilities to optical methods for aluminum recycling. The configuration process focuses on optimizing radiation source parameters, detector sensitivity, material handling, and analysis algorithms to achieve maximum separation accuracy. X-ray systems excel at detecting heavy element contamination in aluminum streams, including copper, zinc, lead, and stainless steel fragments that might escape optical detection. The technology also identifies internal contaminants and composite materials that present uniform external appearance but different density characteristics.
Modern X-ray sorters incorporate sophisticated imaging technology that captures detailed density profiles of each particle, enabling identification based on internal structure rather than surface characteristics. This capability proves particularly valuable for sorting aluminum with surface oxidation, paint coatings, or embedded contaminants that challenge optical systems. Proper configuration typically achieves contamination detection rates exceeding 98% for particles above 2mm size, with progressively reduced effectiveness for smaller fragments due to resolution limitations. The technology represents a powerful tool for quality verification and final purification stages in high-purity aluminum recycling processes.
X-ray Source and Detector Configuration Essentials
Selecting appropriate X-ray source parameters involves balancing penetration capability, image contrast, and radiation safety considerations for specific sorting applications. Typical systems operate between 80-160 kV depending on material thickness, with higher voltages providing better penetration for dense contaminants but potentially reducing contrast for lighter elements. Detector configuration focuses on spatial resolution, sensitivity, and response speed to capture clear density images of fast-moving particles. Modern systems often utilize line-scan detectors with resolution exceeding 1mm, enabling identification of small contaminants within the aluminum stream.
Source-detector geometry optimization ensures maximum signal quality while minimizing equipment footprint and radiation exposure risks. The configuration must maintain consistent distance and alignment between components despite operational vibrations and thermal variations. Radiation shielding design integrates with the overall equipment layout, providing necessary protection without impeding material flow or maintenance access. Regular performance verification using calibration standards confirms proper system operation, while automated monitoring detects gradual degradation that might affect sorting accuracy over time.
Safety Shielding and Regulatory Compliance Setup
Radiation safety represents a critical consideration in X-ray sorter configuration, requiring comprehensive shielding and interlock systems to protect operators and meet regulatory requirements. Lead shielding with thickness typically between 3-10mm surrounds radiation sources, with additional protection at material entry and exit points to contain scattered radiation. Interlock mechanisms automatically disable X-ray generation when access doors open, while warning lights and audible alerts indicate system status. These safety systems must comply with international standards including IEC 60529 for protection levels and regional radiation safety regulations.
Documentation and procedural controls complement physical safety measures, establishing clear protocols for operation, maintenance, and emergency situations. Radiation monitoring equipment provides continuous measurement of exposure levels, with automated shutdown triggers if readings exceed established limits. Regular safety audits and personnel training ensure ongoing compliance with evolving regulations and industry best practices. The comprehensive safety approach enables safe operation of X-ray sorting technology while maximizing equipment accessibility for necessary maintenance and adjustment procedures.
Algorithm Adjustment for Heavy Metal Detection in Aluminum
Image processing algorithms transform raw X-ray data into material classification decisions by analyzing density patterns and identifying characteristics associated with contaminants. Configuration involves establishing reference density profiles for pure aluminum and common contaminants, then setting detection thresholds that balance sensitivity and false rejection rates. Advanced systems utilize machine learning techniques that improve detection accuracy over time by incorporating verified sorting results into algorithm training. This adaptive approach typically reduces false rejection rates by 20-30% compared to static algorithms while maintaining high contamination detection sensitivity.
Algorithm customization addresses specific contamination challenges in different aluminum scrap streams, with specialized detection modes for particular contaminant types. Heavy metal detection focuses on density thresholds significantly above aluminum's 2.7 g/cm³, while composite material identification analyzes internal density variations rather than absolute values. These specialized algorithms enable targeted removal of the most economically damaging contaminants specific to each operation's scrap composition. Regular algorithm updates incorporate new contamination patterns encountered during operation, maintaining detection effectiveness as scrap sources evolve.
Balancing Feed Speed and Sorting Accuracy
Throughput optimization involves finding the optimal balance between processing rate and sorting accuracy based on economic factors and quality requirements. Empirical testing establishes the relationship between feed speed and contamination detection rates, typically showing approximately 2% accuracy reduction for each 10% increase in feed rate beyond optimal levels. Modern systems incorporate real-time adjustment capabilities that automatically moderate feed speed when contamination levels increase, maintaining output quality despite input variations. This dynamic approach typically improves overall productivity by 15-20% compared to fixed-rate operation while meeting quality targets.
Material presentation consistency significantly influences the accuracy-speed relationship, with uniform feeding enabling higher throughput without compromising detection capability. Advanced feeding systems utilizing multiple vibration parameters and gate controls create optimal particle distribution across the detection area, maximizing sorting efficiency. The integration of pre-sorting stages removing obvious contaminants further enhances X-ray system performance by reducing the detection burden. This systematic approach to feed optimization represents a critical factor in achieving economic viability for X-ray sorting technology in aluminum recycling applications.
Calibration and Routine Inspection Procedures
Regular calibration maintains X-ray sorting accuracy by compensating for equipment drift and ensuring consistent performance over time. The calibration process typically involves processing certified reference materials with known density characteristics, then adjusting system parameters to match expected detection results. Modern systems often incorporate automated calibration routines that minimize operator intervention and reduce calibration time from hours to minutes. These advanced procedures typically execute during scheduled maintenance windows, ensuring maximum equipment availability for production operations.
Comprehensive inspection protocols verify all system components including radiation sources, detectors, mechanical systems, and safety features. Visual inspection checks for physical damage or misalignment, while functional testing confirms proper operation of ejection mechanisms, material handling components, and control systems. Documentation of inspection results creates a maintenance history supporting predictive maintenance strategies and troubleshooting activities. This systematic approach to equipment care maximizes operational reliability while maintaining sorting accuracy at designed levels throughout the equipment lifecycle.
Case Study: X-ray Sorter Application in Aluminum Foil Recycling
Aluminum foil recycling presents unique challenges due to material thinness, plastic laminations, and food contamination that complicate sorting processes. X-ray technology effectively addresses these challenges by detecting density differences between aluminum and common contaminants including plastic coatings and paper layers. A typical configuration for foil recycling utilizes lower energy X-rays (50-80 kV) optimized for thin materials, with specialized algorithms identifying laminated structures based on density gradient patterns. This approach typically achieves 96-97% purity in recovered aluminum, with residual contamination primarily consisting of microscopic adhesive residues.
The case study demonstrates how proper X-ray sorter configuration enables economic recycling of materials previously considered unrecoverable due to technical challenges. Throughput rates typically reach 2-3 tons per hour for foil applications, with energy consumption approximately 15-20% higher than bulk aluminum sorting due to the increased processing complexity. The economic analysis shows positive return on investment despite these challenges, driven by the significant value difference between contaminated foil and purified aluminum. This application exemplifies the versatility of X-ray sorting technology in addressing specialized recycling challenges within the aluminum industry.
Process Integration and Automation Control Optimization
Effective aluminum recycling requires seamless integration of multiple sorting technologies into a coordinated system that maximizes overall efficiency rather than optimizing individual components in isolation. The integration process involves designing material flow paths, establishing communication protocols between equipment, and implementing control strategies that respond to system dynamics. Modern recycling facilities increasingly utilize automation to reduce human error, maintain consistent operation parameters, and adapt to changing material characteristics. This systematic approach typically improves overall recovery rates by 8-12% compared to standalone equipment operation while reducing labor requirements by 30-40%.
Automation extends beyond simple equipment control to encompass material tracking, quality monitoring, and maintenance scheduling functions that collectively optimize facility operations. Advanced systems incorporate real-time decision making that adjusts process parameters based on measured outcomes, creating self-optimizing recycling processes. The integration of data management platforms enables comprehensive performance analysis across the entire recycling chain, identifying bottlenecks and improvement opportunities that might remain hidden when examining individual process steps. This holistic perspective represents the current state of the art in aluminum recycling facility design and operation.
Designing Efficient Feed and Discharge Systems
Material handling system design critically influences overall sorting efficiency by ensuring consistent presentation to sorting equipment and maintaining separation after sorting decisions. Feed systems must accommodate varying material characteristics including size distribution, bulk density, and flowability while providing buffer capacity to smooth fluctuations in supply. Modern designs often incorporate multiple feed points with individual control, enabling blending of different scrap types to optimize sorting efficiency. Discharge systems must maintain separation between accepted and rejected material streams while providing adequate capacity for each output category.
Integration of material handling equipment with sorting systems requires careful timing coordination to ensure proper sequencing and avoid material pileups or gaps. Sensor networks monitor material levels throughout the system, automatically adjusting feed rates to maintain optimal operation conditions. The physical layout must provide adequate access for maintenance while minimizing equipment footprint and material transport distances. These design considerations collectively determine the practical throughput capacity and operational reliability of the entire sorting system, making material handling integration equally important as sorting technology selection.
Data Management Systems for Real-Time Monitoring
Modern recycling facilities generate enormous data volumes from equipment sensors, quality measurements, and operational tracking systems. Effective data management transforms this information into actionable intelligence supporting operational decisions and strategic planning. Supervisory Control and Data Acquisition systems provide centralized monitoring and control capabilities, while specialized software platforms analyze performance trends and identify improvement opportunities. These systems typically reduce quality variations by 40-50% compared to manual control approaches while providing comprehensive documentation for quality assurance purposes.
Real-time data visualization enables operators to quickly assess system status and identify developing issues before they affect output quality. Automated reporting functions generate performance summaries for management review, highlighting key metrics against established targets. Historical data analysis identifies seasonal patterns, equipment degradation trends, and material characteristic changes that inform preventive maintenance and process adjustment schedules. This data-driven approach represents a significant advancement over traditional operational methods based primarily on operator experience and periodic quality checks.

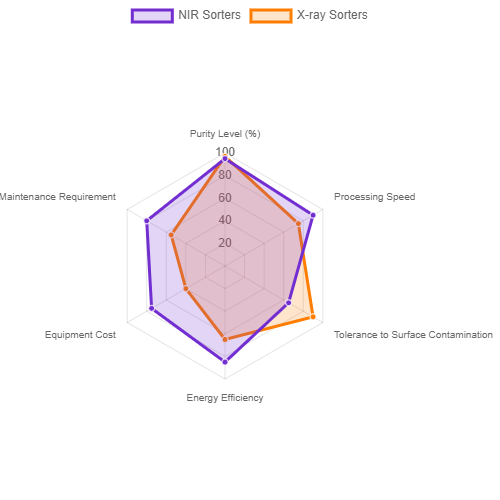

Multi-Technology Synergy: Combining NIR and X-ray Systems
Sequential application of different sorting technologies typically achieves higher purity levels than single-technology approaches by addressing different contamination types at appropriate process stages. A common configuration utilizes NIR sorting for initial separation based on alloy type, followed by X-ray processing to remove density-based contaminants missed by optical methods. This sequential approach typically achieves final purity levels 3-5% higher than either technology alone, with the specific improvement depending on scrap composition characteristics. The optimal sequence and division of labor between technologies varies based on contamination profiles and purity requirements.
Integration of multiple technologies requires careful interface design to maintain material identification through process transitions. Modern systems often utilize tracking technologies that maintain particle identity between sorting stages, enabling coordinated rejection decisions based on composite analysis rather than independent evaluations. This approach reduces false rejections by 15-20% compared to separate operation, improving overall recovery rates while maintaining target purity standards. The additional complexity of integrated systems justifies their implementation primarily in high-volume operations or applications demanding exceptional purity levels.
Automated Feedback Loops for Dynamic Adjustment
Closed-loop control systems continuously monitor sorting outcomes and automatically adjust parameters to maintain target performance despite variations in input material characteristics. These systems typically utilize quality measurement devices installed in output streams, providing real-time feedback about sorting effectiveness. Control algorithms correlate quality measurements with operational parameters, implementing adjustments to maintain consistent output quality. This approach typically reduces quality variations by 60-70% compared to open-loop operation, while reducing operator intervention requirements.
Advanced feedback systems incorporate predictive capabilities that anticipate quality changes based on input material characteristics, implementing preventive adjustments before quality deviations occur. These systems utilize machine learning algorithms that improve prediction accuracy over time by incorporating operational results. The implementation typically requires significant initial configuration and validation effort but provides substantial long-term benefits through consistent quality and reduced supervision requirements. This automation level represents the current frontier in sorting technology optimization for aluminum recycling applications.
Strategies for Reducing Energy Consumption and Waste Generation
Energy efficiency optimization focuses on equipment selection, operational practices, and system design features that minimize power consumption without compromising sorting quality. Modern sorting equipment typically incorporates energy-saving modes that reduce power usage during idle periods, while variable-speed drives match motor output to actual processing requirements. System design considerations include material transport minimization, efficient compressed air utilization, and heat recovery from operational processes. These approaches typically reduce energy consumption by 20-30% compared to conventional designs while maintaining equivalent processing capacity.
Waste reduction strategies focus on maximizing material recovery while minimizing reject streams requiring disposal. Process optimization identifies opportunities to recover additional value from marginal material categories, while quality control improvements reduce unnecessary rejection of acceptable material. The integration of metal sorting solutions enables specialized processing of difficult streams that might otherwise report to waste. These approaches collectively improve the environmental footprint of aluminum recycling operations while enhancing economic returns through increased material recovery.
Training Teams for Integrated System Operation
Comprehensive training programs ensure operational personnel possess the knowledge and skills required to maximize system performance and respond effectively to abnormal conditions. Training content typically covers equipment operation principles, control system interfaces, troubleshooting procedures, and maintenance requirements. Practical exercises using simulated fault conditions build confidence and competence in system management, while theoretical instruction provides the foundation for understanding system behavior. Well-trained operators typically achieve 10-15% higher productivity compared to minimally trained personnel through more effective system utilization.
Ongoing skill development maintains operational excellence as technology evolves and new features become available. Regular refresher training incorporates lessons learned from operational experience, while certification programs validate competency levels for critical functions. Cross-training enables flexibility in staffing assignments, while documentation systems preserve operational knowledge despite personnel changes. This systematic approach to human resource development represents an essential complement to technological investment in achieving optimal aluminum recycling outcomes.
Performance Monitoring and Continuous Optimization Strategies
Systematic performance monitoring provides the foundation for continuous improvement in aluminum sorting operations by establishing baseline performance and tracking progress toward optimization goals. Effective monitoring encompasses multiple dimensions including quality metrics, operational efficiency, equipment reliability, and economic performance. Modern approaches utilize automated data collection from multiple sources, combined with analytical tools that identify relationships and trends not apparent through casual observation. This evidence-based approach typically identifies improvement opportunities representing 5-10% of operational costs, providing substantial return on the monitoring investment.
Continuous optimization involves iterative refinement of processes based on performance data, implementing changes on a scale commensurate with confidence in improvement predictions. The systematic approach typically follows the Plan-Do-Check-Act cycle, where potential improvements are planned, implemented on a trial basis, evaluated against controls, and standardized if successful. This methodology prevents random changes based on anecdotal evidence while ensuring successful innovations are captured and maintained. The resulting culture of continuous improvement represents a significant competitive advantage in the dynamic aluminum recycling industry.
Defining and Tracking Key Performance Indicators
Strategic selection of key performance indicators focuses measurement efforts on metrics that directly correlate with operational success and business objectives. Standard KPIs for aluminum sorting include purity percentage, recovery rate, throughput capacity, and specific energy consumption. These primary indicators complement secondary metrics including equipment availability, maintenance costs, and labor productivity that provide context for interpreting primary results. Effective KPI systems typically monitor 8-12 carefully selected metrics that collectively provide comprehensive performance assessment without creating measurement overload.
Automated KPI tracking systems collect data from multiple sources, calculate metrics according to standardized formulas, and present results through dashboard interfaces accessible to relevant personnel. Alert functions notify operators when metrics deviate from established ranges, enabling prompt investigation and corrective action. Regular review of KPI trends identifies gradual changes that might escape daily notice but significantly impact long-term performance. This systematic approach to performance measurement transforms abstract concepts of operational excellence into concrete, measurable targets supporting focused improvement efforts.
Using Statistical Analysis Tools to Identify Deviations
Statistical process control methodologies provide powerful tools for distinguishing normal process variation from significant deviations requiring intervention. Control charts graphically represent process metrics over time, with established control limits identifying points outside expected variation ranges. Capability analysis compares process variation against specification limits, quantifying the proportion of output meeting quality standards. These analytical approaches typically reduce over-reaction to random variation while ensuring prompt response to meaningful changes, improving overall process stability.
Advanced statistical techniques including regression analysis and design of experiments identify relationships between process parameters and outcomes, supporting targeted optimization efforts. Multivariate analysis handles situations where multiple factors interact in determining results, preventing misleading conclusions from single-factor examination. These sophisticated approaches typically identify optimization opportunities that remain hidden through basic observation, providing substantial competitive advantage to organizations mastering their application. The implementation requires appropriate statistical expertise but delivers returns far exceeding the investment through improved process understanding and control.
Regular Audit and Field Testing Procedures
Scheduled performance audits provide structured assessment of sorting system operation against established standards and best practices. Audit protocols typically include visual inspection, equipment testing, sample collection, and documentation review conducted according to predetermined schedules. Field testing complements continuous monitoring by providing detailed investigation of specific aspects under controlled conditions. These periodic assessments typically identify improvement opportunities representing 3-5% of operational costs, while verifying that previously implemented improvements maintain their effectiveness.
Independent verification of sorting accuracy through laboratory analysis of input and output streams provides objective quality assessment unaffected by operational biases. This verification typically occurs at monthly intervals for critical processes, with less frequent assessment for stable operations. The resulting data validates continuous monitoring system accuracy while providing additional detail about specific contamination types. This comprehensive approach to performance verification ensures quality claims reflect actual capabilities rather than measurement artifacts or selective reporting.
Optimized Maintenance Schedules to Reduce Downtime
Preventive maintenance planning balances equipment protection against production requirements by scheduling interventions based on actual condition rather than fixed time intervals. Modern approaches utilize equipment monitoring data to predict maintenance needs, addressing issues before they cause failures while maximizing equipment availability. Maintenance tasks categorize by criticality, with high-impact items receiving priority attention while lower-priority activities schedule during natural production pauses. This approach typically increases equipment availability by 8-12% compared to reactive maintenance strategies while reducing emergency repair costs by 40-60%.
Spare parts management ensures necessary components remain available when needed without excessive inventory investment. Criticality analysis identifies parts whose failure would cause significant production disruption, guiding stocking decisions based on failure probability and lead time. Standardized repair procedures reduce equipment downtime by ensuring efficient, correct maintenance execution. This systematic approach to maintenance management represents an essential component of overall operational excellence in aluminum sorting facilities.
Flexible Adjustment to Accommodate Scrap Variations
Aluminum scrap composition naturally varies based on supply sources, market conditions, and seasonal factors, requiring sorting systems that adapt to changing material characteristics. Modern systems incorporate flexibility through adjustable parameters, expandable reference libraries, and modular design enabling technology upgrades. Operational protocols establish procedures for detecting composition changes and implementing appropriate adjustments, typically through predefined response plans for common variation patterns. This adaptive capability typically maintains consistent output quality despite input variations that would challenge fixed-configuration systems.
Strategic material sourcing complements technical adaptability by seeking scrap streams compatible with existing sorting capabilities while gradually expanding processing capacity for new material types. Supplier qualification processes evaluate scrap characteristics and consistency, while blending strategies smooth variations from individual sources. This comprehensive approach to material management represents the business counterpart to technical flexibility, collectively ensuring consistent operational performance despite the inherent variability of recycled materials.
Cost-Benefit Analysis Demonstrating Optimization Value
Quantifying the economic impact of optimization efforts justifies continued investment in improvement activities while guiding resource allocation toward highest-return opportunities. Standard methodology compares implementation costs against resulting benefits including increased revenue, reduced expenses, and avoided costs. Revenue enhancements typically derive from improved product quality commanding higher prices, increased recovery rates expanding salable output, and new capabilities enabling processing of additional material types. Expense reductions encompass lower energy consumption, reduced labor requirements, decreased maintenance costs, and extended equipment life.
Comprehensive analysis considers the time value of money through net present value calculations, internal rate of return determination, and payback period estimation. Sensitivity analysis examines how results change under different assumptions, identifying critical factors requiring careful management. This rigorous economic assessment typically identifies optimization opportunities delivering returns exceeding 30% annually, providing compelling justification for continued improvement investment. The analytical approach transforms qualitative improvement concepts into quantitative business decisions supporting sustainable operation growth.
Troubleshooting Guide for Common Issues
Systematic troubleshooting approaches enable rapid resolution of operational issues while identifying root causes to prevent recurrence. Effective methodology begins with clear problem definition, followed by methodical investigation eliminating potential causes through sequential testing. Documentation of troubleshooting procedures and results builds organizational knowledge, reducing resolution time for future occurrences of similar issues. Modern facilities often utilize computerized maintenance management systems that guide troubleshooting through predefined decision trees while capturing results for analysis and improvement.
Common issues in aluminum sorting typically fall into categories including sensor performance degradation, material handling problems, mechanical failures, and control system errors. Each category exhibits characteristic symptoms enabling preliminary diagnosis before detailed investigation. Historical resolution data identifies frequently occurring issues, guiding preventive measures and parts stocking decisions. This systematic approach to problem resolution minimizes production disruptions while continuously improving system reliability through lessons learned from each incident.
Causes and Solutions for Sensor False Positives/Negatives
Sensor errors typically stem from contamination, misalignment, calibration drift, or environmental factors affecting measurement accuracy. False positives (incorrect rejection of good material) often indicate overly sensitive settings or reference spectrum contamination, while false negatives (failure to reject contaminants) suggest insufficient sensitivity or sensor degradation. Systematic investigation begins with visual inspection for obvious issues including lens contamination, damaged cables, or loose connections, followed by functional testing using certified reference materials.
Resolution typically involves cleaning optical components, recalibrating using verified standards, adjusting sensitivity settings, or replacing degraded components. Environmental compensation algorithms address issues caused by temperature or humidity variations, while shielding modifications might reduce electromagnetic interference. Documenting resolution details including before-and-after performance measurements builds reference data for future troubleshooting. This methodical approach typically resolves 80-85% of sensor issues without requiring external technical support, minimizing production disruption.
Feed Irregularities Leading to Sorting Efficiency Reduction
Inconsistent material presentation causes sorting efficiency reduction by creating variations in particle velocity, orientation, and spacing that affect detection reliability. Common causes include feeder wear, material bridging, uneven distribution, or incorrect parameter settings. Symptoms typically include fluctuating ejection rates, localized contamination concentration, or periodic quality variations correlating with feed system operation. Investigation begins with visual observation of material flow patterns, followed by measurement of key parameters including feed rate consistency and distribution uniformity.
Resolution approaches include adjusting vibration parameters, replacing worn components, modifying material flow paths, or installing additional conditioning equipment. Advanced systems incorporate automated monitoring of feed characteristics with feedback control maintaining optimal presentation despite material variations. Preventive measures include regular inspection of wear components, operator training on feed system adjustment, and material preprocessing to improve flow characteristics. These approaches collectively maintain consistent sorting efficiency by addressing feed irregularities before they significantly impact output quality.
Purity Fluctuations and Environmental Factor Correlations
Quality variations often correlate with environmental conditions including temperature, humidity, lighting, and airborne contamination affecting sorting system performance. Investigation begins with tracking purity metrics against environmental data records, identifying correlations suggesting causal relationships. Common issues include thermal expansion affecting mechanical alignment, humidity changes altering material surface characteristics, or ambient light interference with optical systems. The systematic approach typically identifies environmental factors responsible for 15-25% of quality variations in uncontrolled operating environments.
Resolution strategies include environmental control systems, compensation algorithms, equipment modifications, or operational practice changes. Enclosure systems with climate control provide the most comprehensive solution but involve significant investment, while parameter adjustment based on environmental conditions offers lower-cost alternatives. The optimal approach balances implementation cost against quality improvement value for each specific operation. Documentation of relationships between environmental factors and sorting performance enables predictive adjustment anticipating quality changes before they occur.
Mechanical Component Wear and Replacement Timing
Gradual component degradation causes progressive sorting performance reduction through altered material handling, reduced ejection accuracy, or increased vibration affecting sensor measurements. Common wear items include ejection nozzles, feed system components, bearing surfaces, and movement mechanisms. Monitoring approaches include scheduled inspection, performance trend analysis, and condition monitoring using vibration analysis or thermal imaging. These techniques typically identify component degradation 200-400 operating hours before failure, enabling planned replacement during scheduled maintenance windows.
Replacement timing optimization balances component cost against performance impact, with critical components replaced earlier in their life cycle than less important items. Standardized replacement procedures ensure correct installation and alignment, while run-in protocols verify proper operation before returning equipment to production. Spare parts inventory management maintains availability without excessive investment, utilizing usage history and lead time analysis to determine optimal stock levels. This systematic approach to mechanical maintenance maximizes equipment reliability while controlling maintenance costs.
Software Malfunction and Data Loss Management
Control system issues typically manifest as uncommanded parameter changes, communication failures, data corruption, or complete system lockups requiring intervention. Common causes include memory overflow, programming errors, hardware conflicts, or power quality issues. Investigation begins with error log examination, followed by systematic testing of software components and associated hardware. Resolution typically involves software updates, configuration restoration from backups, hardware replacement, or power system improvement.
Preventive measures include regular backup of system parameters, update management procedures, power protection equipment, and cybersecurity protocols. Recovery procedures ensure rapid restoration following serious failures, while redundancy approaches provide continuous operation during maintenance activities. Documentation of software configurations and modification history supports efficient troubleshooting while preventing incompatible changes. These approaches collectively minimize disruption from control system issues while protecting critical operational data from loss or corruption.
Emergency Shutdown Protocols and Recovery Procedures
Unexpected equipment stoppages require systematic response ensuring personnel safety while minimizing equipment damage and production loss. Standard protocols establish clear responsibility assignments, communication procedures, and sequential actions for various emergency scenarios. Common situations include material jams, mechanical failures, electrical issues, or safety system activations requiring immediate response. Training through simulated emergencies builds operator competence and confidence, while clearly documented procedures ensure consistent response regardless of personnel involved.
Recovery procedures focus on systematic restoration following emergency shutdowns, beginning with situation assessment and proceeding through sequential restart steps. Safety verification precedes operational restoration, while root cause analysis identifies underlying issues requiring correction before normal operation resumes. Documentation of emergency events and responses builds organizational learning, improving future handling of similar situations. This comprehensive approach to emergency management represents an essential component of operational risk management in modern aluminum sorting facilities.
