What is a Pomegranate Sorting Machine?
A pomegranate sorting machine is an advanced industrial device designed to automatically classify pomegranates based on their color, size, and external quality. Using high-resolution CCD optical sensors and intelligent image processing algorithms, it can efficiently separate premium fruits from defective ones. This technology revolutionizes post-harvest processing by replacing manual sorting with precise automation.
Modern pomegranate sorters combine spectral analysis with mechanical conveying systems to handle large volumes of fruit at remarkable speeds. These machines not only detect surface imperfections but can also identify internal quality issues through near-infrared (NIR) technology. The sorted output typically includes multiple grades - from export-quality fruits to those suitable for juicing or processing, significantly reducing food waste while maximizing product value.
How Pomegranate Sorting Machines Work
Color
The camera captures the color of pomegranates, and the ripeness level is determined based on the color, identifying unripe fruit (too green) or areas of discolored skin.
Size
This step allows for the screening of deformed fruits, which are then graded according to size standards based on weight and volume.
Appearance
Using cameras and other sensors, inspect for cracked fruit, rot, mold, insect infestation, mechanical damage, sunscald, etc.
Internal
Sensors are used to detect internal decay and browning, grain plumpness and hollowness, and sugar content (soluble solids) estimation.

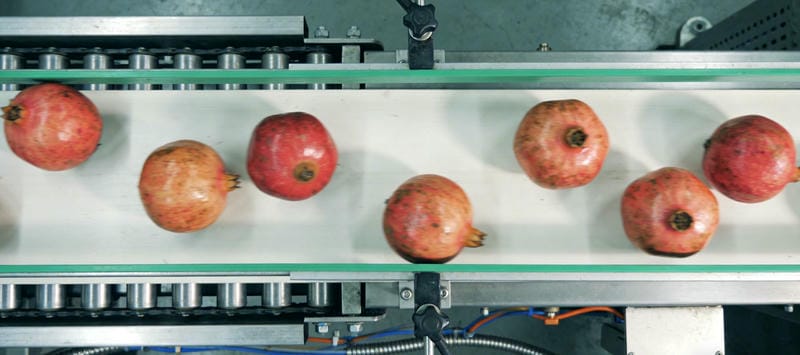

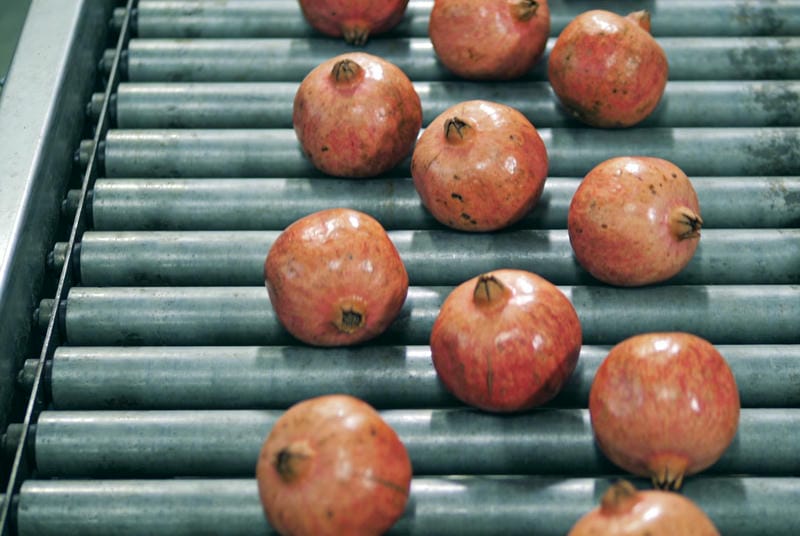

The sorting process begins when pomegranates enter the machine on a vibratory feeder or conveyor belt. As fruits pass through the inspection chamber, multiple high-speed cameras capture images from different angles under calibrated lighting conditions. Sophisticated software analyzes these images in real-time, evaluating color distribution, shape conformity, and surface defects like cuts or blemishes.
Air ejection nozzles activate within milliseconds when defective fruits are detected, using precisely timed bursts of compressed air to remove them from the production line. Advanced systems may incorporate weight sensors and internal quality scanners that measure sugar content or detect internal rotting. The entire process happens at speeds exceeding 15 fruits per second while maintaining accuracy levels above 95%.
Core Features and Advantages of Pomegranate Sorters
Modern pomegranate sorting equipment offers several transformative features including multi-spectral imaging that can detect both external and internal defects invisible to human eyes. The machines provide consistent grading 24/7 without fatigue, achieving far greater accuracy than manual sorting. Their self-learning algorithms continuously improve performance by accumulating data from each sorting session.
The economic advantages are substantial - automated sorting increases throughput by 300-500% compared to manual methods while reducing labor costs by up to 70%. Additional benefits include minimized fruit damage (typically below 0.5%) due to gentle handling systems, and the ability to maintain strict quality standards required by international markets. Some advanced models even offer traceability features by recording quality data for each individual fruit.
Technical Specifications of Pomegranate Sorting Systems
Industrial-grade pomegranate sorters typically process 5-15 tons per hour with fruit sizes ranging from 70mm to 120mm diameter. They operate on standard 380V three-phase power with compressed air requirements of 6-8 bar. The optical systems utilize true-color CCD cameras with resolution up to 32 megapixels, often supplemented by NIR sensors for internal quality assessment.
Modern machines feature user-friendly touchscreen interfaces running on industrial PCs with powerful image processing capabilities. They maintain stable operation in temperatures from 5°C to 45°C with humidity tolerance up to 95% RH. The stainless steel construction meets food safety standards while the modular design allows for easy maintenance and future upgrades as technology advances.
Applications of Pomegranate Sorting Technology
Pomegranate sorting machines serve critical functions across the fresh fruit supply chain. Packing houses use them to prepare export-quality fruit meeting international standards, while processing plants rely on sorters to separate fruits for juice, aril production, or value-added products. Agricultural cooperatives implement these systems to standardize quality across member farms.
The technology also enables innovative applications like sorting by antioxidant content for specialty markets, or identifying fruits with optimal ripening characteristics for long-distance shipping. Some systems integrate with blockchain platforms to provide quality certification from farm to consumer.
Purchasing Guide
When selecting a pomegranate sorter, key considerations include throughput requirements, available facility space, and the specific quality parameters needed for your market. Look for machines with proven performance on pomegranates specifically, as the fruit's unique shape and weight distribution require specialized handling. Evaluate the software's flexibility to accommodate your grading standards and future needs.
Maintenance Guidelines
Regular maintenance ensures optimal sorter performance. Daily cleaning of optical components and checking air nozzle alignment are essential. Monthly tasks should include conveyor belt inspection and calibration of weight sensors. Annual professional servicing should verify all mechanical and optical systems while updating software to the latest version. Proper maintenance can extend equipment life beyond 10 years while maintaining sorting accuracy.
