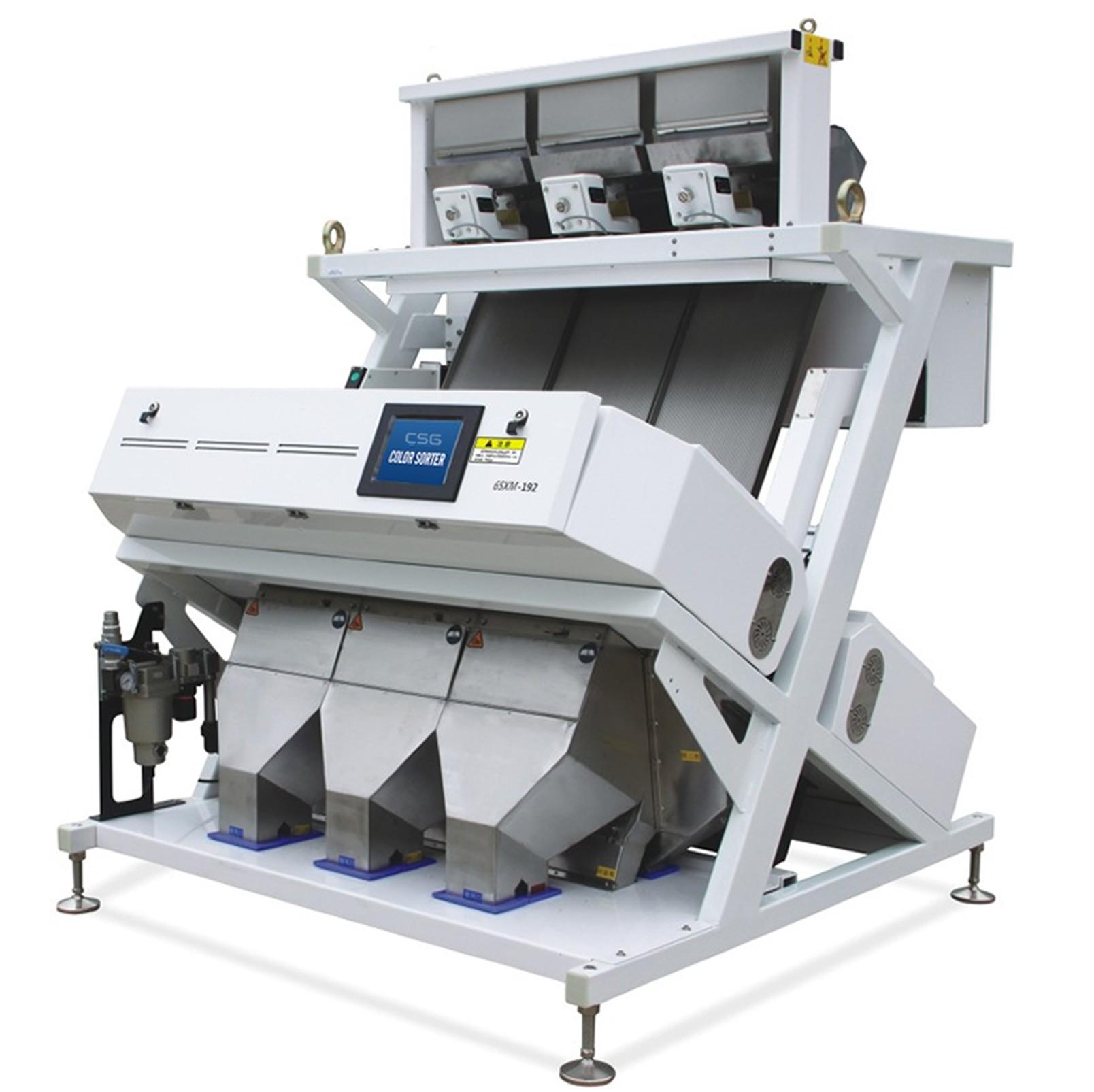

3 Chutes 192 Channels NIR Sorting Machine
The N3 NIR Sorting Machine utilizes advanced near-infrared technology and high-precision sensors for reliable material classification in food processing, recycling, and mining industries. With 3 chutes and 192 channels, it delivers efficient sorting at 2-5 T/H capacity with 99.99% accuracy. 5-year warranty ensures durability for industrial applications.
Model
N3
Chute
3
Channel
192
Specifications
| Model | Sensor | Type | Channels / Width | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| N3 | NIR | Chute | 192 | 2.0 kW | 550 kg | 1580x1550x1650 |
| Sorting Characteristics | Chemical composition differences; Differentiation of polymer types; Organic vs. inorganic materials | ||
| Core Sensor | NIR spectral sensor / Hyperspectral | ||
| Camera Type | Multispectral camera/HD/Industrial camera | ||
| Light Source | NIR light sources | ||
| Ejector | High Speed Matrix Ejectors | ||
| Typical Applications | Plastic (PET, PE, PP, PVC, PS); Textile fiber | ||
