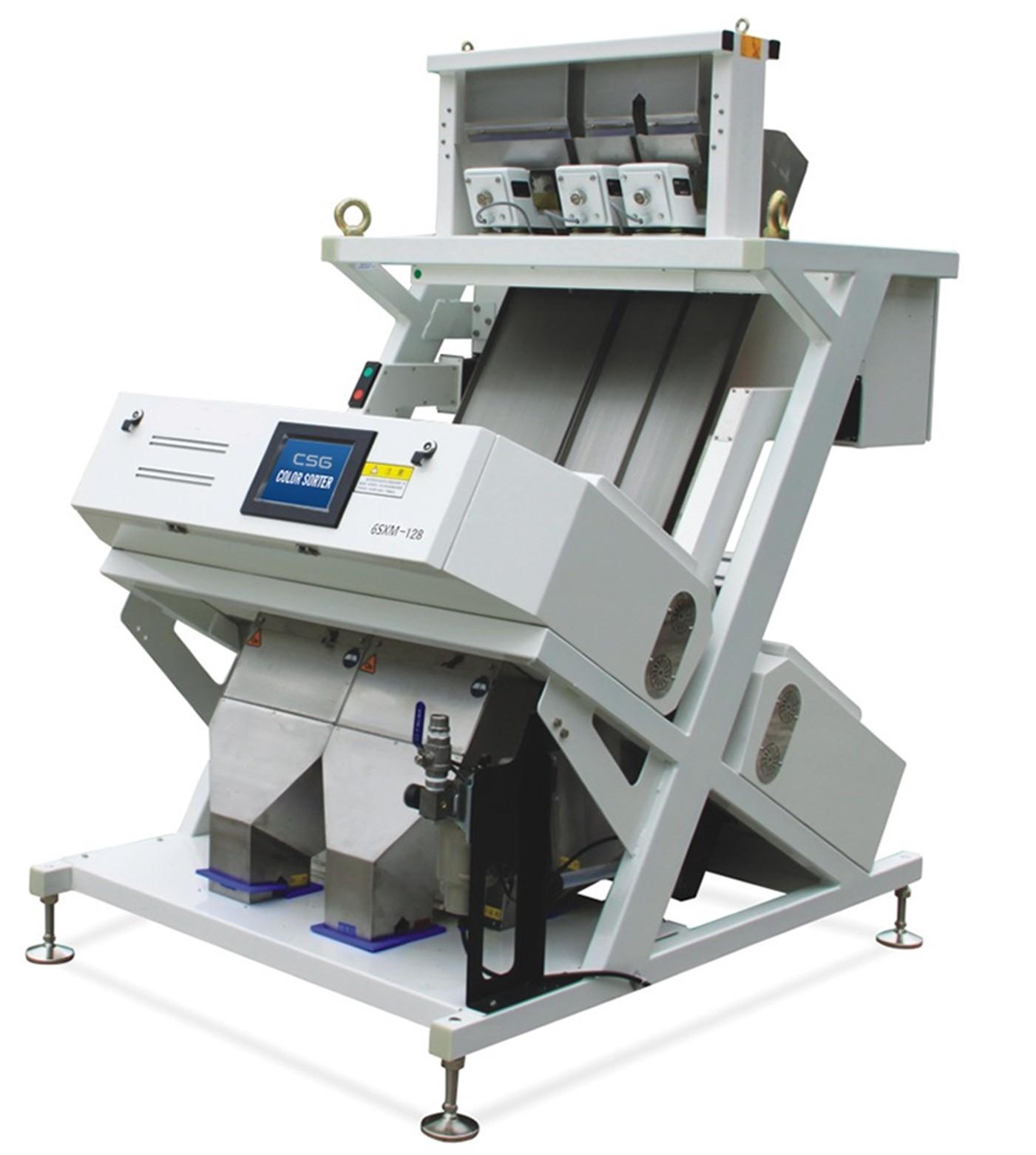

2 Chutes 128 Channels Color Sorting Machine
The C2 Color Sorting Machine is a high-performance optical sorting system with 2 chutes and 128 channels, designed for efficient color-based material separation. Featuring Japanese CCD sensors and AI-powered detection, it delivers 99.99% accuracy for various industrial applications, backed by a 5-year warranty for long-term reliability.
Model
C2
Chute
2
Channel
128
Specifications
| Model | Sensor | Type | Channels | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| C2 | CCD | Chute | 128 | 1.2 kW | 450 kg | 1260x1550x1600 |
| Sorting Mold | Color identification / Size identification / Edge identification / Texture identification / Shape identification |
| Camera Pix | 5400 Pixel |
| Ejector | Super-High Speed Matrix Ejectors |
| Light Source | LED RGB three-primary color model lighting systems |
| CCD Sensor | TOSHIBA Micron-sized superior HD RGB |
| Touch Screen | HITACHI 10.4 inch operation screen system (Remote debugging after connecting to WIFI) |
