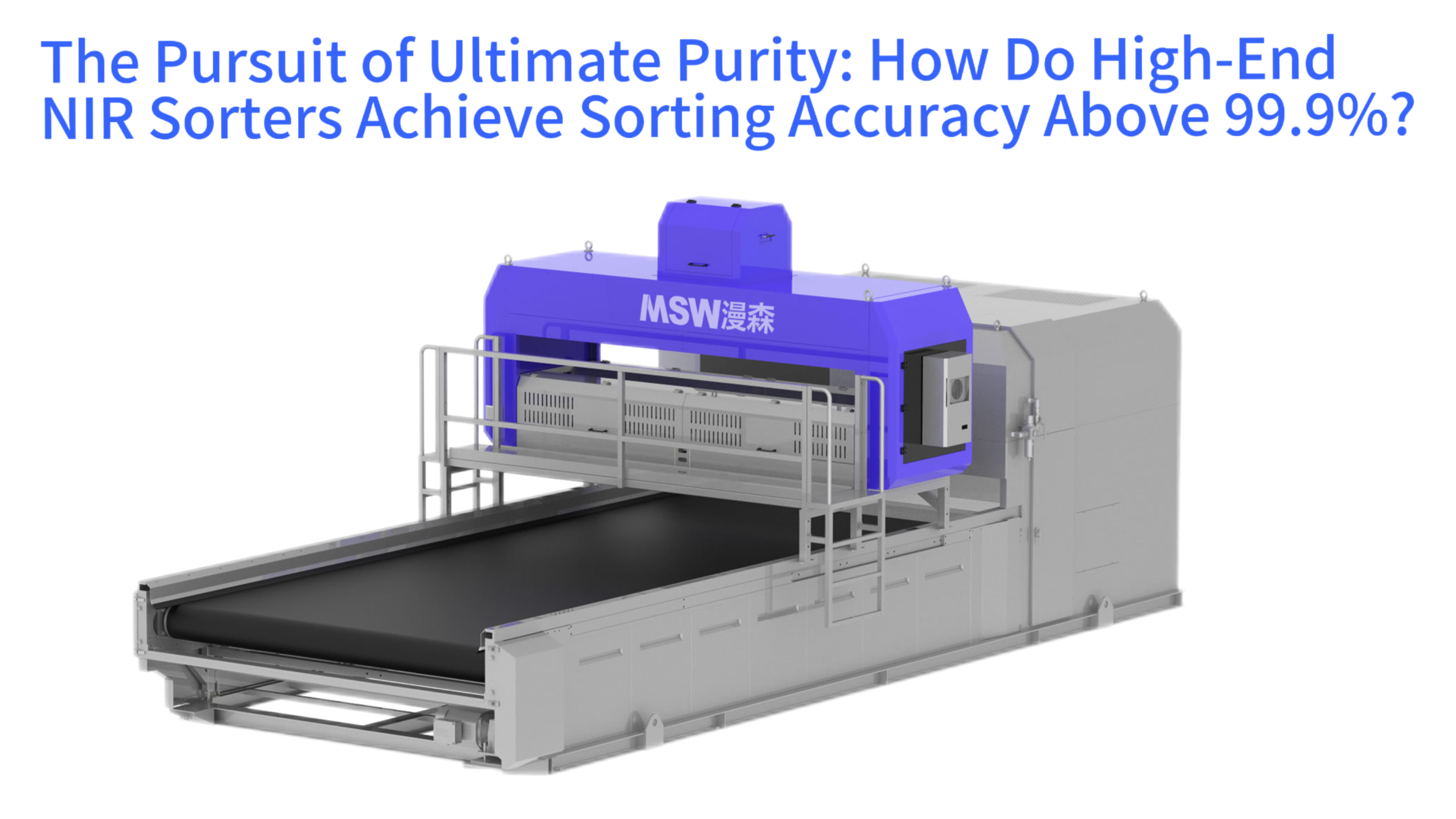

The Pursuit of Ultimate Purity: How Do High-End NIR Sorters Achieve Sorting Accuracy Above 99.9%?

Achieving a product purity level of 99.9% represents a transformative benchmark in industrial sorting. It marks the difference between a marketable, high-value commodity and a compromised material stream. For industries handling plastics, minerals, and food, this level of accuracy directly impacts profitability, sustainability, and safety. High-end Near-Infrared (NIR) sorters are engineered to meet this demanding standard not through a single innovation, but via the seamless integration of multiple advanced technologies. This article examines the scientific and engineering principles that converge to make such exceptional performance possible. We will explore the fundamental power of NIR spectroscopy, the critical design of detection and ejection systems, the role of artificial intelligence in adaptive learning, and the operational protocols that sustain peak accuracy over time. Understanding this synergy reveals why modern NIR sorters are indispensable for achieving the ultimate goal of material purity in today's most challenging applications.

Beyond Human Vision: The Power of NIR Molecular Spectroscopy

The foundational advantage of an NIR sorter lies in its ability to perceive material characteristics invisible to the human eye or conventional cameras. While traditional color sorters rely on reflected visible light (RGB), NIR technology probes the molecular composition of a material. When near-infrared light, typically in the 900-1700 nanometer wavelength range, strikes a material, it excites molecular bonds. Different chemical compounds—like the polymers PET, HDPE, or PVC—absorb and reflect this light in unique, characteristic patterns. This creates a distinct spectral "fingerprint" for each material type. This method allows the sorter to differentiate between objects that are visually identical, such as clear PET and clear PVC bottles, a task impossible for optical systems relying solely on color or shape.

The system's ability to capture and analyze these subtle fingerprints with high fidelity is the first critical step toward 99.9% accuracy. Advanced spectrometers within the sorter scan each individual particle at high speed, collecting hundreds of data points across the NIR spectrum for unparalleled material characterization. This depth of analysis moves sorting decisions from the superficial realm of appearance to the definitive realm of chemistry. It enables the precise identification of contaminants like foreign plastics in a recycling stream, insect-damaged grains in food processing, or specific ore types in mining, forming the bedrock upon which all subsequent high-accuracy actions are taken.

Interacting with Molecular Bonds

The near-infrared light used in these systems carries energy that corresponds to the vibrational frequencies of specific chemical bonds, such as C-H, O-H, and N-H bonds common in organic materials and plastics. As the light interacts with the material, energy at these resonant frequencies is absorbed. The remaining light is reflected and captured by sensitive detectors. The resulting spectrum, a graph of reflectance against wavelength, acts as a direct readout of the material's molecular makeup. Sophisticated software then compares this live spectrum against a vast library of pre-loaded reference spectra to make an instantaneous identification.

Creating a Unique Material Fingerprint

Each material class generates a highly specific spectral signature. For instance, polyethylene shows a different pattern of absorption peaks than polypropylene. In food, a healthy nut and one with internal mold may look identical in visible light, but their moisture content and cellular structure alter their NIR reflection profoundly. High-end sorters utilize high-resolution sensors that detect these minute differences with extreme precision. By focusing on this intrinsic chemical identity, the sorter achieves a fundamental discrimination capability that is immune to surface discoloration, dust, or variations in shape that often fool traditional systems.

The Detection Engine: High-Speed Sensors and Precise Optics

Translating the principle of NIR spectroscopy into a reliable industrial process demands a detection engine capable of extreme speed, consistency, and resolution. The core of this engine is an array of high-sensitivity, high-speed sensors and a meticulously calibrated optical path. In a chute-type NIR sorter, thousands of individual particles per second free-fall past a scanning zone, each requiring a full spectral analysis. The system employs a powerful, stable NIR light source and a series of lenses and mirrors to ensure every particle is evenly and brightly illuminated, leaving no shadows or dark spots that could obscure its true spectral signature.

Simultaneously, the reflected light from each particle must be collected and directed to the spectrometer without distortion. This requires optics that maintain clarity and alignment even under constant vibration and material dust. The sensors themselves, often based on indium gallium arsenide (InGaAs) technology, are engineered for rapid response times and high signal-to-noise ratios. They must capture a clean, strong spectral signal from a small, fast-moving object in a fraction of a millisecond. This combination of robust illumination, pristine optics, and lightning-fast sensors ensures that the unique fingerprint of every single particle, no matter how small or quick, is accurately captured for analysis, forming a perfect data stream for the decision-making processor.

Ensuring Consistent and Uniform Illumination

Achieving 99.9% accuracy requires eliminating variables. Inconsistent lighting is a major source of error, as shadows or "hot spots" can dramatically change a particle's apparent spectral response. High-end sorters integrate diffuse, uniform illumination systems that bathe the entire detection zone in even NIR light. This often involves specially engineered light guides and diffusers that scatter the light from powerful LED or halogen sources. This consistency guarantees that a particle presents the same spectral data regardless of its slight tumbling or orientation during free fall or conveyor transport, leading to more reliable identification.

Capturing Data from Fast-Moving Objects

The sensor technology is pushed to its limits in this application. Modern high-end NIR sorters can process material streams at rates of several tons per hour, which translates to analyzing thousands of individual items every second. The detection system must have an exceptionally short integration time—the "exposure" time for capturing the spectral image. Advanced sensor arrays and high-speed data buses are used to read out the spectral information and transmit it to the central processing unit almost instantaneously. Any lag or blur in this data capture stage would compromise the entire system's ability to make a correct and timely ejection decision downstream.

The Brain of the System: Real-Time Processing and AI Decision-Making

With a perfect spectral signal captured, the system's computational power takes center stage. The raw spectral data is a complex curve that must be compared against thousands of reference profiles in real-time. This is handled by a powerful industrial computer equipped with specialized processing cards. The core software employs sophisticated algorithms, often based on multivariate analysis or neural networks, to classify the material within milliseconds. It doesn't just ask "is this particle type A or B?" but evaluates the degree of certainty of the match, allowing it to handle borderline or degraded materials with intelligence.

In the most advanced systems, this is where Artificial Intelligence (AI) transforms performance from merely high to exceptional. AI algorithms, particularly deep learning models, go beyond simple pattern matching. They are trained on vast datasets of spectral information and can learn to recognize subtle, non-linear patterns that traditional software might miss. More importantly, they enable adaptive learning. As the sorter operates, an AI model can continuously analyze its own ejection results and fine-tune its discrimination boundaries. This means the system gets smarter with use, learning to handle new contaminant varieties or adjusting to natural variations in the feedstock, which is crucial for maintaining that 99.9% accuracy over the long term and across different material batches.

Executing Millisecond Spectral Analysis and Classification

The classification process is a feat of real-time computing. Once a particle's spectrum is acquired, it is normalized and processed to remove background noise. Key features of the spectrum are then extracted and fed into a classification model. This model, which could be a chemometric model like PLS-DA or a machine learning classifier, outputs a probability score for each possible material category. For a system targeting 99.9% purity, the decision thresholds for these probabilities are set extremely high and tight. Only particles that match the "accept" profile with near-certainty are allowed to pass; all others, including those with ambiguous readings, are flagged for rejection to safeguard the purity of the final product stream.

Enabling Adaptive Learning and Continuous Improvement

The integration of AI marks a paradigm shift from static to dynamic sorting. A traditional sorter operates based on a fixed model created during initial setup. An AI-powered sorter can use a feedback loop. For example, if an operator periodically checks the "reject" bin and finds a significant number of good particles (false rejects), this data can be fed back into the AI system. The AI can then retrain its internal model to slightly adjust the acceptance criteria for that specific material characteristic, thereby reducing waste without compromising on purity. This self-optimizing capability is key to pushing accuracy boundaries and adapting to real-world, non-ideal material flows.

The Final Frontier: Uncompromising Precision in Material Handling and Ejection

All the sophisticated detection and analysis would be meaningless without an equally precise physical action to separate the materials. This is the domain of high-speed, pinpoint ejection. Once the processing brain has identified an unwanted particle and calculated its exact trajectory, it must command an ejection mechanism to remove it from the product stream with surgical accuracy. In both chute and belt-type NIR sorters, this is almost universally achieved using arrays of high-speed pneumatic (air) nozzles. The timing precision required here is staggering, often dealing with windows of just a few milliseconds.

The engineering of the ejection system is critical. The valves controlling the air jets must have extremely fast response times, opening and closing in less than a millisecond. The air pressure must be consistently regulated to deliver a sharp, focused blast that can deflect a small, fast-moving particle without disturbing its neighbors. The physical layout of the nozzles is also meticulously designed, with their spacing and alignment perfectly matched to the resolution of the detection scan. In a high-channel-count chute sorter, each nozzle may be responsible for a very specific "slice" of the material curtain, ensuring that an ejection command targets only the single offending particle and not the valuable material around it. This precise mechanical execution is the final, essential link in the accuracy chain.

Engineering for Sub-Millisecond Valve Response and Timing

The heart of the ejection system is its valve. Solenoid or piezoelectric valves used in top-tier sorters are engineered for brutal speed and durability. They must fire hundreds of thousands of times per day without fatigue. The control system synchronizes the valve firing with the particle's predicted position using precisely timed delays. Since the particle continues moving between detection and the ejection point, the system must calculate this lead time perfectly. An error of even one millisecond could mean the air jet hits an adjacent good particle or completely misses the target, immediately dropping the system's accuracy far below the 99.9% target.

Designing Targeted Nozzle Arrays for Pinpoint Accuracy

The ejection bank is not a single broad spray but a matrix of individually controllable micro-nozzles. In advanced sorters, each nozzle corresponds to a specific pixel row or channel from the sensor's field of view. This pixel-to-nozzle mapping allows for incredible selectivity. The system can activate a single nozzle or a very small cluster to knock out a tiny piece of contamination nestled among good product. This design minimizes the "halo effect" or collateral damage, protecting yield. The nozzles are also designed to produce a coherent, focused air jet rather than a scattered puff, ensuring the ejection force is delivered exactly where it is needed to cleanly deflect the unwanted particle into the reject chute.

Sustaining Peak Performance: Calibration, Maintenance, and Environmental Control

Achieving 99.9% accuracy at installation is one challenge; maintaining it day after day in an industrial environment is another. High-end NIR sorters are built with this sustained performance in mind, incorporating features for stability and ease of maintenance. Regular calibration is non-negotiable. This involves running standardized reference materials through the system to verify that its spectral readings and subsequent classifications remain true. Advanced models may include automated internal calibration checks using built-in reference tiles. Keeping the optical components—the lenses, windows, and light sources—perfectly clean is equally vital, as dust or film from processed material can attenuate or scatter the NIR light, degrading signal quality.

Furthermore, the operating environment itself is considered. Factors like significant ambient temperature swings can affect the performance of sensitive electronic and optical components. While high-end sorters are built to be robust, consistent factory conditions help. Perhaps most importantly, maintaining such high accuracy requires a holistic approach where the sorting machine is viewed as part of a larger, well-tuned system. This includes consistent material feeding to present a single layer of particles to the scanner and stable air supply for the ejection system. A disruption in any supporting system can become the weak link that prevents the sorter from operating at its designed potential.

Implementing Routine and Automated Calibration Protocols

To combat "drift" over time, rigorous calibration schedules are essential. Operators might perform a quick calibration check at the start of each shift using a physical sample. More sophisticated systems feature automated calibration sequences where a mechanical arm moves a known reference material into the scan area at set intervals. The system reads the reference's spectrum and automatically adjusts its internal models if any deviation is detected. This ensures the digital "library" of material fingerprints the sorter uses for comparison remains an absolute standard, locking in the accuracy of the initial detection phase despite the wear and tear of continuous operation.

Maintaining Optical Integrity and System Cleanliness

The optical path must remain pristine. Even thin layers of dust or moisture can absorb or scatter NIR wavelengths, corrupting the incoming spectral data. High-end sorters are designed with easy-access cleaning ports and sometimes feature positive air pressure systems or protective air curtains in front of critical optical windows to keep dust out. Scheduled maintenance includes carefully cleaning these components with appropriate materials. Similarly, the vibration and feeding systems are serviced to ensure the material stream is presented to the detector in a consistent, predictable manner, as erratic feeding is a common source of mis-sorts that can undermine overall accuracy percentages.
