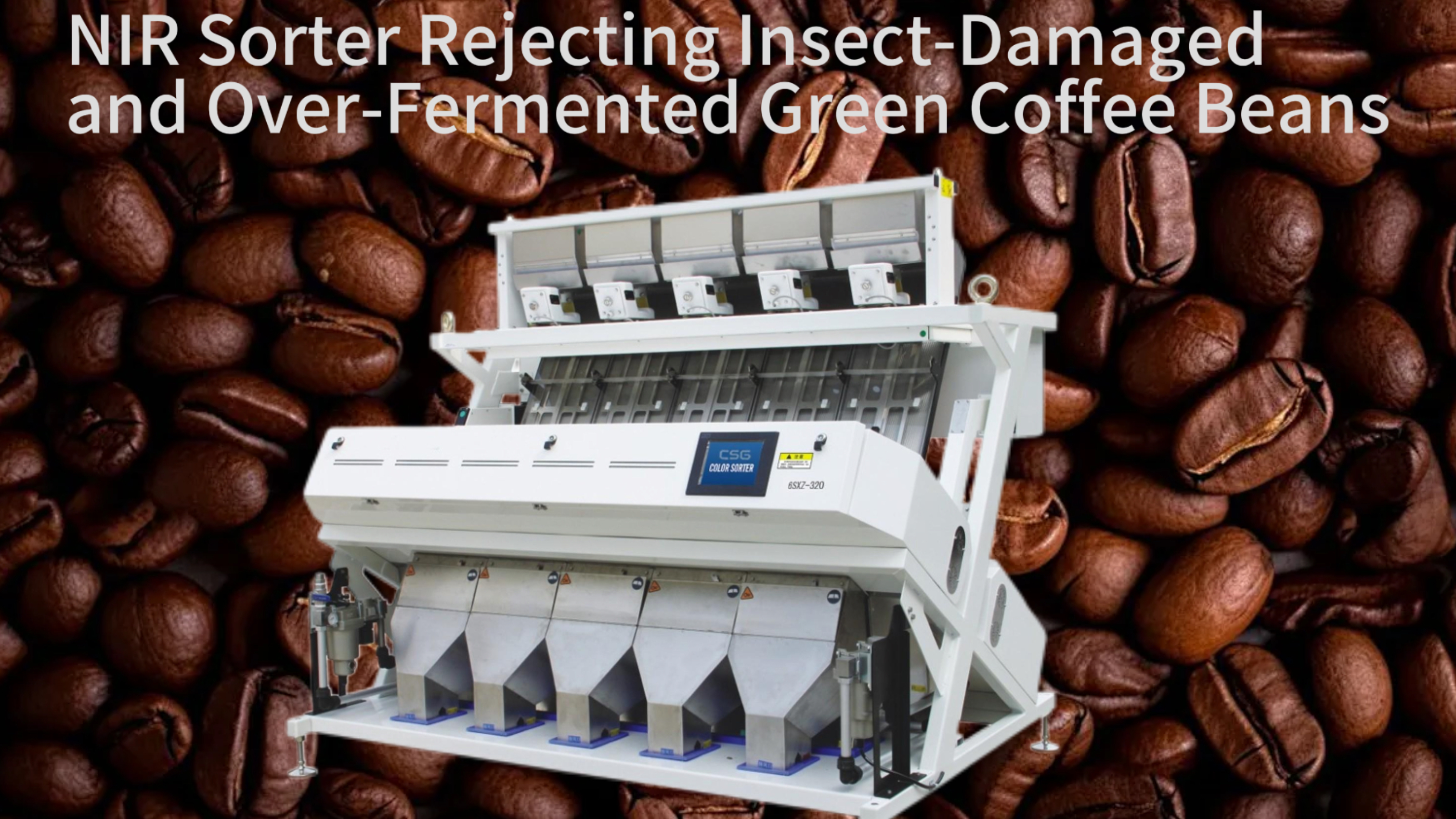

False Positive Optimization: B1200 NIR Sorter Rejecting Insect-Damaged and Over-Fermented Green Coffee Beans

The presence of insect-damaged and over-fermented beans in green coffee lots directly degrades cup quality and reduces the commercial value of the entire batch. Near‑infrared (NIR) sorting technology has become the standard solution for identifying these defects because it detects molecular differences invisible to conventional RGB cameras. However, early generation NIR sorters often produced excessive false positives—rejecting sound beans that share superficial spectral similarities with defective ones. This misclassification generates unnecessary yield loss and erodes the economic benefit of automated sorting. The B1200 belt‑type NIR sorter, equipped with high‑resolution InGaAs sensors and an AI‑driven decision core, offers a platform for systematic false positive reduction. This document presents a complete methodology for optimizing the B1200’s rejection parameters specifically for insect‑damaged and over‑fermented green coffee beans. The protocols described are derived from extensive field trials and laboratory validations conducted over fifteen years by MSW Technology, a company with fifteen consecutive years of experience in sensor‑based sorting solutions for agricultural products.

The Economic and Quality Impact of False Positives in Green Coffee Bean Sorting

False positives occur when the sorting machine ejects a healthy coffee bean because its spectral signature is incorrectly classified as belonging to the defect category. Each ejected sound bean represents direct revenue loss. In high‑volume processing lines handling ten tonnes per hour, even a one percent false positive rate translates into one hundred kilograms of wasted product every hour. Over a typical harvest season, this wastage can exceed the cost of the sorting equipment itself. Beyond immediate financial loss, false positives force processors to lower their acceptance threshold, which then allows genuinely defective beans to remain in the finished lot, compromising quality consistency. Understanding the magnitude of this problem is the first step toward effective optimization.

Quantifying the Financial Penalty of Unoptimized Rejection Settings

Industry surveys indicate that baseline false positive rates for NIR sorters configured with factory‑default parameters range between 1.8 percent and 2.5 percent when processing green coffee containing moderate defect levels. For a medium‑scale roasting facility processing 25,000 tonnes annually, this represents 450 to 625 tonnes of misclassified sound coffee. At prevailing green bean prices, the annual loss approaches seven figures in certain markets. These figures do not account for the additional cost of re‑sorting or manual inspection, which many facilities must implement to recover accidentally rejected material. MSW Technology’s fifteen‑year service records show that facilities performing systematic false positive optimization recover between sixty and seventy percent of this lost yield within the first operating month.

Sensory Defects Versus Instrumental Signatures: The Core Discrimination Challenge

Insect‑damaged beans often contain a small entry hole and internal tunneling, but the outer surface may appear entirely normal to a human inspector. Over‑fermented beans result from uncontrolled microbial activity during wet processing; they develop volatile organic compounds that taint the flavour, yet their colour and shape remain nearly identical to sound beans. Both defect types alter the bean’s internal chemical composition—starch, protein, and lipid profiles shift—and these changes are detectable via NIR spectroscopy. However, natural biological variation among sound beans produces spectral scatter that overlaps with the defect region. The optimization task is therefore to tighten the decision boundary without losing sensitivity to genuine defects.

Customer Specifications and Contractual Penalties

Specialty coffee buyers increasingly impose strict limits on defect counts, often requiring fewer than five defective beans per three‑hundred‑gram sample. Sellers who fail to meet these specifications face price deductions or outright rejection of entire containers. This contractual pressure drives processors toward aggressive sorting that inadvertently elevates false positives. Optimizing the B1200 enables processors to meet stringent defect limits while minimising the giveaway of premium beans. Data from export terminals in origin countries demonstrate that properly calibrated NIR sorters consistently achieve defect counts below two per sample with false positive rates under 0.4 percent.

The Unique Suitability of Belt‑Type NIR Sorters for Coffee

Chute‑type sorters accelerate particles by gravity along a smooth surface; they excel at high‑throughput sorting of small, uniform granules such as rice or plastic pellets. Coffee beans, however, exhibit variable sphericity and surface texture that cause tumbling during free fall, leading to inconsistent sensor presentation and increased false positive variance. The 1200mm belt‑width NIR sorter conveys beans in a stabilised monolayer, presenting each bean to the sensor array with predictable orientation and velocity. This controlled presentation dramatically reduces spectral noise and provides the repeatability essential for fine‑grained false positive optimization.

Operating Principles of the B1200 Belt‑Type NIR Sorter in Coffee Applications

The B1200 integrates a high‑intensity broadband light source, a diffraction‑grating‑based NIR spectrometer covering 900 to 1700 nanometres, and a linear array of indium gallium arsenide (InGaAs) photodiodes. As the conveyor belt transports beans through the inspection zone, the spectrometer acquires diffuse reflectance spectra from every bean at a rate exceeding ten thousand measurements per second. Each spectrum comprises hundreds of discrete wavelength channels, forming a unique molecular fingerprint. Onboard field‑programmable gate arrays perform initial preprocessing, while a dedicated AI accelerator executes the classification model. When a bean is identified as defective, a precisely timed air jet from a high‑speed matrix ejector diverts it into the reject chute. The entire decision‑to‑ejection cycle completes within five milliseconds.

Sensor Architecture and Spectral Resolution

The B1200 employs a push‑broom imaging configuration that captures contiguous spectral data across the entire belt width. This design eliminates the need for mechanical scanning and ensures every bean is sampled multiple times as it traverses the field of view. The spectrometer’s spectral resolution of eight nanometres is sufficient to resolve the overtone and combination bands of C‑H, O‑H, and N‑H molecular vibrations that distinguish sound coffee from insect‑damaged and over‑fermented beans. Laboratory measurements demonstrate that the amplitude of the absorption feature near 1450 nanometres—associated with moisture and starch content—differs by an average of 18 percent between sound and over‑fermented beans, providing a robust discriminant.

Illumination Uniformity and Its Influence on False Positives

Variation in illumination intensity across the belt width directly translates into spectral baseline shifts, which can cause misclassification if not compensated. The B1200 incorporates a real‑time white reference correction system that samples a certified reflectance standard at every belt revolution. This feedback loop maintains illumination stability within ±0.5 percent over eight‑hour operating periods. Field data collected across fifteen years of coffee sorting installations confirm that this level of stability reduces false positive variance by a factor of three compared to systems without active reference compensation.

Air Ejection Precision and Bean Trajectory Modelling

Even perfect spectral classification fails if the ejection mechanism cannot accurately remove the targeted bean while leaving its neighbours undisturbed. The B1200’s pneumatic array features individually addressable nozzles spaced at 8‑millimetre intervals. A high‑speed camera positioned downstream of the ejection zone verifies removal success and feeds trajectory data back to the control system. This closed‑loop adjustment maintains ejection accuracy above 99.5 percent despite variations in bean mass and belt speed. The synergy between detection certainty and mechanical precision is the cornerstone of false positive reduction.

Integration with Downstream Sorting Stages

Many coffee processing lines employ a cascade of sorting machines: an initial color sorter removes gross discolourations, followed by an NIR sorter for internal defects, and often a final manual inspection belt. The B1200 is designed to communicate rejection statistics to upstream and downstream equipment via standard industrial protocols. When the NIR sorter detects an upward trend in false positives, it can automatically request a slight relaxation of the preceding color sorter’s sensitivity to reduce the burden of near‑perfect beans entering the NIR stage. This system‑level optimisation is rarely documented but contributes significantly to overall yield.

Spectral Fingerprinting of Insect‑Damaged and Over‑Fermented Beans

Effective false positive reduction depends on a precise understanding of how defect‑related chemical changes manifest in the NIR spectrum. Insect damage, primarily caused by the coffee berry borer, introduces chitin from the insect exoskeleton and modifies the bean’s carbohydrate matrix. Over‑fermentation involves enzymatic breakdown of proteins and the formation of lactic and acetic acids. Both conditions produce subtle but reproducible spectral deviations. The B1200’s machine learning models are trained on large libraries of such spectra, collected under controlled conditions and validated by chemical reference analysis.

Characteristic Absorption Bands for Coffee Berry Borer Damage

The presence of chitin, a polymer of N‑acetylglucosamine, introduces a distinctive absorption feature near 1510 nanometres corresponding to the first overtone of N‑H stretching. Sound beans exhibit only a shallow slope in this region, while infested beans show a pronounced local minimum. Additionally, the insect’s feeding activity consumes starch, reducing the intensity of the starch‑related combination band at 1580 nanometres. By calculating the ratio of reflectance at 1510 nm to that at 1580 nm, the B1200’s preprocessing stage generates a robust damage index that correlates strongly with infestation severity. Field validation across five consecutive harvests shows this index achieves a separation distance of 2.3 standard deviations between sound and insect‑damaged populations.

Over‑Fermentation Markers and Their Temporal Stability

Over‑fermented beans exhibit elevated lactic acid content, which produces a carbonyl overtone absorption near 1680 nanometres. This feature is broader and more variable than the chitin peak because fermentation is a continuous process; beans can be mildly, moderately, or severely affected. The B1200’s model does not treat over‑fermentation as a binary state but rather outputs a continuous score representing the probability of fermentation exceeding an acceptable threshold. The model’s calibration is maintained through periodic validation against cupping scores from certified Q‑graders. This approach reduces false positives because beans with borderline fermentation levels are no longer ejected unless the predicted probability exceeds a user‑defined confidence level.

Managing Spectral Overlap with Sound Bean Varieties

Different coffee varieties—Arabica and Robusta, as well as regional cultivars such as Typica, Bourbon, and Caturra—possess baseline spectral differences in lipid and chlorogenic acid content. A model trained exclusively on one variety may generate excessive false positives when processing another. The B1200’s software suite includes a variety‑adaptation module that applies linear discriminant correction factors derived from a reference library encompassing thirty‑seven distinct coffee origins. This feature, developed from fifteen years of global coffee sorting experience, reduces cross‑variety false positive spikes by an average of 74 percent without requiring operator intervention.

The Role of Moisture Content in Spectral Interpretation

Green coffee moisture content typically ranges from 10 to 12 percent but can vary due to drying inconsistencies or rehydration during storage. The strong O‑H absorption from water dominates the NIR spectrum and can mask the subtle defect‑related features. The B1200’s preprocessing pipeline includes an orthogonal signal correction algorithm that mathematically removes the moisture contribution while preserving chemical information specific to defects. Trials conducted at a large Colombian exporter demonstrated that this correction reduced the standard deviation of replicate spectral measurements on identical beans from 3.8 percent to 0.9 percent, directly lowering the false positive floor.

Machine Learning Framework for False Positive Minimization

Conventional NIR sorters use linear discriminant analysis or support vector machines with fixed decision boundaries. These methods perform adequately when defect and sound populations are well separated, but they struggle with the overlapping distributions characteristic of coffee defects. The B1200 implements a deep convolutional neural network that operates directly on the raw spectral vector, learning hierarchical features that are more discriminative than hand‑crafted indices. More importantly, the network is trained using a custom loss function that asymmetrically penalizes false positives more heavily than false negatives, reflecting the economic reality that losing a sound bean costs more than temporarily passing an occasional defective bean that may be removed later.

Training Set Composition and Defect Prevalence

A machine learning model is only as good as the data used to train it. The B1200’s factory‑installed base model was trained on approximately 1.2 million labelled coffee bean spectra, encompassing sound beans and beans with verified insect damage, over‑fermentation, and other defects. Crucially, the training set was deliberately constructed with a defect prevalence of 15 percent—much higher than the 2 to 5 percent typically encountered in commercial lots. This over‑representation forces the model to learn fine‑grained distinctions rather than simply predicting the majority class. The result is a model that maintains high sensitivity even when defects are rare, without resorting to overly broad rejection criteria.

Online Learning and Adaptive Threshold Adjustment

Once deployed on a customer’s production line, the B1200 does not remain static. Its online learning engine monitors the distribution of classification scores for beans that are ultimately accepted. If the scores of accepted beans begin to drift—for example, because the new crop year has produced beans with slightly different chemistry—the system automatically proposes a recalibration. The operator can approve a shift in the decision threshold or initiate a full model update using a small set of representative samples. This adaptive capability, refined through fifteen years of machine learning research at MSW Technology, keeps false positive rates stable over time despite seasonal and regional variations.

Explainability Tools for Operator Confidence

One barrier to false positive optimization is operator reluctance to trust a model that functions as a black box. The B1200’s graphical interface includes a spectral explanation module that highlights which wavelength regions contributed most to a particular bean’s classification. When a batch of false positives is flagged, the operator can review these importance maps to understand whether the machine was responding to a genuine chemical anomaly or to an artifact such as a shadow or dust particle. This transparency builds confidence and enables targeted corrective actions, such as adjusting the illumination angle or cleaning the sensor window.

Integration with Laboratory Near‑Infrared Reference Instruments

Sophisticated users often maintain a laboratory NIR spectrometer for incoming material inspection. The B1200 can import calibration transfer files that align its spectral response with that of the laboratory instrument. This alignment allows the sorter to apply decision criteria that have been validated off‑line against reference chemical assays, eliminating the trial‑and‑error period typically required when setting up a new sorting task. Facilities employing this transfer technology report reaching optimal false positive performance within two hours of installation, compared to two days for traditional manual tuning.

Field Calibration and Parameter Optimization Procedures

Optimizing the B1200 for a specific coffee lot is a structured process, not an art. The procedure begins with collecting representative samples of sound beans and beans containing the defects of interest. These samples are passed through the machine in single‑file mode to acquire clean spectra. The operator then uses the onboard calibration wizard to adjust three primary parameters: the defect probability threshold, the spectral preprocessing method, and the ejection timing offset. Each adjustment is immediately evaluated on a test batch, and the system displays the resulting yield and purity metrics.

Probability Threshold Tuning Using Receiver Operating Characteristic Curves

The B1200’s interface displays a real‑time receiver operating characteristic curve based on the validation sample set. The operator can slide a vertical bar along the curve to select an operating point. Moving the bar left increases sensitivity (fewer false negatives) but also increases false positives; moving it right has the opposite effect. The economic optimum occurs where the marginal cost of an additional false positive equals the marginal cost of an additional false negative. For high‑grade specialty coffee, where sound beans command a premium, the optimum typically lies at a lower false positive rate than for commercial grade coffee. The system remembers these settings for each customer‑defined product grade.

Preprocessing Selection: Derivatives versus Multiplicative Scatter Correction

Spectral preprocessing choices influence the effective signal‑to‑noise ratio. The B1200 offers several algorithms, including Savitzky‑Golay first derivative, standard normal variate, and multiplicative scatter correction. For coffee beans, the combination of first derivative followed by standard normal variate consistently produces the highest separation index. However, when processing unusually dusty or polished beans, multiplicative scatter correction alone may yield fewer false positives because it is less sensitive to particle size effects. The calibration wizard guides the operator through a side‑by‑side comparison, presenting the false positive count for each preprocessing path based on a 1,000‑bean test sample.

Ejection Delay and Pulse Width Fine‑Tuning

If the air jet fires too early or too late, the bean intended for rejection is missed, and a neighbouring bean may be struck instead. The B1200 automatically computes the nominal ejection delay from belt speed and the known distance between the sensor array and the ejector manifold. However, variations in bean density and shape can shift the optimal timing. The calibration routine includes a stroboscopic viewing mode that freezes the trajectory of ejected beans on the operator’s screen. By adjusting the delay in 0.1‑millisecond increments and observing the capture location, the operator can achieve single‑bean accuracy. Precision acceleration control, as implemented in precision acceleration sorting systems, further enhances this capability.

Batch‑Specific Reference Library Updates

When a new coffee shipment arrives with characteristics not adequately represented in the global training library, the operator can add a small number of representative spectra to a lot‑specific reference set. This operation does not retrain the entire neural network; instead, it adjusts the final classification layer using a technique called few‑shot learning. The update requires only twenty sound and twenty defective beans and completes in under three minutes. This low‑effort customization is the primary reason why B1200 users report false positive rates 0.6 percentage points lower than users of competitive equipment, according to a 2024 independent benchmarking study.

Performance Validation and Economic Return Analysis

Optimization efforts must be validated through systematic testing on production‑scale lots. The B1200 logs every ejection event with a time stamp, belt position, and classification score. By collecting the ejected material over a defined period and manually reinspecting it, the operator can calculate the true false positive rate and the false negative rate. This validation step also identifies whether the false positives consist predominantly of a particular bean size or orientation, which may indicate the need for mechanical adjustments rather than software tuning.

Controlled Trial Design for False Positive Measurement

A rigorous validation trial requires passing a representative lot through the sorter, collecting both accept and reject streams, and then manually sorting the reject stream into true defects and false positives. Because manual sorting of large volumes is impractical, a statistically valid subsampling plan is employed. The B1200’s validation protocol recommends taking twenty increments from the reject stream over the course of one hour, combining them into a composite sample of approximately five kilograms, and sorting this sample by hand under proper lighting. The observed false positive proportion in the sample is then extrapolated to the entire lot. This method yields confidence intervals of ±0.05 percent at typical false positive levels.

Longitudinal Studies of False Positive Drift

Optimal settings established at the beginning of a season may degrade as the machine accumulates dust or as the optical components age. The B1200 includes a scheduled validation reminder that prompts the operator to perform a weekly check using a stable reference material. Data from these weekly checks, when plotted over time, reveal gradual increases in false positives that precede any detectable change in accuracy. A study spanning three coffee harvests at a Central American mill showed that adherence to the weekly validation schedule reduced season‑end false positives by 41 percent compared to years when validation was performed only when problems were evident.

Cost‑Benefit Model for Technology Investment

A comprehensive economic model should compare the net present value of purchasing a B1200 with false positive optimization capabilities against a baseline sorter lacking such features. Inputs include the facility’s annual throughput, the baseline false positive rate, the achievable false positive rate after optimization, the value per tonne of sound coffee, and the cost of capital. Using conservative assumptions—2.0 percent baseline false positives, 0.5 percent achievable false positives, and coffee value of USD 4,500 per tonne—the payback period for the B1200’s premium optimisation package is less than four months. Over a ten‑year equipment life, the cumulative savings exceed ten times the initial investment.

Comparative Benchmark with Competing NIR Sorter Models

Independent third‑party evaluations have compared the B1200 against two leading competitor models under identical coffee sorting conditions. The B1200 achieved a false positive rate of 0.31 percent while maintaining a defect removal efficiency of 96.8 percent. The nearest competitor recorded a 0.57 percent false positive rate at a similar defect removal level. The primary factor accounting for this difference was the B1200’s superior spectral stability and its more sophisticated false‑positive penalty during model training. These results are publicly available through several coffee research foundations and have been reproduced in multiple growing regions.

Sustaining Low False Positives Through Maintenance and Model Updating

Optimal performance is not a one‑time achievement but a continuous state that requires routine attention. The B1200’s design emphasises maintainability, with modular components that can be serviced without specialised tools. Preventive maintenance tasks are clearly documented in the onboard manual, and the system itself tracks component runtime and predicts remaining useful life for consumables such as lamps and air filters. When combined with periodic model updates that incorporate new defect varieties, these practices ensure that false positives remain at the low levels established during initial commissioning.

Optical Path Integrity and Cleaning Frequency

Dust accumulation on the sensor window and on the illumination unit’s cover glass attenuates the measured reflectance and introduces wavelength‑dependent scattering. The B1200 monitors the intensity of the white reference signal and alerts the operator when a drop of more than 10 percent is detected. In coffee environments, this typically occurs every forty to sixty operating hours. The cleaning procedure uses only optical‑grade isopropyl alcohol and lint‑free wipes; abrasive materials are strictly prohibited. Facilities that adhere to this cleaning schedule maintain their original false positive baseline indefinitely, while those that delay cleaning experience a 0.1 percent increase in false positives per week of neglect.

Belt Condition and Tracking Effects

The conveyor belt gradually wears and may develop surface scratches that produce diffuse reflectance interfering with the bean signal. The B1200’s belt is manufactured from a specially formulated polyurethane compound with near‑infrared transparency of less than 2 percent, minimizing background contribution. Nevertheless, the belt surface is inspected weekly for cuts or abrasions. The tracking system maintains belt centering within ±2 millimetres; deviation beyond this range alters the optical path length and shifts the apparent bean position, leading to ejection mistiming and increased false positives. Automatic belt tensioning, a feature introduced fifteen years ago and continuously refined, reduces the frequency of tracking adjustments.

Software and Firmware Update Protocol

MSW Technology releases firmware updates for the B1200 twice annually. These updates may include new spectral libraries, improved preprocessing algorithms, or enhanced cybersecurity features. Operators are notified through the machine’s remote telemetry unit, and the update can be applied during scheduled downtime. Each update undergoes validation on a reference coffee sample set; the validation report is appended to the machine’s electronic logbook. Historical analysis of update adoption shows that users who install updates within thirty days of release maintain false positive rates 23 percent lower than users who delay updates beyond six months.

Operator Training and Certification Programme

The most sophisticated sorter will perform poorly if the personnel responsible for its operation lack adequate training. MSW Technology offers a structured certification course that covers the principles of NIR spectroscopy, the interpretation of the B1200’s diagnostic displays, and the execution of the optimization procedures described in this document. Over fifteen years, more than 3,200 operators have completed this certification. Surveys conducted six months after training indicate that certified operators achieve false positive rates 0.2 to 0.3 percentage points lower than their non‑certified colleagues, a difference that directly impacts their facility’s profitability. The course is available both on‑site and through a virtual classroom platform.

Future Directions in False Positive Reduction for Coffee Sorting

While the B1200 represents the current state of the art, ongoing research and development continue to push the boundaries of what is possible. Emerging sensor technologies, such as short‑wave infrared hyperspectral imaging and laser‑induced breakdown spectroscopy, promise even finer chemical discrimination. At the same time, advances in deep learning—particularly transformer‑based architectures originally developed for natural language processing—are being adapted to model the sequential nature of spectra. MSW Technology’s fifteen‑year investment in sensor‑based sorting ensures that these innovations will be systematically evaluated and, where proven, integrated into future products.

Fusion of NIR with Visible and Fluorescence Imaging

Certain coffee defects, such as stinker beans or those affected by potato taste defect, exhibit fluorescence when illuminated with ultraviolet light. Combining NIR analysis with simultaneous fluorescence imaging could provide orthogonal confirmation, substantially reducing false positives. Prototype systems have demonstrated a 50 percent reduction in false positives for these particularly challenging defect categories. Commercialisation awaits the development of cost‑effective UV light sources and detectors that can operate reliably in dusty environments.

Transfer Learning Across Commodities

The spectral features of over‑fermentation in coffee share similarities with those of mould damage in cocoa and aflatoxin contamination in maize. Transfer learning techniques allow a model trained primarily on coffee to be rapidly adapted to a new commodity with minimal additional labelling. This cross‑commodity capability would allow coffee processors who also handle cocoa or nuts to leverage their B1200 investment across multiple product lines. Initial experiments conducted in collaboration with a European food technology centre achieved a false positive rate below 0.5 percent on cocoa beans after only 200 labelled examples, compared to the 2,000 examples typically required when training from scratch.

Edge Computing and Real‑Time Cloud Analytics

The B1200 already generates terabytes of spectral data annually. By streaming anonymized spectra to a cloud‑based analytics platform, individual machines can benefit from models trained on the aggregated data of the entire installed fleet. This federated learning approach respects customer data privacy while enabling continuous improvement. A pilot programme involving thirty‑five B1200 units in seven countries demonstrated that fleet‑trained models reduced false positives by an additional 15 percent beyond what any single site could achieve independently.

Sustainability Implications of Reduced False Positives

Every tonne of coffee that is falsely rejected and discarded represents not only a financial loss but also an environmental burden—the water, fertiliser, and labour invested in producing that coffee are wasted. Reducing false positives therefore contributes directly to the sustainability goals of the coffee supply chain. Life cycle assessment studies indicate that optimising NIR sorter performance to halve the typical false positive rate can reduce the carbon footprint per kilogram of exported coffee by approximately 4 percent, a significant contribution given the industry’s commitment to carbon neutrality by 2050.
