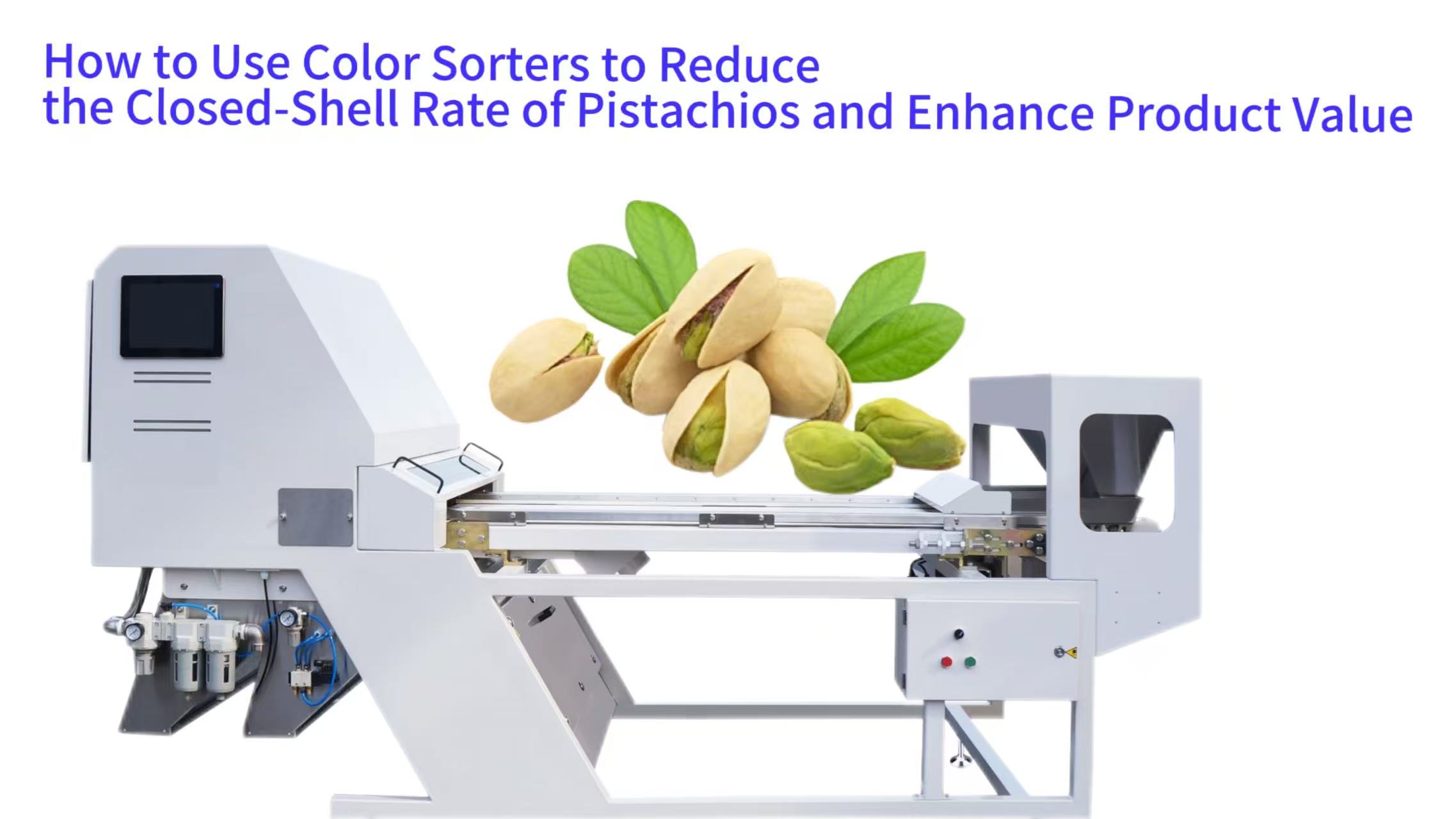

This comprehensive guide explores how advanced color sorting technology provides an effective solution for the persistent challenge of closed-shell pistachios. You will gain a clear understanding of the significant commercial impact of closed-shell nuts and the limitations of traditional sorting methods. We will delve into the sophisticated optical principles that allow modern sorters to identify and remove closed-shell pistachios with remarkable accuracy. The article provides practical guidance on machine configuration, integration into processing lines, and calculating the tangible return on investment. Finally, we will examine how this technology serves as a cornerstone for overall quality control, enabling processors to maximize yield, ensure food safety, and access premium markets.
Understanding the Commercial Impact of Pistachio Closed-Shell Issues
The presence of closed-shell pistachios is more than a minor inconvenience; it represents a direct threat to profitability and brand reputation. Unlike their naturally split counterparts, closed-shell pistachios do not open during the roasting process, presenting a significant barrier to consumers. This section details the multifaceted economic and operational challenges posed by a high closed-shell rate, establishing the critical need for an automated, precise sorting solution. Addressing this issue is not merely about improving a single metric but about transforming the overall value proposition of the final product.
What Are Closed-Shell Pistachios and What Causes Them?
Closed-shell pistachios, often referred to as "shellers" or "non-splits," are nuts whose shells remain completely sealed after harvesting and processing. This natural occurrence is primarily influenced by agricultural factors. Inadequate water stress during the kernel development stage is a leading cause, as the shell may not experience the internal pressure needed to split. Furthermore, the specific pistachio cultivar, climatic conditions such as temperature and humidity during the growing season, and harvesting the crop either too early or too late can all significantly impact the final split rate of the nut.
The physiological process behind the shell splitting is complex. As the kernel inside matures and expands, it creates pressure against the shell's suture. Under ideal conditions, this suture weakens and splits open. However, if the kernel does not develop fully or the shell's structure is exceptionally robust, the suture remains intact. This variability means that even within a single harvest from one orchard, the percentage of closed-shell nuts can fluctuate, presenting a consistent challenge for processors aiming for a uniform, high-quality output.
How Closed-Shell Nuts Diminish Overall Product Value and Profit Margins
Closed-shell pistachios directly erode profit margins by lowering the marketable yield and grade of the product. Bulk buyers and distributors often have strict standards, and a high percentage of closed-shell nuts can result in a product being classified as a lower grade, which commands a substantially lower price. For example, a batch with a closed-shell rate above 5% may be disqualified from the premium "extra fancy" grade and sold at a discount, directly impacting revenue. The cost of these nuts is essentially sunk, as they are often sold for a fraction of the value or must be diverted to lower-value applications like shelling plants.
Beyond the immediate price reduction, closed-shell nuts increase processing costs. They are difficult to salt and flavor evenly, and they can damage equipment in automated cracking facilities. Perhaps most importantly, they represent a missed opportunity. The space occupied by a closed-shell pistachio in a package could have been filled by a premium, open-shell nut. This inefficiency in packaging and the negative consumer experience associated with difficult-to-open nuts can harm brand loyalty and repeat purchases, creating a long-term negative impact on the business.
Consumer Preferences and Market Demand for Low Closed-Shell Rates
Modern consumers prioritize convenience, and this extends directly to snack foods like pistachios. The expectation is a "easy-to-open" experience. A package with a high number of closed-shell nuts leads to frustration, as consumers must use tools or excessive force to access the kernel, often damaging it in the process. This negative experience is frequently shared through online reviews and word-of-mouth, potentially deterring new customers and damaging a brand's reputation for quality. In a competitive market, consumer satisfaction is paramount.
The market demand for low closed-shell rates is formally codified in industry purchasing specifications. Large snack food companies, international retailers, and food service providers set rigorous thresholds for acceptable closed-shell levels, often between 2% and 4%. Exceeding these limits can lead to rejected shipments, chargebacks, or the loss of valuable contracts. Therefore, investing in technology to consistently meet these standards is not an option but a necessity for suppliers who wish to compete in high-value domestic and international markets. Effective pistachio sorting is essential for market access.
The Limitations of Manual Sorting and Traditional Methods
Manual sorting, the traditional method for removing closed-shell pistachios, is fraught with inefficiencies. Human sorters are limited by fatigue, leading to inconsistent accuracy over a full shift. Studies have shown that the effectiveness of manual sorting rarely exceeds 85-90%, and it is highly dependent on individual concentration levels. This results in a high number of missed closed-shell nuts (false accepts) and the unnecessary rejection of good, open-shell nuts (false rejects), both of which are costly. Furthermore, manual sorting is a slow process that creates a bottleneck in high-volume processing lines.
Traditional mechanical methods, such as size graders or weight sorters, are ineffective for this specific task because closed-shell pistachios often have nearly identical physical dimensions and weight to their open-shell counterparts. The critical difference lies in the visual and structural characteristic of the shell's suture, which cannot be detected by simple mechanical means. This fundamental limitation of traditional technology created a pressing need for a solution that could "see" the difference, paving the way for the adoption of advanced optical sorting systems that can accurately identify and eject closed-shell nuts at high speeds.
The Core Technical Principles of Color Sorters in Identifying Closed-Shell Pistachios
Modern color sorters are sophisticated optical computers that go far beyond simple color assessment. Their ability to identify closed-shell pistachios hinges on analyzing multiple physical characteristics simultaneously. By leveraging a combination of high-resolution imaging, advanced lighting, and intelligent software, these machines can detect the subtle differences between an open and closed suture with incredible speed and precision. This section breaks down the core technologies that make this possible, transforming a complex visual task into a reliable, automated process.
3D Analysis Utilizing Shape and Structural Differences
The most fundamental differentiator between an open and closed-shell pistachio is the physical gap along the suture line. Color sorters equipped with multiple high-resolution CCD or CMOS cameras capture images from different angles as the nuts cascade through the detection chamber. This multi-angle view allows the system to construct a detailed 3D profile of each nut. For an open-shell pistachio, the cameras detect the distinct shadow and depth created by the split in the shell. In contrast, a closed-shell nut presents a smooth, continuous, and convex surface without this break.
The software algorithms are trained to recognize the specific topographic signature of the open suture. They analyze parameters such as surface curvature and the presence of edges or shadows indicative of a split. This analysis is so precise that it can even identify "partially open" nuts that might be missed by the human eye. By focusing on structural integrity rather than just surface color, the sorter can reliably differentiate between the two types, regardless of variations in shell coloration or minor surface blemishes that are unrelated to the shell being open or closed.
Identification Based on Surface Texture and Light Reflectivity
The surface texture of a pistachio shell plays a crucial role in how it reflects light, and color sorters are expertly calibrated to detect these differences. The interior surface of the shell, which is exposed in an open-shell pistachio, has a different micro-texture and porosity compared to the hard, smooth exterior of the shell. When illuminated by high-frequency LED strobe lights, the open suture's interior surface scatters light differently, appearing less reflective and slightly darker than the shiny exterior of a closed shell.
The sorter's optical sensors measure the reflectivity across the entire surface of the nut. A closed-shell pistachio will typically exhibit a more uniform and higher level of reflectivity. An open-shell nut, however, will show a distinct line of lower reflectivity corresponding to the suture. Advanced sorters can analyze this textural and reflectivity data in conjunction with shape analysis, creating a multi-layered verification process that ensures the highest possible accuracy in identification, significantly reducing the chance of mis-sorts.
The Potential Application of Near-Infrared (NIR) Technology
While traditional cameras analyze visible light, Near-Infrared (NIR) spectroscopy adds another dimension to sorting capability. NIR sensors project invisible infrared light onto the pistachio and analyze the spectrum of light that is absorbed and reflected. Different chemical compounds, such as those found on the interior versus the exterior of the shell, have unique spectral signatures. Although NIR is most famously used for detecting internal defects like aflatoxin or moisture content, it can provide data for distinguishing shell states.
The chemical composition of the shell's interior may differ slightly from the exterior due to exposure to the kernel. An NIR sorter can potentially detect this difference through the thin shell of a pistachio. If the suture is open, the sensor gets a reading that includes a mix of the exterior shell and the interior surface. If closed, the reading is purely from the exterior. This supplemental data, when combined with visual analysis, can help the system make more confident decisions, especially in borderline cases, further enhancing the overall sorting purity.
The Decision-Making Process of AI Algorithms in Complex Judgments
The true intelligence of a modern color sorter lies in its software. Artificial Intelligence (AI) and machine learning algorithms synthesize all the incoming data—shape, texture, color, and reflectivity—to make a final judgment on each nut. Unlike rigid, pre-programmed rules, AI algorithms are trained on thousands of images of both open and closed-shell pistachios. Through this training, the AI learns to identify the complex patterns that define each category, much like a human brain but with far greater consistency and speed.
This AI-driven approach is particularly effective for handling ambiguous cases, such as nuts with very narrow splits or those obscured by natural shell markings. The algorithm assigns a probability score to each nut, representing its confidence that the nut is closed-shell. Operators can set a sensitivity threshold based on this score. Furthermore, these systems possess adaptive learning capabilities; as they process more material, they continuously refine their models, becoming more accurate over time and adapting to variations between different pistachio cultivars and harvest conditions. This represents a significant advancement over static sorting systems.
Key Parameter Settings for Sorting Closed-Shell Pistachios
Unlocking the full potential of a color sorter for closed-shell pistachio removal requires precise calibration of its operating parameters. A machine straight out of the box must be fine-tuned to the specific visual characteristics of the product being processed. This section provides a practical guide to the critical settings that operators must master, from configuring the optical environment to timing the rejection mechanism. Proper configuration is the key to achieving high accuracy while minimizing the loss of good product.
Selection and Calibration of the Background Plate
The background plate is a critical component that directly influences the camera's ability to perceive contrast. Its color and finish must be chosen to maximize the visual difference between the pistachio shells and the background. For the typical beige-to-ivory color of pistachio shells, a dark blue or black background is often most effective. This creates a strong contrast, making the outline and features of each nut stand out clearly. This contrast is essential for the accurate edge detection required to identify the suture line.
Calibration involves ensuring the background is clean, uniformly lit, and free from scratches or discolorations that could interfere with the image analysis. The system's software often includes a calibration routine to set the baseline for what the camera "sees" as the empty background. Any deviation from this baseline during operation, such as dust accumulation, can cause the system to misinterpret the image, leading to sorting errors. Regular cleaning and calibration of the background are simple but vital maintenance tasks for consistent performance.
Fine-Tuning Sensitivity and Ejection Delay
Sensitivity is a parameter that controls how aggressively the sorter identifies a potential defect. Setting the sensitivity too low will cause the machine to miss subtle closed-shell nuts, while setting it too high will result in the ejection of good open-shell nuts that have minor natural variations. The optimal setting is found through careful testing, running a sample batch and adjusting the sensitivity until the desired balance between detection rate and good product loss is achieved. This is often an iterative process.
Ejection delay is equally crucial. This is the precise time interval between the camera detecting a defect and the air jet firing to eject it. Since the nuts are moving at high speed, the timing must be exact to hit the target accurately. The delay is calculated based on the product's velocity and the physical distance between the camera and the ejection point. Modern sorters automatically calculate this, but operators must input accurate values for belt speed or chute slope. An incorrect ejection delay will cause the air jet to miss the target, either hitting an adjacent good nut or missing the defective one entirely. The precision of the high-speed ejection system relies on this calibration.
Defining a Unique Optical Signature Library for Closed-Shell Nuts
Advanced color sorters allow operators to create and save specific "recipes" or profiles for different products. For closed-shell pistachios, this involves teaching the machine what to look for. The operator will feed a sample of known closed-shell nuts through the sorter and use the software to capture their optical characteristics. The system will analyze and record the typical size, shape, and reflectivity pattern of a closed-shell nut, creating a digital fingerprint or signature library.
This profile can be given a descriptive name (e.g., "Pistachio_ClosedShell_Harvest2024") and saved. When processing a new batch, the operator simply selects the appropriate profile, and the machine immediately applies the optimized settings. This library approach is incredibly efficient for handling seasonal variations or processing different pistachio varieties, as switching between them is a matter of loading a different pre-configured profile, ensuring consistent results without starting from scratch each time.
Parameter Strategies for Different Pistachio Varieties and Sizes
Not all pistachios are the same. Different cultivars, such as Kerman or Sirora, can have variations in shell size, thickness, and color. Nuts from different growing regions or harvested under different conditions may also present unique challenges. A one-size-fits-all parameter set is unlikely to be optimal. Therefore, it is essential to develop specific sorting profiles for each major product type that a facility processes.
The strategy involves conducting initial tests with a representative sample of each distinct variety. The key parameters—sensitivity, background contrast, and the definition of the closed-shell signature—are adjusted and saved into a dedicated profile. This meticulous approach ensures that the sorter is always tuned for the highest possible accuracy for the specific product on the line. It acknowledges the natural diversity of agricultural products and leverages the flexibility of modern sorting technology to handle it effectively. This level of customization is a hallmark of advanced detection systems.
Best Practices for Integrating Color Sorters into Existing Processing Lines
The performance of a color sorter is not isolated; it is deeply influenced by its environment and its position within the larger processing workflow. Successful integration is about creating a seamless flow where the sorter receives optimally prepared material and its output is efficiently managed. This section covers the essential steps for integrating a color sorter, from the equipment that precedes it to the handling of accepted and rejected streams, ensuring the technology delivers on its promise of enhanced quality and efficiency.
Requirements for Upstream Equipment: Hulling and Size Grading
The efficiency of a color sorter is maximized when it receives a consistent and well-prepared feedstock. Prior to sorting, pistachios should undergo hulling to remove the outer fleshy layer and then be passed through mechanical size graders. Size grading is particularly important because it ensures that the nuts presented to the sorter are within a narrow size range. This uniformity allows the optical system and the ejection valves to be calibrated with much greater precision, leading to higher accuracy.
If nuts of vastly different sizes are fed together, the timing and force of the air jets may be perfect for a medium-sized nut but ineffective for a large one or too powerful for a small one, causing good product to be ejected. Furthermore, hulling debris or broken shell fragments can confuse the sorter's sensors. Therefore, investing in effective upstream hulling and grading equipment is not an optional extra but a prerequisite for achieving the best results from the color sorting stage. This preparation is a key aspect of smart material feeding.
Optimizing the Vibratory Feeder for Single-Layer, Uniform Distribution
The vibratory feeder is the gatekeeper of sorting accuracy. Its primary function is to take the mass of pistachios from the infeed hopper and spread them into a consistent, single layer across the full width of the sorting channel or belt. When nuts overlap or tumble over each other, the cameras cannot get a clear, unobstructed view of each individual nut, leading to missed defects and inaccurate ejections. Achieving an ideal monolayer is therefore critical.
Optimization involves adjusting the feeder's amplitude and frequency to match the characteristics of the pistachios. The goal is a steady, controlled flow where each nut is separated from its neighbors. Operators must regularly check the feed and make fine adjustments to compensate for changes in product flow or characteristics. A well-tuned feeder ensures that every nut passes through the detection zone in an optimal state for inspection, forming the foundation for the entire sorting process.
Calibration of Air Ejection System Pressure and Precision
The air ejection system is the physical actuator that removes the identified closed-shell pistachios. Its calibration is a balance between effectiveness and conservation. The air pressure must be high enough to definitively knock a closed-shell nut out of the product stream but not so high that it causes collateral damage. Excessive pressure can make good nuts bounce and tumble, potentially leading to them being misidentified and ejected further down the line, or it can cause fragile nuts to crack.
The precision of the ejection bank is also vital. Each solenoid valve corresponds to a specific zone of the sorting channel. The system must be calibrated so that a valve fires only when a defect is directly in its target area. This requires precise synchronization with the camera system and correct mapping of the detection zone to the ejection valves. Regular maintenance, including checking for clogged nozzles and ensuring a clean, dry air supply, is essential for maintaining the system's pinpoint accuracy over time.
Rational Design of Accept and Reject Product Pathways
Once the sorting decision is made, the physical separation of "accept" (open-shell) and "reject" (closed-shell) streams must be managed cleanly. The design of the product pathways after the ejection point is crucial to prevent re-mixing. The main accept stream should continue on its path to downstream processes like roasting, salting, or packaging. The reject stream, containing the closed-shell nuts, must be diverted into a separate collection bin or conveyor.
It is also important to consider the fate of the rejected material. While closed-shell pistachios are undesirable for the in-shell snack market, they may still hold value. They can be collected and sent to a shelling facility where the kernels are extracted for use in other products like pistachio ice cream, baklava, or nut mixes. By designing efficient and separate pathways, processors can not only ensure the purity of their premium product but also capture secondary value from what would otherwise be a loss, contributing to overall operational profitability and reducing waste.
Measuring the Return on Investment from Reducing Closed-Shell Rate
Investing in a color sorter is a significant capital decision, and processors rightly demand a clear demonstration of its financial benefit. The return on investment (ROI) is realized through multiple channels, including increased sales revenue, reduced operating costs, and improved operational efficiency. This section provides a framework for quantifying these benefits, transforming the qualitative advantage of "better quality" into concrete, measurable financial metrics that justify the investment.
How to Calculate Closed-Shell Removal Rate and Premium Yield Increase

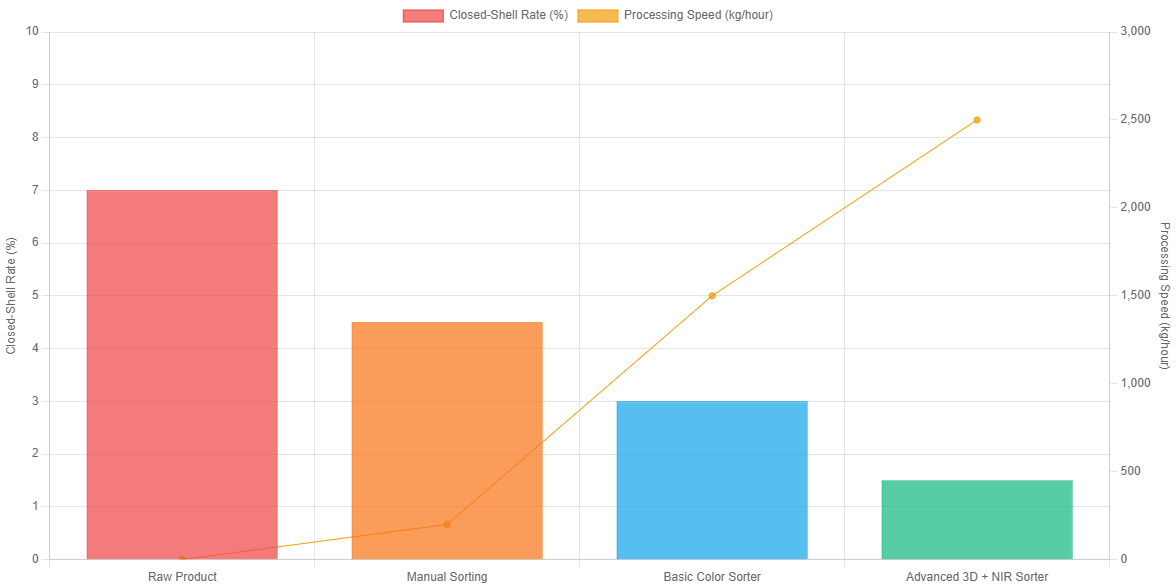

The most direct metric of success is the reduction in the closed-shell rate. This is calculated by measuring the percentage of closed-shell nuts in a sample before and after sorting. For instance, if a raw batch has a 7% closed-shell rate and the sorted output has a 2% rate, the removal efficiency is significant. The increase in premium, marketable yield is directly derived from this reduction. By removing 5% undesirable product, the yield of high-value in-shell pistachios increases correspondingly.
This increase in premium yield can be translated directly into revenue. If a facility processes 1,000 kg of raw pistachios per hour with a 7% closed-shell rate, it produces 930 kg of potential premium product. After sorting (achieving a 2% rate), the yield of premium product rises to 980 kg per hour. This 50 kg per hour increase, multiplied by the price premium for high-grade in-shell nuts, represents a substantial and continuous revenue gain that directly offsets the cost of the sorting system.
Analysis of Labor Cost Savings and Throughput Enhancement
Automating the closed-shell removal process generates significant labor savings. A manual sorting line may require 10-20 people per shift to achieve a lower and less consistent accuracy than a single color sorter. By replacing this manual labor, processors save on wages, benefits, and management overhead. These are recurring cost savings that accumulate over the life of the machine, significantly improving the operating margin of the processing line.
Furthermore, a color sorter operates at a much higher throughput than a team of human sorters. It can process several tons of material per hour without slowing down or requiring breaks. This enhancement in line speed increases the overall capacity of the processing plant, allowing it to handle larger volumes without expanding the workforce or requiring additional shifts. This scalability is a key strategic advantage, enabling business growth without a proportional increase in variable labor costs.
Product Upgrading and Enhanced Market Competitiveness
By consistently delivering a product with a very low closed-shell rate, a processor can qualify for higher market grades. This product upgrading has a direct impact on the selling price. For example, the price difference between a standard grade and a "premium" or "extra fancy" grade can be 15% to 25% or more. This price premium is applied to the entire batch, dramatically increasing its total value and profitability.
This consistent high quality also builds a strong brand reputation. Buyers come to rely on the processor as a source of superior product, leading to long-term contracts and stable business relationships. In a competitive global market, the ability to guarantee a low closed-shell rate becomes a unique selling proposition, differentiating a processor from its competitors and opening doors to more demanding and lucrative market segments that are inaccessible to suppliers relying on manual or inferior sorting methods.
Long-Term Data Tracking and Continuous Process Optimization
Modern color sorters are equipped with sophisticated data logging capabilities. They continuously record key performance indicators (KPIs) such as throughput, rejection rates, and the types of defects being removed. This data is not just for immediate operational control; it is a valuable asset for long-term business intelligence. By tracking the closed-shell rate over time, processors can identify trends, such as variations linked to specific suppliers, harvest times, or growing regions.
This data-driven approach enables continuous process optimization. If the data shows a sudden increase in a particular type of defect, it can trigger an investigation upstream. Perhaps a change in the hulling equipment settings is causing more damage, or a particular batch of raw material is of lower quality. By analyzing the sorting data, management can make informed decisions to fine-tune the entire processing line, further improving efficiency, reducing waste, and maximizing yield. This transforms the color sorter from a simple quality control tool into a central hub for operational intelligence. The precision acceleration of data analysis drives this optimization.
Beyond Sorting: The Role of Color Sorters in Comprehensive Pistachio Quality Control
While the primary focus may be on removing closed-shell nuts, a modern color sorter is a multi-talented quality control guardian. Its sophisticated sensors and processing power can be configured to perform several critical inspection tasks simultaneously. This multi-functionality transforms it from a single-purpose machine into the central nervous system of the quality control department, safeguarding product safety, purity, and consistency far beyond the initial sorting objective.
Simultaneous Removal of Mold, Insect Damage, and Internal Defects
Food safety is paramount, and color sorters play a vital role. The same optical and Near-Infrared (NIR) sensors used to identify closed shells can be calibrated to detect potentially hazardous defects. Discolored spots indicative of mold, tiny holes caused by insect infestation, or staining from microbial activity can all be identified and ejected. Advanced systems with NIR capabilities can even detect internal imperfections that are invisible to the naked eye, such as hidden mold or hollow hearts within the kernel.
This simultaneous multi-defect removal ensures that the final product is not only visually appealing but also safe for consumption. It helps processors comply with stringent international food safety standards (like HACCP, BRC, or IFS) by providing a validated critical control point for foreign material and contaminant removal. By integrating this functionality, the sorter acts as a powerful gatekeeper, preventing contaminated product from reaching the consumer and protecting the brand from costly recalls and reputational damage.
Identification and Elimination of Off-Color Nuts and Foreign Materials
Pistachio shells can exhibit natural color variations, but extreme off-color nuts—such as those with black spots, yellow staining, or unnatural hues—can detract from the visual uniformity of the final package. Color sorters excel at removing these visually undesirable nuts to create a consistent, high-quality appearance. More importantly, they are exceptionally effective at detecting and removing non-product materials, known as foreign objects, that may have been introduced during harvesting or transport.
This includes small stones, clumps of soil, glass fragments, plastic pieces, and metal shards. The high-resolution cameras can distinguish these inert materials based on their color, shape, and reflectivity, which are often starkly different from the organic pistachio shell. The ability to remove these foreign materials is critical for consumer safety and is a non-negotiable requirement for any serious food processing operation. It ensures the physical safety of the end-consumer and the mechanical integrity of downstream processing equipment.
Secondary Grading Based on Shell Color and Appearance
For processors targeting ultra-premium market segments, some color sorters offer the capability for secondary grading. After the primary removal of defects and closed-shell nuts, the "accept" stream can be subjected to a second, finer level of inspection. This can involve sorting based on the whiteness or uniformity of the shell color. Nuts with exceptionally bright, clean, and uniform shells can be separated from those that are acceptable but have more natural variation or slight blemishes.
This allows a processor to create a tiered product line. The top tier, with the most aesthetically perfect shells, can be marketed as a luxury product at a significantly higher price point, perhaps in specialty gift packaging. The standard tier remains a high-quality product but is sold at a regular premium price. This strategy maximizes the value extracted from the same raw material by catering to different consumer segments and price sensitivities, enhancing overall portfolio profitability.
Data-Driven Decision Making: Providing Feedback for Agricultural Practices
The data generated by the color sorter is a goldmine of information that can extend its value back to the very beginning of the supply chain—the orchard. By analyzing the sorting data over time, patterns can emerge that link the quality of the raw pistachios to agricultural practices. For instance, if data shows a consistently higher closed-shell rate or specific defect types from nuts sourced from a particular farm or irrigation block, this information can be fed back to the grower.
This feedback loop enables precision agriculture. Growers can use this data to adjust their practices, such as modifying irrigation schedules during kernel development to promote better shell splitting, or implementing different pest control measures to reduce insect damage. This collaborative, data-informed approach between processor and grower fosters a partnership focused on continuous quality improvement at the source, leading to better raw material for everyone involved and driving the entire industry toward higher standards of quality and efficiency.
