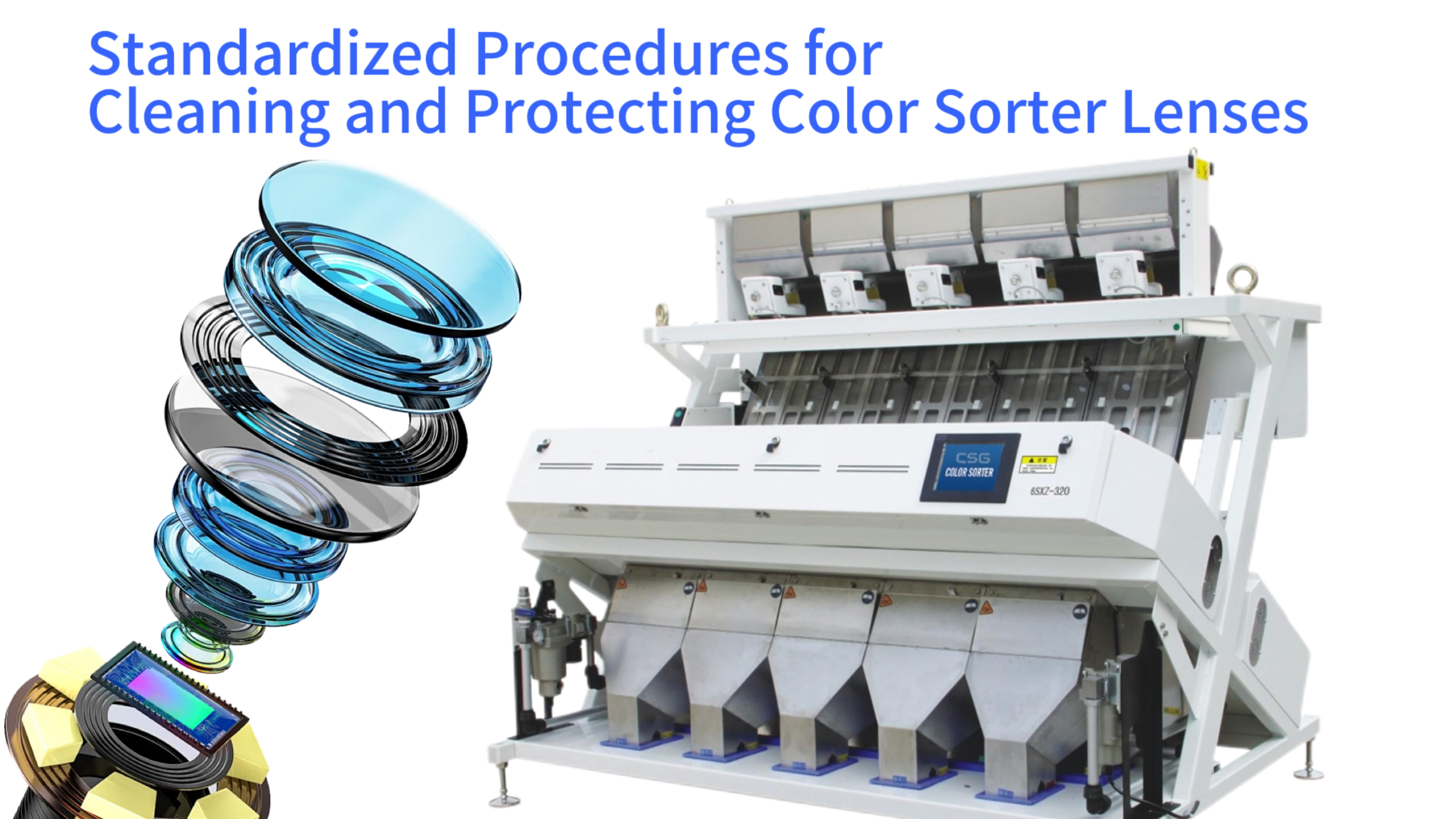

Maintaining Optical Clarity: Standardized Procedures for Cleaning and Protecting Color Sorter Lenses

The optical system is the critical sensory core of any modern agricultural color sorter, responsible for capturing the high-resolution images that drive sorting decisions. Daily contamination from dust, starch, oil mist, and moisture is an inevitable consequence of processing agricultural products like rice, nuts, and dehydrated fruits. This accumulation on camera lenses and protective windows directly scatters light, reduces contrast, and introduces noise into the image analysis. A consistent reduction in optical clarity of just 10% can lead to a measurable drop in sorting accuracy, increasing the rate of defective products reaching the final batch or causing excessive ejection of good material. This document establishes a comprehensive, standardized protocol for the daily cleaning and scratch prevention of these vital optical components. The procedures outlined are designed to preserve the machine's original detection capabilities, ensure consistent compliance with food safety standards by preventing microbial growth on residues, and protect a significant capital investment from premature degradation. Adherence to this protocol directly correlates with sustained throughput, minimized product giveaway, and extended intervals between costly professional servicing.

The Critical Role of Optical Purity in Sorting Accuracy

The fundamental principle of optical sorting relies on the machine's ability to distinguish minute differences in color, shape, and surface texture. This discrimination occurs at the pixel level, where high-resolution CCD or CMOS sensors analyze light reflected from each individual kernel or piece. Any foreign substance on the lens surface acts as a filter, diffusing the incoming light and altering its spectral properties before it reaches the sensor. For instance, a thin, uniform film of starch dust can cause a systemic color shift, making good product appear slightly off-color and triggering false ejections. Conversely, localized smudges or droplets create shadowed areas on the sensor, potentially hiding defects like black spots on rice or mold on nuts, allowing them to pass undetected. The impact is not merely theoretical; operational data indicates that neglecting lens cleaning for a single 8-hour shift in a high-dust environment like a wheat sorting line can increase the product error rate by 3-5%, representing a direct financial loss in both yield and quality.

Beyond immediate accuracy, lens contamination poses a long-term risk to food safety and equipment integrity. Organic residues from products like peanuts or sesame seeds contain oils that can oxidize and harden, forming a tenacious film that is difficult to remove. This film can harbor bacteria or mold spores, creating a contamination vector. Furthermore, accumulated abrasive particles like mineral dust from unwashed root vegetables, when repeatedly wiped, become the primary agent causing micro-scratches on lens coatings. These scratches are permanent and create permanent flaws in the imaging system, leading to persistent blind spots or distorted color analysis that cannot be calibrated out. Therefore, a proactive, gentle cleaning routine is not a matter of cosmetic upkeep but a fundamental requirement for maintaining the specified performance and longevity of the sorting system, ensuring it continues to meet the stringent demands of modern agricultural product sorting.

How Contaminants Degrade Image Signal Integrity

Different types of agricultural processing generate distinct contaminant profiles that interfere with optics in specific ways. Dry grain and pulse processing, such as for rice or lentils, primarily produces fine particulate dust. These particles scatter light, reducing the overall intensity and clarity of the image, which forces the system to increase gain or lighting intensity, thereby amplifying sensor noise. Oil-rich product lines, like those for almonds or sunflower seeds, generate an airborne oil mist that condenses on cooler lens surfaces. This oily film causes halos and glare around objects, blurring edges and making precise shape and size grading unreliable. In produce facilities with high humidity, water vapor can condense on lenses, creating droplet-based distortion that completely obscures defects. Each contaminant type requires a slight nuance in the cleaning approach to ensure complete removal without spreading the residue or damaging delicate anti-reflective coatings.

The Direct Link Between Lens Clarity and Rejection Accuracy

The sorting decision is a binary event executed in milliseconds. The processor compares the captured image of a falling object against a pre-defined acceptance threshold. A contaminated lens effectively adds random noise to this image. This noise can cause a good, uniformly colored bean to be misread as having a discolored patch, resulting in a false rejection. More critically, it can cause a genuinely defective item, such as a moldy coffee bean or a peanut with concealed insect damage, to appear within normal parameters, leading to a false acceptance. The relationship is quantifiable. Studies in controlled settings show that a lens with a measured light transmission loss of 15% due to film buildup can cause the system's defect detection sensitivity to drop by a comparable margin. For processors aiming for 99.9% purity in their output, this margin represents the difference between premium and substandard product grades, directly affecting market price and brand reputation for quality.

Economic Implications of Neglected Optical Maintenance

The financial consequences of poor lens maintenance manifest in several areas. The most immediate is product loss through the unnecessary ejection of good material. If a machine's false rejection rate increases by 1% on a line processing 5 tons of high-value pistachios per hour, the loss amounts to 50 kg per hour of saleable product. Over a month of continuous operation, this wastage becomes substantial. Conversely, allowing defective product to pass requires costly manual re-inspection or risks customer rejections and chargebacks. Secondly, severe contamination or scratches necessitate professional service calls for lens disassembly, deep cleaning, or even replacement. The cost of a service visit, combined with production downtime, far exceeds the few minutes required for daily preventive care. Finally, a chronically underperforming sorter may force a processor to run at a slower throughput to maintain acceptable quality, reducing overall plant capacity and profitability. A disciplined cleaning routine is therefore a low-cost, high-return activity that safeguards operational margins.

Essential Tools and Approved Cleaning Materials

Effective and safe lens cleaning begins with using the correct tools and materials. The primary rule is to avoid all common shop supplies, as these are designed for robust surfaces, not precision optics. Compressed air lines, while seemingly useful, are often contaminated with oil and water droplets from the compressor and can forcefully embed abrasive particles into the soft lens coating. Standard paper towels, facial tissues, and even many cloths contain wood fibers or abrasive fillers that will scratch. The first tool should be a dedicated, high-quality lens blower, often a rubber bulb type, to dislodge loose dry dust through a puff of clean, oil-free air. For physical contact, the only acceptable material is lens-grade microfiber cloth. These cloths are woven from ultra-fine polyester and polyamide fibers that are non-abrasive and highly effective at trapping particles within their structure rather than dragging them across the surface. A clean cloth must be used for each cleaning session to prevent previously captured grit from causing damage.

The selection of cleaning fluid is equally critical. Isopropyl alcohol (IPA) in a high purity grade (90% or higher) is the industry standard for dissolving oils and evaporating without residue. It must be applied correctly—never directly onto the lens. A few drops should be placed on the microfiber cloth first, allowing it to slightly dampen the fabric. For stubborn organic residues, a dedicated lens cleaning solution formulated for coated optics may be more effective than pure IPA, as it contains mild surfactants. Under no circumstances should general-purpose cleaners, solvents like acetone or thinners, or water be used, as they can damage anti-reflective coatings, leave filmy residues, or promote fungal growth between lens elements. All tools should be stored in a clean, sealed container when not in use to prevent contamination from ambient dust in the factory environment. Having these dedicated supplies stationed at each machine enforces compliance and simplifies the operator's task.

Selecting the Proper Microfiber Cloth and Blower

Not all microfiber cloths are suitable for optical surfaces. The ideal cloth for color sorter lenses is labeled as suitable for camera lenses, eyeglasses, or precision optics. These cloths typically have a plush, non-woven texture and are often packaged in a clean, sealed pouch. They should be laundered separately without fabric softener, which coats the fibers and reduces absorbency, using only mild detergent. The blower, such as a rubber bulb blower, is preferred over canned air, which can expel propellant or become too cold during use, potentially condensing moisture on the lens. The gentle, controlled puff from a bulb blower is sufficient to remove the majority of loose particulate matter before any wiping occurs, which is the single most important step in preventing scratches during the cleaning process.

Understanding the Risks of Improper Solvents and Wipes

The chemical composition and physical structure of common cleaning aids make them hazardous to optical coatings. Window cleaners often contain ammonia or surfactants that degrade optical coatings over time. Abrasive wipes, even those labeled as "lint-free" for industrial use, may be impregnated with minerals like silica. Using these on a lens is analogous to polishing it with very fine sandpaper, resulting in a hazy appearance known as "crazing" that permanently diffuses light. Furthermore, applying any liquid directly onto a vertical or upward-facing lens, as found in many optical sorter designs, risks the fluid seeping past the seal and into the internal housing, leading to electrical damage or corrosion. This underscores the necessity of training personnel to not only follow the procedure but to understand the underlying reasons why specific materials are mandated and others are forbidden.

Creating a Dedicated and Contamination-Free Cleaning Station

To institutionalize proper practice, each sorting line or group of machines should have a designated cleaning station. This station typically includes a wall-mounted holder for fresh microfiber cloths, a sealed container for used cloths awaiting laundry, a bottle of approved cleaning fluid secured to prevent spills, and a dedicated lens blower. The area should be located away from direct product handling zones to minimize airborne contamination. A laminated checklist of the cleaning steps can be posted nearby. This formalizes the activity, ensures consistency across shifts, and provides a visual management tool for supervisors. Investing in this small organizational setup dramatically increases the likelihood of consistent, correct execution compared to relying on operators to source their own materials from general storage.

Step-by-Step Standardized Daily Cleaning Protocol

The daily cleaning protocol must be executed during a scheduled machine stop, typically at the beginning or end of a production shift, with the sorter completely powered down and locked out according to standard safety procedures. This ensures personnel safety and prevents accidental activation of moving parts or ejection valves. The first step is always a thorough visual inspection using a flashlight. The operator should note the type and distribution of contamination—whether it is a uniform layer of dust, oily streaks, or localized splatter. This initial assessment informs the technique required. The cardinal rule is to always remove loose particles before any wiping occurs. Therefore, the lens blower is used first. The nozzle should be held a few centimeters from the surface and angled to blow across it, dislodging dust out and away rather than deeper into the housing crevices. Multiple gentle puffs from different angles are more effective than one forceful blast.

After dry blowing, if residues remain, the approved cleaning fluid and microfiber cloth are used. The fluid is applied to the cloth, never the lens. The cloth should be folded into a pad to provide a clean, soft surface. Using very light pressure, the operator wipes the lens in a single, straight pass—if possible, following the manufacturer's recommended direction. A circular motion can grind particles into the surface. The key is to use the cloth's absorbency to lift contamination, not scrub it. For a heavily soiled lens, a second clean fold of the cloth may be used with a fresh application of fluid, ensuring that the cleaning medium itself does not become the contaminant. After cleaning, the lens should be inspected again with a light at a low angle to check for streaks or remaining spots. The entire process for a standard machine with two to four lenses should take no more than five to ten minutes, a minor investment that protects hours of production quality.

Initial Safety Lockout and Visual Inspection Procedure

Before any physical contact with the machine, the operator must follow a strict lockout-tagout procedure. This involves shutting down the main power at the control panel, engaging any physical lockout devices, and placing a personal lock and tag on the energy isolation point. This non-negotiable step protects against injury from unexpected machine start-up. Once safety is secured, the inspection cover over the optical box is carefully removed according to the machine manual. Using a bright, clean flashlight, the operator examines each lens and protective window from multiple angles. Looking across the surface with light reflecting off it highlights films and smudges that are invisible when looking straight on. This inspection should also check for any physical damage like chips or cracks, which would require immediate reporting and professional intervention, as they cannot be addressed through cleaning.

The Dry Particle Removal Technique Using a Blower

The initial dry removal phase is the most critical for scratch prevention. The operator uses the rubber bulb blower, ensuring its nozzle is clean. Holding it steadily, short, firm squeezes are directed across the lens surface. The angle of approach is important; the airstream should be directed so that it carries dislodged particles off the edge of the lens and ideally out of the optical chamber altogether. For lenses recessed in a housing, a gentle, sweeping motion around the perimeter first can help loosen particles that have settled in corners. This step alone may suffice for machines processing relatively clean, dry products on a given day. It is vital to resist the temptation to use one's breath to blow off dust, as this introduces moisture and microscopic saliva droplets that can leave a difficult-to-remove biofilm on the lens.

Wet Cleaning Methodology for Oily and Stubborn Residues

When a dry blow is insufficient, the wet cleaning method is initiated. One or two drops of isopropyl alcohol are placed on the center of a clean, unfolded microfiber cloth. The cloth is folded to create a soft, padded surface saturated in the center. Starting from one edge of the lens, the cloth is dragged slowly and with minimal pressure to the opposite edge. The goal is to use the cloth's slight dampness to dissolve and absorb the residue in a single pass, lifting it off the surface. If a second pass is needed, a fresh, clean section of the cloth must be used. For lenses with persistent oily spots, allowing the damp cloth to rest on the spot for a few seconds can help dissolve the residue before the wiping motion. After wiping, the surface should be allowed to air-dry completely for a minute before reassembly, as any remaining alcohol vapor will quickly evaporate without residue.

Advanced Techniques for Scratch Prevention and Coating Care

The anti-reflective and anti-static coatings applied to color sorter lenses are sophisticated, thin-film depositions that are inherently delicate. Their primary function is to maximize light transmission by reducing reflections, but a secondary benefit is often to provide a slightly harder, more hydrophobic surface. However, they are no match for abrasive action. The fundamental principle of scratch prevention is to ensure that no solid particle is ever dragged across the lens under pressure. This is why the sequence of operations—inspect, blow, then wipe—is sacred. Even a sub-micron particle of silica, common in field dust, can act as a cutting tool when pressed between a cloth and the lens coating. Beyond the basic procedure, environmental controls in the sorting facility play a major role. Maintaining positive air pressure in the optical chamber using filtered air, a feature in some advanced color sorter designs, dramatically reduces the rate of dust ingress, extending the intervals between required cleanings and minimizing the risk of abrasive contact.

Another advanced consideration is the management of static electricity. Many agricultural products, especially dry grains and plastic flakes, generate significant static charges during handling. This static can attract dust particles to the lens surface with enough force that a simple air blow cannot dislodge them. Some modern sorting systems incorporate passive or active ionizing devices near the optical inspection zone to neutralize static charges on both the product and the machine surfaces. For machines without this feature, operators can use an anti-static gun designed for electronics before the dry blowing step. This device emits a stream of ionized air that neutralizes the static charge on the lens, allowing the attached dust to be released and blown away much more easily. Implementing such supporting technologies reduces the physical cleaning burden and the associated risk of manual handling damage.

Understanding the Vulnerability of Anti-Reflective Coatings

Anti-reflective coatings are applied in layers thinner than a wavelength of light. They are typically made of metal oxides like magnesium fluoride. Their mechanical hardness is limited, and they are particularly susceptible to damage from alkaline chemicals, certain solvents, and abrasive contact. A scratch through the coating not only creates a permanent physical defect but also disrupts the precise optical interference that reduces reflections. This results in a bright, scattered light point at the scratch location, which can saturate the camera's sensor in that spot, creating a permanent "hot pixel" or blind spot in the field of view. This type of damage is irreversible outside of a complete and expensive lens replacement. Therefore, the cleaning protocol must treat the lens surface with the same care afforded to a camera lens costing thousands of dollars, because in functional terms, that is exactly what it is.

Environmental Controls to Minimize Abrasive Contaminant Ingress

Proactive measures in the plant layout and machine maintenance can drastically reduce the abrasive load on the optics. Ensuring that upstream cleaning, destoning, and aspiration equipment is functioning optimally reduces the amount of loose dust and sand reaching the sorter. Installing effective dust collection hoods over product transfer points near the sorter infeed is beneficial. For the machine itself, regularly checking and replacing the seals and gaskets around the optical chamber doors is crucial. These seals degrade over time, allowing unfiltered plant air, laden with particles, to be drawn into the chamber by cooling fans. A scheduled maintenance task every six months to inspect and replace worn seals is a highly effective strategy for protecting the internal optics, complementing the daily cleaning routine and contributing to sustained machine performance in demanding grains sorting applications.

Utilizing Anti-Static and Ionized Air Solutions

Static attraction is a pervasive issue in dry food processing. An anti-static lens blower, which combines a rubber bulb with a built-in ionizing element, can be a valuable tool. For a more comprehensive solution, facilities can install a point-of-use ionizing air curtain or nozzle directed at the product stream just before it enters the optical inspection zone. This neutralizes the charge on the product itself, preventing it from inducing a charge on the lens and also reducing product-to-product adhesion that can cause feeding issues. These technologies represent a shift from reactive cleaning to proactive contamination prevention. They require a modest capital investment but pay dividends in reduced cleaning frequency, lower risk of lens damage, and more consistent product flow, which in turn supports the high-speed decision-making required for high-speed ejection systems to function accurately.

Troubleshooting Common Cleaning Challenges and Residues

Even with a perfect protocol, operators will encounter stubborn contamination that resists standard cleaning. One common issue is the polymerized oil film found in facilities processing roasted or oil-coated nuts. Over time and with exposure to heat from machine electronics, thin oils can bake onto the lens, forming a hard, varnish-like coating. For this, a specialized lens cleaning solution designed for removing cured optical adhesives may be necessary, but its use must be pre-approved by the machine manufacturer to ensure coating compatibility. Another challenge is water spotting from condensate in cold storage sorting environments. These mineral deposits can be removed with a drop of distilled water applied via microfiber cloth after the initial alcohol cleaning, followed immediately by a dry pass with a clean section of the cloth to prevent new spots from forming as the water evaporates.

Biological growth, such as mildew or fungus, is a serious concern in humid environments processing fresh or high-moisture products. Fungal hyphae can actually etch into glass and coatings if left untreated. If any haze or thread-like patterns are observed that cannot be wiped away, this indicates potential fungal growth between lens elements. This condition cannot be resolved by external cleaning and requires immediate notification to maintenance for internal disassembly and sterilization by qualified technicians. The best defense is environmental control—keeping the optical chamber dry and, if specified by the manufacturer, using the machine's internal heaters or desiccant packs to maintain low humidity. Documenting these unusual occurrences and their resolution helps build a knowledge base for the facility, improving responses to future challenges and informing potential upgrades, such as selecting machines with sealed, nitrogen-purged optical units for the most demanding environments.

Addressing Polymerized Oils and Cured Product Residues

Stubborn organic residues require a modified approach. If isopropyl alcohol is ineffective, a next-step solvent might be reagent-grade ethanol or a commercial lens cleaner with surfactants. A technique called the "roll-off" method can be used: a slightly dampened microfiber cloth is gently rolled over the spot without sliding, allowing the solvent to penetrate the residue and the cloth to absorb it. Applying pressure or repetitive rubbing will grind the residue and should be avoided. If the residue persists, it is a sign that cleaning frequency needs to be increased to prevent buildup, or that upstream processes, such as oil mist extraction, need improvement. Persistent issues of this nature often point to a mismatch between the machine's environmental protection rating and the actual processing conditions, suggesting a review of the overall food sorting line design may be warranted.

Dealing with Mineral Deposits and Water Spots

Mineral deposits from hard water or condensation are alkaline and can slowly degrade coatings. The safest removal method uses a weak acid, but this is risky. A safer alternative is to use a 50/50 mix of high-purity isopropyl alcohol and distilled water applied with a microfiber cloth. The distilled water helps dissolve the minerals, while the alcohol accelerates drying. Immediately after, a second cloth dampened only with IPA should be used for a final rinse-and-dry pass to eliminate any remaining water and prevent new spots. The root cause, however, should be investigated. It may involve checking the compressed air dryer for the ejection system, as this is often the source of moisture, or reviewing the climate control in the processing room to prevent the optical chamber from becoming a cold spot where moisture condenses.

Identifying and Responding to Fungal or Biological Contamination

Biological contamination appears as a faint, spider-web-like pattern or a milky, diffuse haze that does not wipe off. This is a critical failure mode for the optics. The operator should immediately document the finding with photographs and notify supervision. Continuing to operate the sorter in this state will yield progressively worse and unpredictable sorting results. The resolution always involves a factory-authorized service procedure to disassemble the optical block in a cleanroom environment, clean the internal elements with appropriate biocides, and reseal the unit. To prevent recurrence, the operating environment must be assessed. Factors like high ambient humidity, water leaks, organic debris accumulation inside the machine housing, or frequent washdowns with water ingress can all contribute. This scenario highlights the importance of the visual inspection step; it is not just about cleanliness but about monitoring the long-term health of a critical subsystem.

Implementing a Sustainable Cleaning Culture and Verification

For cleaning protocols to be effective in the long term, they must be ingrained in the operational culture. This goes beyond posting instructions. It involves integrating the cleaning task into the standard operating procedure (SOP) for machine start-up or shut-down, with clear accountability assigned per shift. Training is foundational; operators must understand not just the "how" but the "why"—the direct link between a clean lens and the quality of the product they are responsible for. Using before-and-after photos of lenses, or even demonstrating the difference in image quality on the machine's monitor, can make the impact tangible. Furthermore, the process should be auditable. A simple log sheet next to each machine, where operators initial and note the time of cleaning, provides traceability and reinforces accountability. This log can also note any observations, such as "heavy oil film today," which provides valuable data for preventative maintenance.

Verification of cleaning effectiveness is the final, crucial step. The most direct method is a performance check using standardized test material. Many sorting machines have a built-in function to process a known sample of product mixed with marked defects. Running this test after a cleaning shift provides quantitative data on sorting accuracy. A secondary method is periodic image quality analysis. Some advanced AI sorter systems have diagnostic tools that analyze image sharpness and noise levels. A trend of declining image metrics can signal inadequate cleaning or the onset of permanent lens damage before it manifests in product quality issues. Finally, scheduled quarterly inspections by maintenance technicians using precision tools like a USB microscope can assess the lens surface for micro-scratches or coating wear, validating that the daily procedures are being performed correctly and are not themselves causing damage. This closed-loop system of execution, documentation, and verification transforms lens cleaning from a chore into a key performance indicator for the entire sorting operation.

Integrating Cleaning into Standard Operating Procedures and Logs

The cleaning task must be formalized. It should appear as a numbered step in the machine's SOP, with references to the specific tools and materials provided. A companion log sheet, whether physical or digital, is essential. This log should have columns for date, time, operator name/ID, a check-off for completed steps (visual inspection, dry blow, wet clean), and a comments section for anomalies. This documentation serves multiple purposes: it ensures task completion, provides a history for troubleshooting recurring problems, and is often a required document for food safety audits under standards like BRC or SQF, which mandate preventive maintenance records for critical control points. Making the log easy and quick to use increases compliance.

Training Operators on the Consequences of Improper Techniques

Effective training moves beyond procedure recitation. It should include a practical demonstration on a spare lens or a dedicated training module. Letting an operator carefully feel the texture of a proper microfiber cloth versus a paper towel on a test surface can be enlightening. Showing microscope images of a scratched lens caused by incorrect wiping can have a powerful deterrent effect. Training should also cover the financial impact, translating a percentage point of yield loss into real monetary value based on the products they handle. When operators see themselves as guardians of both machine health and plant profitability, their engagement with the procedure increases significantly. This understanding is particularly important for complex systems like NIR sorter units, where optical calibration is even more sensitive.

Methods for Verifying Optical Clarity and Sorting Performance Post-Cleaning

Subjective visual inspection of the lens is not enough. Objective verification is needed. The most practical method is the test sort. A pre-prepared batch of product, typically 1-2 kg, containing a known number and type of defects (e.g., 100 foreign material pieces or discolored items) is run through the sorter. The collected good and bad fractions are then manually checked. If the sorter correctly identified all 100 defects and did not reject an excessive amount of good product, the cleaning is verified as effective. This test should be conducted at the start of each production week or after any major cleaning. For a more high-tech approach, the diagnostic pages in the machine's HMI often display real-time image feeds or quality scores. A clean system will show sharp, high-contrast images with minimal digital noise. Encouraging operators to check these screens builds a direct feedback loop between their cleaning action and the machine's performance.
