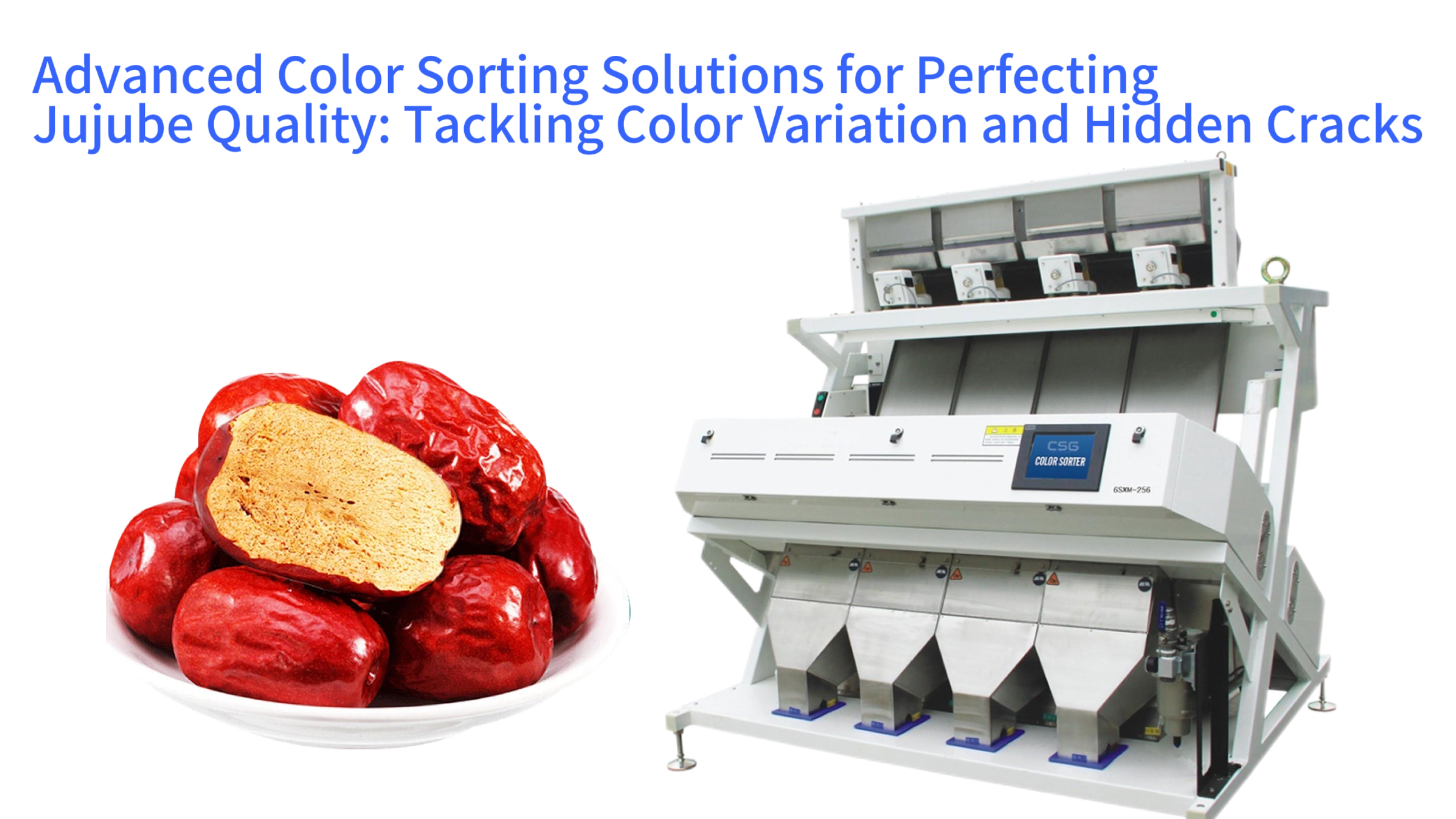

This article explores the transformative role of modern optical sorting technology in the jujube (dried red date) processing industry. We will delve into how automated color sorters address the persistent challenges of inconsistent coloration and subtle crack detection, which are critical for determining market value and consumer safety. The discussion begins by outlining the specific quality issues faced in jujube processing before explaining the core mechanics of color and defect recognition. Subsequent sections will break down the sophisticated sensor systems, including advanced visual and spectroscopic technologies, that enable this precision. We will also examine the integration of artificial intelligence for decision-making and the synchronized mechanical actions that physically separate defects. Finally, the article highlights the tangible benefits for processors and looks ahead at evolving trends in smart agricultural sorting, providing a comprehensive guide to understanding this essential food technology.
The Quality Conundrum in Jujube Processing
Economic Impact & Premium Grade Benchmarks for Jujubes
Jujube fruits, prized for their nutritional value and sweet taste, present unique challenges after harvesting and during the drying process. Achieving a uniform batch is difficult because natural factors like sun exposure, soil conditions, and moisture levels lead to significant color variation, ranging from deep crimson to pale red or yellowish hues. These visual inconsistencies, while often harmless, affect the product's aesthetic appeal and perceived quality in competitive markets, where consumers associate consistent color with premium branding and reliability. Furthermore, the drying or mechanical handling stages can induce hairline cracks or fractures in the fruit's flesh that are not always immediately visible to the human eye.
These micro-cracks are more than just cosmetic flaws; they create entry points for moisture and microorganisms, accelerating spoilage and potentially leading to mycotoxin development during storage. Traditional manual sorting is inadequate for this task, as worker fatigue leads to inconsistent standards and the inability to reliably detect fine cracks, especially at the high speeds required for commercial processing. This results in lower grade yields, potential food safety risks, and financial losses for processors. Therefore, the industry requires a technological solution capable of simultaneous multi-parameter inspection to ensure both visual uniformity and structural integrity, paving the way for automated optical sorters to become a cornerstone of modern jujube production lines.
Understanding Color Inconsistency Causes
The color of a dried jujube is influenced by a complex interplay of biochemical compounds, primarily anthocyanins and carotenoids, which develop during ripening and drying. Variations in harvest timing mean fruits from the same orchard can be at different maturation stages, leading to a mixed palette in the final product. Processing parameters, such as drying temperature and airflow, further affect these pigments; uneven drying can cause blotchiness or differential shading on a single fruit. This natural variability makes defining a single "perfect" color challenging, requiring sorting technology to be flexible and learn a range of acceptable appearances rather than just a fixed ideal.
The Hidden Dangers of Surface Cracks
Surface cracks in jujubes often initiate from internal stress during water loss in the drying phase. These fissures can be minuscule, sometimes less than a millimeter in width, making them notoriously difficult to spot. However, their impact is substantial. Cracked jujubes have a drastically reduced shelf life as the exposed interior readily absorbs environmental humidity, becoming chewy or fostering mold growth. From a safety perspective, these defects compromise the protective skin barrier, increasing vulnerability to bacterial or fungal contamination that could affect entire batches during bulk storage and transport.
Economic Impact of Substandard Sorting
Failing to adequately remove off-color and cracked jujubes has direct financial repercussions. Products with visible defects or inconsistencies are typically downgraded and sold at a significant discount, sometimes up to 30-50% lower than premium-grade equivalents. Moreover, a single batch contaminated with mold from cracked fruits can lead to costly recalls, brand reputation damage, and rejection by quality-conscious international buyers. Manual sorting lines, requiring dozens of workers, also incur high and variable labor costs, making the economic argument for capital investment in automated sorting technology increasingly compelling for processors aiming for scale and consistency.
Setting Benchmarks for Premium Grade Jujubes
Establishing clear, measurable quality benchmarks is the first step before implementing any sorting solution. For premium jujubes, key parameters include a defined color range (using standardized scales like RGB or L*a*b* values), maximum allowable crack length and width, acceptable size distribution, and the absence of foreign material. Advanced sorting systems allow processors to digitally encode these benchmarks into sorting profiles. This move from subjective human judgment to objective, data-driven criteria not only standardizes output but also provides traceable quality records for audits and customer assurance, forming a digital quality fingerprint for every batch processed.
Fundamentals of Optical Color Sorting Technology
Core Workflow of Jujube Optical Color Sorting
LED lighting (400-700nm visible spectrum)
Uniform, high-contrast light on jujube stream
CCD/CMOS cameras (thousands of fps)
Multi-angle capture (sub-mm resolution)
RGB pixel data + texture analysis
Raw data for color/defect evaluation
Software compares to pre-set RGB/L*a*b* thresholds
Accept/Reject decision in milliseconds
At the heart of modern jujube sorting lies optical color sorting technology, a non-invasive method that uses light and cameras to inspect each individual piece at remarkable speeds. The core principle involves illuminating the product stream and analyzing the reflected or transmitted light to make instantaneous quality decisions. For color analysis, high-resolution CCD or CMOS cameras equipped with powerful sensors capture images across the visible light spectrum (approximately 400-700 nanometers). These cameras act as the system's eyes, scanning each jujube that passes through the inspection zone and converting the visual information into digital data composed of millions of pixels, each with specific Red, Green, and Blue (RGB) values.
The system's software then compares the captured color data of each jujube against pre-programmed acceptance thresholds set by the processor. This is far more nuanced than simple color matching; it can differentiate between a naturally dark red jujube and one that is discolored due to fermentation or staining. The technology's sensitivity allows it to detect subtle shades and patterns, ensuring that only fruits falling within the desired color range proceed. This foundational capability transforms a highly subjective quality parameter into an objective, repeatable, and high-speed automated process, forming the basis upon which more complex defect detection, like crack identification, is built.
From Light to Data: The Role of High-Speed Cameras
Modern sorting systems utilize multiple high-speed cameras, often with capture rates exceeding thousands of frames per second. Positioned at different angles around the product stream, these cameras obtain a comprehensive view of each jujube, eliminating shadows and blind spots. Their high resolution is crucial, with modern sensors offering pixel resolutions fine enough to detect sub-millimeter features. Coupled with precisely timed strobe lighting that freezes motion, these cameras generate crystal-clear images of fast-moving fruits, providing the raw data needed for accurate analysis. This multi-angle imaging is particularly important for three-dimensional objects like jujubes, ensuring the entire surface is scrutinized for defects.
Defining Acceptable Color Ranges with Software
The intelligence of a color sorter resides in its software, where operators define what constitutes a "good" product. Using intuitive graphical interfaces, they can teach the machine by showing examples of acceptable and defective jujubes. The software learns the statistical distribution of color values for good product and establishes flexible boundaries. For instance, it can be programmed to accept a gradient of reds while rejecting fruits with black spots, green patches, or undesirable yellowish tones. This software-based approach offers unparalleled flexibility, allowing a single machine to switch between different quality standards for various customer segments or product lines with just a few clicks.
Illumination: The Key to Consistent Detection
Consistent and powerful illumination is the unsung hero of reliable color sorting. Specialized LED lighting systems provide bright, uniform, and stable light across the inspection area. The color temperature and wavelength of this lighting are carefully selected to enhance the contrast between the jujube's skin and potential defects. For example, specific lighting can make subtle cracks cast minute shadows or cause discolorations to appear more pronounced to the cameras. Advanced systems may use multiple light sources from different angles or even specific spectra to highlight particular defect types, ensuring that the cameras receive the best possible image for analysis regardless of ambient light conditions in the processing facility.
Overcoming Product Flow Challenges
For optical sorting to be effective, products must be presented to the cameras in an optimal manner. This is achieved through sophisticated feeding systems like vibratory trays or belts that gently singulate and align the jujubes, ensuring they do not touch or overlap as they pass through the inspection zone. This smart material feeding is critical because overlapping items or irregular motion can obscure defects and cause both good product to be rejected and defective items to be missed. The feeder's role is to create a consistent, single-layer cascade or stream, transforming a random bulk flow into an orderly procession ready for its digital portrait, which directly impacts the system's overall accuracy and throughput.
Advanced Sensing for Crack and Internal Defect Detection
Advanced Sensing Technologies for Jujube Defect Detection
While color cameras excel at surface appraisal, detecting fine cracks and internal flaws requires more sophisticated sensing modalities. This is where technologies like near-infrared (NIR) spectroscopy and high-definition line-scan cameras come into play. NIR sensors work by projecting light onto the jujube and analyzing the spectrum of light that is absorbed or reflected. Different chemical compounds and structural properties interact with NIR light in unique ways; for example, a crack or cavity alters the light scattering pattern, while internal mold or excessive moisture changes the absorption spectrum. This allows the system to "see" beyond the surface.
Complementing this, specialized optical configurations can detect cracks by analyzing surface texture and light reflection. A hairline crack scatters light differently than smooth skin, creating a detectable signature even if the crack itself is visually subtle. By integrating data from multiple sensor types—combining color, NIR, and sometimes even laser profiling for shape—the sorting system builds a comprehensive digital twin of each jujube. This multi-sensor data fusion is key to achieving high detection accuracy for complex defects, ensuring that fruits with hidden problems are removed, thereby safeguarding product shelf-life and safety in a way traditional methods never could.
Seeing the Unseen with Near-Infrared (NIR) Spectroscopy
Near-infrared spectroscopy represents a leap forward in defect detection for dried fruits. Operating at wavelengths typically between 700 and 2500 nanometers, beyond human vision, NIR light penetrates the superficial layer of the jujube. Sensors analyze the reflected spectrum to identify chemical fingerprints associated with defects. For instance, a higher moisture content at a crack site or the early stages of internal mold growth will show distinct absorption peaks. This allows the sorter to identify not just visible cracks but also fruits that are predisposed to spoilage or have internal quality issues, making it an invaluable tool for advanced detection and proactive quality control.
High-Resolution Imaging for Microscopic Flaws
To capture the finest surface cracks, sorters employ ultra-high-resolution line-scan cameras. These cameras capture image data one line at a time as the product moves, building a seamless, extremely detailed picture. With resolutions capable of discerning features smaller than 0.1 millimeters, they can identify the minute, dark lines that signify cracking. The image processing software is then trained to recognize the specific pattern and contrast change associated with a crack, distinguishing it from natural stem marks or skin wrinkles. This high level of scrutiny ensures that even the most minor structural breaches, which could expand during storage or transport, are reliably identified and removed from the product stream.
Data Fusion from Multiple Sensor Arrays
The most effective sorting decisions are made by correlating data from multiple independent sensors. A sensor-based sorting machine for jujubes might combine input from a full-color RGB camera, an NIR sensor, and a monochrome high-resolution camera. The software synchronizes this data for each individual fruit. For example, a slight color anomaly from the RGB camera might be corroborated by an unusual NIR reading, confirming a defect with higher confidence than any single sensor could. This multi-layered inspection approach dramatically reduces false rejections (good product being thrown out) and false acceptances (defects being missed), optimizing both yield and quality simultaneously.
Calibrating Sensors for Optimal Performance
Maintaining sensor accuracy is an ongoing process. Regular calibration against known standards ensures that cameras and NIR sensors are providing consistent, reliable data over time. This involves using calibration tiles for color cameras and reference materials with known chemical properties for NIR sensors. Environmental factors like dust, temperature fluctuations, or gradual LED light degradation can affect readings. Modern systems often include self-check routines and can alert operators when calibration is needed. This proactive maintenance of the sensory apparatus is fundamental to sustaining the high levels of detection accuracy—often exceeding 99% for major defects—that processors depend on for their brand reputation.
The Intelligence Core: AI and Real-Time Decision Making
AI-Driven Real-Time Decision Making
RGB, NIR, texture, size data
Trained on 1000s of defect images
Defect probability calculation
Accept/Reject (ms latency)
10,000+ decisions/sec
Synchronized to physical position
Adapts to new harvest variation
Once sensor data is captured, the system faces the immense task of analyzing it and making a split-second accept/reject decision. This is where artificial intelligence (AI) and advanced algorithms transform raw data into actionable intelligence. Early sorters used rigid, rule-based algorithms, but modern AI sorter systems employ machine learning models that continuously improve. These models are trained on vast libraries of images and sensor data from both good and defective jujubes, learning to identify complex patterns and subtle defect signatures that might be difficult for humans to describe programmatically.
In real-time operation, the AI evaluates hundreds of features for each jujube—color distribution, spatial patterns of NIR absorption, texture metrics, and size—simultaneously. It weighs this evidence against its learned model to calculate a defect probability. This happens in milliseconds, with modern processors capable of making tens of thousands of these decisions per second. The AI's adaptability is crucial for handling natural product variation; it can adjust to a new harvest with slightly different color characteristics without needing complete reprogramming, simply by learning from a new set of sample products. This intelligent core ensures the sorting process is not only fast and accurate but also robust and adaptable to real-world agricultural variability.
Machine Learning Models Trained on Defect Libraries
The effectiveness of AI in sorting hinges on the quality and breadth of its training data. System developers compile extensive "defect libraries" containing thousands of categorized images and sensor readings: cracks of various lengths and orientations, different types of discoloration, mold spots, insect damage, and foreign material. The machine learning algorithm processes this library, identifying the underlying features that distinguish each defect class from good product. For a processor, this means the system arrives pre-loaded with a deep understanding of common jujube defects, significantly reducing setup time and allowing for immediate high-performance operation on the processing line.
Adaptive Algorithms for Natural Product Variation
Unlike industrial parts, agricultural products are inherently variable. AI algorithms excel in this environment because they are fundamentally adaptive. They can be set to a "learning mode" where they observe the stream of incoming product and statistically model the natural range of acceptable variation in color, size, and shape for that specific batch. This allows the system to automatically fine-tune its acceptance thresholds, ensuring it doesn't unnecessarily reject good product that is simply at the outer edge of normal variation. This adaptive capability maximizes yield—the amount of good product recovered—which is a primary economic driver for investing in sorting technology.
Real-Time Processing and Decision Latency
The speed of decision-making is a critical technical specification. From the moment a jujube is scanned to the moment the decision to eject it (if defective) is triggered, only a few milliseconds elapse. This incredibly short latency is achieved through powerful embedded processors and optimized software code. It is essential because the products are moving at high speeds; a delay of even a few milliseconds would mean the defective fruit has moved too far down the line for the ejection mechanism to accurately target it. This seamless, high-speed data pipeline is what enables these systems to maintain throughputs of several tons per hour without sacrificing inspection thoroughness.
User Interface and Operational Simplicity
Despite the complex technology inside, modern sorters are designed for operational simplicity. The user interface typically consists of a touchscreen display where operators can view real-time images of accepted and rejected products, adjust sensitivity settings, and monitor production statistics like throughput and rejection rates. Setting up a new product profile often involves a "teach-by-showing" process, where the operator physically presents examples of good and bad product to the cameras. The AI then learns the criteria directly, making advanced technology accessible to personnel without specialized programming skills. This focus on usability ensures that the sophisticated intelligence of the system translates into practical, everyday benefits on the factory floor.
System Integration and Precision Ejection Mechanics
Precision Ejection System Specifications
After a defect is identified, the system must physically remove the offending jujube from the product stream with pinpoint accuracy. This is the domain of precision ejection systems, a marvel of mechanical and pneumatic engineering. The ejection command from the AI is synchronized with the physical location of the defective fruit as it travels. Most systems use a series of high-speed, electronically controlled air valves arranged in a row. When a defective jujube is precisely aligned with a valve, it receives a brief, powerful puff of compressed air that knocks it into a reject chute, while good products continue undisturbed into the accept channel.
The coordination required is exceptional. Considering products are moving and the decision time is minuscule, the timing of the air pulse must be accurate to within a fraction of a millisecond. Modern ejectors can fire at rates exceeding 1,000 times per second per valve, with an entire bank managing many thousands of pulses per minute. This high-speed ejection system must be powerful enough to dislodge a defective item but gentle enough not to disrupt the trajectory of adjacent good products. The entire process—from feeding and imaging to analysis and ejection—is a tightly synchronized ballet of mechanics, optics, and computing, all working in unison to achieve separation accuracies that can reach 99.9% or higher.
Synchronizing Detection with Physical Location
The critical link between the digital "seeing" and physical "doing" is precise tracking. As each jujube enters the inspection zone, the system begins tracking its speed and trajectory. High-resolution encoders on rollers or belts provide real-time positional data. When the AI makes a reject decision, it calculates the exact time delay before that specific jujube reaches the ejection array. This spatiotemporal mapping must account for the product's acceleration and any vibration in the system. Advanced tracking algorithms ensure that even if two jujubes are very close together, the ejection pulse targets only the defective one, a capability essential for maintaining high yield and purity in the accept stream.
The Engineering of High-Speed Air Valve Arrays
The ejection valves are specialized components designed for rapid cycling and durability. They are solenoid-operated and open for durations as short as one or two milliseconds, releasing a metered blast of compressed air. The valves are arranged in a dense linear array, often with dozens or even hundreds of valves across the width of the product stream. This configuration allows the system to target defects regardless of their lateral position on the belt or chute. The valves must operate reliably for millions of cycles in a dusty, food-processing environment, making their design and the quality of compressed air (clean and dry) critical factors for uninterrupted operation.
Minimizing Good Product Loss with Precise Targeting
A key performance metric is the "false reject" rate—the percentage of good jujubes incorrectly ejected. Precision targeting directly minimizes this loss. By using narrowly focused air jets and exact timing, the system affects only the targeted defective fruit. Furthermore, software can be configured with a "confidence threshold"; if the AI is only moderately sure something is a defect, it might let it pass to avoid risking good product, whereas clear defects are always ejected. This balance between purity (removing all defects) and yield (keeping all good product) is adjustable by the operator, allowing them to optimize the process for their specific quality and economic goals for each batch.
Integration into Full Processing Lines
A color sorter is not a standalone unit but a component integrated into a larger processing line. Upstream, it may be fed by cleaning, destoning, and sizing equipment. Downstream, accepted and rejected streams are conveyed to different areas for packaging or further handling. Successful integration involves ensuring consistent product flow into the sorter and managing the output streams. Modern sorters provide digital input/output signals to synchronize with other line equipment, such as conveyors and packers. This seamless integration transforms the sorter from a mere inspection device into the central quality control hub of the entire fruits processing operation, enabling a continuous, automated workflow from raw receipt to packaged goods.
Benefits, ROI, and the Future of Jujube Sorting
ROI Drivers & Future Trends in Jujube Sorting
30-50% higher revenue (premium pricing)
Labor cost elimination (manual sorting)
Reduced recall risks (food safety)
Payback: <2 years (medium processors)
RGB + NIR multi-sensor fusion
AI/ML defect recognition
99.9% ejection accuracy
Hyperspectral imaging (chemical mapping)
IoT connectivity & predictive maintenance
Internal quality sorting (sugar/nutrition)
Supply chain data integration
Implementing an automated color and defect sorting solution delivers a compelling return on investment (ROI) through multiple channels. The most direct benefit is the significant upgrade in product quality and consistency, which commands higher market prices and strengthens brand reputation. By automatically removing cracked and discolored fruits, processors can reliably meet the stringent specifications of premium retail and export markets. Furthermore, the automation of a traditionally labor-intensive task leads to substantial and predictable cost savings on manual sorting labor, while also eliminating the variability and fatigue associated with human inspection.
From a safety and compliance perspective, these systems provide an auditable trail of quality control, crucial for meeting increasingly strict food safety regulations and standards like GlobalG.A.P. or HACCP. By removing defective products that could harbor pathogens or spoil quickly, they reduce the risk of recalls and consumer complaints. Looking ahead, the future of jujube sorting is intertwined with broader trends in smart manufacturing and Industry 4.0. Future systems will feature even deeper AI integration, potentially using hyperspectral imaging for more detailed chemical analysis. They will also connect to the Internet of Things (IoT), allowing for remote monitoring, predictive maintenance, and data analytics that optimize entire supply chains based on sorting data, ushering in a new era of intelligence for dried fruit processing.
Quantifying the Return on Investment
The financial justification for a color sorter is built on calculable metrics. A typical analysis compares the capital cost of the machine against the annual value of labor savings, the increased revenue from selling a higher percentage of product at premium grades, and the reduced costs associated with waste disposal and lower recall risks. For many medium to large jujube processors, the payback period can be less than two years. Additionally, the ability to process larger volumes with consistent quality opens doors to new, more profitable market segments that were previously inaccessible due to unreliable manual sorting capacity, providing a strategic growth advantage.
Enhancing Food Safety and Brand Protection
Automated sorting acts as a critical food safety checkpoint. By systematically removing cracked jujubes—potential vectors for contamination—the technology directly mitigates microbiological risks. This proactive measure is far more effective than end-product testing alone. For brands, consistent quality is a key differentiator. Delivering uniform, defect-free jujubes in every package builds consumer trust and loyalty. In an age where social media can amplify any quality failure, investing in technology that virtually eliminates such risks is a powerful brand protection strategy, safeguarding the reputation built over years with a one-time capital investment in reliable color sorter technology.
Trends Towards Hyper-Spectral and Multi-Sensor Fusion
The next generation of sorting technology is moving beyond traditional RGB and NIR towards hyper-spectral imaging. This technology captures image data across hundreds of narrow, contiguous spectral bands, creating a detailed "chemical map" of each item. For jujubes, this could mean simultaneously detecting surface cracks, sugar content, moisture level, and even early signs of oxidation—all in a single scan. This data richness, when processed by powerful AI, will enable sorting based on internal quality attributes like sweetness or nutritional content, allowing processors to create hyper-specialized product grades for niche markets and maximizing the value extracted from every harvest.
Connectivity and Data-Driven Processing Optimization
The future sorter is a connected node in a smart factory. Equipped with industrial IoT capabilities, it will continuously stream performance data and quality metrics to cloud-based platforms. This data can be analyzed to predict maintenance needs before a breakdown occurs, optimize machine settings for different product batches based on historical data, and even provide traceability by linking sorting results back to specific farms or harvest dates. This shift from a standalone machine to an intelligent, data-generating asset empowers processors with unprecedented insights into their operations, enabling continuous improvement and tighter integration with broader food sorting and supply chain management systems.
