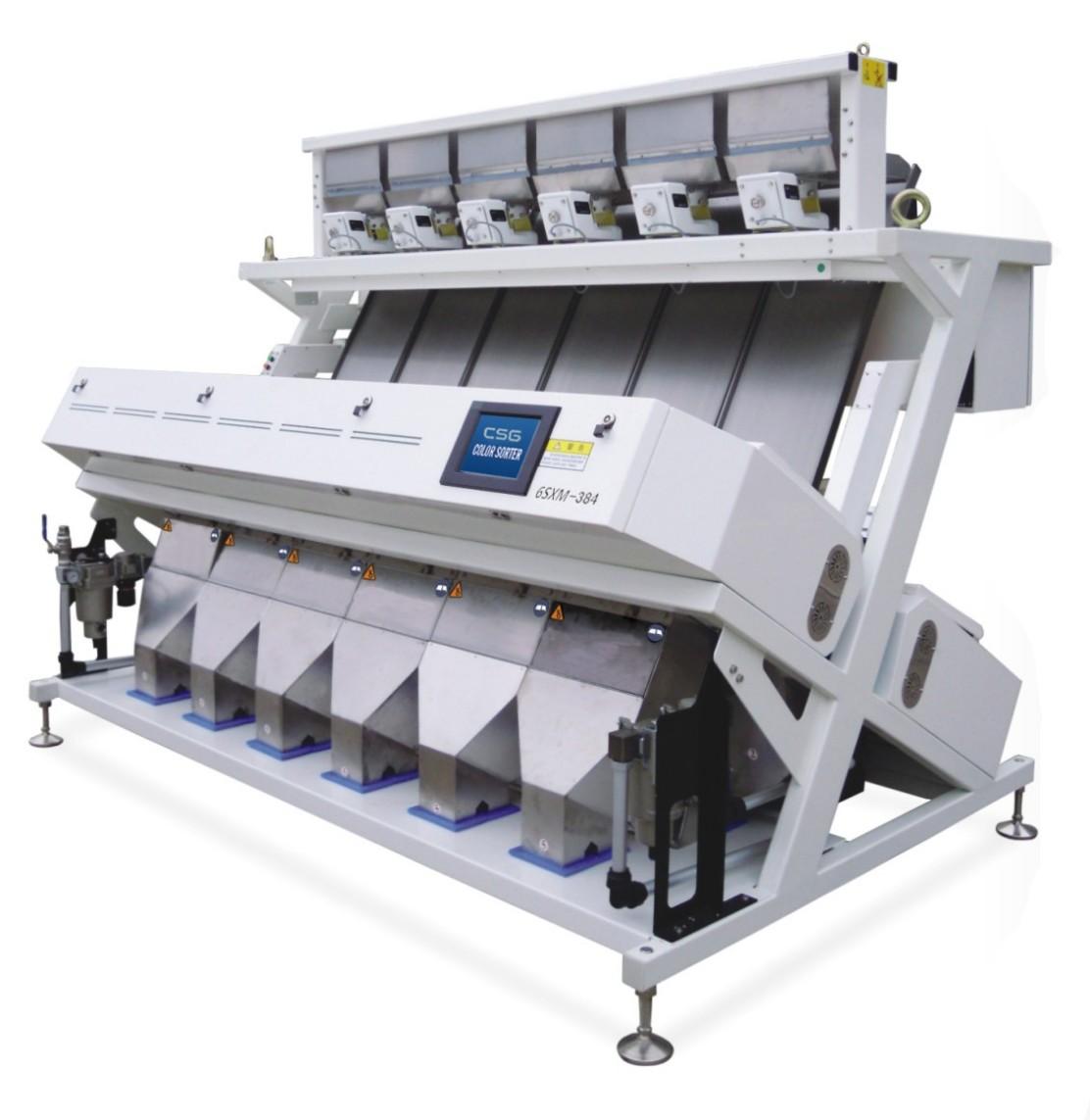

6 Chutes 384 Channels NIR Sorting Machine
The N6 NIR Sorting Machine utilizes Near-Infrared technology combined with high-precision optical sensors to efficiently sort materials based on their molecular composition. With 6 chutes and 384 channels, it delivers high-capacity sorting at 5-8 T/H with 99.99% accuracy. Its rugged design comes with a 5-year warranty, making it ideal for waste recycling and food processing industries.
Model
N6
Chute
6
Channel
384
Specifications
| Model | Sensor | Type | Channels / Width | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| N6 | NIR | Chute | 384 | 3.5 kW | 1250 kg | 2850x1650x2020 |
| Sorting Characteristics | Chemical composition differences; Differentiation of polymer types; Organic vs. inorganic materials | ||
| Core Sensor | NIR spectral sensor / Hyperspectral | ||
| Camera Type | Multispectral camera/HD/Industrial camera | ||
| Light Source | NIR light sources | ||
| Ejector | High Speed Matrix Ejectors | ||
| Typical Applications | Plastic (PET, PE, PP, PVC, PS); Textile fiber | ||
