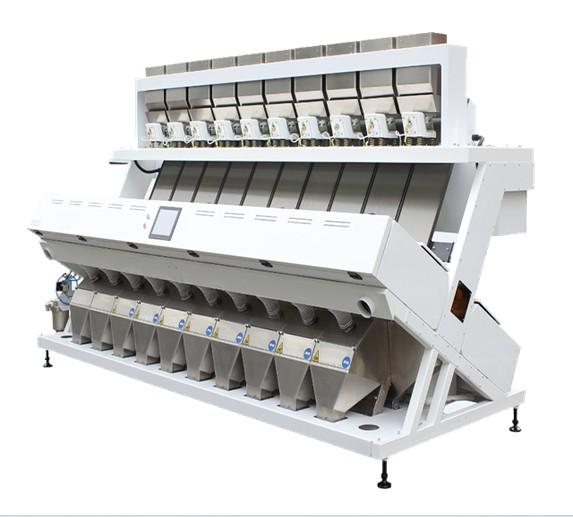

10 Chutes 640 Channels NIR Sorting Machine
The NIR sorting system utilizes near-infrared technology combined with AI to provide highly accurate material classification for various industries. Rugged construction with 5-year warranty, remote monitoring capability, and Japanese CCD sensors ensure reliable performance. The N10 model with 10 chutes and 640 channels delivers industrial-grade sorting capacity up to 20 T/h with 99.99% accuracy.
Model
N10
Chute
10
Channel
640
Specifications
| Model | Sensor | Type | Channels / Width | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| N10 | NIR | Chute | 640 | 5.0 kW | 2000 kg | 4100x1650x2170 |
| Sorting Characteristics | Chemical composition differences; Differentiation of polymer types; Organic vs. inorganic materials | ||
| Core Sensor | NIR spectral sensor / Hyperspectral | ||
| Camera Type | Multispectral camera/HD/Industrial camera | ||
| Light Source | NIR light sources | ||
| Ejector | High Speed Matrix Ejectors | ||
| Typical Applications | Plastic (PET, PE, PP, PVC, PS); Textile fiber | ||
