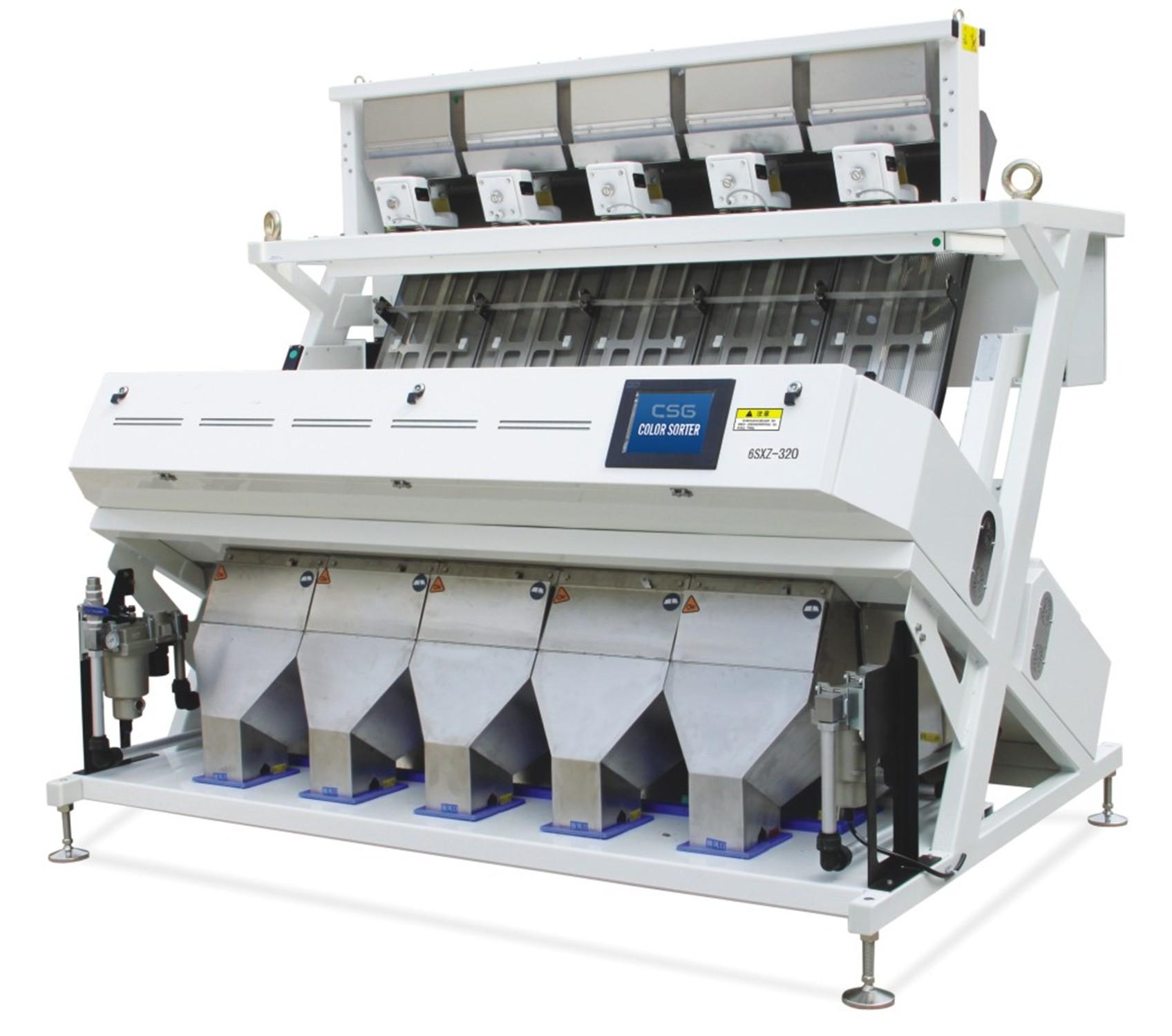

5 Chutes 320 Channels AI NIR Sorting Machine
The AN5 AI-NIR sorting machine combines advanced AI technology with Near-Infrared detection for superior material classification. Featuring 5 chutes and 320 channels, this robust system delivers high-precision sorting with 99.99% accuracy. With remote connectivity and 5-year warranty, it's ideal for food processing, recycling, and mining applications requiring reliable NIR-based sorting solutions.
Model
AN5
Chute
5
Channel
320
Specifications
| Model | Sensor | Type | Channels / Width | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| AN5 | AI+NIR | Chute | 320 | 3.0 kW | 1050 kg | 2500x1650x2020 |
| Sorting Characteristics | Chemical composition differences; Differentiation of polymer types; Organic & inorganic materials; Combines external features (color/shape) with internal material properties | ||
| Core Sensor | High-resolution image sensor + Hyperspectral imaging | ||
| Camera Type | Multispectral camera/HD/Industrial camera | ||
| Light Source | Visible + NIR light sources | ||
| Ejector | High Speed Matrix Ejectors | ||
| Typical Applications | High-purity plastics (PET, PE, PP, PVC, PS); Textile fiber; Packaging waste; MSW sorting | ||
