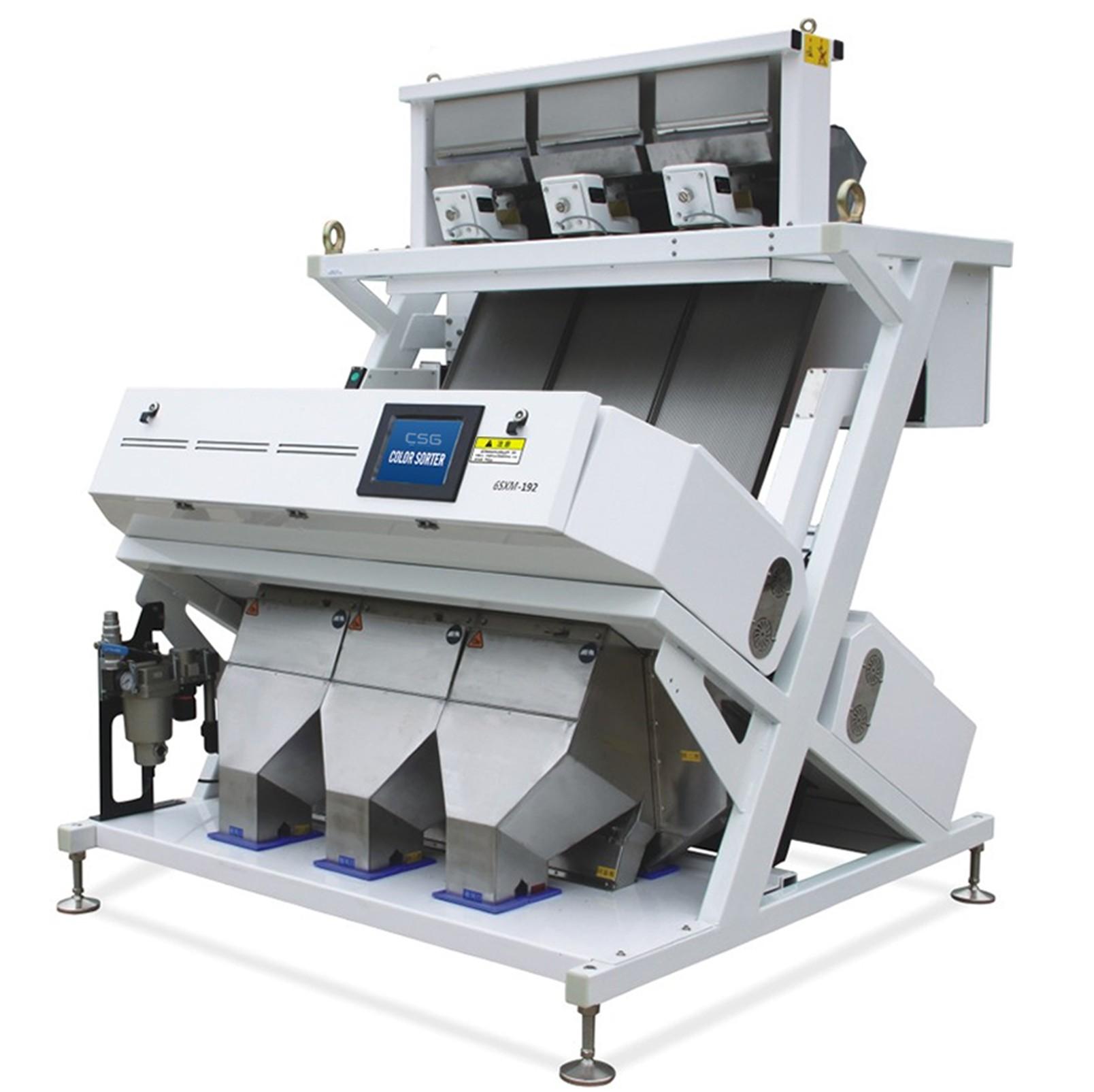

3 Chutes 192 Channels AI NIR Sorting Machine
The AN3 AI-NIR sorting machine combines artificial intelligence with near-infrared technology to deliver superior impurity detection in industrial applications. With 3 chutes and 192 channels, this high-performance optical sorting system offers precise screening at 2-5 T/H capacity. Featuring Japanese CCD sensors and a 10.4" HITACHI touchscreen, the AN3 provides reliable operation with 99.99% accuracy for various sorting applications.
Model
AN3
Chute
3
Channel
192
Specifications
| Model | Sensor | Type | Channels / Width | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| AN3 | AI+NIR | Chute | 192 | 2.0 kW | 550 kg | 1580x1550x1650 |
| Sorting Characteristics | Chemical composition differences; Differentiation of polymer types; Organic & inorganic materials; Combines external features (color/shape) with internal material properties | ||
| Core Sensor | High-resolution image sensor + Hyperspectral imaging | ||
| Camera Type | Multispectral camera/HD/Industrial camera | ||
| Light Source | Visible + NIR light sources | ||
| Ejector | High Speed Matrix Ejectors | ||
| Typical Applications | High-purity plastics (PET, PE, PP, PVC, PS); Textile fiber; Packaging waste; MSW sorting | ||
