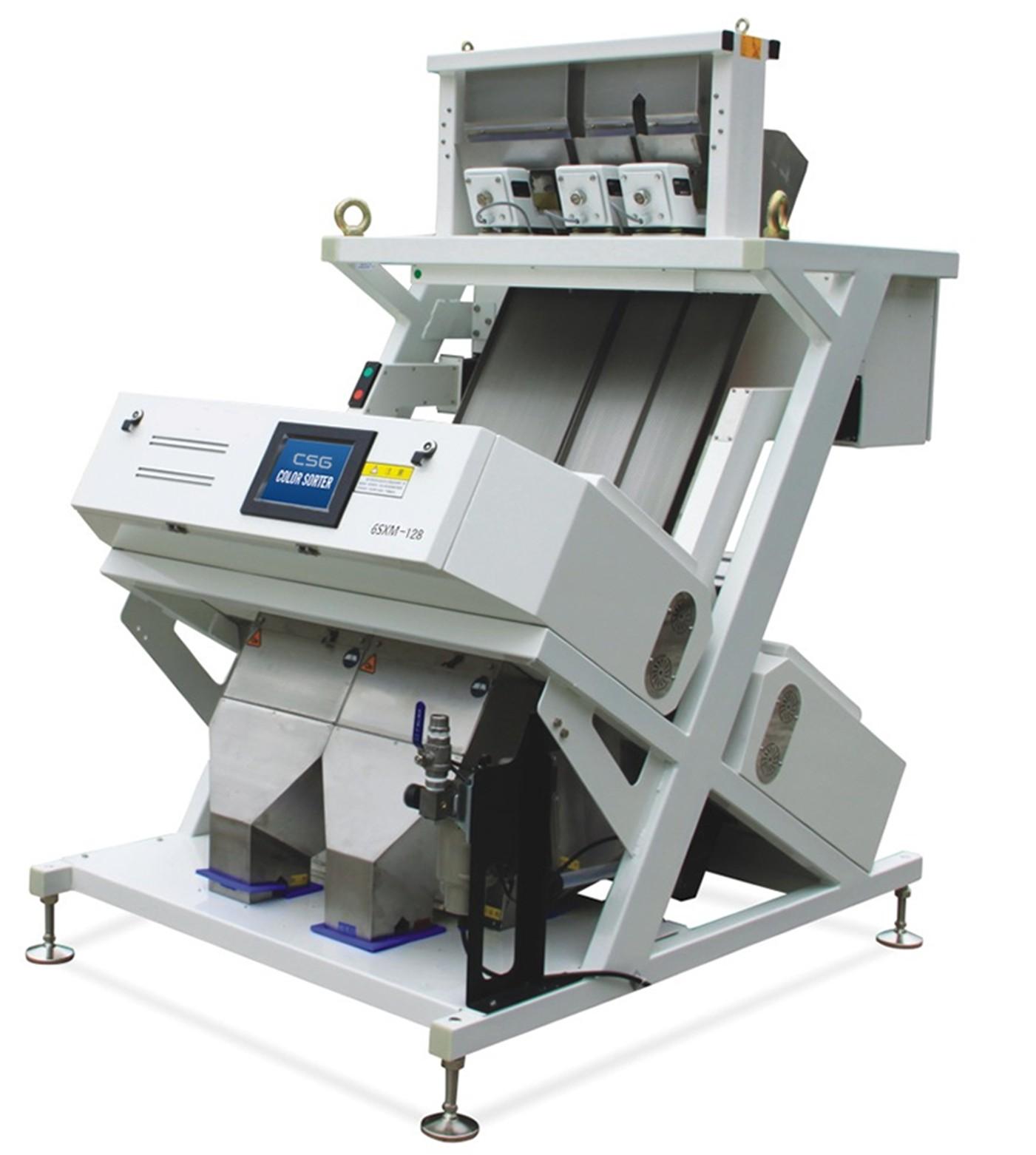

2 Chutes 128 Channels AI NIR Sorting Machine
The AN2 AI NIR Sorting Machine combines AI technology with near-infrared spectroscopy for advanced material classification. With 2 chutes and 128 channels, it delivers high-capacity sorting at 1-3 T/H with 99.99% accuracy. Rugged construction with 5-year warranty, ideal for food processing and recycling industries.
Model
AN2
Chute
2
Channel
128
Specifications
| Model | Sensor | Type | Channels / Width | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| AN2 | AI+NIR | Chute | 128 | 1.2 kW | 450 kg | 1260x1550x1600 |
| Sorting Characteristics | Chemical composition differences; Differentiation of polymer types; Organic & inorganic materials; Combines external features (color/shape) with internal material properties | ||
| Core Sensor | High-resolution image sensor + Hyperspectral imaging | ||
| Camera Type | Multispectral camera/HD/Industrial camera | ||
| Light Source | Visible + NIR light sources | ||
| Ejector | High Speed Matrix Ejectors | ||
| Typical Applications | High-purity plastics (PET, PE, PP, PVC, PS); Textile fiber; Packaging waste; MSW sorting | ||
