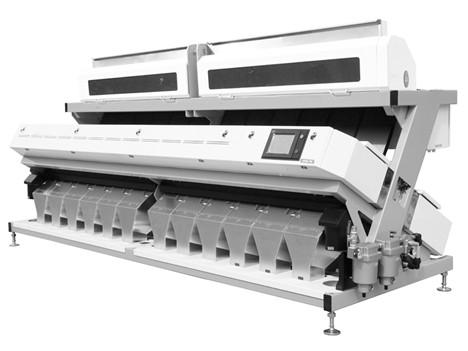

12 Chutes 768 Channels AI NIR Sorting Machine
The advanced AI-NIR sorting system combines artificial intelligence and near-infrared technology to provide superior impurity detection and sorting for various industries. With 12 chutes and 768 channels, the AN12 model delivers high-capacity processing (10-20 T/H) with 99.99% accuracy. Featuring Japanese sensors and durable components with 5-year warranty, this machine offers reliable performance for demanding sorting applications.
Model
AN12
Chute
12
Channel
768
Specifications
| Model | Sensor | Type | Channels / Width | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| AN12 | AI+NIR | Chute | 768 | 5.5 kW | 2800 kg | 5000x1700x2270 |
| Sorting Characteristics | Chemical composition differences; Differentiation of polymer types; Organic & inorganic materials; Combines external features (color/shape) with internal material properties | ||
| Core Sensor | High-resolution image sensor + Hyperspectral imaging | ||
| Camera Type | Multispectral camera/HD/Industrial camera | ||
| Light Source | Visible + NIR light sources | ||
| Ejector | High Speed Matrix Ejectors | ||
| Typical Applications | High-purity plastics (PET, PE, PP, PVC, PS); Textile fiber; Packaging waste; MSW sorting | ||
