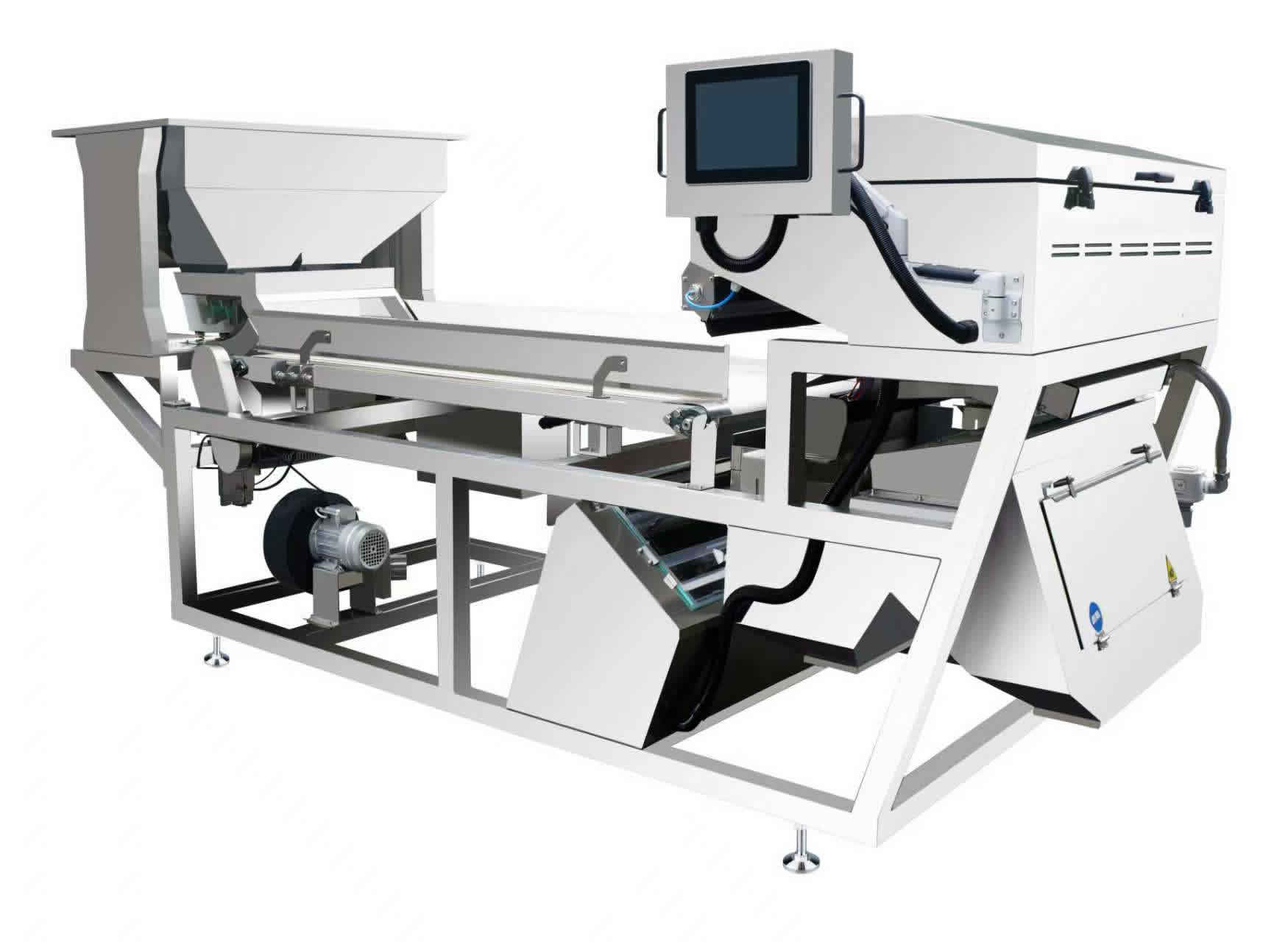

1500mm Belt Width AI NIR Sorting Machine
The AN1500 AI-NIR sorting machine combines AI technology with Near Infrared spectroscopy for multi-functional optical sorting. With 1500mm belt width and 320 channels, it provides reliable impurity detection solutions for various industries. Features include remote debugging and 5-year warranty. Throughput range of 1-3 T/H with 99.99% accuracy.
Model
AN1500J
Belt
Width
1500mm
Channel
320
Specifications
| Model | Sensor | Type | Channels / Width | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| AN1500 | AI+NIR | Belt | 320 | 5.5 kW | 1450 kg | 2750x2150x1600 |
| Sorting Characteristics | Chemical composition differences; Differentiation of polymer types; Organic & inorganic materials; Combines external features (color/shape) with internal material properties | ||
| Core Sensor | High-resolution image sensor + Hyperspectral imaging | ||
| Camera Type | Multispectral camera/HD/Industrial camera | ||
| Light Source | Visible + NIR light sources | ||
| Ejector | High Speed Matrix Ejectors | ||
| Typical Applications | High-purity plastics (PET, PE, PP, PVC, PS); Textile fiber; Packaging waste; MSW sorting | ||
