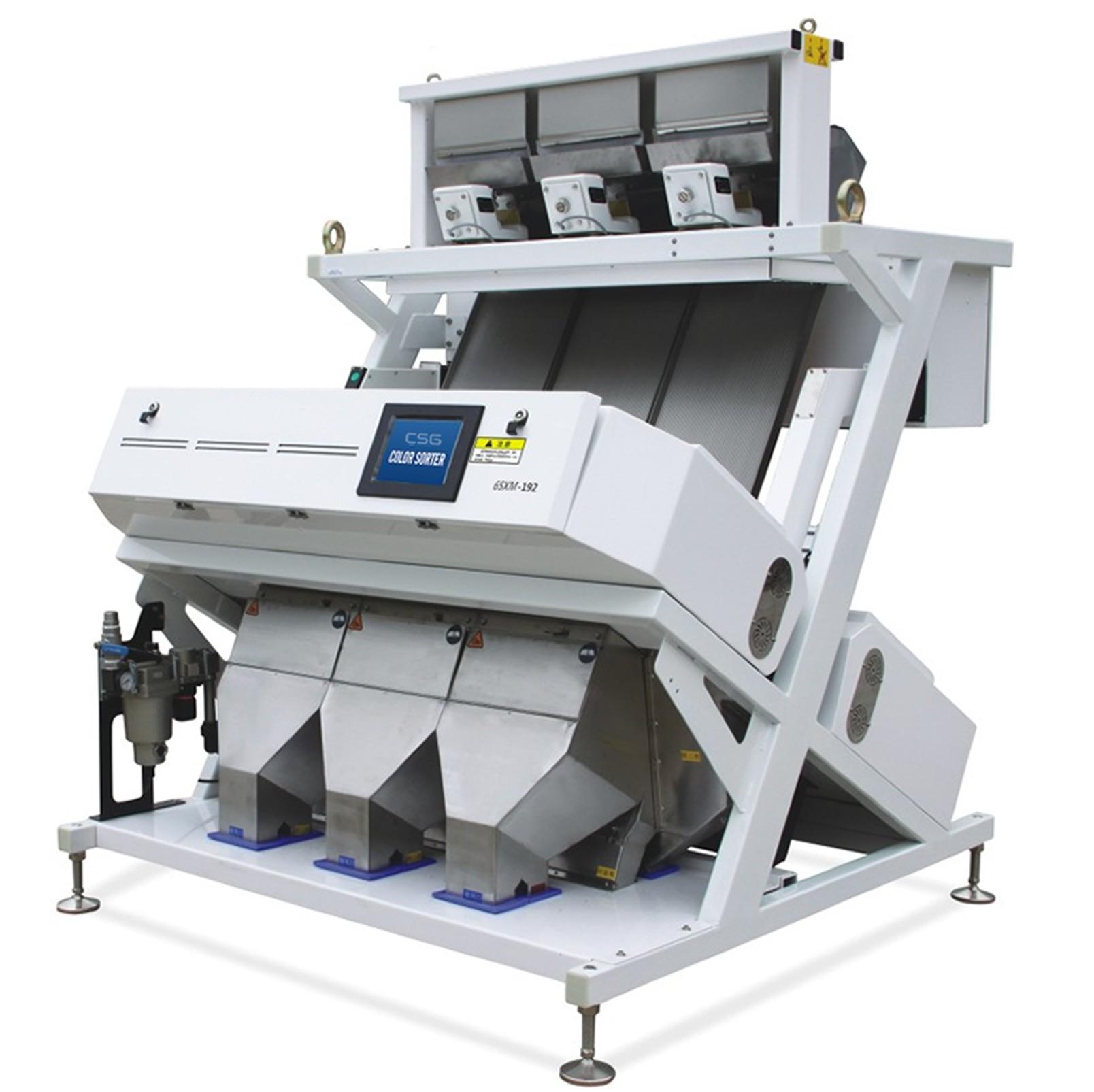

3 Chutes 192 Channels Color Sorting Machine
The C3 Color Sorting Machine utilizes high-resolution CCD optical sensors and AI-driven technology to efficiently remove impurities based on color differences. With 3 chutes and 192 channels, it offers high-capacity sorting for various industries. Rugged construction with a 5-year warranty ensures long-term reliability.
Model
C3
Chute
3
Channel
192
Specifications
| Model | Sensor | Type | Channels | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| C3 | CCD | Chute | 192 | 2.0 kW | 550 kg | 1580x1550x1650 |
| Sorting Mold | Color identification / Size identification / Edge identification / Texture identification / Shape identification |
| Camera Pix | 5400 Pixel |
| Ejector | Super-High Speed Matrix Ejectors |
| Light Source | LED RGB three-primary color model lighting systems |
| CCD Sensor | TOSHIBA Micron-sized superior HD RGB |
| Touch Screen | HITACHI 10.4 inch operation screen system (Remote debugging after connecting to WIFI) |
