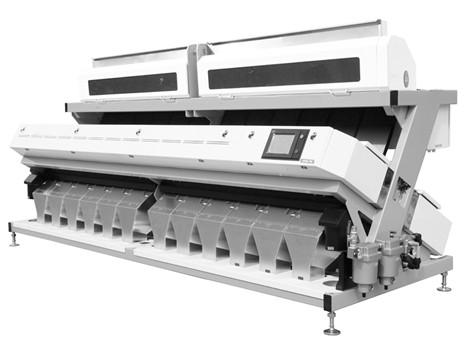

12 Chutes 768 Channels Color Sorting Machine
The high-capacity C12 Color Sorting Machine features 12 chutes and 768 channels for large-scale industrial sorting applications. Using advanced color recognition technology with 5400-pixel resolution, it achieves 99.99% accuracy for food, recycling and mineral processing. With 10-20 T/H capacity and robust construction, this 5-year warranty machine offers reliable high-volume sorting performance.
Model
C12
Chute
12
Channel
768
Specifications
| Model | Sensor | Type | Channels | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| C12 | CCD | Chute | 768 | 5.5 kW | 2800 kg | 5000x1700x2270 |
| Sorting Mold | Color identification / Size identification / Edge identification / Texture identification / Shape identification |
| Camera Pix | 5400 Pixel |
| Ejector | Super-High Speed Matrix Ejectors |
| Light Source | LED RGB three-primary color model lighting systems |
| CCD Sensor | TOSHIBA Micron-sized superior HD RGB |
| Touch Screen | HITACHI 10.4 inch operation screen system (Remote debugging after connecting to WIFI) |
