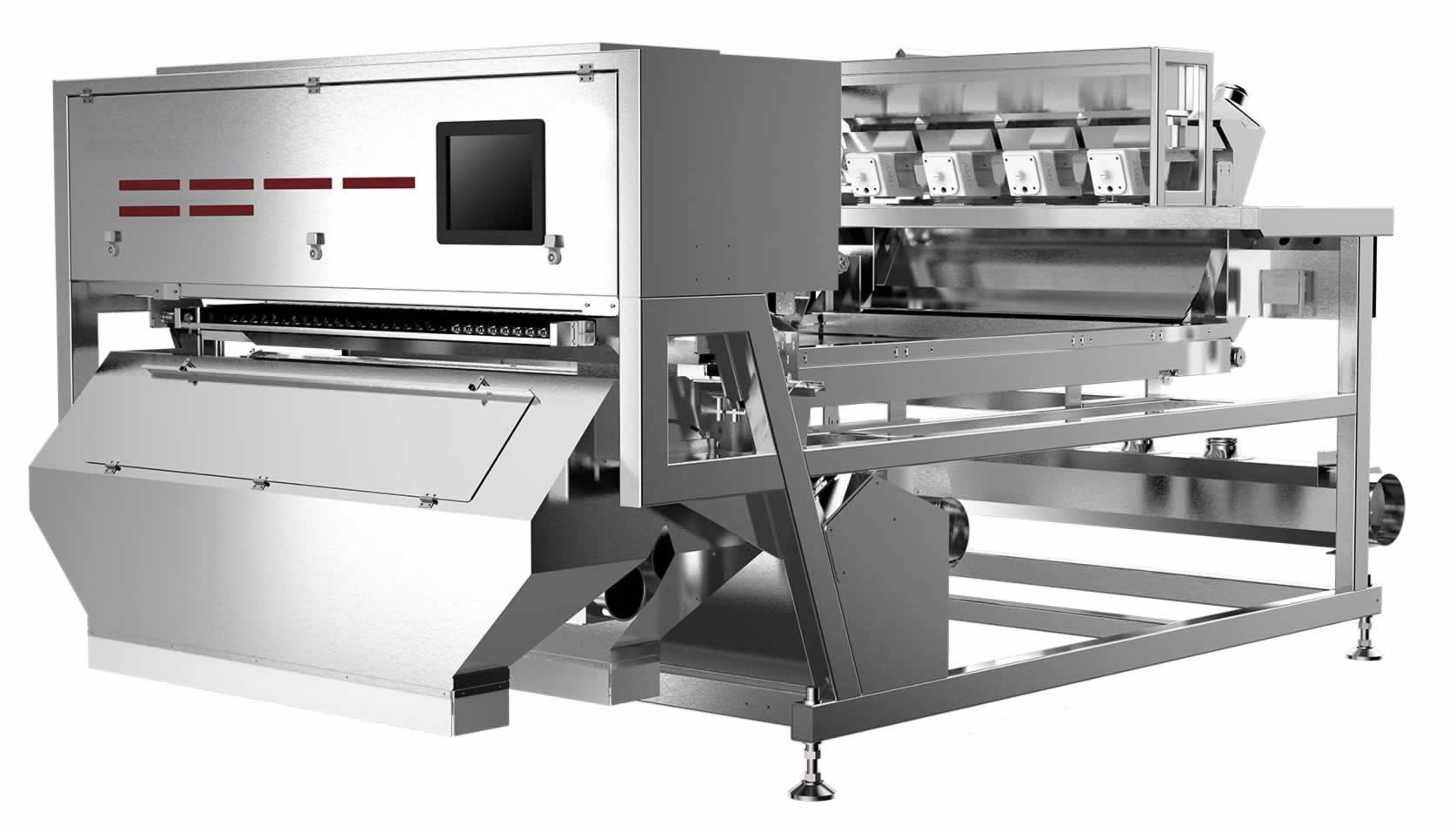

1800mm Belt Width Color Sorting Machine
The C1800 Color Sorting Machine features a wide 1800mm belt width and advanced optical sorting technology, delivering high-capacity impurity removal with 99.99% accuracy. Equipped with Japanese CCD sensors and AI-driven sorting capabilities, this robust machine is ideal for large-scale production in food processing, recycling, and mineral industries. 5-year warranty included.
Model
C1800
Belt Width
1800mm
Channel
512
Specifications
| Model | Sensor | Type | Channels | Power | Weight | Size(mm) |
|---|---|---|---|---|---|---|
| C1800 | CCD | Belt | 384 | 6.0 kW | 1780 kg | 2750x2350x1600 |
| Sorting Mold | Color identification / Size identification / Edge identification / Texture identification / Shape identification |
| Camera Pix | 5400 Pixel |
| Ejector | Super-High Speed Matrix Ejectors |
| Light Source | LED RGB three-primary color model lighting systems |
| CCD Sensor | TOSHIBA Micron-sized superior HD RGB |
| Touch Screen | HITACHI 10.4 inch operation screen system (Remote debugging after connecting to WIFI) |
