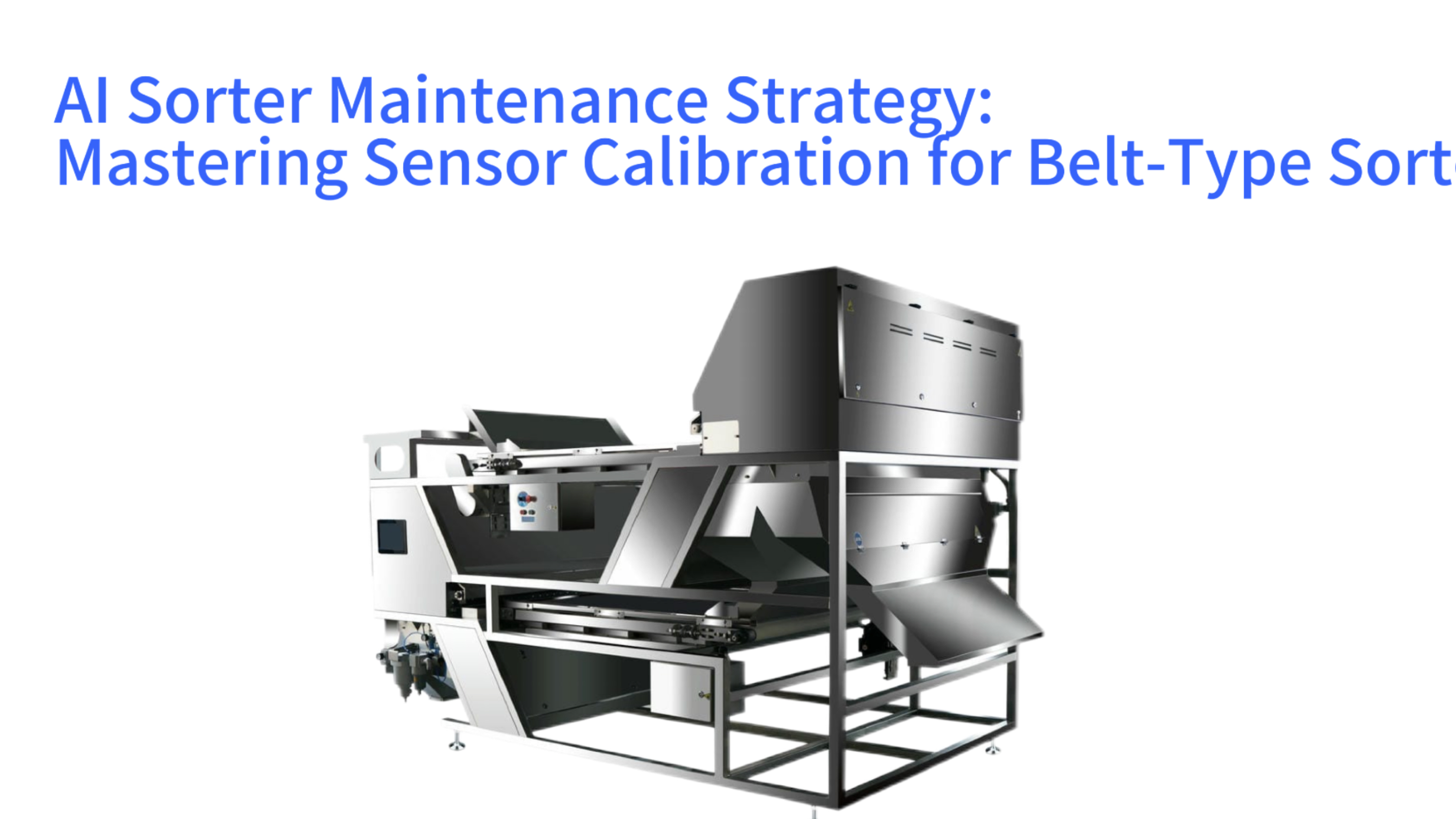

AI Sorter Maintenance Strategy: Mastering Sensor Calibration for Belt-Type Sorters

This guide provides a comprehensive exploration of sensor calibration methods, a foundational pillar in the maintenance strategy for modern AI-powered belt-type sorting machines. Consistent and accurate sensor calibration is what transforms a collection of sophisticated cameras and detectors into a reliable, high-performance sorting system. We will delve into the core principles of why calibration is non-negotiable for precision, examine step-by-step procedures for different sensor technologies like high-resolution cameras and X-ray systems, and discuss how environmental factors and data logging integrate to form a complete, proactive maintenance protocol. Proper calibration ensures that the machine's advanced detection capabilities, from simple color sorting to complex material identification, perform at their peak, delivering on the promise of reduced waste and increased efficiency.

The Foundational Role of Calibration in Sorting Accuracy

Calibration is the process of configuring a sensor to produce accurate and consistent measurements by comparing its output to a known standard. In a belt-type sorter, multiple sensors—optical, spectral, or electromagnetic—work in concert to analyze materials as they travel on a conveyor. If these sensors are misaligned or providing inconsistent data, the entire decision-making process of the AI sorter is compromised. The machine might misinterpret a valuable material as waste or, conversely, fail to reject a defective item, leading directly to financial loss and reduced product quality. Calibration aligns the machine's perception with physical reality.

Beyond basic accuracy, calibration ensures consistency over time. Sensors are subject to drift due to temperature fluctuations, component aging, and vibration from continuous operation. A color camera's perception of "white" or "red" can subtly shift, or an X-ray sensor's baseline density reading can creep. Without regular calibration, this drift goes uncorrected, causing a gradual, often unnoticed decline in sorting performance. A disciplined calibration schedule acts as a periodic reset, locking in the high levels of accuracy promised by the machine's specifications and maintaining the integrity of the sorting process hour after hour, day after day.

Linking Sensor Data to AI Decision-Making

The artificial intelligence at the heart of a modern sorter is only as good as the data it receives. The AI algorithms are trained to recognize patterns—specific color spectra, density profiles, or molecular signatures—associated with target or defect materials. Calibrated sensors provide clean, reliable data streams that allow these algorithms to make decisions with high confidence. Uncalibrated sensors feed noisy, shifted data into the AI, forcing it to make decisions based on flawed information, which dramatically increases error rates and undermines the system's learning capability.

This relationship is particularly critical for machines employing advanced detection techniques that go beyond simple visual inspection. For instance, in an ore sorting machine, the AI must distinguish between valuable copper-bearing rock and worthless gangue based on subtle density differences measured by an X-ray sensor. A miscalibrated sensor could shrink or expand the perceived density range of the target ore, causing the system to either eject good material or retain waste, directly impacting mining profitability and resource recovery.

Consequences of Poor Calibration on Output Quality

The impact of poor calibration is quantifiable and significant. In food sorting, for example, a misaligned optical system might fail to detect discolored or moldy nuts, allowing them to mix with the final product and posing a potential health risk while damaging the brand's reputation. In recycling, a miscalibrated near-infrared (NIR) sensor could incorrectly identify a piece of polyethylene terephthalate (PET) as polyvinyl chloride (PVC), contaminating an entire batch of recycled plastic and drastically reducing its market value.

Operationally, poor calibration leads to increased "false positives" and "false negatives." This forces operators to widen the acceptance parameters to keep the line running, which in turn allows more substandard material to pass through. Alternatively, they may over-eject good material to ensure purity, wasting valuable product. Both scenarios destroy economic efficiency. For high-capacity machines like a 2000mm belt width AI sorting machine, even a small percentage error translates into hundreds of kilograms of mis-sorted material per hour, representing substantial financial loss.

Understanding the Sensor Suite in a Belt-Type Sorter

A typical industrial belt-type sorter is a symphony of different sensing technologies, each chosen for its ability to reveal specific material properties. The most common sensor is the high-resolution line-scan or area-scan camera, which captures detailed visual information about color, shape, size, and surface texture. Complementing this are specialized sensors like Near-Infrared (NIR) spectrometers, which identify materials based on their molecular composition by analyzing how they absorb and reflect infrared light, and X-ray Transmission (XRT) sensors, which differentiate materials based on their atomic density.

Some advanced systems also incorporate laser scanners to create precise 3D profiles of objects, or electromagnetic sensors for detecting metals. The key to their collective success is sensor fusion—the process where the AI combines data from all these sources to make a single, highly informed decision about each item. Calibration must therefore be holistic; it is not enough to calibrate just the camera. Each sensor in the array must be individually tuned and then synchronized with the others so that the data they produce about a single object is temporally and spatially aligned, creating a coherent digital profile for the AI to analyze.

High-Resolution Optical Cameras and Lighting

The optical system, comprising cameras and their associated lighting, is the primary sensor for many sorting tasks. Calibration here involves multiple facets. Geometric calibration ensures that the camera's field of view is correctly mapped to the physical coordinates on the conveyor belt. This is crucial for the high-speed ejection system, which must know exactly where to fire an air nozzle to dislodge a targeted particle. A misalignment of even a few millimeters can cause the jet to miss completely.

Radiometric or color calibration is equally important. This process uses standardized color charts and grayscale tiles to define a true "white point," "black point," and color values across the spectrum. It compensates for gradual changes in lighting intensity (as LEDs age) and ensures that the color "red" or the shade "brown" is consistently interpreted the same way today as it was yesterday. This is vital for applications like sorting almonds by grade or detecting skin defects on fruits, where decisions are based on subtle hue and brightness variations.

X-ray Transmission (XRT) and Density-Based Sensors

XRT sensors work by measuring the attenuation of X-rays as they pass through a material. Denser materials absorb more radiation, appearing darker on the sensor, while less dense materials appear lighter. Calibration of an XRT system involves establishing a baseline for "empty belt" and then using calibration blocks made of materials with known, certified densities. These blocks, often made of plastics like polyethylene or acrylic, and metals like aluminum, create a reference density scale.

The system's software uses these references to translate the raw X-ray absorption signal into an accurate density value for every particle on the belt. For a machine tasked with diamond recovery from ore, precise density calibration is paramount, as the density difference between diamond and common silicate rocks is a key distinguishing feature. Drift in the X-ray generator or the detector can alter this critical scale, making calibration a mandatory procedure to maintain the economic viability of the operation.

Near-Infrared (NIR) and Hyperspectral Sensors

NIR and hyperspectral sensors identify materials by their chemical "fingerprint." Different polymers, organic materials, and minerals absorb specific wavelengths of infrared light in unique patterns. Calibrating these spectral sensors is a two-part process. First, a wavelength calibration is performed using rare-earth oxide standards or other materials with sharp, known spectral peaks to ensure the sensor is accurately reporting the wavelength of the light it detects.

Second, and more critical for sorting, is the chemometric model calibration. This involves presenting the sensor with numerous pure, known samples of the target materials (e.g., PET, HDPE, wood, cardboard) and "teaching" the system their characteristic spectral signatures. The AI builds a library from this data. Regular recalibration with these same reference samples checks for sensor drift and ensures the library remains valid, which is essential for achieving high purity in mixed plastic sorting streams where visual identification is impossible.

Environmental and Operational Factors Affecting Calibration

The operating environment of an industrial sorter is rarely static, and many external factors can degrade sensor calibration. Temperature is a primary concern. Electronic components within cameras and detectors can exhibit performance shifts with temperature changes, a phenomenon known as thermal drift. A sorting facility might be cool at startup but become significantly warmer during hours of operation, or it may have seasonal temperature swings. Modern sensors often have internal temperature compensation, but significant ambient changes still necessitate periodic calibration checks.

Mechanical vibration and shock are other critical factors. Belt-type sorters, especially those processing heavy materials like iron ore or construction waste, generate substantial vibration. Over time, this can loosen camera mounts, shift optical alignment, or affect the delicate internal components of spectral sensors. Dust and particulate matter, ubiquitous in many sorting plants, can coat camera lenses, lighting covers, and sensor windows, gradually attenuating light signals and introducing noise into measurements. These environmental challenges make a regular calibration schedule not just a best practice, but an operational necessity.

Impact of Material Feed Consistency

The consistency of the material feed on the conveyor belt has a direct, though indirect, effect on calibration stability. An uneven or overly thick layer of material can create shadows, cause particles to overlap, and prevent sensors from getting a clear, individual reading of each item. While this is primarily a material feeding issue, it forces the sorting algorithms to work with poor data, which can mask underlying calibration problems or cause the system to perform sub-optimally even with perfectly calibrated sensors.

Furthermore, changes in the material stream itself can be mistaken for sensor drift. If a new batch of ore has a slightly different base color or a recycling stream begins to include a new type of plastic polymer, the system's performance may drop. A well-calibrated sensor will accurately report these new properties, and the issue becomes one of updating the AI's recognition library. However, an operator might incorrectly assume the sensor is out of calibration. Distinguishing between a change in material and a change in sensor performance is a key skill, often resolved by testing with known calibration samples.

Scheduled vs. Condition-Based Calibration Triggers

Traditional maintenance relies on scheduled calibration at fixed intervals—daily, weekly, or monthly. This is a simple, reliable method that ensures checks are performed regularly. The interval is typically determined by the sensor manufacturer's recommendations, the severity of the operating environment, and the criticality of the sorting task. For instance, a machine sorting precious metals might require daily camera calibration, while one processing bulk aggregates might be on a weekly schedule.

A more advanced approach is condition-based calibration. This strategy uses the machine's own performance data and internal diagnostics as triggers. The system might monitor the signal-to-noise ratio from a camera, the stability of a baseline reading from an X-ray detector, or the classification confidence scores from the AI. When these metrics drift outside predefined optimal bands, the system alerts operators that calibration is due. This predictive method maximizes uptime by avoiding unnecessary calibrations while ensuring they are performed precisely when needed, representing a smarter integration of maintenance and operation.

Step-by-Step Calibration Procedures and Best Practices

Executing a proper calibration requires a systematic approach, specific tools, and a clear understanding of the desired outcome. The first step is always consultation of the machine's official manual, as procedures can vary significantly between manufacturers and sensor types. General preparation involves ensuring the machine is in a ready state, often in a special maintenance or calibration mode, and that the conveyor belt is clean and empty. The necessary calibration tools—standardized color tiles, density blocks, or spectral reference pads—must be clean, undamaged, and certified for use.

The physical process usually involves placing the calibration standards on the stationary or slowly moving belt and allowing the sensor system to scan them. The software then guides the operator through the process, comparing the sensor's readings to the known values of the standards and making automatic adjustments to internal parameters. For geometric calibration, a patterned target is often used, and the software calculates corrections for lens distortion and spatial alignment. The entire procedure is a dialogue between the physical world of the calibration standard and the digital world of the sensor's software, with the goal of making the two agree perfectly.

Optical System Calibration: Color, Geometry, and Lighting

Calibrating the optical system is a multi-stage process. It often begins with a geometric calibration using a high-contrast grid or circle target. The software analyzes the image of this target, identifying distortions caused by the camera lens and misalignments between the camera's pixel grid and the belt's plane of motion. It then creates a correction matrix to map any pixel coordinate to an exact physical location on the belt, which is fundamental for accurate ejection.

Next comes color and lighting calibration. A standardized color chart, containing patches of known color and grayscale values, is placed on the belt. The system captures an image under the sorter's own lighting. The software analyzes the brightness and color values of each patch as seen by the camera and adjusts its internal color lookup tables to match the known standards. This compensates for any aging or color shift in the LED lighting arrays and ensures consistent color perception. For a belt-type AI color sorting machine, this process is the bedrock of its ability to make reliable color-based decisions.

Advanced Sensor Calibration: NIR and XRT Protocols

Calibrating an NIR sensor typically starts with a dark and reference scan to set baselines. A dark scan is taken with the light source off to measure sensor noise. A reference scan is taken using a highly reflective white ceramic tile to define the maximum signal. Following this, wavelength calibration is performed using a material like a rare-earth oxide wafer that has sharp, predictable spectral peaks. The software aligns its internal wavelength scale to match these known peaks.

For XRT systems, safety is paramount due to radiation. Calibration is performed with the X-ray shields closed, using proprietary calibration modules that are often built into the machine. These modules contain wedges or steps of materials like aluminum and plastic. As the belt indexes the module through the beam, the sensor records the response for each known density. The software uses this data to construct a density calibration curve. This process ensures that a density reading of, for example, 2.8 g/cm³ consistently corresponds to the actual density of a specific mineral in an AI X-ray sorting machine application.

Verification and Documentation of Calibration Results

Calibration is not complete without verification. After the automated process finishes, the best practice is to run a known test sample through the sorter. This sample should contain a mix of materials the machine is trained to accept and reject. The operator then verifies that the machine makes the correct decisions on these test items, confirming that the calibration has translated into improved operational performance. The ejection accuracy and purity of the sorted fractions from this test run are key performance indicators.

Documenting every calibration event is crucial for long-term maintenance strategy. The log should include the date, time, operator, the specific sensors calibrated, the values of key parameters before and after, and the results of the post-calibration verification test. This historical record helps identify patterns, such as a particular sensor requiring more frequent calibration, which could indicate an underlying hardware issue. It also provides auditable proof of quality control processes, which is important in industries like food and pharmaceuticals.

Integrating Calibration into a Holistic AI Sorter Maintenance Plan

Sensor calibration should not exist in a vacuum; it is one critical component of a comprehensive maintenance plan for an AI sorter. This plan encompasses mechanical upkeep (like belt tracking and air nozzle cleaning), software updates, and AI model retraining. Calibration interacts directly with all these areas. For instance, a mechanical realignment of a camera mount must be followed by a full geometric recalibration. Similarly, a major software update that changes how sensor data is processed may necessitate a fresh calibration to ensure compatibility and optimal performance.

The synergy between calibration and AI model health is particularly strong. The AI's deep learning models are trained on data collected from calibrated sensors. If the sensors later drift out of calibration, the new data they produce no longer matches the patterns the AI learned, leading to performance degradation. Conversely, if the AI model is updated or retrained with new examples, verifying sensor calibration beforehand ensures the new training data is accurate. A holistic maintenance schedule synchronizes calibration tasks with model review sessions and hardware checks, creating a virtuous cycle of reliability.

Data Logging and Trend Analysis for Predictive Maintenance

Modern AI sorters generate vast amounts of operational data. By logging calibration parameters and sensor health metrics over time, operators can move from reactive to predictive maintenance. Sophisticated software can analyze trends in this data, such as a gradual increase in the gain required by a camera to achieve its standard white level or a slow shift in the baseline reading of an X-ray detector. These trends can predict when a sensor will fall outside its acceptable performance window before it actually impacts sorting results.

This data-driven approach allows for predictive calibration scheduling. Instead of calibrating every Monday morning regardless of need, the system can alert the maintenance team: "Camera 3 is predicted to exceed color tolerance in 42 operating hours." This enables calibration to be planned for the next convenient maintenance window, maximizing productive uptime while guaranteeing performance. This level of integration represents the future of intelligent industrial maintenance, where data from the machine itself guides its own care.

Training Personnel and Establishing Standard Procedures

The effectiveness of any calibration strategy ultimately depends on the personnel executing it. Comprehensive training is essential. Technicians must understand not just the button-pressing sequence, but the underlying principles of why calibration is done, how to properly handle sensitive calibration standards, and how to interpret the results and error messages from the calibration software. They should be able to distinguish between a successful calibration and one that has failed due to a hardware problem.

Establishing clear, written Standard Operating Procedures (SOPs) for each type of calibration is a best practice. These SOPs ensure consistency and quality, regardless of which team member performs the task. They should include safety protocols, a list of required tools and standards, step-by-step instructions, verification steps, and documentation requirements. This formalizes the calibration process, embeds it into the facility's quality management system, and ensures that the sophisticated sensor-based sorting technology continues to operate as designed.

Future Trends in Sensor Calibration and Maintenance

The future of sensor calibration for AI sorters points towards greater automation, intelligence, and integration. We are already seeing the emergence of self-calibrating sensors equipped with internal reference standards. These sensors can perform a micro-calibration cycle during brief production pauses or even in real-time, continuously adjusting their parameters to compensate for drift without any human intervention. This technology promises to virtually eliminate planned downtime for calibration and maintain peak accuracy consistently.

Another significant trend is the use of artificial intelligence not just for sorting, but for managing the sorting machine's health. AI-powered maintenance platforms can analyze the streams of calibration data, performance metrics, and error logs to diagnose issues. They might identify that a specific camera's calibration is drifting faster than others due to a failing cooling fan, or that changes in NIR classification scores are linked to seasonal humidity fluctuations. This shifts the role of maintenance staff from performing routine tasks to responding to intelligently diagnosed issues and managing increasingly autonomous systems.

Automated and Closed-Loop Calibration Systems

The concept of closed-loop calibration involves building a small, automated subsystem that can introduce a physical calibration standard into the sensor's field of view on command. For example, a robotic arm or a pneumatic slider could place a color tile or a spectral reference on the belt at a scheduled time or when triggered by the condition-monitoring AI. The sensors would scan the standard, the software would perform the adjustment, and the standard would be retracted—all without stopping production or requiring an operator.

This level of automation is particularly attractive for large-scale, continuous operations like coal sorting plants or high-volume municipal recycling facilities, where maximizing uptime is a primary economic driver. It ensures that calibration happens with perfect regularity and removes the potential for human error in the procedure, leading to more consistent and reliable sorting performance over the long term.

Integration with Digital Twins and Remote Support

Digital twin technology, which creates a virtual, real-time replica of a physical sorting line, will revolutionize calibration and maintenance. In a digital twin environment, engineers can simulate the effects of sensor drift, test different calibration parameters, and observe the predicted impact on sorting performance—all without touching the physical machine. This allows for ultra-fine tuning and predictive troubleshooting.

Furthermore, calibration procedures are becoming increasingly supported by remote experts. Using augmented reality (AR) glasses, an on-site technician can be guided through the calibration steps by a specialist located anywhere in the world. The remote expert can see what the technician sees, overlay digital instructions onto the physical machine, and verify each step in real-time. This democratizes expertise, ensures procedures are followed correctly, and reduces the need for costly on-site service visits, making advanced maintenance accessible to a wider range of operations.
